HAC-204

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

AMBIENT SENSOR

AMBIENT SENSOR

Removal and Installation

INFOID:0000000009466448

REMOVAL

1. From under the vehicle, disconnect the harness connector from the ambient sensor.

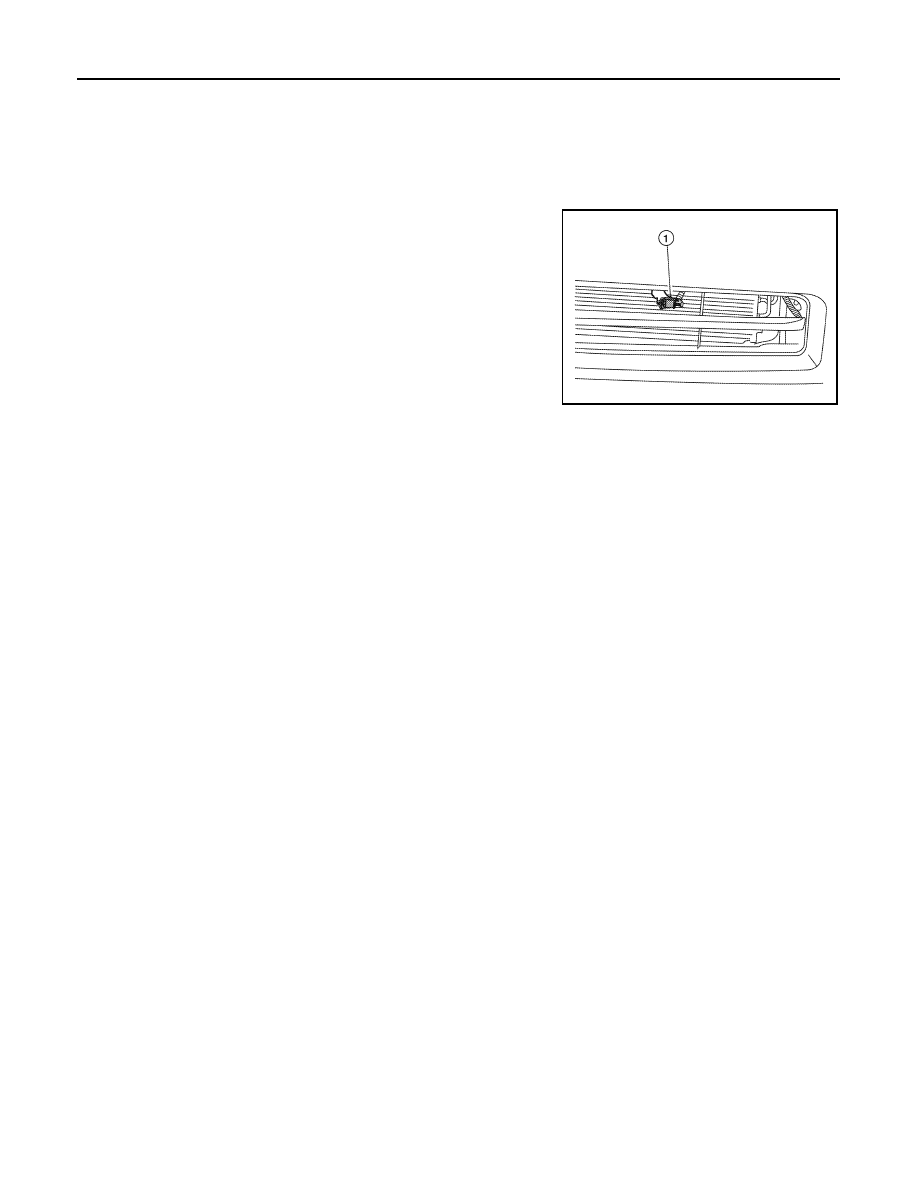

2. Release the ambient sensor clip and remove the ambient sen-

sor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0314ZZ

IN-VEHICLE SENSOR

HAC-205

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

HAC

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000009466449

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-19, "Removal and Installation"

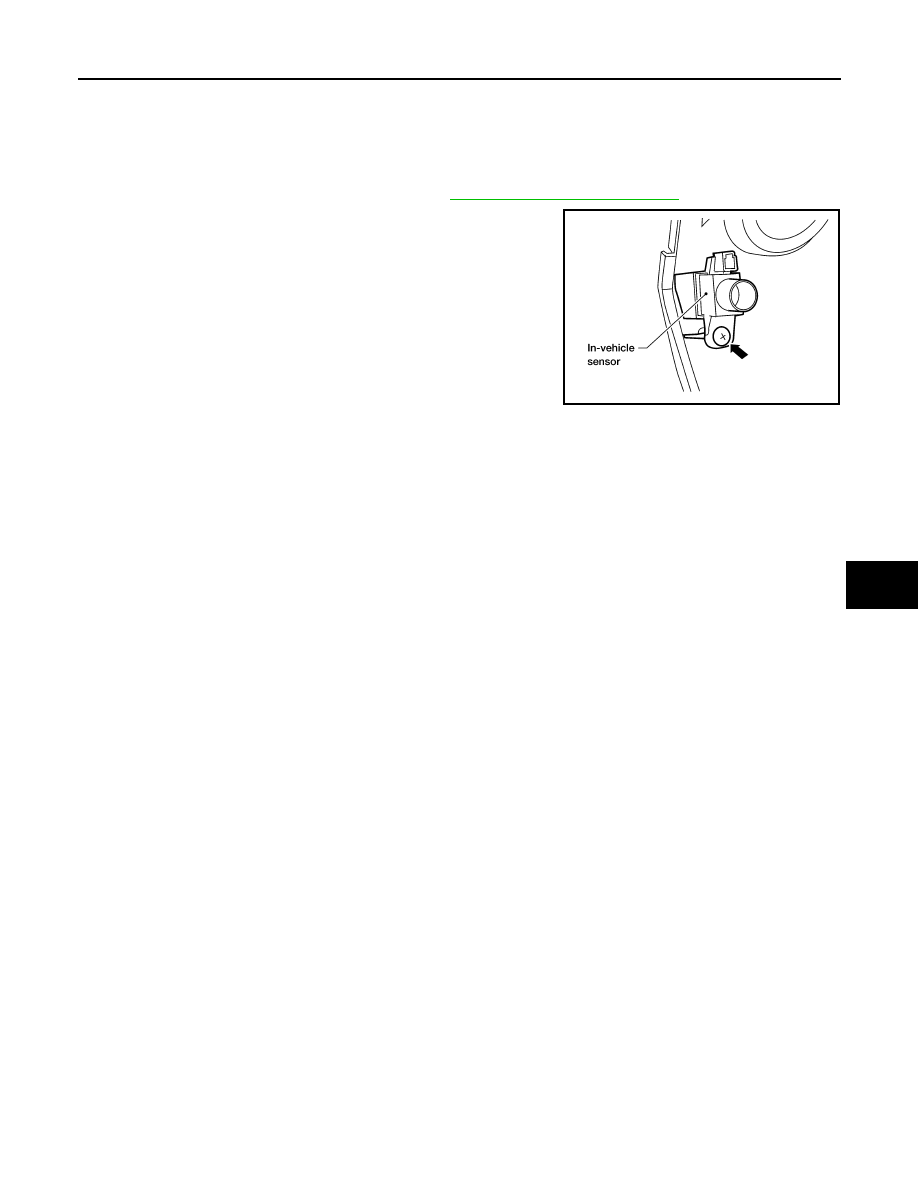

2. Remove the in-vehicle sensor screw and the in-vehicle sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the aspirator hose is securely attached to the in-vehicle sensor when installing the

instrument lower panel LH.

WJIA0098E

HAC-206

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000009466450

REMOVAL

1. Remove the front LH speaker grille from the instrument panel. Refer to

IP-10, "Exploded View"

2. Disconnect the harness connector from the sunload sensor.

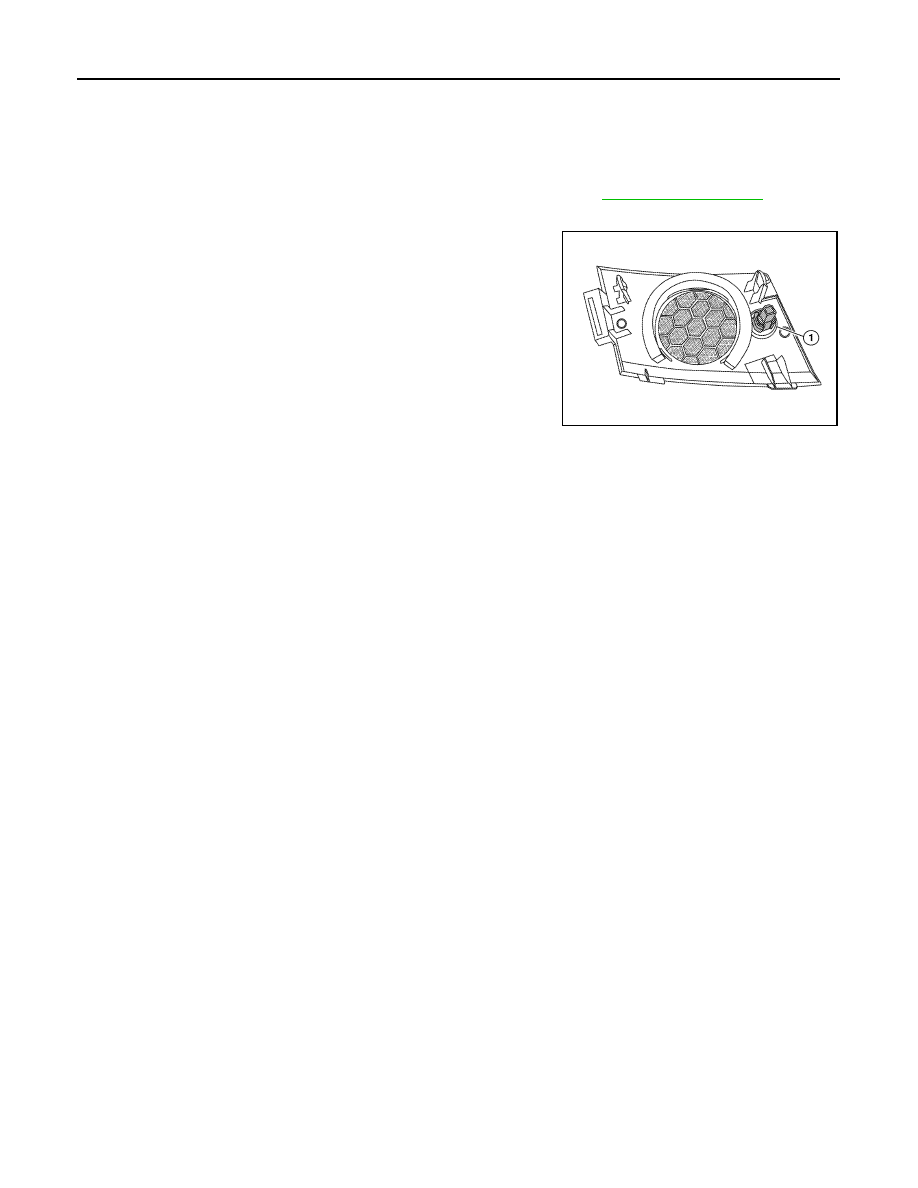

3. Release the sunload sensor tabs and remove the sunload sen-

sor (1) from the front LH speaker grille.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0345ZZ

INTAKE SENSOR

HAC-207

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

HAC

INTAKE SENSOR

Removal and Installation

INFOID:0000000009466451

REMOVAL

1. Remove the evaporator (2). Refer to

HA-48, "EVAPORATOR :

Removal and Installation"

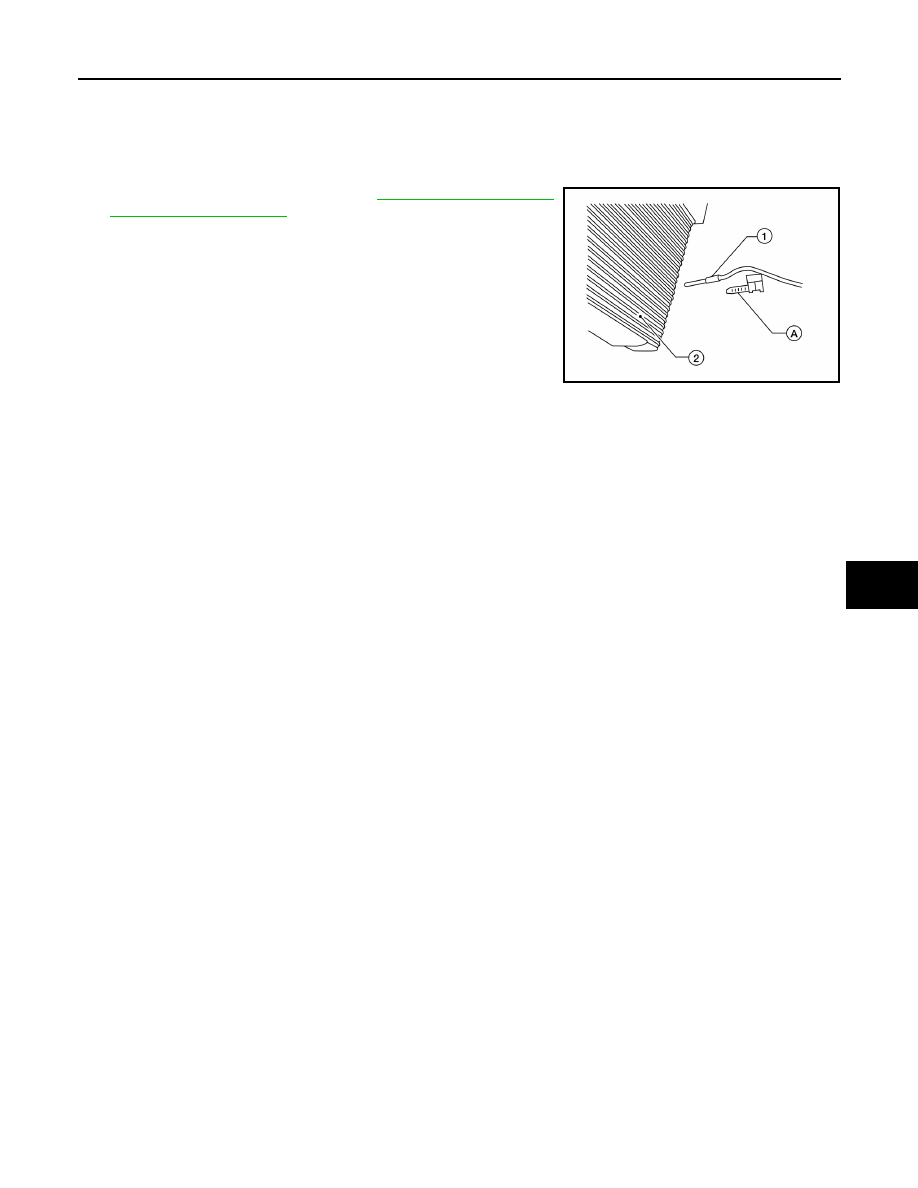

2. Release the intake sensor clip (A), then remove the intake sen-

sor (1).

CAUTION:

• Mark the mounting position of the intake sensor.

• Do not damage the evaporator core.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1602ZZ
