1. Set front wheels in a straight-ahead position. Do not depress brake pedal.
2. Place an iron bar or similar tool between upper link and steering knuckle.
3. Measure axial end play by prying it up and down. Refer to

FSU-18, "Ball Joint"

CAUTION:

Be careful not to damage ball joint boot. Do not damage the installation position by applying

excessive force.

SHOCK ABSORBER

Check for oil leakage, damage and replace if malfunction is detected.

WHEEL ALIGNMENT

Description

Measure wheel alignment under unladen conditions.

NOTE:

"Unladen conditions" means that fuel, engine coolant, and lubricant are full. Spare tire, jack, hand tools and

mats are in designated positions.

General Information and Recommendations

• A four-wheel thrust alignment should be performed.

- This type of alignment is recommended for any NISSAN vehicle.

- The four-wheel "thrust" process helps ensure that the vehicle is properly aligned and the steering wheel is

centered.

- The alignment rack itself should be capable of accepting any NISSAN vehicle.

- The rack should be checked to ensure that it is level.

• Make sure the machine is properly calibrated.

- Your alignment equipment should be regularly calibrated in order to give correct information.

- Check with the manufacturer of your specific equipment for their recommended Service/Calibration Sched-

ule.

Preliminary Check

Check the following:
1. Tires for improper air pressure and wear.
2. Road wheels for runout. Refer to

WT-65, "Road Wheel"

3. Wheel bearing axial end play. Refer to

FAX-26, "Wheel Bearing"

4. Transverse link ball joint axial end play. Refer to

FSU-10, "Removal and Installation"

5. Shock absorber operation.
6. Each mounting part of axle and suspension for looseness and deformation.
7. Each of suspension member, shock absorber, upper link and transverse link for cracks, deformation and

other damage.

8. Vehicle height (posture).

Alignment Process

IMPORTANT:

Use only the alignment specifications listed in this Service Manual.

• When displaying the alignment settings, many alignment machines use "indicators" Do not use these indi-

cators.: (Green/red, plus or minus, Go/No Go).

- The alignment specifications programmed into your machine that operate these indicators may not be cor-

rect.

FRONT SUSPENSION ASSEMBLY

FSU-7

< PERIODIC MAINTENANCE >

FSU

- This may result in an ERROR.

• Most camera-type alignment machines are equipped with both "Rolling Compensation" method and optional

"Jacking Compensation" method to "compensate" the alignment targets or head units. "Rolling Compensa-

tion" is the preferred method.

- If using the "Rolling Compensation" method, after installing the alignment targets or head units, push or pull

on the rear wheel to move the vehicle. Do not push or pull on the vehicle body.

- If using the "Jacking Compensation" method, after installing the alignment targets or head units, raise the

vehicle and rotate the wheels 1/2 turn both ways.

NOTE:

Do not use the "Rolling Compensation" method if you are using sensor-type alignment equipment.

- Follow all instructions for the alignment machine you are using for more information.

ADJUSTMENT

Camber, Caster and Kingpin Inclination Angles

CAUTION:

Camber, caster, kingpin inclination angles cannot be adjusted.

FSU-8

< REMOVAL AND INSTALLATION >

FRONT COIL SPRING AND STRUT

REMOVAL AND INSTALLATION

FRONT COIL SPRING AND STRUT

Removal and Installation

INFOID:0000000009466794

REMOVAL

1. Remove front wheel and tire using power tool. Refer to

WT-60, "Adjustment"

2. Remove the wheel sensor harness from the front coil spring and strut. Refer to

BRC-102, "Removal and

Installation - Front Wheel Sensor"

3. Remove the brake hose lock plate.
4. Remove the lower strut bolts and nuts. Refer to

FSU-13, "Exploded View"

5. Remove the front side cover from the strut tower.
6. Remove the upper strut bolts and remove the front coil spring and strut from vehicle.

INSPECTION AFTER REMOVAL

Check the front coil spring and strut for any oil leakage or other damage. Replace as necessary.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the lower strut nuts.

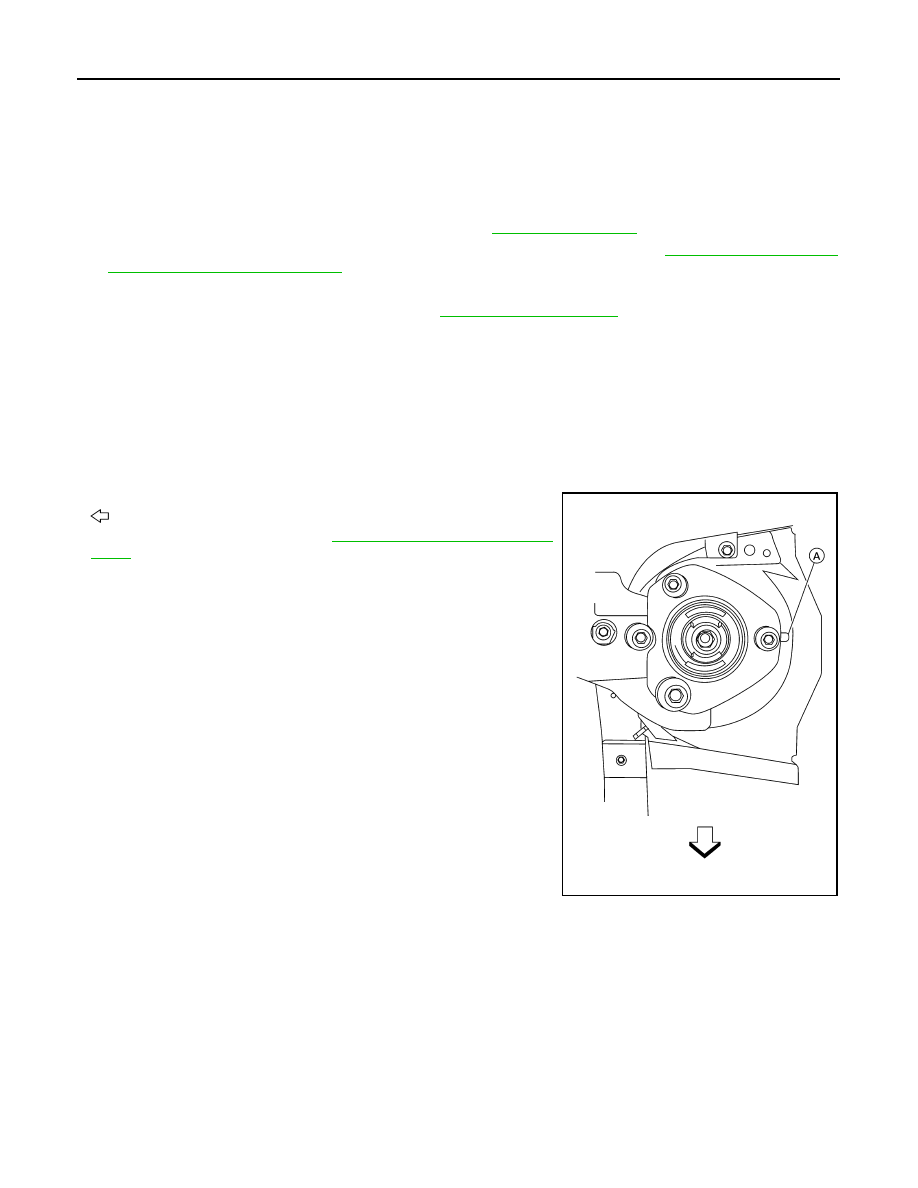

• Be sure tab (A) on strut mount insulator is positioned as shown.

: Front

• Check wheel alignment. Refer to

FSU-6, "Inspection and Adjust-

ment"

Disposal

INFOID:0000000009466795

1. Set the front suspension strut horizontally with the piston rod fully extended.

ALEIA0060ZZ
