FRONT COMBINATION LAMP

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

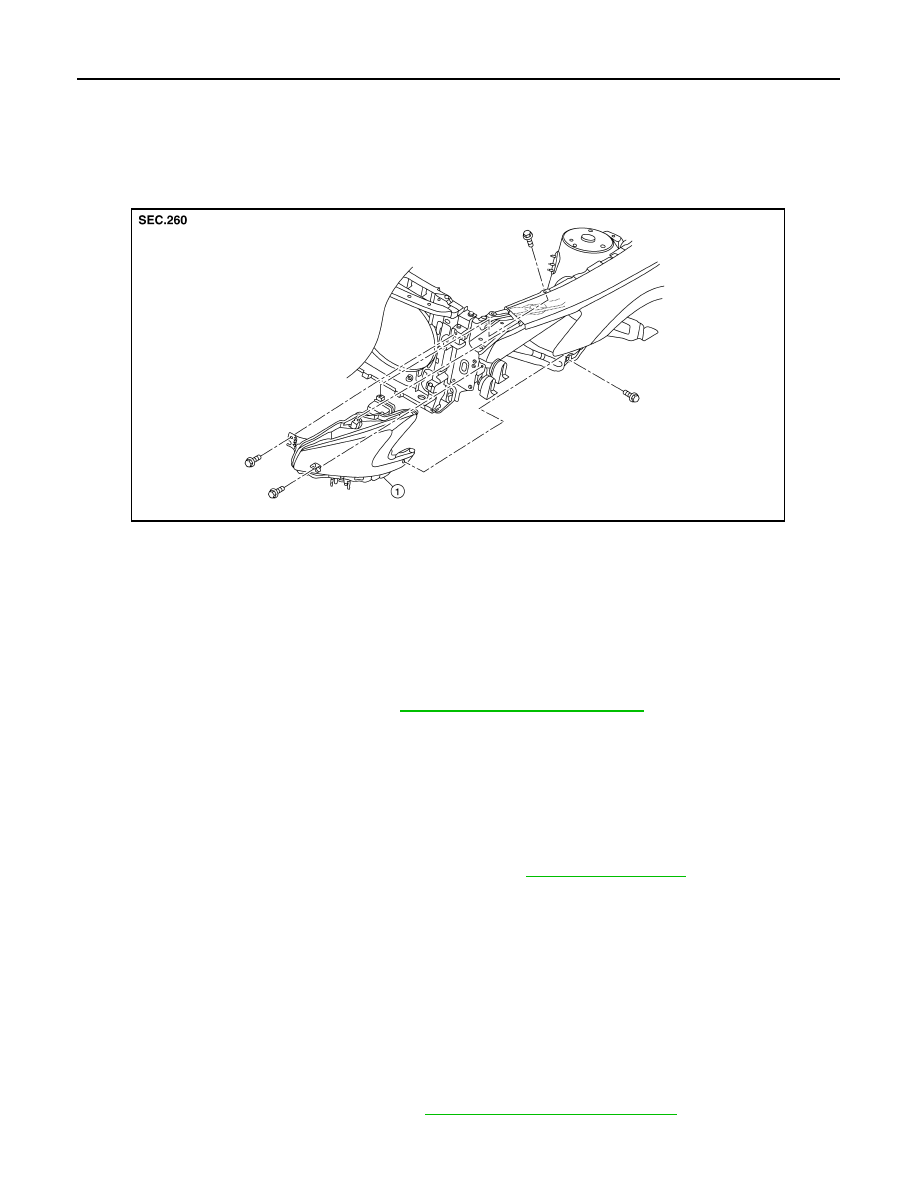

Exploded View

INFOID:0000000009465275

Removal and Installation

INFOID:0000000009465276

FRONT COMBINATION LAMP

Removal

CAUTION:

Disconnect the battery negative terminal or remove the fuse.
1. Remove the front bumper fascia. Refer to

EXT-16, "Removal and Installation"

.

2. Remove the front combination lamp bolts.
3. Remove the harness clips from the front combination lamp assembly.
4. Pull out the front combination lamp toward the front of vehicle.
5. Disconnect the harness connectors from the front combination lamp and remove.

Installation

Installation is in the reverse order of removal.

NOTE:

After installation, perform headlamp aiming adjustment. Refer to

EXL-150, "Description"

.

XENON BULB

Removal

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off, a burn injury may result.

CAUTION:

• After installing the bulb, install the plastic cover and the bulb socket securely for watertightness.

• Do not touch bulb glass with your hand or keep other grease and oily substances away from bulb

glass.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

• Disconnect the battery negative terminal or remove the fuse.
1. Remove the front combination lamp. Refer to

EXL-154, "Removal and Installation"

.

1.

Front combination lamp

ALLIA0897ZZ

FRONT COMBINATION LAMP

EXL-155

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2. Remove screw from cover and rotate the plastic cover counterclockwise and unlock from the front combi-

nation lamp.

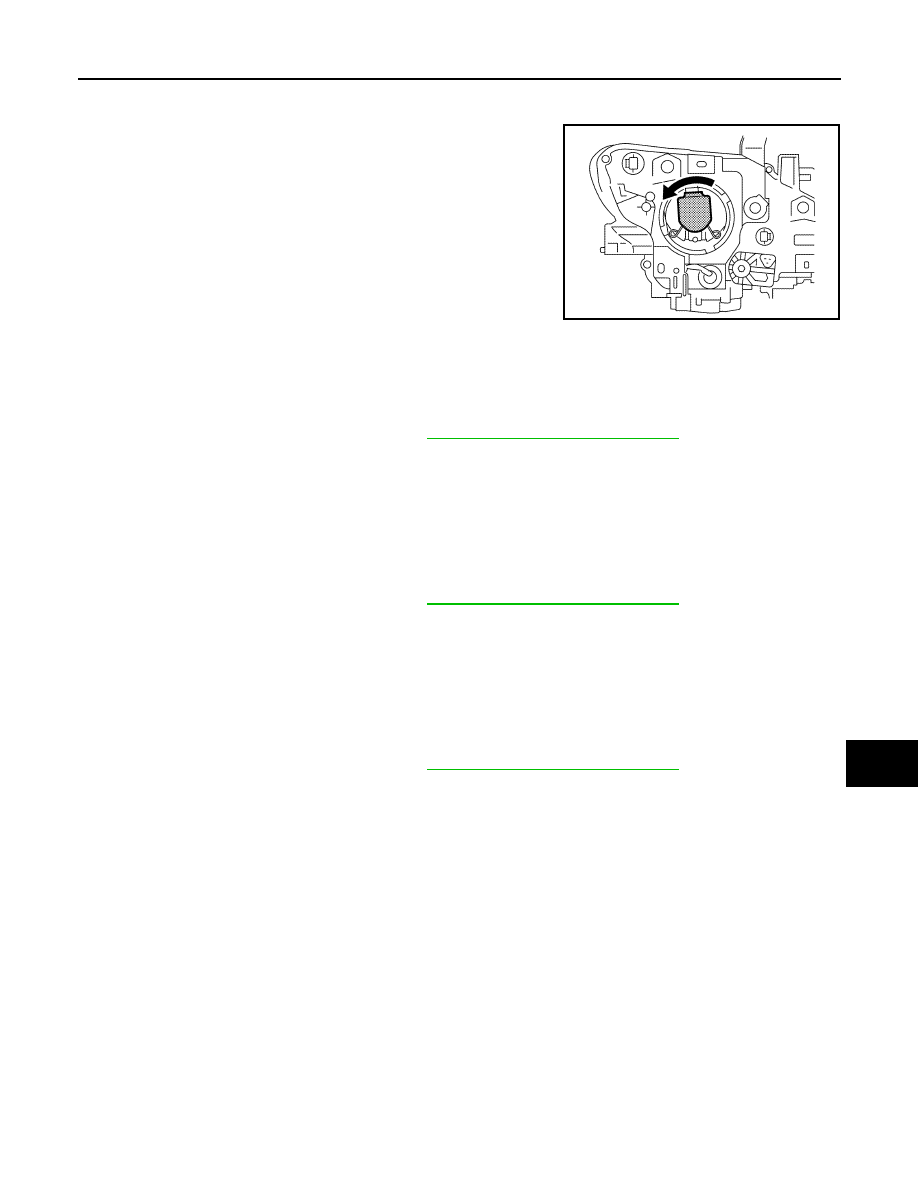

3. Rotate the xenon bulb socket counterclockwise and unlock from

the front combination lamp.

4. Unlock the retaining spring and remove the xenon bulb from the

front combination lamp.

CAUTION:

Do not break the xenon bulb ceramic tube when replacing

the bulb.

Installation

Installation is in the reverse order of removal.

HALOGEN BULB (HIGH BEAM)

Removal

1. Remove the front combination lamp. Refer to

EXL-154, "Removal and Installation"

.

2. Rotate the bulb socket counterclockwise and unlock from the front combination lamp.
3. Remove the bulb from the bulb socket.

Installation

Installation is in the reverse order of removal.

FRONT TURN SIGNAL LAMP BULB

Removal

1. Remove the front combination lamp. Refer to

EXL-154, "Removal and Installation"

.

2. Rotate the bulb socket counterclockwise and unlock from the front combination lamp.
3. Remove the bulb from the bulb socket.

Installation

Installation is in the reverse order of removal.

FRONT SIDE MARKER LAMP BULB

Removal

1. Remove the front combination lamp. Refer to

EXL-154, "Removal and Installation"

.

2. Rotate the bulb socket counterclockwise and unlock from the front combination lamp.
3. Remove the bulb from the bulb socket.

Installation

Installation is in the reverse order of removal.

JPLIA0814ZZ

EXL-156

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT FOG LAMP

FRONT FOG LAMP

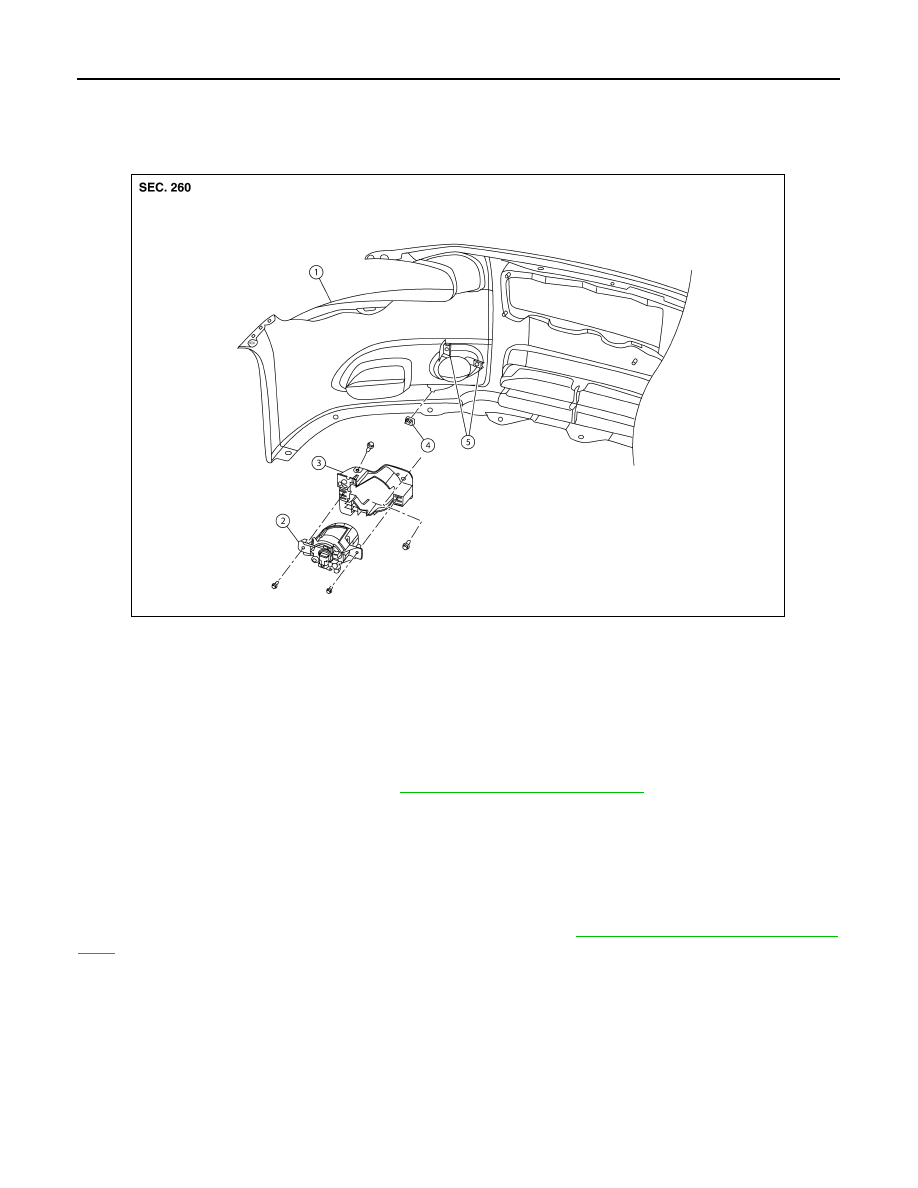

Exploded View

INFOID:0000000009465277

Removal and Installation

INFOID:0000000009465278

FRONT FOG LAMP

Removal

1. Remove the front bumper fascia. Refer to

EXT-16, "Removal and Installation"

.

2. Disconnect the harness connector from the fog lamp.
3. Remove the front fog lamp bolts.
4. Remove the front fog lamp.

Installation

Installation is in the reverse order of removal.

NOTE:

After installation, perform front fog lamp aiming adjustment. Refer to

EXL-153, "Aiming Adjustment Proce-

dure"

.

FRONT FOG LAMP BULB

Removal

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off, a burn injury may result.

CAUTION:

• Do not touch bulb glass with your hand or keep other grease and oily substances away from bulb

glass.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

1.

Front bumper fascia

2.

Front fog lamp

3.

Front fog lamp bracket

4.

Clip

5.

Spring nuts

ALLIA0899ZZ

FRONT FOG LAMP

EXL-157

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1. Remove the front fender protector. Refer to

EXT-24, "Removal and Installation"

.

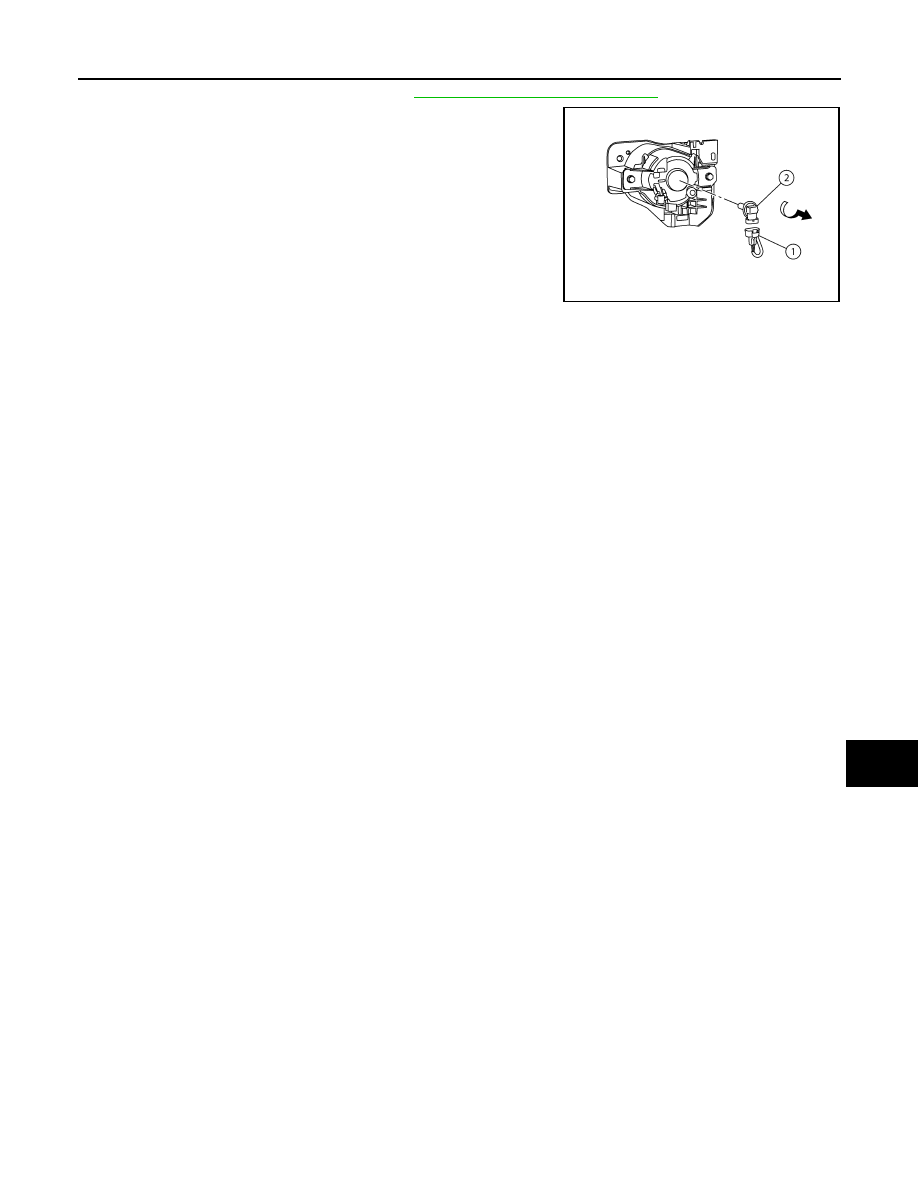

2. Disconnect the harness connector (1) from the fog lamp.
3. Rotate the bulb (2) counterclockwise and unlock it.

Installation

Installation is in the reverse order of removal.
