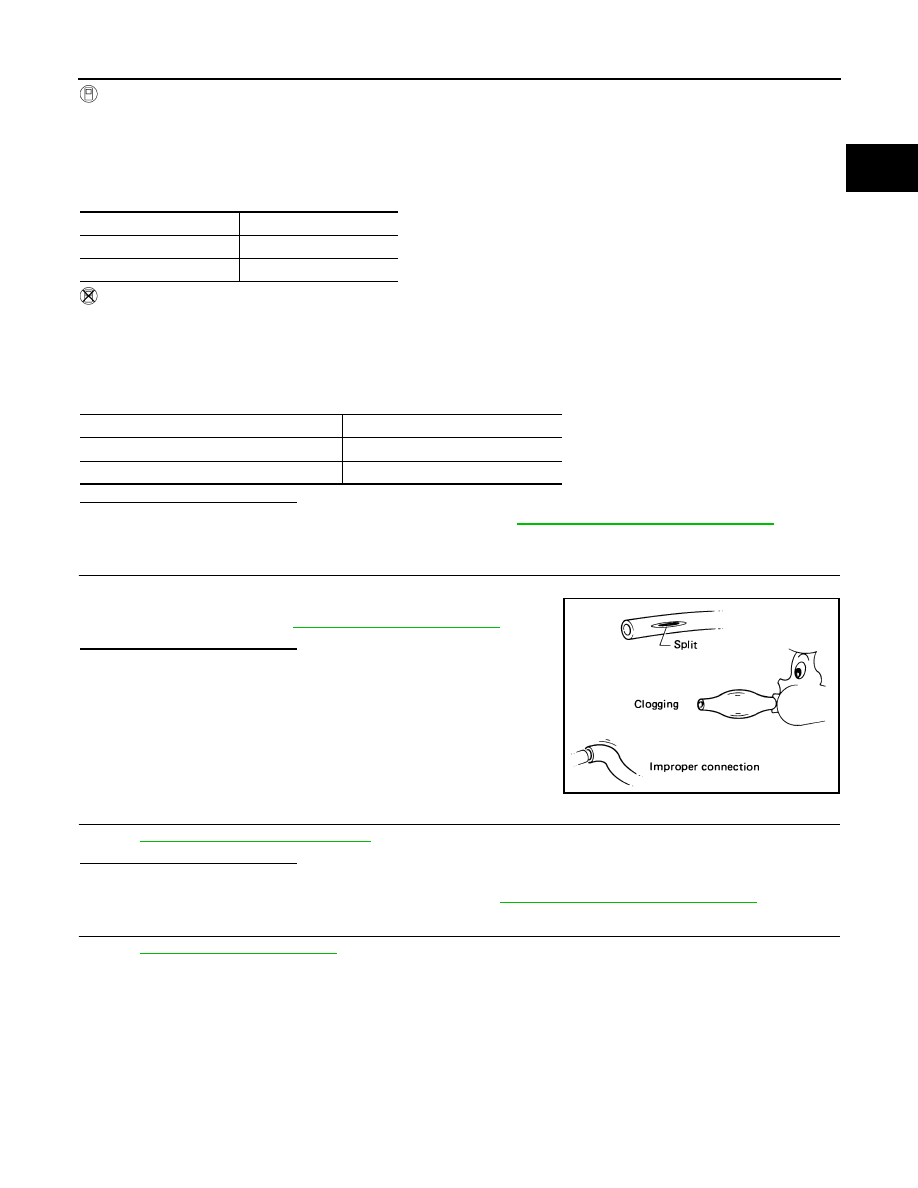

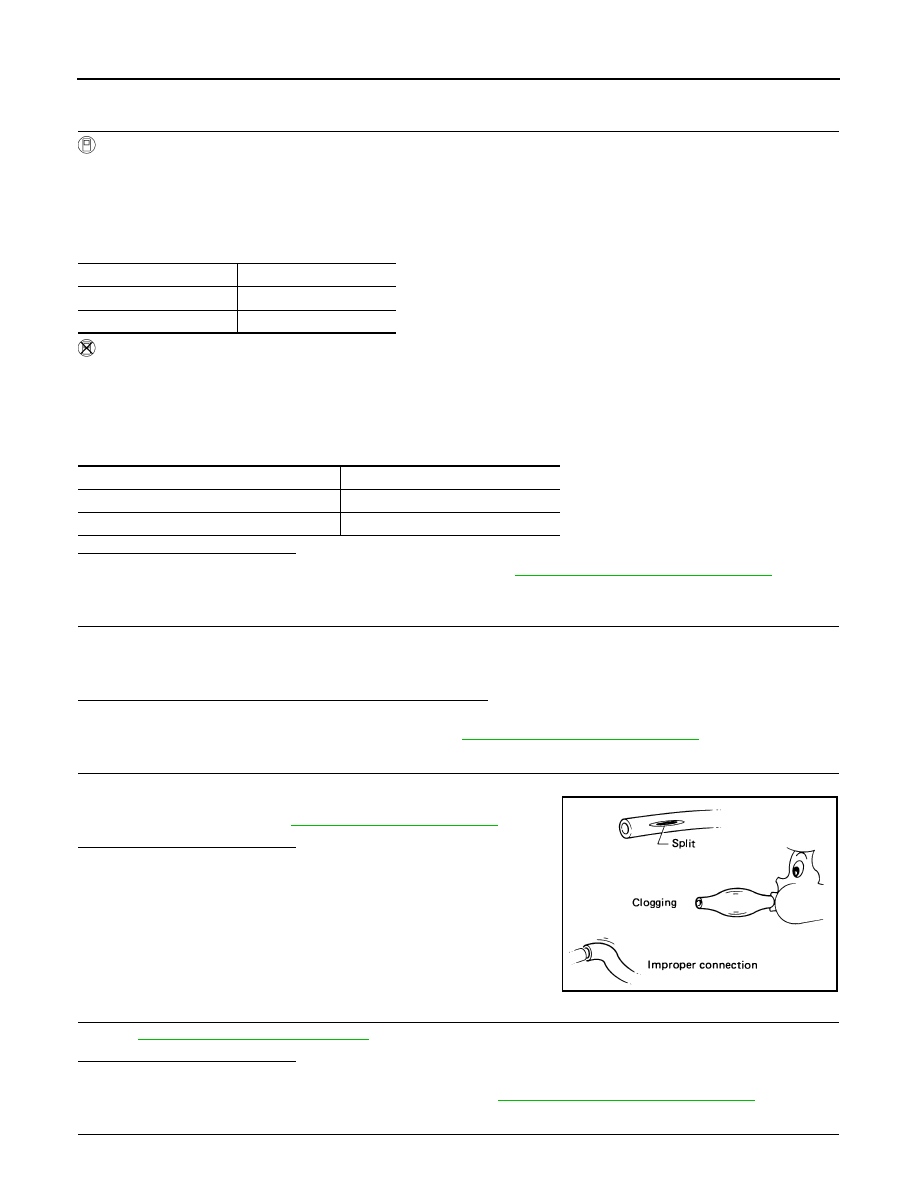

EC-520 < DTC/CIRCUIT DIAGNOSIS > [VQ35DE] VARIABLE INDUCTION AIR SYSTEM Power valve 2>>GO TO 6. 2. CHECK VACUUM EXISTENCE-I With CONSULT 1. Stop engine and disconnect vacuum hose connected to power valve actuator 1. 2. Start engine and let it idle. 3. Perform “VIAS S/V-1” in “ACTIVE TEST” mode with CONSULT. 4. Turn VIAS control solenoid valve 1 “ON” and “OFF”, and check vacuum existence under the following con- ditions. Without CONSULT 1. Stop engine and disconnect vacuum hose connected to power valve actuator 1. 2. Disconnect VIAS control solenoid valve 1 harness connector. 3. Start engine. 4. When revving engine up to 5,000 rpm quickly. 5. Check vacuum existence under the following conditions. Is the inspection result normal? YES >> Repair or replace power valve actuator 1. Refer to EC-38, "Component Parts Location" NO >> GO TO 3. 3. CHECK VACUUM TANK 1. Stop engine and disconnect vacuum hose connected to intake manifold collector. 2. Start engine and let it idle. 3. Check vacuum existence from intake manifold collector. YES >> GO TO 4. NO >> Replace intake manifold collector. Refer to EM-25, "Removal and Installation" . 4. CHECK VACUUM HOSE 1. Stop engine. 2. Check vacuum hose for cracks, clogging, improper connection . Is the inspection result normal? YES >> GO TO 5. NO >> Repair hoses or tubes. 5. CHECK VIAS CONTROL SOLENOID VALVE 1 EC-443, "Component Inspection" Is the inspection result normal? YES >> GO TO 9. NO >> Replace VIAS control solenoid valve 1. Refer to EC-38, "Component Parts Location" . 6. CHECK VACUUM EXISTENCE-II VIAS S/V 1 Vacuum ON Existed OFF Not existed Condition Operation Idle Existed When revving engine up to 5,000 rpm quickly Not existed SEF109L |
