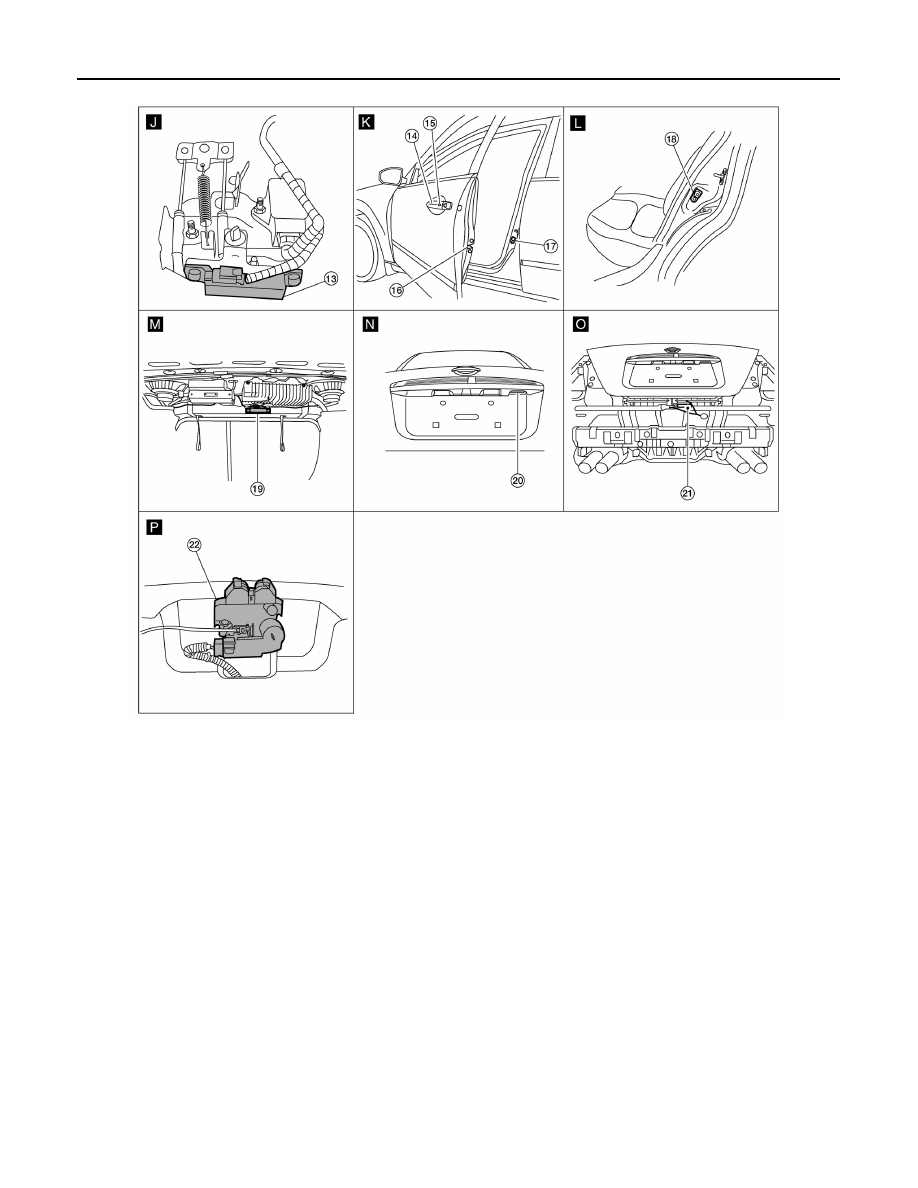

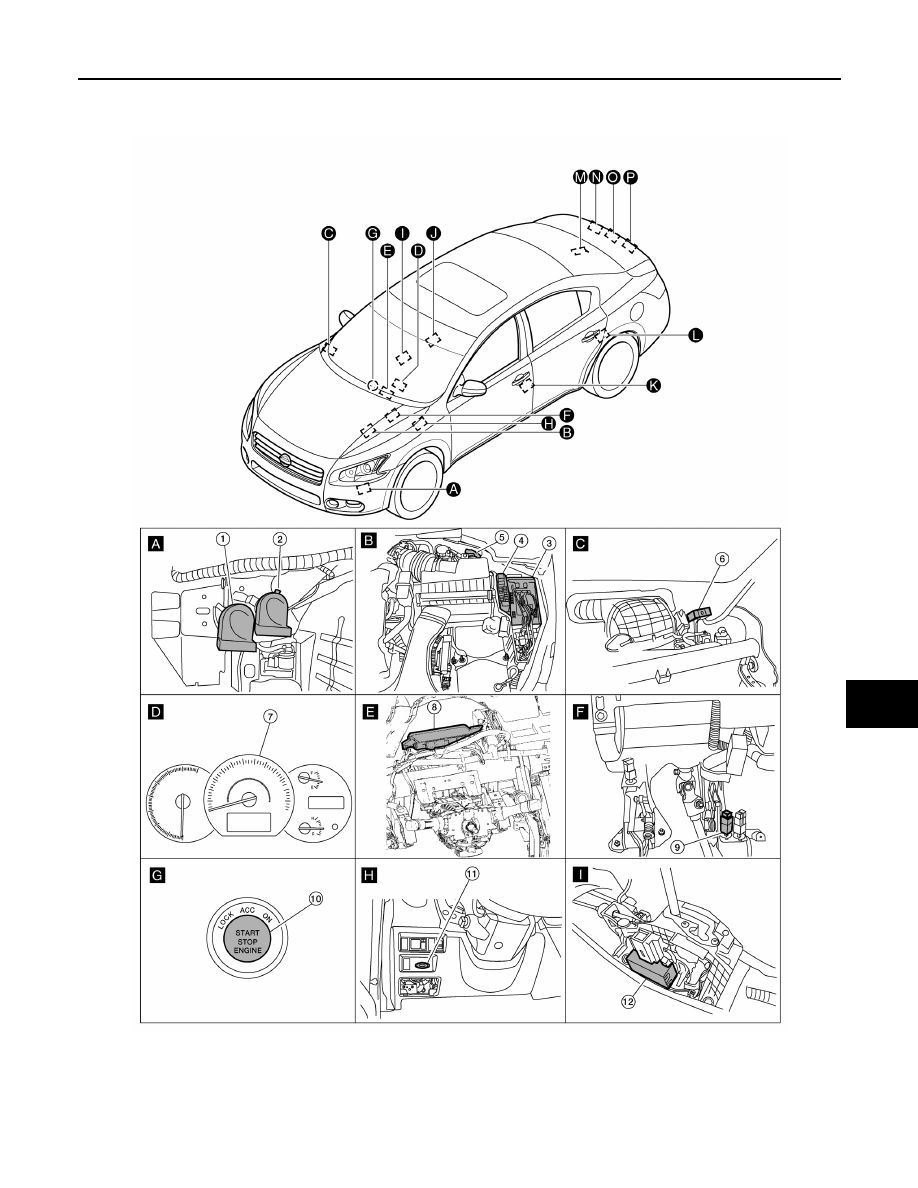

TRUNK REQUEST SWITCH : Component Parts Location

INFOID:0000000009471608

AWKIA1693ZZ

DLK-36

< SYSTEM DESCRIPTION >

TRUNK OPEN FUNCTION

1.

Horn (low) E215
(view with front fender protector LH
removed)

2.

Horn (high) E216

3.

IPDM E/R E17, E18

4.

Horn relay H-1

5.

Intelligent Key warning buzzer E28

6.

Remote keyless entry receiver M27
(view with instrument panel removed)

7.

Combination meter M24

8.

BCM M16, M17, M18, M19, M20, M21
(view with instrument panel removed)

9.

Stop lamp switch E38

10. Push button ignition switch M38

11.  Key slot M40

12. CVT shift selector (park position switch

(Intelligent Key system)) M78

13. Front console antenna M41

(view with center console assembly
removed)

14. Front outside handle LH (outside key

antenna) D6
Front outside handle RH (outside key
antenna) D106

15. Front outside handle LH (request

switch) D15
Front outside handle RH (request
switch) D115

16. Front door lock assembly LH (door

unlock sensor) D10

17. Front door switch LH B8

RH B108

18. Rear door switch LH B18

RH B116

19. Rear parcel shelf antenna B29

20.  Trunk opener request switch T5

21. Rear bumper antenna B46

22. Trunk lamp switch and trunk release

solenoid T7

AWKIA1694ZZ

TRUNK OPEN FUNCTION

DLK-37

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK REQUEST SWITCH : Component Description

INFOID:0000000009471609

INTELLIGENT KEY

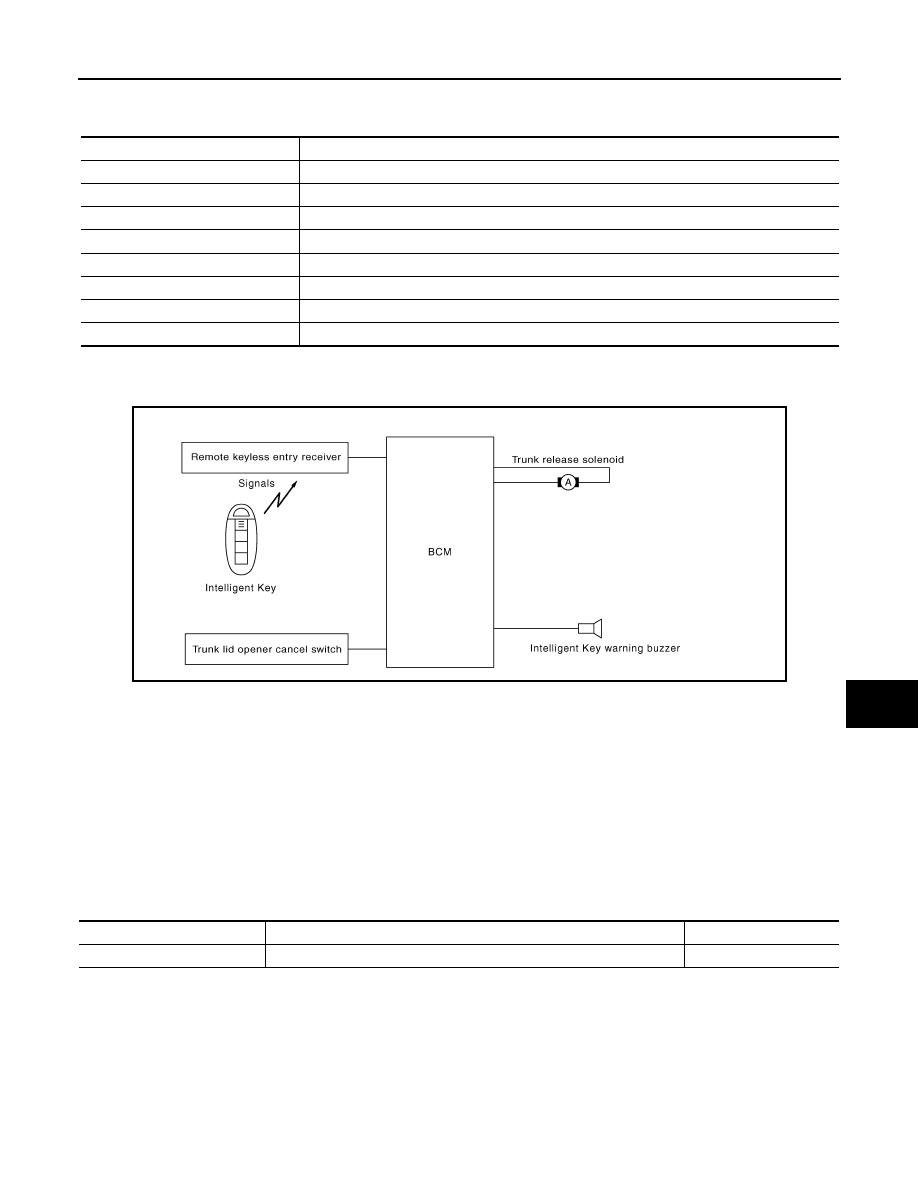

INTELLIGENT KEY : System Diagram

INFOID:0000000009471610

INTELLIGENT KEY : System Description

INFOID:0000000009471611

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the

same manner as the remote controller by operating the trunk open button.

OPERATION DESCRIPTION/TRUNK OPEN FUNCTION

• When trunk button of the Intelligent Key is pressed, the trunk open signal is transmitted from the Intelligent

Key to the BCM via remote keyless entry receiver.

• When BCM receives the trunk open request signal, it operates the trunk lid opener actuator and opens the

trunk.

OPERATION CONDITION

OPERATION AREA

• To ensure the Intelligent Key works effectively, use within 80 cm (31.50 inches) range of each door, however

the operable range may differ according to surroundings.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM flashes hazard warning lamps as a reminder and

transmits horn chirp signal to IPDM E/R. IPDM E/R sound horns as a reminder.

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Item

Function

BCM

Controls trunk open function.

Trunk release solenoid

Transmits trunk open operation to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Trunk opener request switch

Transmits trunk open operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

ALKIA1658GB

Remote controller operation

Operation condition

Operation

Trunk open

• Press and hold the trunk open button for 0.5 second or more

Trunk open

DLK-38

< SYSTEM DESCRIPTION >

TRUNK OPEN FUNCTION

Operating function of hazard and horn reminder

Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).

How to change hazard and horn reminder mode

With CONSULT

Refer to

DLK-53, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

Without CONSULT

Refer to Owner's Manual for instructions.

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

C mode

S mode

Intelligent Key operation

Lock

Unlock

Trunk open

Lock

Unlock

Trunk open

Hazard warning lamp flash

Twice

Once

—

Twice

—

—

Horn sound

Once

—

—

—

—

—

Remote keyless entry functions

In

tel

lig

en

t K

ey

Key slot

T

run

k

ro

om

 la

mp

 s

w

itc

h

T

run

k re

le

as

e s

o

le

no

id

In

tel

lig

en

t K

ey warn

in

g b

uzze

r

CAN communication

system

BCM

Combination meter

Hazard warning

lamp

s

Horns

IPDM

 E/

R

Trunk open function by remote control button

×

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

×

×
