< SYMPTOM DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

FRONT WIPER AND WASHER SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000010048970

CAUTION:

Perform the self-diagnosis with CONSULT before performing the diagnosis by symptom. Perform the

diagnosis by DTC if DTC is detected.

Symptom

Probable malfunction location

Inspection item

Front wiper does not
operate

HI only

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

• IPDM E/R
• Harness between IPDM E/R and wiper motor
• Front wiper motor

Front wiper motor (HI) circuit
Refer to

WW-20, "Compo-

nent Function Check"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

LO and INT

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

• IPDM E/R
• Harness between IPDM E/R and wiper motor
• Front wiper motor

Front wiper motor (LO) circuit
Refer to

WW-18, "Compo-

nent Function Check"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

INT only

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

HI, LO, and INT

SYMPTOM DIAGNOSIS
Refer to

WW-70, "Diagnosis Procedure"

.

FRONT WIPER AND WASHER SYSTEM SYMPTOMS

WW-69

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Front wiper does not
stop

HI only

• Combination switch (wiper and washer switch)
• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

IPDM E/R

—

LO only

• Combination switch (wiper and washer switch)
• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

IPDM E/R

—

INT only

• Combination switch (wiper and washer switch)
• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

Front wiper does not
operate normally

Intermittent adjustment
cannot be performed

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

BCM

—

Intermittent control
linked with vehicle
speed cannot be per-
formed

Check the vehicle speed detection wiper setting.
Refer to

BCS-23, "WIPER : CONSULT Function (BCM - WIPER)"

.

Wiper is not linked to
the washer operation

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

BCM

—

Does not return to stop
position (Repeatedly
operates for 10 sec-
onds and then stops
for 20 seconds. After
that, it stops the opera-
tion.

• IPDM E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper auto stop signal
circuit
Refer to

WW-22, "Compo-

nent Function Check"

.

Front washer motor
does not operate

Front washer motor
does not operate when
washing the wind-
shield.

• Combination switch (wiper and washer switch)
• Harness between combination switch (wiper

and washer switch) and BCM

• BCM

Combination switch (wiper
and washer switch)
Refer to

BCS-10, "System

Description"

.

• IPDM E/R
• Harness between IPDM E/R and front washer

motor

• Front  washer  motor

 Washer moter circuit
Refer to

WW-26, "Diagnosis

Procedure"

.

BCM

—

Symptom

Probable malfunction location

Inspection item

WW-70

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

FRONT WIPER DOES NOT OPERATE

Description

INFOID:0000000010048971

The front wiper does not operate under any operation conditions

Diagnosis Procedure

INFOID:0000000010048972

Regarding Wiring Diagram information, refer to

WW-63, "Wiring Diagram"

.

1.

 CHECK WIPER RELAY OPERATION

IPDM E/R AUTO ACTIVE TEST

1. Start IPDM E/R auto active test. Refer to

PCS-11, "Diagnosis Description"

.

2. Check that the front wiper operates at the LO/HI operation.

CONSULT ACTIVE TEST

1. Select "FRONT WIPER" of IPDM E/R active test item.

2. While operating the test item, check front wiper LO/HI operation and OFF.

Does the front wiper operate?

YES

>> GO TO 5

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the front wiper motor fuse 30A (No. 55, located in the IPDM E/R) is not blown.
Is the fuse blown?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 3

3.

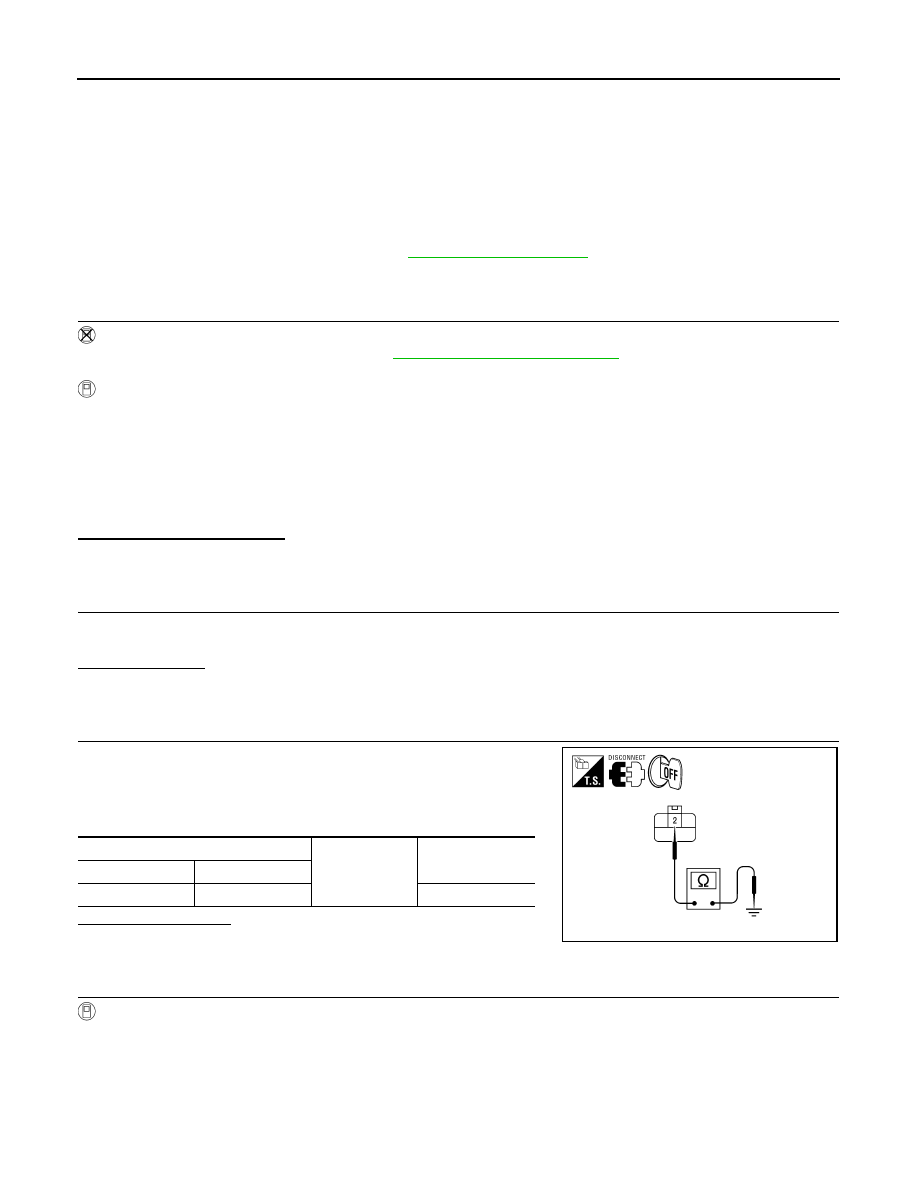

 CHECK FRONT WIPER MOTOR (GND) OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Check continuity between front wiper motor harness connector

and ground.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK FRONT WIPER MOTOR OUTPUT VOLTAGE

CONSULT ACTIVE TEST

LO

: Front wiper LO operation

HI

: Front wiper HI operation

OFF

: Stop the front wiper.

Front wiper motor

Ground

Continuity

Connector

Terminal

E25

2

Yes

ALLIA0819ZZ

FRONT WIPER DOES NOT OPERATE

WW-71

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

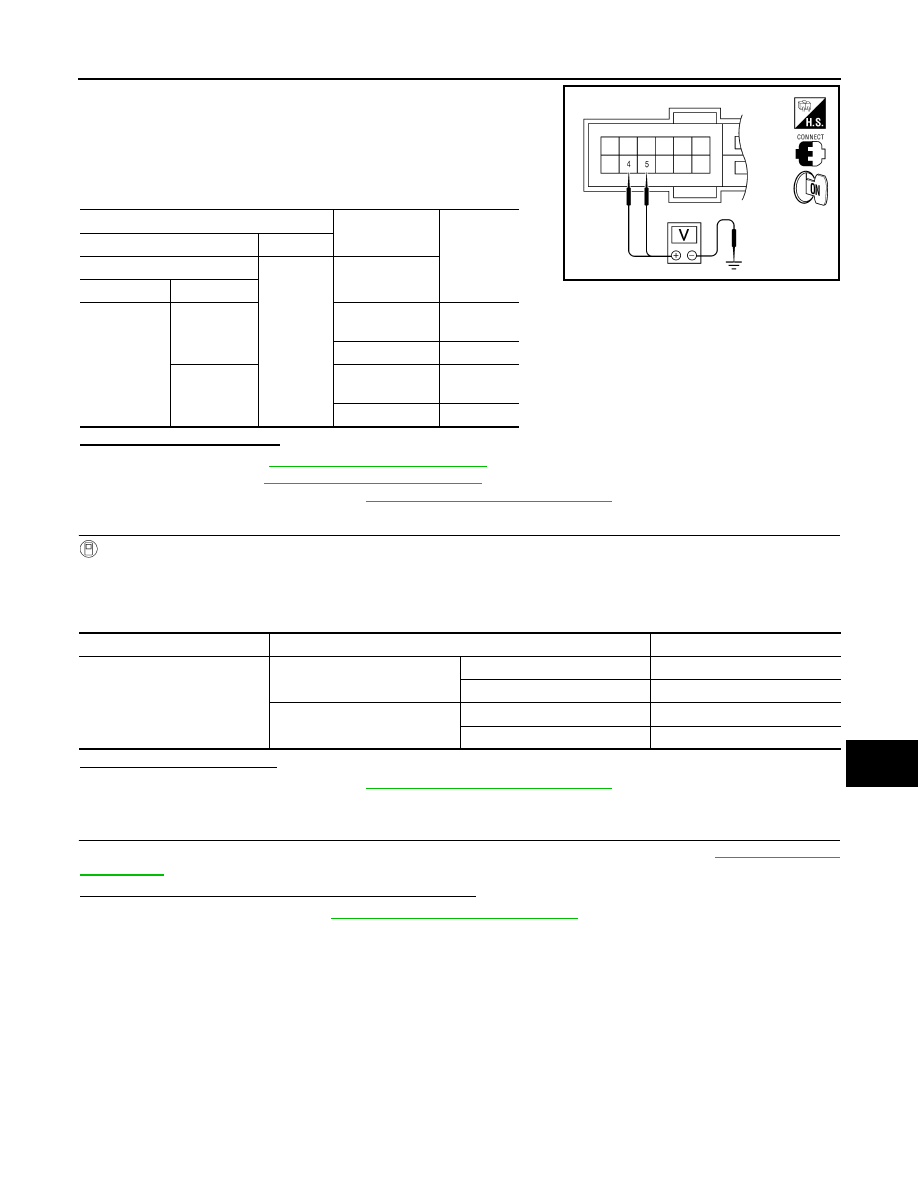

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Turn the ignition switch ON.

4. Select "FRONT WIPER" of IPDM E/R active test item.

5. While operating the test item, check voltage between IPDM E/R

harness connector and ground.

Is the measurement normal?

YES LO circuit>>Refer to

WW-18, "Diagnosis Procedure"

.

YES HI circuit>>Refer to

WW-20, "Diagnosis Procedure"

.

NO

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

5.

 CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

1. Select "FR WIP REQ" of IPDM E/R "DATA MONITOR" item.

2. Switch the front wiper switch to HI and LO.

3. While operating the front wiper switch, check the monitor status.

Is the status of item normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> GO TO 6

6.

 CHECK COMBINATION SWITCH (WIPER AND WASHER SWITCH)

Perform the inspection of the combination switch (wiper and washer switch). Refer to

BCS-10, "System

Description"

.

Is combination switch (wiper and washer switch) normal?

YES

>> Replace BCM. Refer to

BCS-79, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

Terminals

Test item

Voltage (V)

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E18

4

LO

Battery
voltage

OFF

0 V

5

HI

Battery
voltage

OFF

0 V

ALLIA0923ZZ

Monitor item

While operating the front wiper switch condition

Monitor status

FR WIP REQ

Front wiper switch HI

ON

HI

OFF

STOP

Front wiper switch LO

ON

LOW

OFF

STOP
