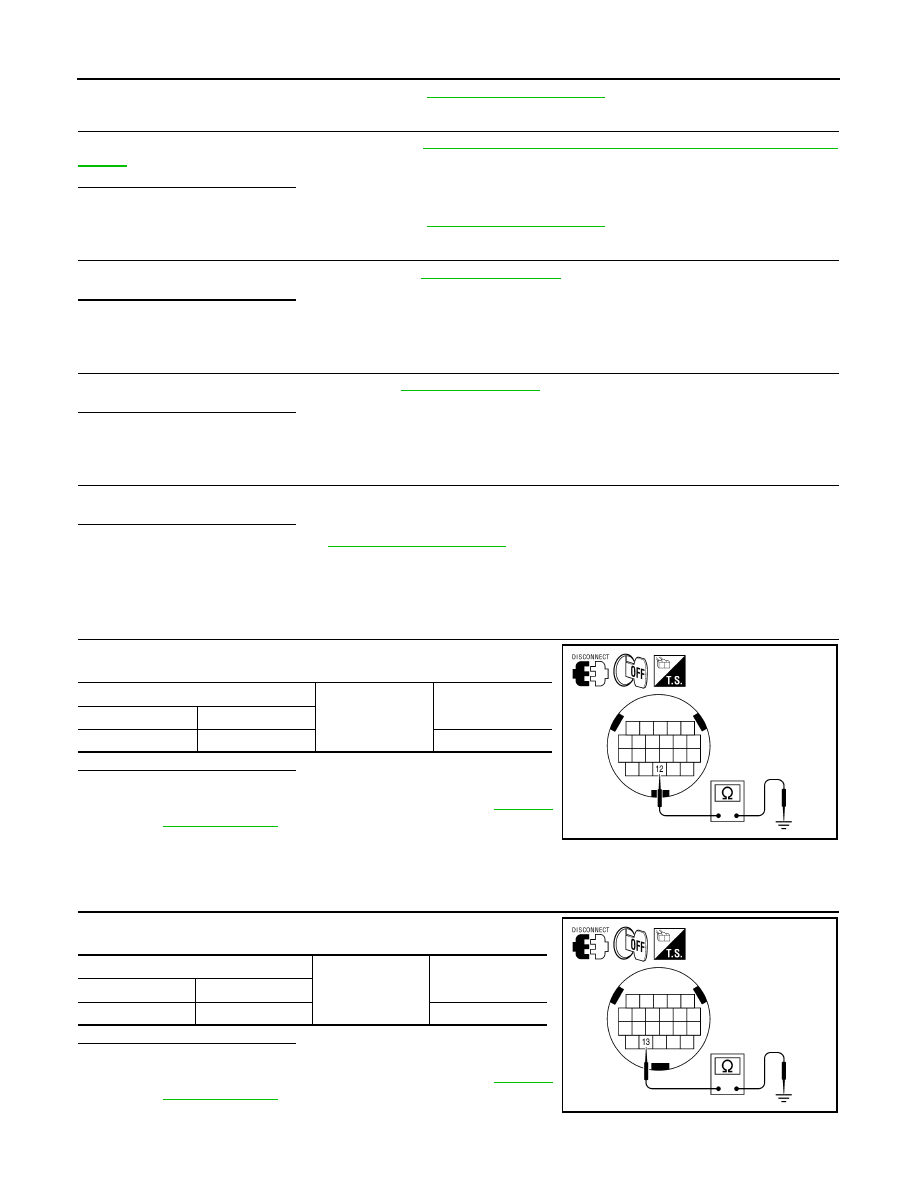

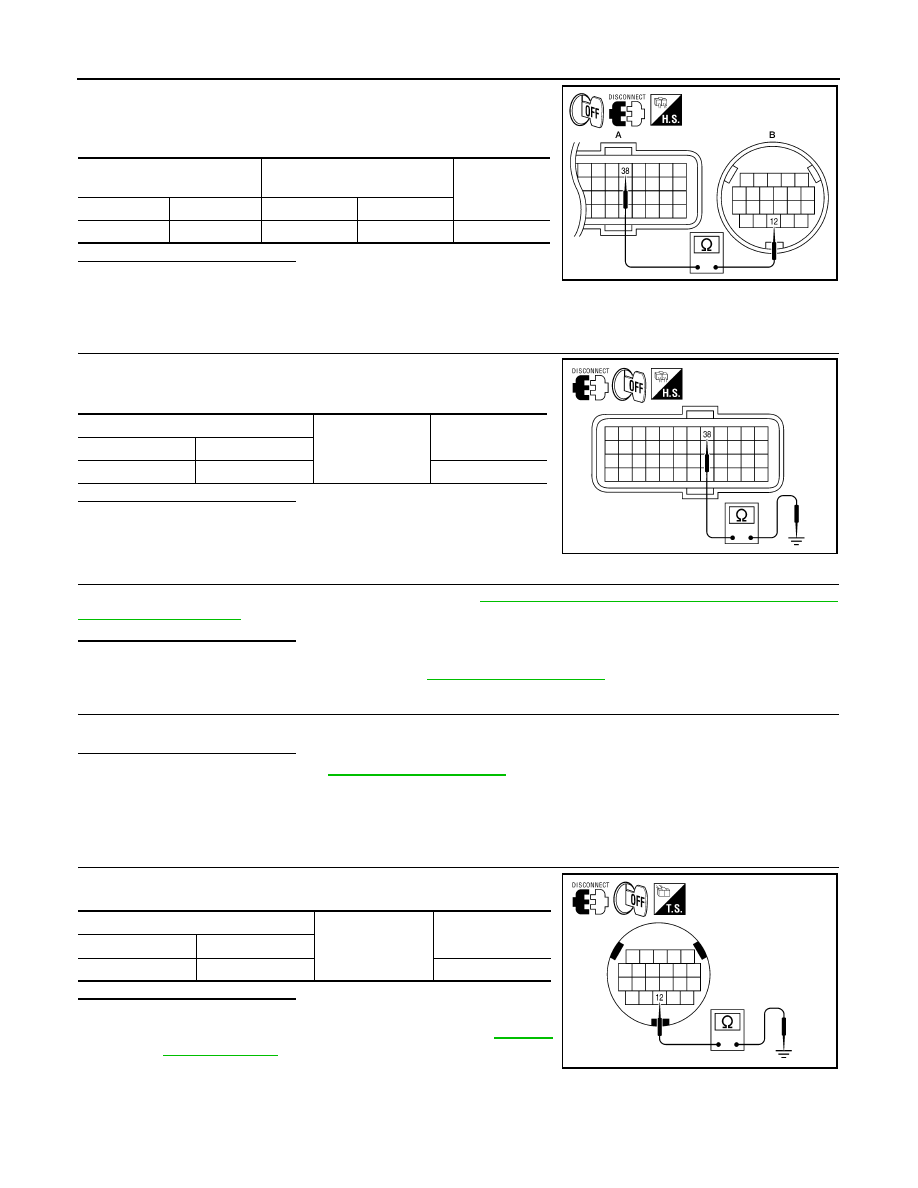

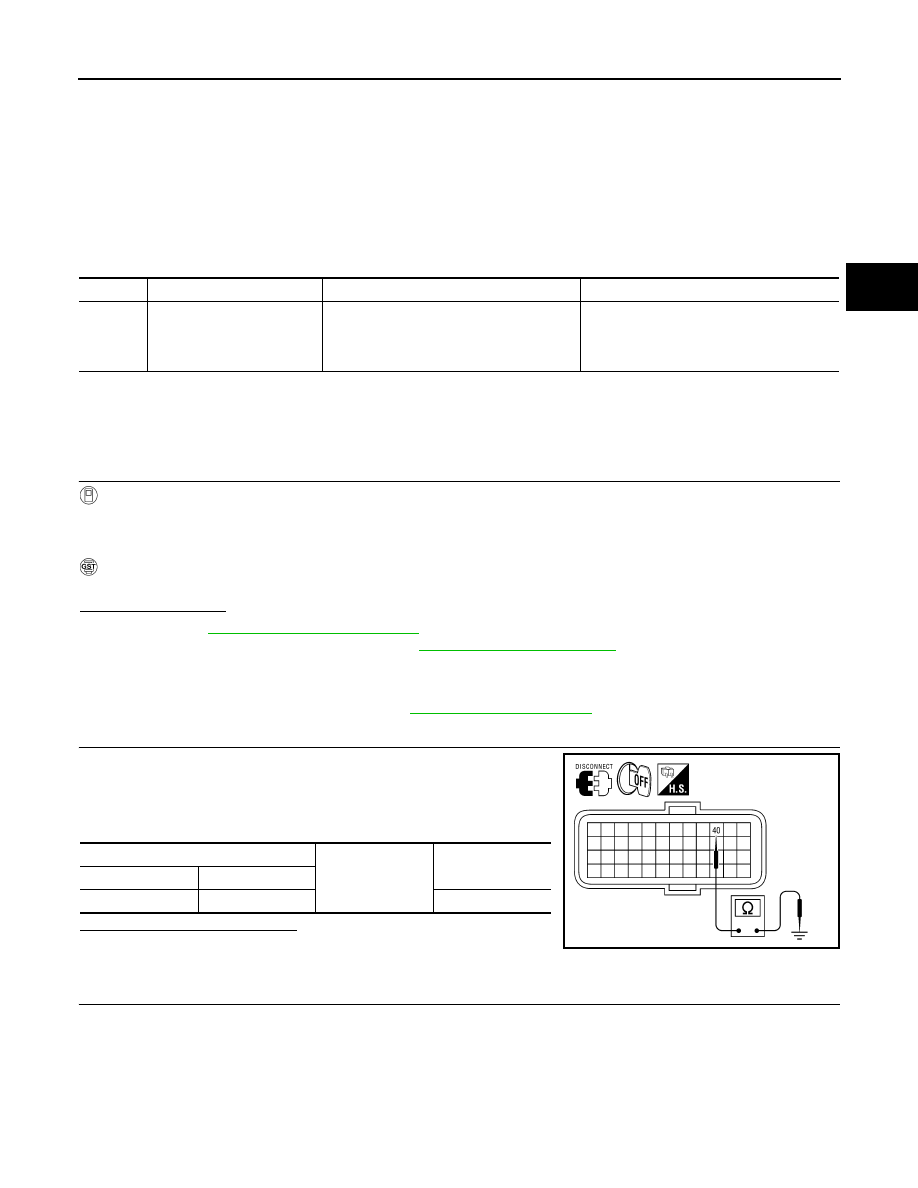

TM-68 < DTC/CIRCUIT DIAGNOSIS > [CVT: RE0F09B] P0740 TORQUE CONVERTER 1. Disconnect CVT unit connector. 2. Check continuity between TCM vehicle side harness connector terminal and CVT unit vehicle side harness connector terminal. Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace damaged parts. 3. CHECK HARNESS BETWEEN TCM AND CVT UNIT (TORQUE CONVERTER CLUTCH SOLENOID VALVE) (PART 2) minal and ground. Is the inspection result normal? YES >> GO TO 4. NO >> Repair or replace damaged parts. 4. CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE Check torque converter clutch solenoid valve. Refer to TM-68, "Component Inspection (Torque Converter . Is the inspection result normal? YES >> GO TO 5. NO >> Replace transaxle assembly. Refer to 5. DETECT MALFUNCTIONING ITEMS Check TCM connector pin terminals for damage or loose connection with harness connector. YES NO >> Repair or replace damaged parts. Component Inspection (Torque Converter Clutch Solenoid Valve) INFOID:0000000010113615 1. CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE Check resistance between CVT unit connector terminal and ground. Is the inspection result normal? YES >> INSPECTION END NO >> Replace transaxle assembly. Refer to . TCM vehicle side harness connector CVT unit vehicle side harness connector Continuity Connector Terminal Connector Terminal F15 (A) 38 F46 (B) 12 Existed AWDIA0117ZZ TCM vehicle side harness connector Ground Continuity Connector Terminal F15 38 Not existed AWDIA0116ZZ CVT unit connector Ground Resistance (Approx.) Connector Terminal F46 12 3.0 – 9.0 Ω AWDIA0118ZZ |
