Nissan Maxima. Manual - part 1142





TM-32

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

SHIFT CONTROL SYSTEM

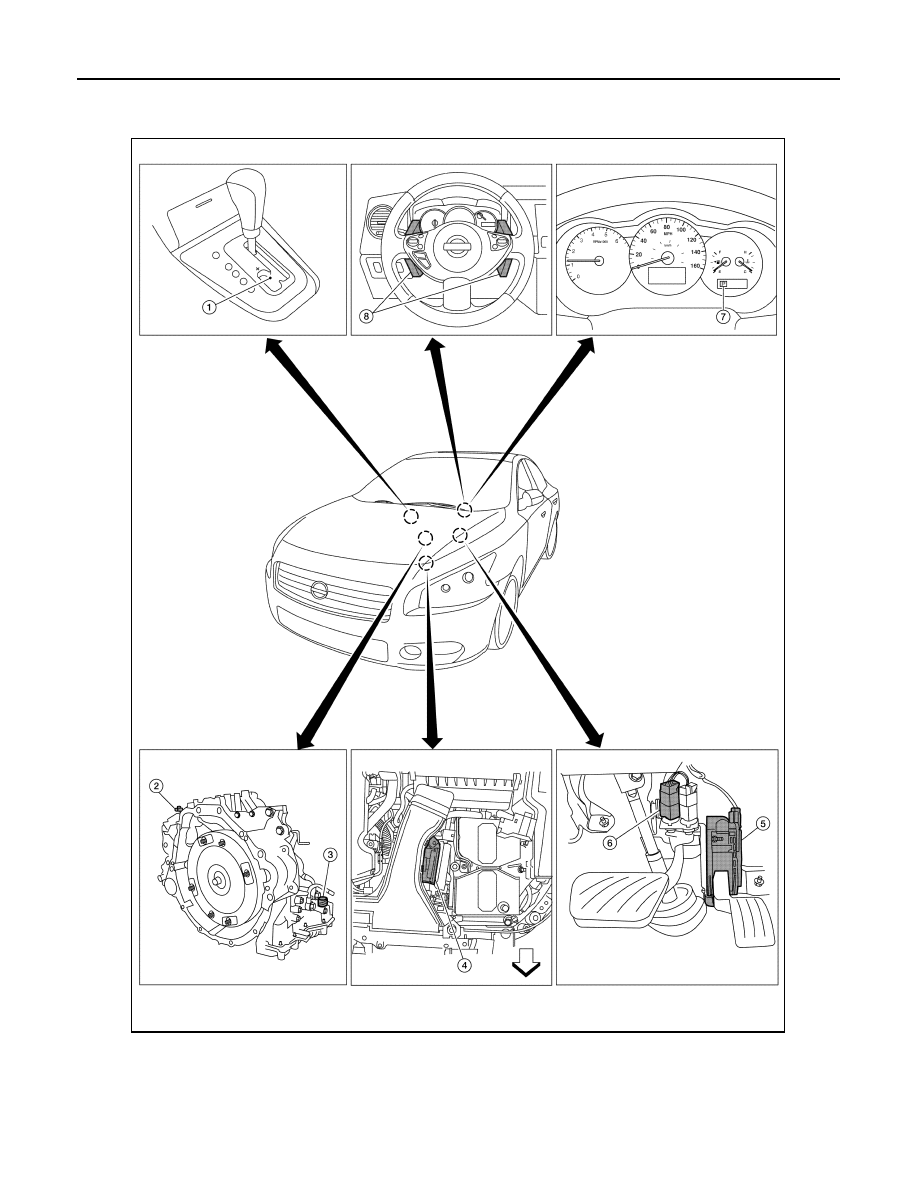

Component Parts Location

INFOID:0000000009469036

1.

CVT shift selector assembly (Manual
mode select switch and manual
mode position select switch)

2.

Secondary speed sensor

3.

CVT unit harness connector

AWDIA1036ZZ

SHIFT CONTROL SYSTEM

TM-33

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component Description

INFOID:0000000010113448

TRANSAXLE ASSEMBLY

EXCEPT TRANSAXLE ASSEMBLY

4.

TCM

5.

Accelerator pedal position (APP)
sensor

6.

Stop lamp switch

7.

Shift positioner indicator
Manual mode indicator
DS mode indicator

8.

Paddle shifters

Item

Function

Transmission range switch

TM-50

Primary speed sensor

TM-57

Secondary speed sensor

TM-60

Step motor

TM-109

Shift control valve

TM-22

Primary pulley

TM-18

Secondary pulley

TM-18

Item

Function

TCM

TM-22

TM-34

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

SHIFT LOCK SYSTEM

SHIFT LOCK SYSTEM

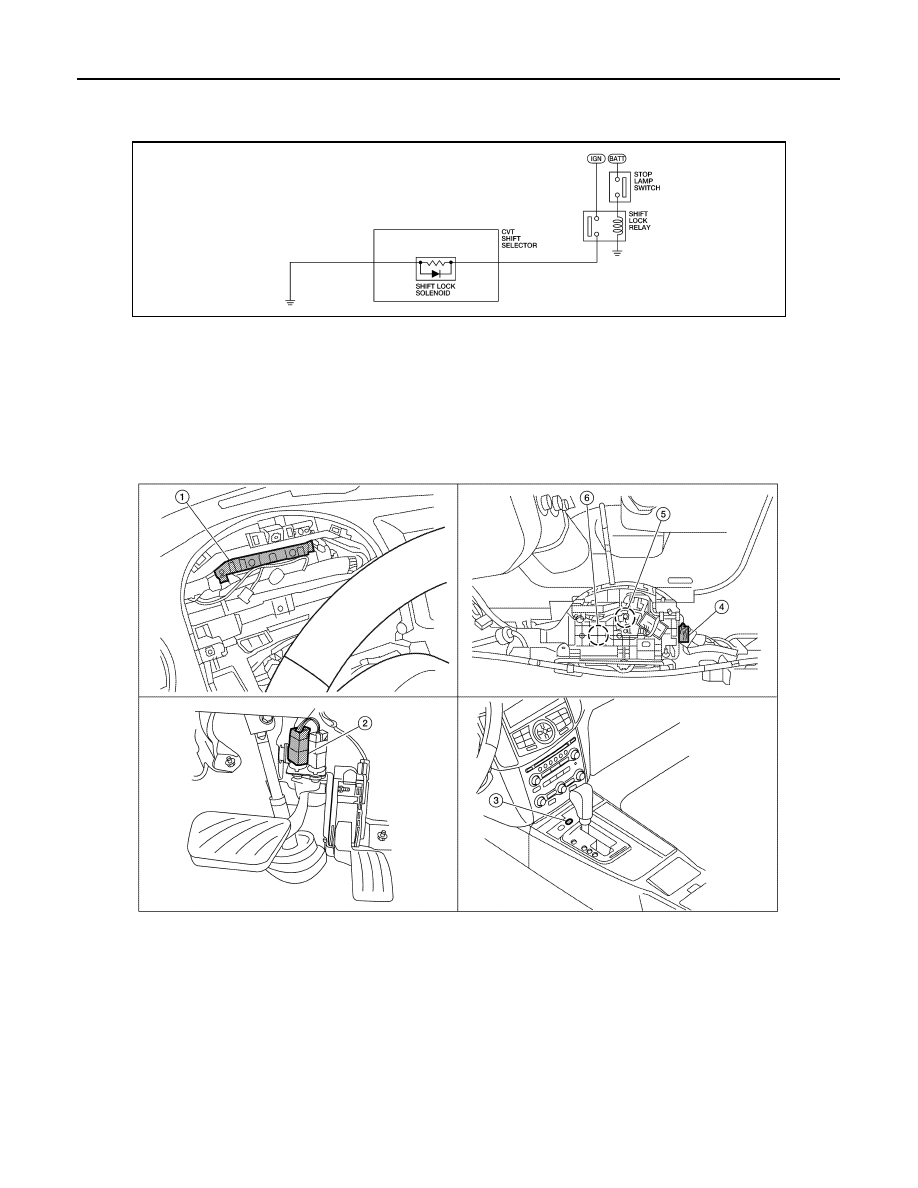

System Diagram

INFOID:0000000009469038

System Description

INFOID:0000000009469039

The selector lever cannot be shifted from “P” position to any other position unless the ignition switch is in the

ON position and the brake pedal is depressed.

Component Parts Location

INFOID:0000000009469040

Component Description

INFOID:0000000009469041

AWDIA0742GB

1.

BCM (view with combination meter
removed)

2.

Stop lamp switch

3.

Shift lock release

4.

CVT shift selector connector

5.

Park position switch

6.

Shift lock solenoid

AWDIA0747ZZ

SHIFT LOCK SYSTEM

TM-35

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component

Function

CVT shift selector

Shift lock solenoid

Shift lock solenoid

Operates according to the signal from the shift lock
relay.

Lock plate

The lock plate restricts the position pin stroke by se-
lector button operation according to the shift lock unit
status.

Position pin

The position pin, linking with the selector button, re-
stricts the selector lever movement.

Shift lock release

Cancels the shift lock forcibly.

Stop lamp switch

Provides voltage to the shift lock relay when brake
pedal is depressed.

Shift lock relay

Provides voltage to the shift lock solenoid when igni-
tion switch is ON and brake pedal is depressed.
