Nissan Maxima. Manual - part 66

AV-84

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

AUDIO ANTENNA

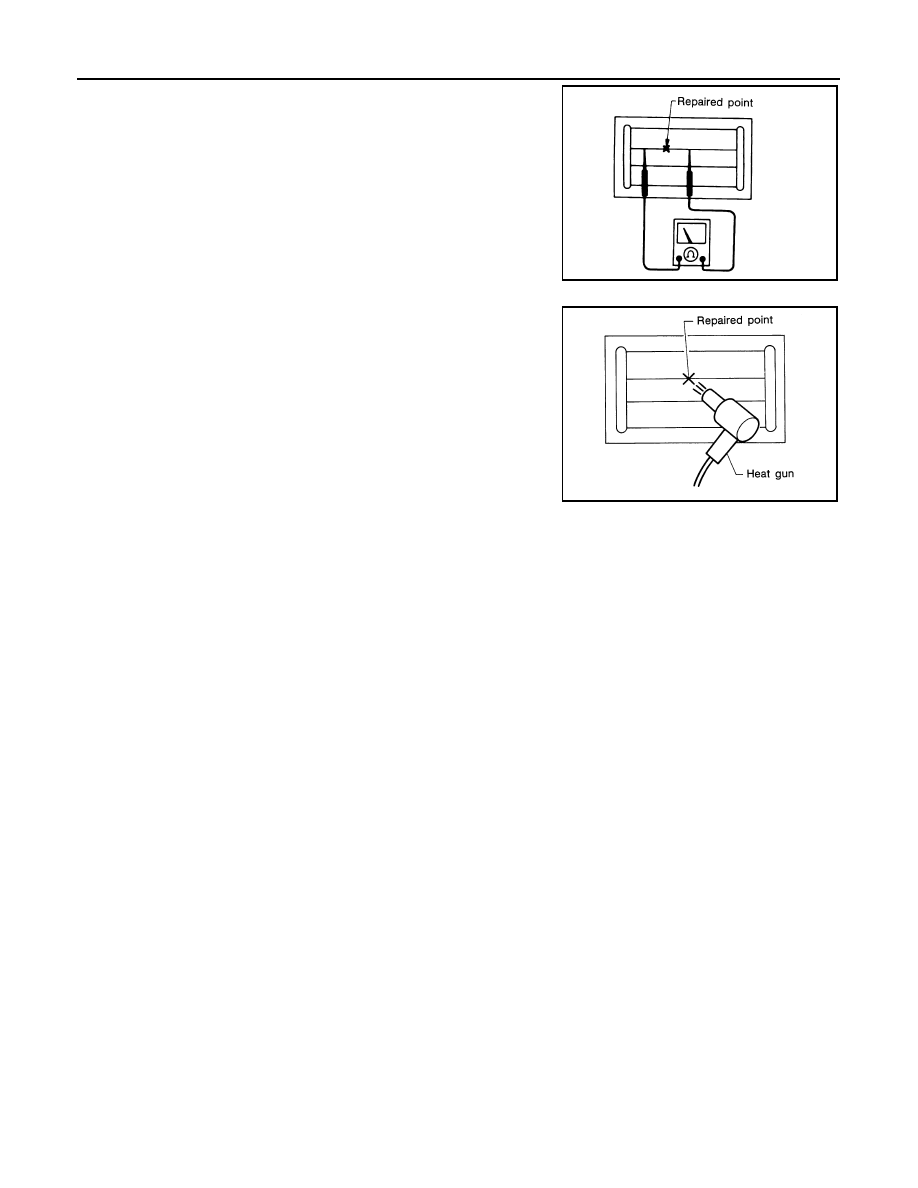

4. After repair has been completed, check repaired wire for conti-

nuity. This check should be conducted 10 minutes after silver

composition is deposited.

Do not touch repaired area while test is being conducted.

5. Apply a constant stream of hot air directly to the repaired area

for approximately 20 minutes with a heat gun. A minimum dis-

tance of 3 cm (1.2 in) should be kept between repaired area and

hot air outlet.

If a heat gun is not available, let the repaired area dry for 24

hours.

SEL012D

SEL013D

AV

ANTENNA AMP.

AV-85

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA AMP.

Removal and Installation

INFOID:0000000009471207

REMOVAL

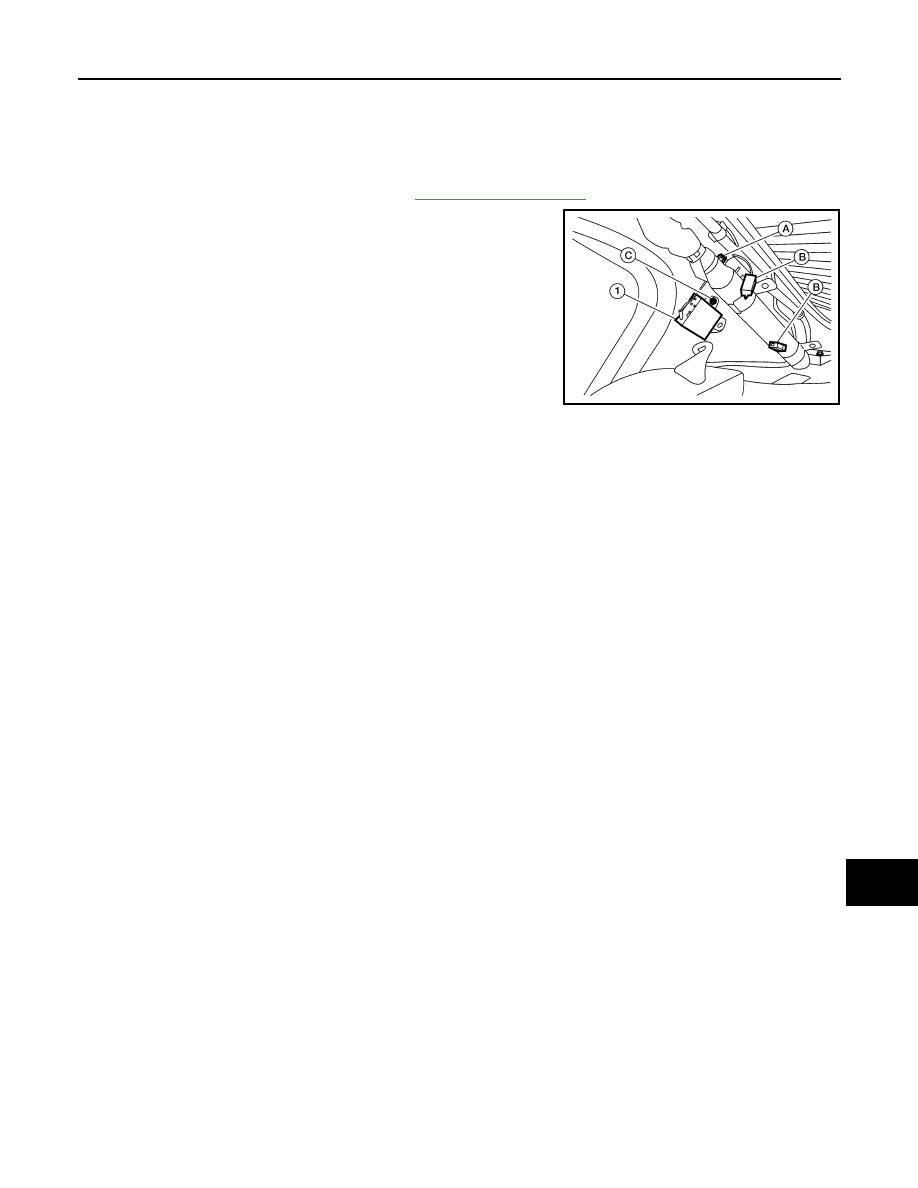

1. Remove the rear pillar finisher RH. Refer to

INT-23, "Exploded View"

.

2. Detach the antenna amp. harness clip (A).
3. Disconnect the harness connectors (B) from the antenna amp.

(1).

4. Remove the antenna amp. screw (C) and  the antenna amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0043ZZ

AV-86

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000009471208

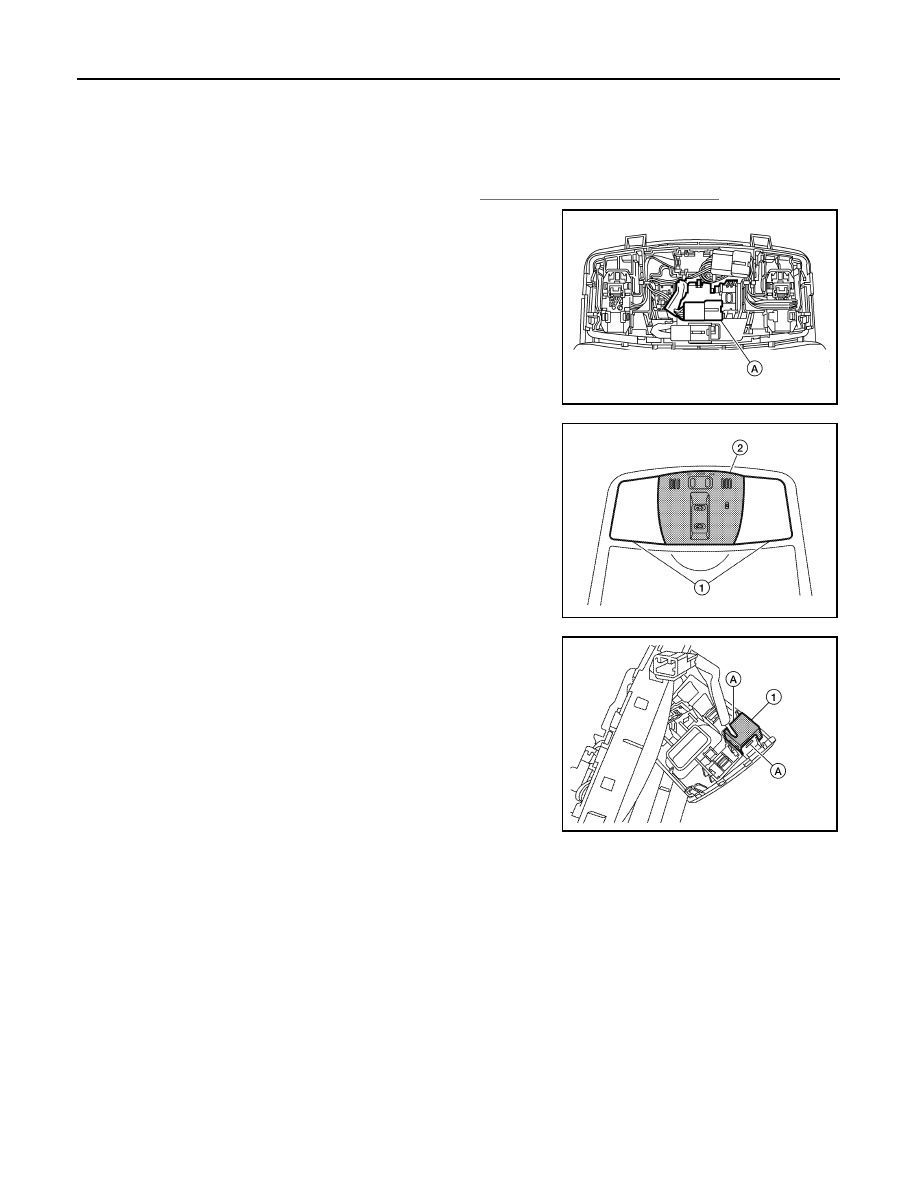

REMOVAL

1. Remove the front room/map lamp assembly. Refer to

INL-84, "Removal and Installation"

.

2. Detach the microphone connector (A).

3. Remove the front room/map lamp covers (1), then remove the

map lamp assembly cover (2).

4. Release the microphone tabs (A), then remove the microphone

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0928ZZ

ALNIA0929ZZ

ALNIA0930ZZ

AV

TEL ANTENNA

AV-87

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL ANTENNA

Removal and Installation

INFOID:0000000009471209

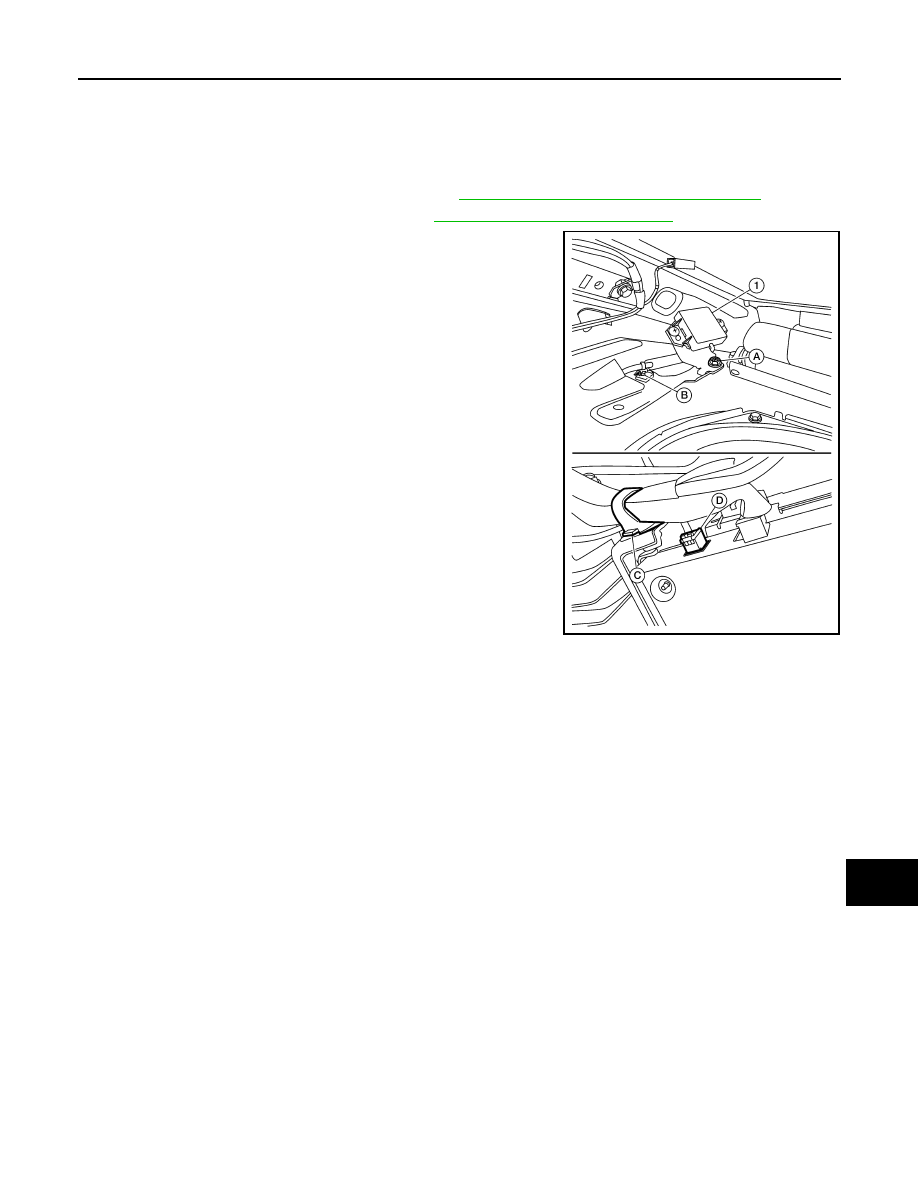

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the rear parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

3. Remove the Bluetooth antenna screw (A).
4. Detach the Bluetooth antenna harness clip (B).
5. Fold down the rear seat (if equipped) or open the trunk lid, then

detach the Bluetooth antenna harness clip (C).

6. Disconnect the harness connector (D) from the Bluetooth

antenna (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1144ZZ
