SB-6

< BASIC INSPECTION >

COMPONENT INSPECTION

Replace the seat belt assembly if it does not operate within specifications.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK (REAR PARCEL SHELF MOUNTED)

1. Remove the seat belt retractor.

• Remove the rear seat belt assembly, refer to

SB-9, "Removal and Installation"

.

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without

twisting the retractor assembly as shown in the illustration.

A : The webbing can be pulled out in case the retractor is tilted

15

° degree or less.

B : The webbing can not be pulled out if the retractor is tilted 35

°

degrees or more.

• A and B show tilting angles.
•

 : Vehicle front.

Replace the seat belt assembly if it does not operate within specifications.

PHIA0962J

FRONT SEAT BELT

SB-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT BELT

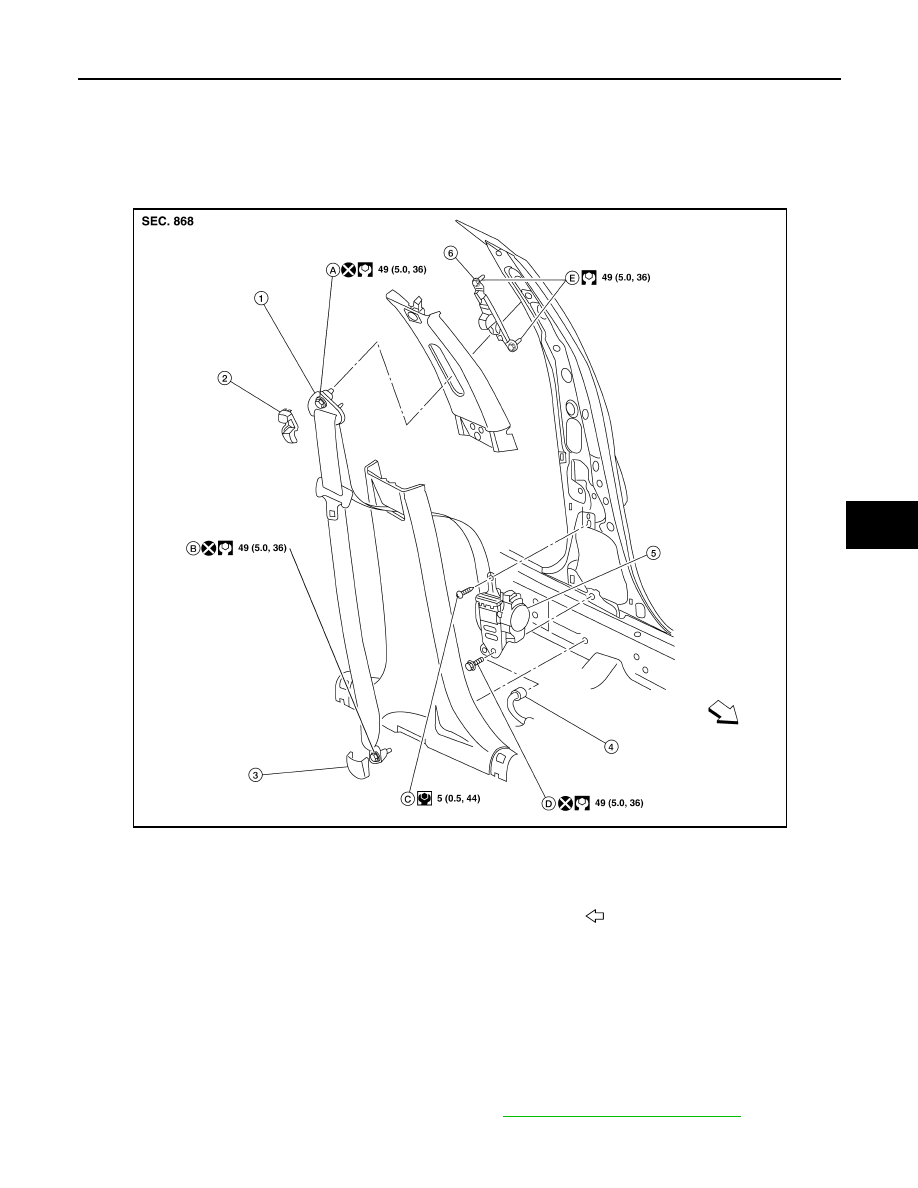

Exploded View

INFOID:0000000004215125

Removal and Installation

INFOID:0000000004215126

REMOVAL - RETRACTOR

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect the 12-volt battery negative and positive

terminals, then wait at least 3 minutes.
1. Disconnect the 12-volt battery negative and positive terminals, then wait at least 3 minutes.
2. Release the pawl, then remove outer anchor bolt cover and outer anchor bolt.
3. Remove center pillar lower and upper finishers. Refer to

INT-16, "Removal and Installation"

.

4. Remove D-ring anchor bolt from seat belt adjuster.

1.

D-ring anchor

2.

Adjuster cover

3.

Outer anchor bolt cover

4.

Seat belt pre-tensioner connector

5.

Seat belt retractor

6.

Seat belt adjuster

A.

D-ring anchor bolt

B.

Outer anchor bolt

C.

Retractor screw

D.

Retractor anchor bolt

E.

Bolt

Vehicle front

AWHIA0194GB

SB-8

< ON-VEHICLE REPAIR >

FRONT SEAT BELT

5. Remove seat belt retractor.

• Disconnect the seat belt pre-tensioner connector.

CAUTION:

• For installing/removing seat belt pre-tensioner connec-

tor, insert a thin screwdriver wrapped with tape into the

notch; lift locking tab then remove connector.

• Install connector with lock raised, then push locking tab

into connector.

• Remove screw and retractor anchor bolt, then remove seat belt retractor from center pillar.

6. Remove bolts, then remove seat belt adjuster from center pillar.

INSTALLATION - RETRACTOR

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-4, "Inspection"

.

REMOVAL - BUCKLE

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect the 12-volt battery negative and positive

terminals, then wait at least 3 minutes.
1. Disconnect the 12-volt battery negative and positive terminals.
2. Remove the front seat from the vehicle. Refer to

SE-21, "Removal and Installation"

.

3. Remove anchor nut (A) from the seat belt buckle (1).
4. Disconnect the seat belt buckle harness connector (2), release

the harness clip(s), then remove the seat belt buckle (1).

INSTALLATION - BUCKLE

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-4, "Inspection"

.

PHIA0953J

ALHIA0008GB

REAR SEAT BELT

SB-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REAR SEAT BELT

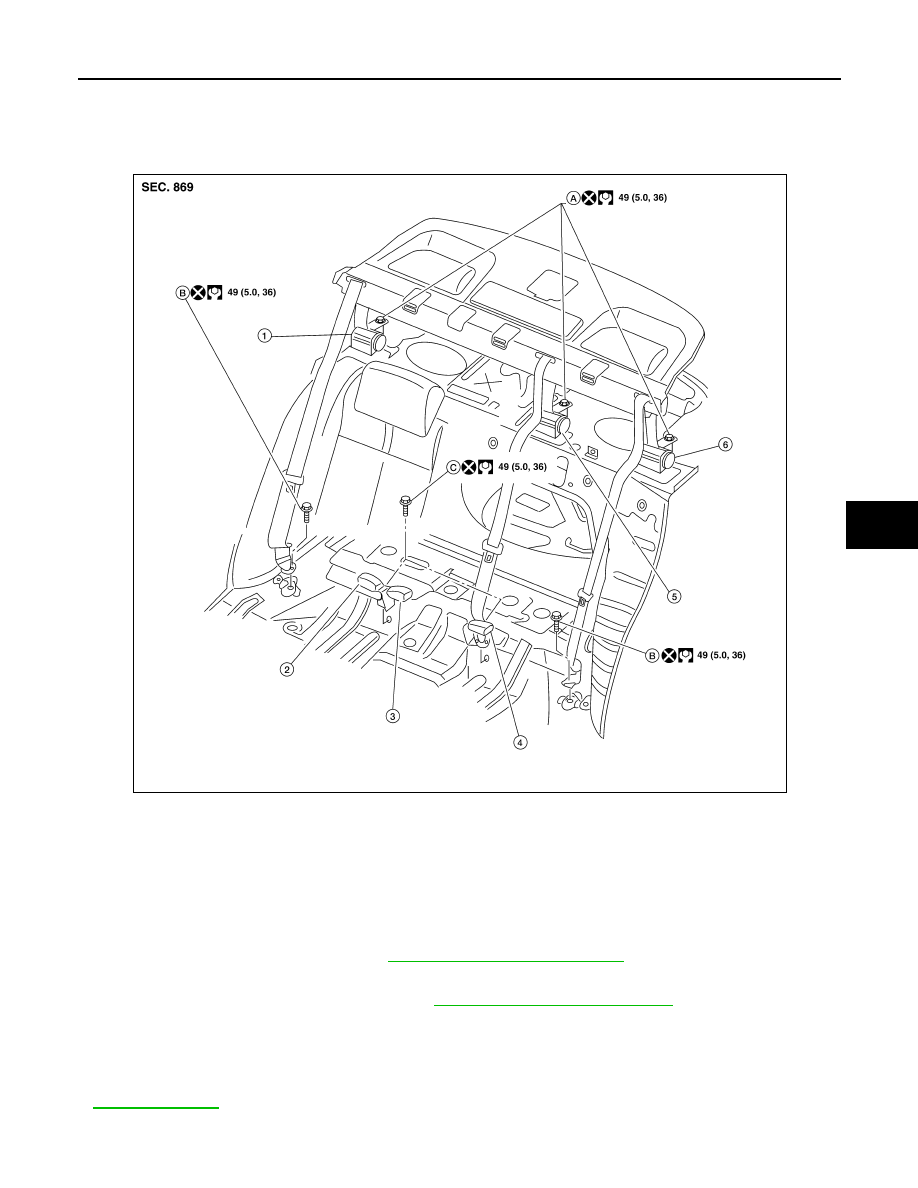

Exploded View

INFOID:0000000004215128

Removal and Installation

INFOID:0000000004215129

REMOVAL - RETRACTOR

1. Remove the rear seat cushion. Refer to

SE-22, "Removal and Installation"

.

2. Remove the outer anchor bolt (outer belt retractor) or buckle anchor bolt (center belt retractor).
3. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

4. Remove retractor anchor bolt, then remove seat belt retractor.

INSTALLATION - RETRACTOR

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system in functioning within specifications. Refer to

SB-4, "Inspection"

.

REMOVAL - BUCKLE

1.

Seat belt retractor RH

2.

Seat belt buckle RH

3.

Seat belt buckle center

4.

Seat belt buckle LH

5.

Seat belt retractor center

6.

Seat belt retractor LH

A.

Retractor anchor bolt

B.

Outer anchor bolt

C.

Buckle anchor bolt

AWHIA0196GB
