BCM (BODY CONTROL MODULE)

PCS-89

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

71

(L/O)

Ground

Remote keyless entry
receiver signal

Input/

Output

During waiting

When operating either button on Intelligent Key

75

(R/Y)

Ground

Combination switch
INPUT 5

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

1.4V

Front fog lamp switch ON
(Wiper intermittent dial 4)

1.3V

Any of the conditions below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 6
• Wiper intermittent dial 7

1.3V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JMKIA0064GB

JMKIA0065GB

JPMIA0041GB

JPMIA0037GB

JPMIA0040GB

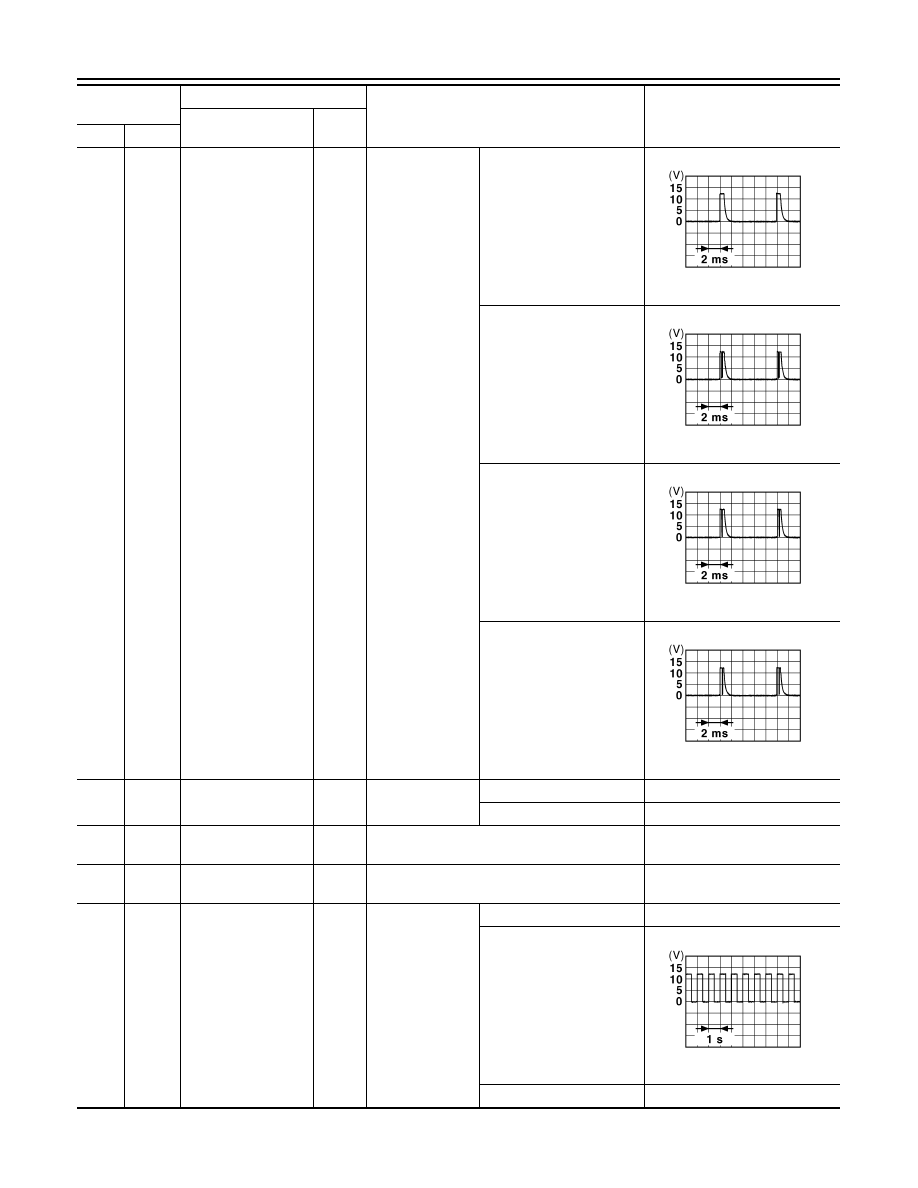

PCS-90

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

76

(R/G)

Ground

Combination switch
INPUT 3

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

1.4V

Lighting switch high-beam
(Wiper intermittent dial 4)

1.3V

Lighting switch 2ND
(Wiper intermittent dial 4)

1.3V

Any of the conditions below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 3

1.3V

77

(BR)

Ground

Push-button ignition
switch

Input

Engine switch
(push switch)

Pressed

0V

Not pressed

Battery voltage

78

(P)

Ground CAN-L

Input/

Output

—

—

79

(L)

Ground CAN-H

Input/

Output

—

—

80

(R/L)

Ground Key slot illumination

Output

Key slot illumina-
tion

OFF

0V

Blinking

6.5V

ON

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JPMIA0041GB

JPMIA0036GB

JPMIA0037GB

JPMIA0040GB

JPMIA0015GB

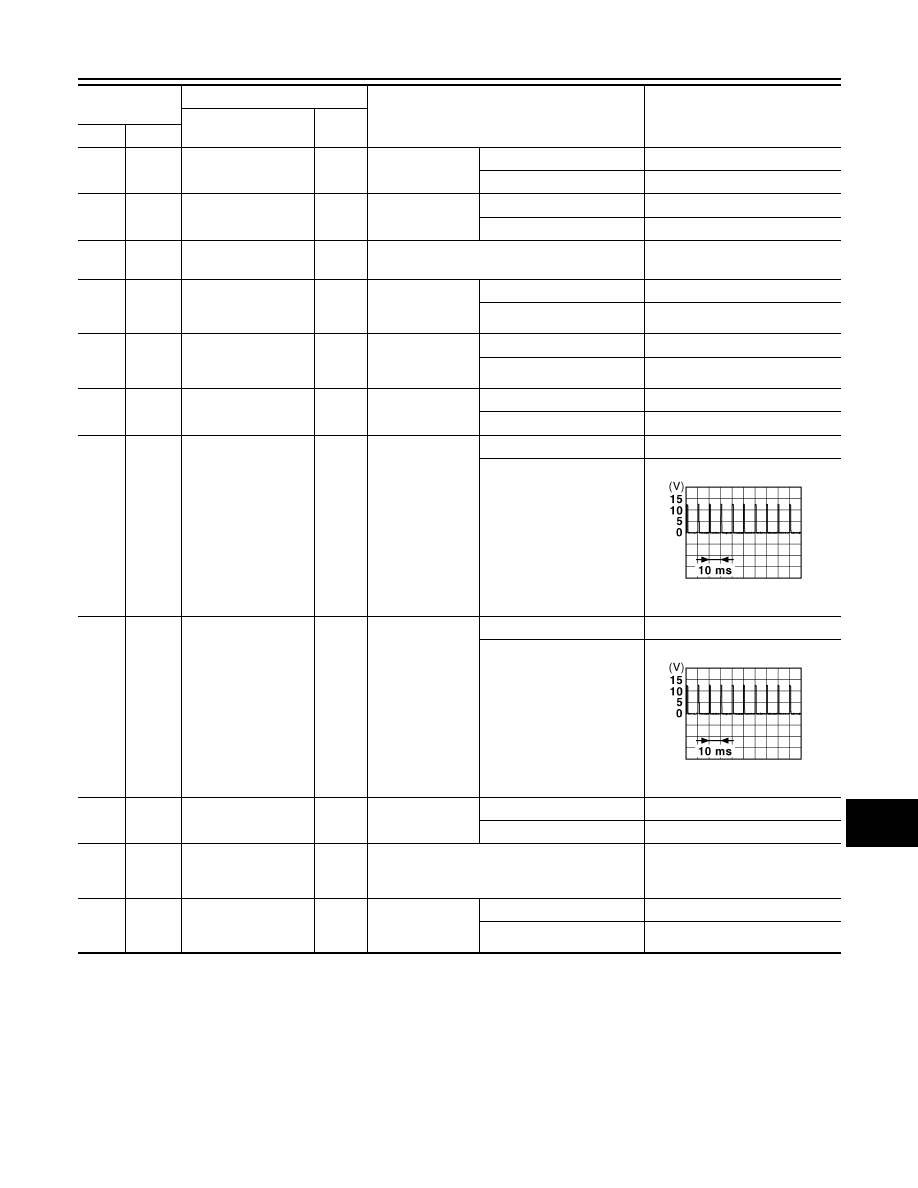

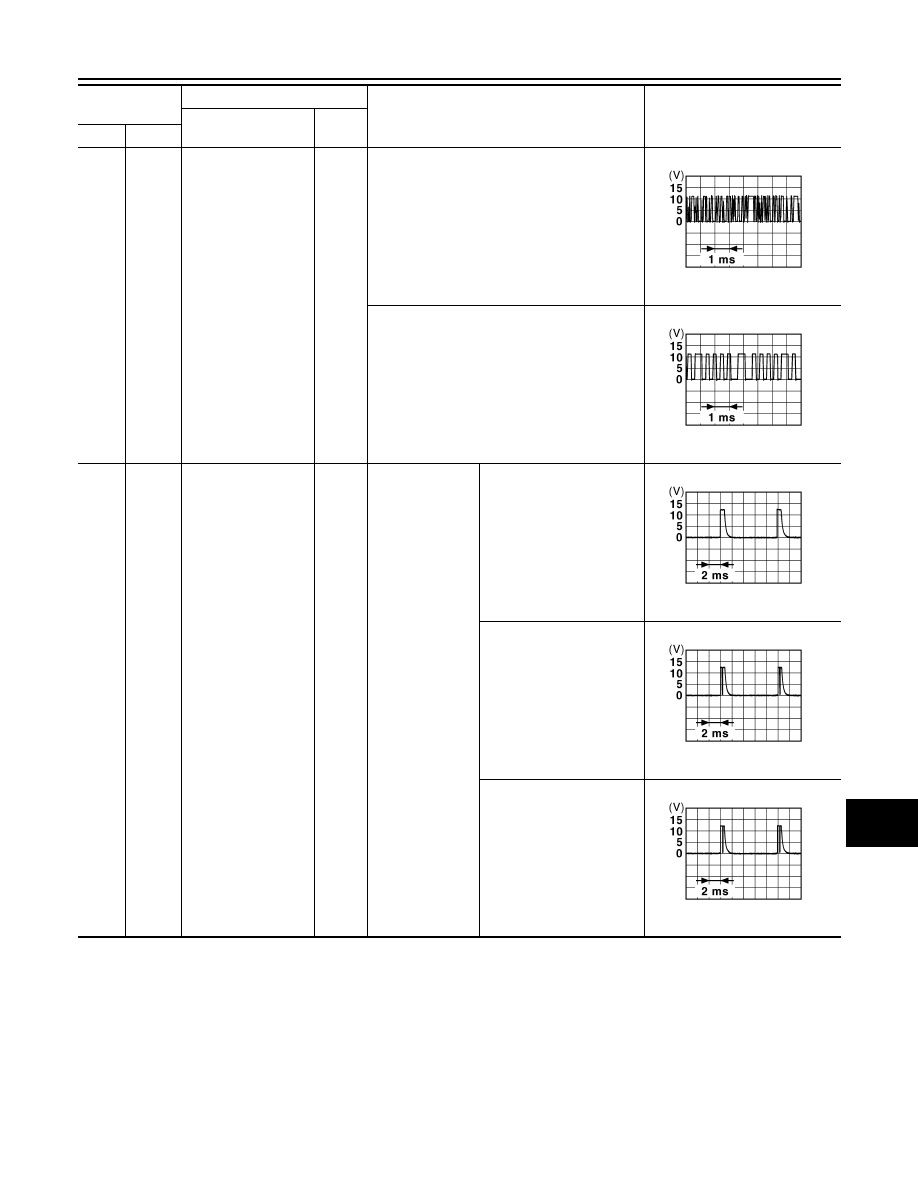

PCS

BCM (BODY CONTROL MODULE)

PCS-91

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

81

(LG)

Ground ON indicator lamp

Output Ignition switch

OFF or ACC

Battery voltage

ON

0V

83

(L)

Ground ACC relay control

Output Ignition switch

OFF

0V

ACC or ON

Battery voltage

84

(Y/R)

Ground

ECTV device (detent
switch)

Output

—

Battery voltage

85

(L/O)

Ground

Electronic steering
column lock condition
No. 1

Input

Electronic steer-
ing column lock

Lock status

0V

Unlock status

Battery voltage

86

(G/R)

Ground

Electronic steering
column lock condition
No. 2

Input

Electronic steer-
ing column lock

Lock status

Battery voltage

Unlock status

0V

87

(G/B)

Ground

ECTV device (detent
switch)

Input

Selector lever

P position

0V

Any position other than P

Battery voltage

88

(P/L)

Ground

Front door RH re-
quest switch

Input

Front door RH re-
quest switch

ON (pressed)

0V

OFF (not pressed)

1.0V

89

(B/W)

Ground

Front door LH re-
quest switch

Input

Front door LH re-
quest switch

ON (pressed)

0V

OFF (not pressed)

1.0V

90

(Y)

Ground

Front blower motor
relay control

Output Ignition switch

OFF or ACC

0V

ON

Battery voltage

91

(L/R)

Ground

Remote keyless entry
receiver power sup-
ply

Output Ignition switch OFF

Battery voltage

94

(G/Y)

Ground

Electronic steering
column lock CPU
power supply

Output Ignition switch

OFF or ACC

Battery voltage

ON

0V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JPMIA0016GB

JPMIA0016GB

PCS-92

< ECU DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

95

(R/W)

Ground

Combination switch
INPUT 1

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

1.4V

Turn signal switch LH

1.3V

Turn signal switch RH

1.3V

Front wiper switch LO

1.3V

Front washer switch ON

1.3V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JPMIA0041GB

JPMIA0037GB

JPMIA0036GB

JPMIA0038GB

JPMIA0039GB
