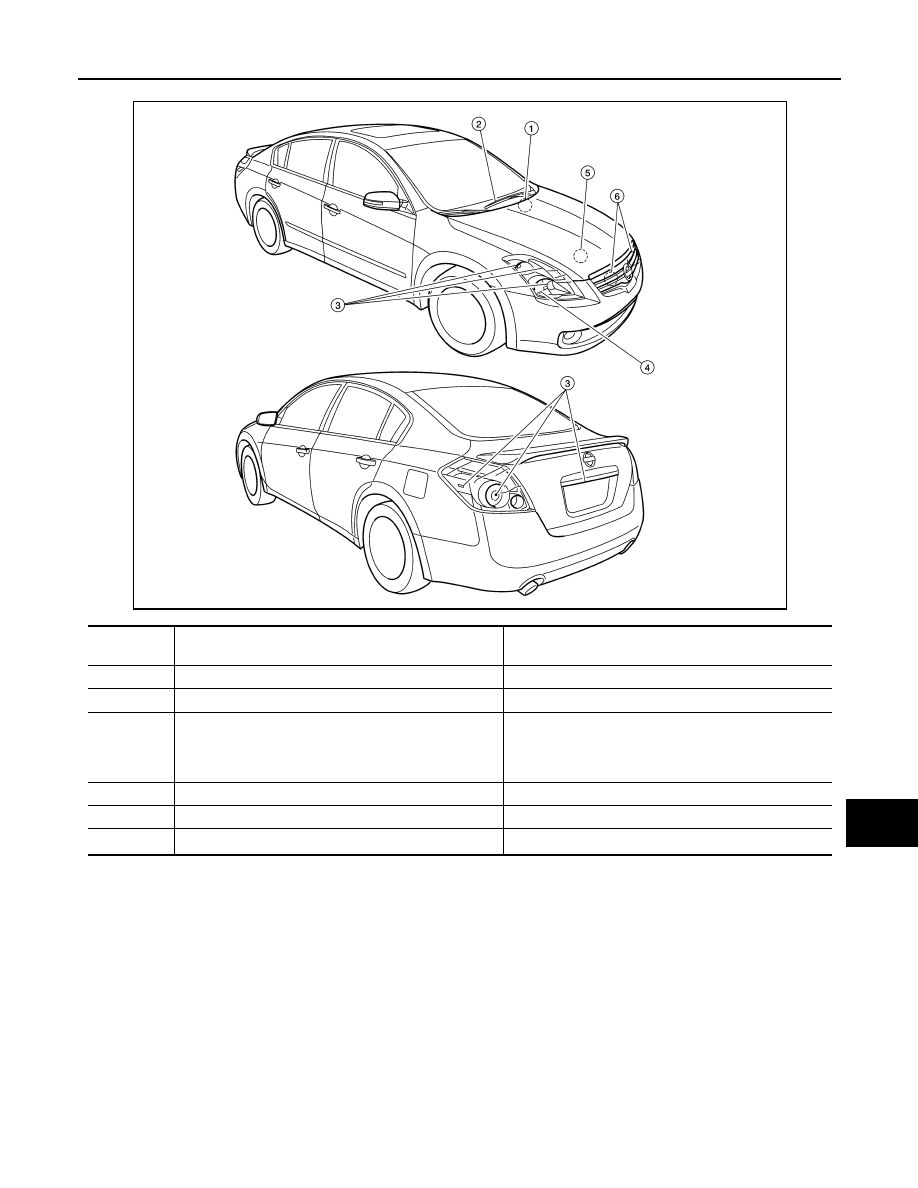

Component Parts Location

INFOID:0000000004219107

1.

BCM (view with instrument panel re-
moved)

2.

Combination meter

3.

IPDM E/R

ALMIA0112ZZ

PCS-14

< FUNCTION DIAGNOSIS >

[IPDM E/R]

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000004219108

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.

• Oil pressure warning lamp

• Front wiper (LO, HI)

• Parking lamps

• License plate lamps

• Tail lamps

• Front fog lamps (if equipped)

• Headlamps (LO, HI)

• Heater pump

• Cooling fans

Operation Procedure

1. Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper

operation)

NOTE:

When auto active test is performed with hood opened, sprinkle water on windshield before hand.

2. Turn ignition switch OFF.
3. Turn the ignition switch ON, and within 20 seconds, press the front door switch LH 10 times. Then turn the

ignition switch OFF.

CAUTION:

Close front door RH.

4. Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test

starts.

5. The oil pressure warning lamp starts blinking when the auto active test starts.
6. After a series of the following operations is repeated 3 times, auto active test is completed.
NOTE:

When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system. Refer to

DLK-69,

"Component Function Check"

.

• Do not start the engine.

Inspection in Auto Active Test Mode

PCS

DIAGNOSIS SYSTEM (IPDM E/R)

PCS-15

< FUNCTION DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

When auto active test mode is actuated, the following 6 steps are repeated 3 times.

*: Outputs duty ratio of 50% for 5 seconds

→ duty ratio of 100% for 5 seconds on the cooling fan control module.

Operation
sequence

Inspection Location

Operation

1

Oil pressure warning lamp

Blinks continuously during operation of auto active test

2

Front wiper

LO for 5 seconds

→ HI for 5 seconds

3

• Parking  lamps
• License plate lamps
• Tail lamps
• Front fog lamps (if equipped)

10 seconds

4

Headlamps

LO

⇔ HI 5 times

5

Heater pump

ON

⇔ OFF 5 times

6

*

Cooling fans

MID for 5 seconds

→ HI for 5 seconds

ALCIA0031ZZ

PCS-16

< FUNCTION DIAGNOSIS >

[IPDM E/R]

DIAGNOSIS SYSTEM (IPDM E/R)

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto

active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

ALMIA0113GB

Symptom

Inspection contents

Possible cause

Any of the following components do not operate

• Parking lamps
• License plate lamps
• Tail  lamps
• Front fog lamps (if equipped)
• Headlamp (HI, LO)
• Front wiper

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground cir-

cuit

• Harness or connector be-

tween IPDM E/R and appli-
cable system

• IPDM  E/R

Heater pump does not operate

Perform auto active test.
Does the heater pump oper-
ate?

YES

• Combination meter signal

input circuit

• CAN communication signal

between combination meter
and ECM

• CAN communication signal

between ECM and IPDM E/
R

NO

• Heater pump
• Harness or connector be-

tween IPDM E/R and mag-
net clutch

• IPDM  E/R

Oil pressure warning lamp does not operate

Perform auto active test.
Does the oil pressure warning
lamp blink?

YES

• Harness or connector be-

tween IPDM E/R and oil
pressure switch

• Oil pressure switch
• IPDM  E/R

NO

• CAN communication signal

between IPDM E/R and
BCM

• CAN communication signal

between BCM and combi-
nation meter

• Combination meter
