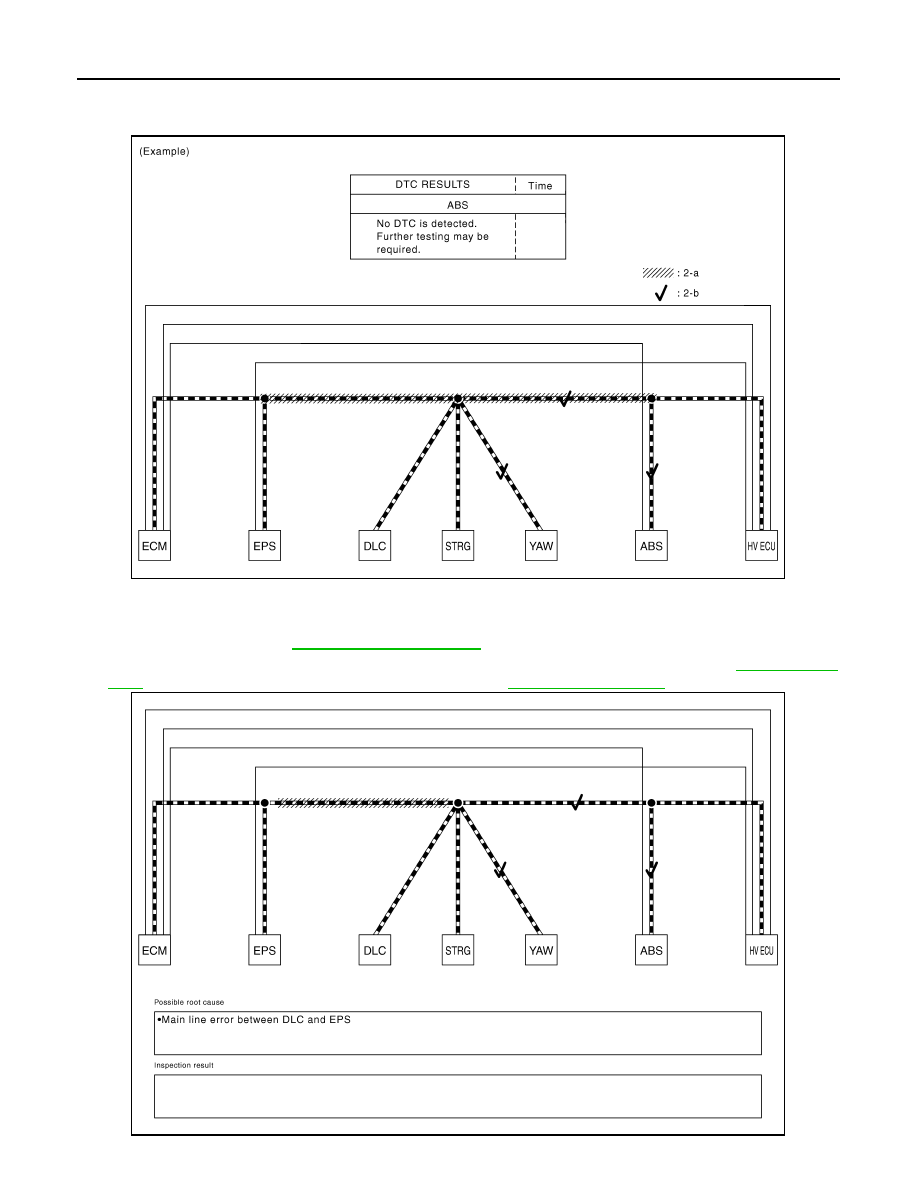

LAN-58 < BASIC INSPECTION > [HEV SYSTEM CAN] DIAGNOSIS AND REPAIR WORKFLOW Reception item of “ABS”: “U0073”, “U0123” and “U0124” are not indicated. ABS communicates normally with YAW. Put a check mark on the normal circuit between ABS and YAW (check mark 2-b in the figure below). 3. Through the above procedure, the error is detected in between EPS and DLC main line (shaded in the fig- ure below). NOTE: For abbreviations, refer to . 4. Perform the inspection for the detected error circuit. For the inspection procedure, refer to . (When the error is detected on branch line, refer to JPMIA0256GB JPMIA0257GB |
