DOOR

DLK-221

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR : Adjustment

INFOID:0000000004215795

1.

Front fender

2.

Front door assembly

3.

Rear door assembly

4.

Center mud guard

5.

Center pillar

6.

Outer sill

AWKIA0450GB

DLK-222

< ON-VEHICLE REPAIR >

DOOR

Unit: mm (in)

LONGITUDINAL CLEARANCE

1. Confirm the back door adjustments and adjust if necessary. Refer to

DLK-222, "BACK DOOR : Removal

and Installation"

.

2. Remove the front fender. Refer to

DLK-217, "Removal and Installation"

.

3. Loosen the hinge bolts. Raise or lower the front door at rear edge to adjust.
4. Install the front fender. Refer to

DLK-217, "Removal and Installation"

.

SURFACE HEIGHT ADJUSTMENT

1. Loosen the front door hinge nuts.
2. Move the top and or bottom in or out as necessary until it is

within specifications.

3. Tighten the hinge nuts to specifications.

BACK DOOR
BACK DOOR : Removal and Installation

INFOID:0000000004215796

REMOVAL

CAUTION:

• When removing and installing the rear door assembly, support the door with a jack and cloth to pro-

tect the door and body.

• When removing and installing rear door assembly, be sure to carry out the fitting adjustment.

• Check the hinge rotating parts for poor lubrication. If necessary, apply “body grease”.

• After installing, apply touch-up paint (the body color) onto the head of the hinge nuts.

• Operate with two workers, because of its heavy weight.

• Check rear door open/close operation after installation.

Section

Item

Measurement

Standard

A-A

F

Clearance

4.5

± 1.5 (0.18 ± 0.06)

G

Surface height

0.0

± 1.5 (0.0 ± 0.06)

B-B

H

Clearance

4.2

± 1.0 (0.17 ± 0.04)

J

Surface height

0.0

± 1.0 (0.0 ± 0.04)

C-C

K

Clearance

4.2

± 1.0 (0.17 ± 0.04)

M

Surface height

0.0

± 1.0 (0.0 ± 0.04)

D-D

N

Clearance

5.1

± 1.7 (0.20 ± 0.07)

E-E

P

Clearance

3.6

± 1.0 (0.14 ± 0.04)

Q

Surface height

0.0

± 1.0 (0.0 ± 0.04)

ALKIA0016GB

DOOR

DLK-223

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1. Pull out grommet and disconnect rear door harness connector.
2. Remove the check link bolt from the center pillar.
3. Remove the door-side hinge nuts (a) and the door assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

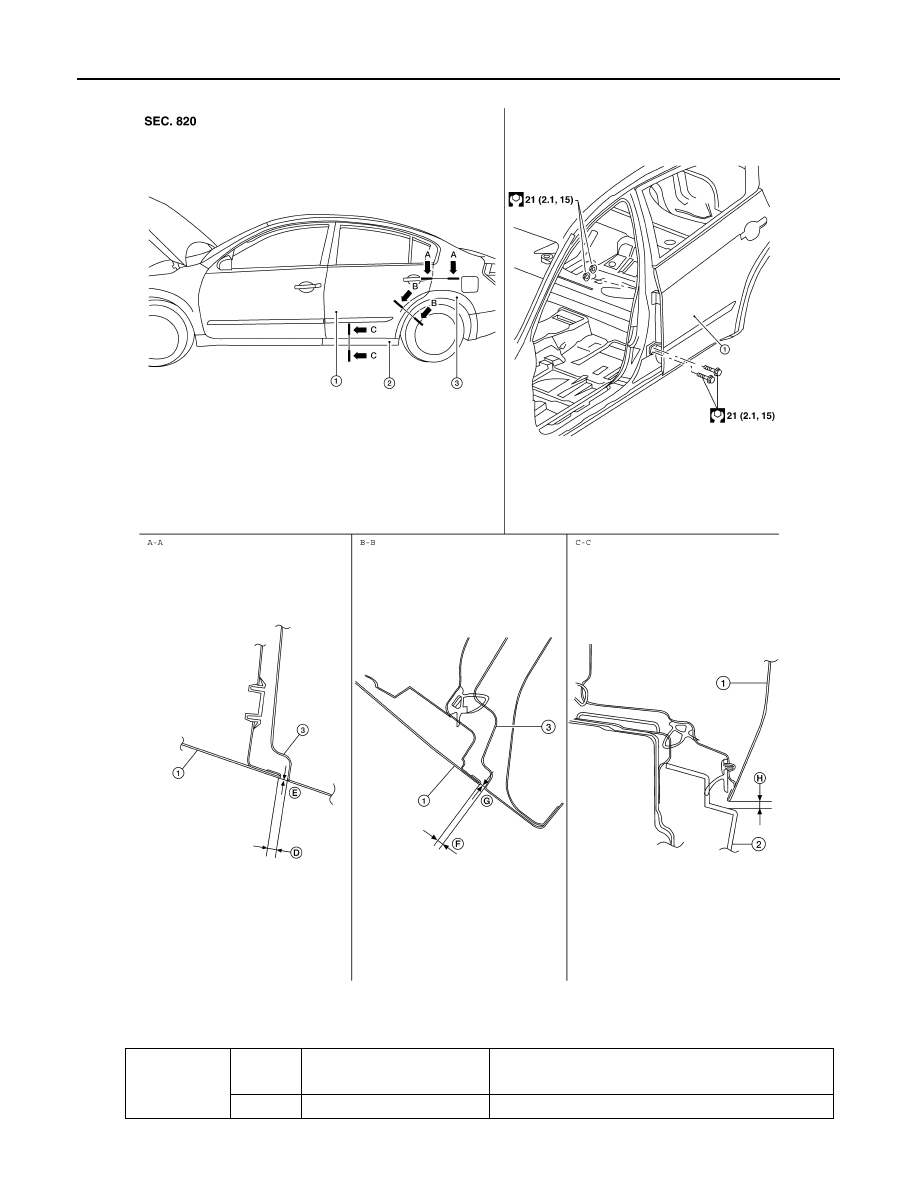

REAR DOOR: ADJUSTMENT

ALKIA0016GB

DLK-224

< ON-VEHICLE REPAIR >

DOOR

Unit: mm (in)

1.

Rear door assembly

2.

Center mud guard

3.

Body side outer

Section

Item

Measurement

Standard

A-A

D

Clearance

3.6

± 1.0 (0.14 ± 0.04)

E

Surface height

0.0

± 1.0 (0.0 ± 0.04)

AWKIA0451GB
