U1000 CAN COMM CIRCUIT

DLK-57

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000004215645

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Modern

vehicle is equipped with many electronic control unit, and each control unit shares information and links with

other control units during operation (not independent). In CAN communication, control units are connected

with 2 communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission with less

wiring. Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Signal Chart. Refer to

LAN-27, "CAN Communication Signal Chart"

.

DTC Logic

INFOID:0000000004215646

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000004215647

1.

PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Check “Self Diagnostic Result”.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-8, "CAN Communication Control Circuit"

.

NO

>> Refer to

GI-42, "Intermittent Incident"

.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When BCM cannot communicate CAN com-
munication signal continuously for 2 sec-
onds or more.

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Transmission
• Receiving (ECM)
• Receiving (VDC/TCS/ABS)
• Receiving (METER/M&A)
• Receiving HV ECU
• Receiving (MULTI AV)
• Receiving (IPDM E/R)

DLK-58

< COMPONENT DIAGNOSIS >

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

DTC Logic

INFOID:0000000004215648

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000004215649

1.

REPLACE BCM

When DTC [U1010] is detected, replace BCM.

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000004215650

1.

REQUIRED WORK WHEN REPLACING BCM

Initialize NVIS by CONSULT-III. For the details of initialization refer to CONSULT-III Operation Manual.

>> Work End.

DTC

CONSULT-III display de-

scription

DTC Detection Condition

Possible cause

U1010

CONTROL UNIT (CAN)

BCM detected internal CAN communication circuit malfunction.

BCM

B2621 INSIDE KEY ANTENNA 1

DLK-59

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

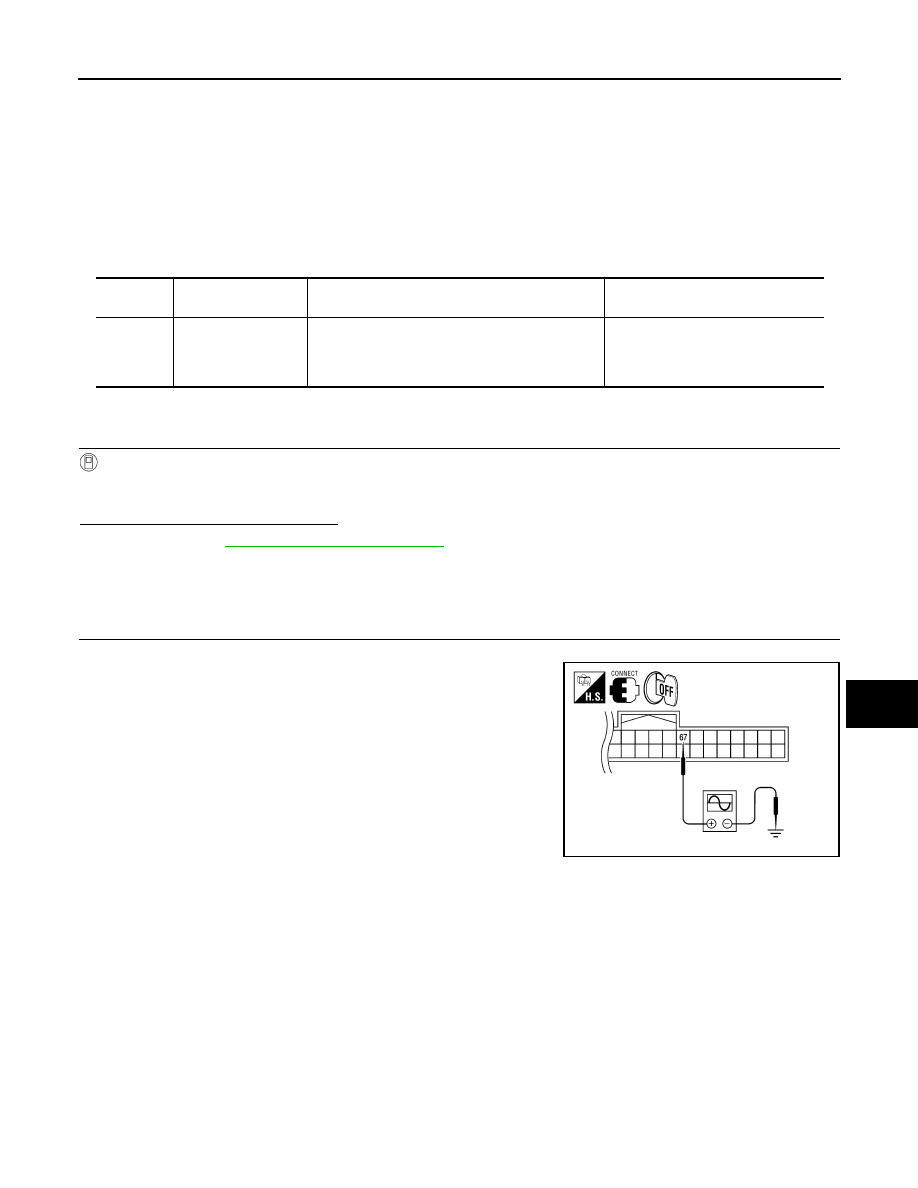

B2621 INSIDE KEY ANTENNA 1

Description

INFOID:0000000004215651

Detects whether Intelligent Key is inside the vehicle.

Installed in the center area of the instrument panel.

DTC Logic

INFOID:0000000004215652

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-III

1. Perform INSIDE ANT DIAGNOSIS on "WORK SUPPORT” of “INTELLIGENT KEY”.

2. Perform “INTELLIGENT KEY” Self Diagnostic Result.
Is inside key antenna DTC detected?

YES

>> Refer to

DLK-59, "Diagnosis Procedure"

.

NO

>> Inside key antenna (instrument panel) is OK.

Diagnosis Procedure

INFOID:0000000004215653

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch OFF.

2. Check signal between BCM connector and ground with oscillo-

scope.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2621

INSIDE ANTENNA 1
CIRCUIT

An excessive high or low voltage from inside anten-
na is sent to BCM.

• Inside key antenna (instrument

panel)

• Between BCM and Inside key an-

tenna (instrument panel)

ALKIA0325ZZ

DLK-60

< COMPONENT DIAGNOSIS >

B2621 INSIDE KEY ANTENNA 1

Is the inspection result normal?

YES

>> Check the condition of harness and connector.

NO

>> GO TO 2

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM and instrument panel antenna connector.

2. Check continuity between BCM connector and instrument panel

antenna connector.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness between BCM and instrument panel antenna.

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace instrument panel antenna (New antenna or other antenna).

2. Connect BCM and instrument panel antenna connector.

Terminals

Condition

Signal

(Reference value.)

(+)

(–)

BCM connector

Terminal

M19

Instrument

panel antenna

67

Ground

Place Intelligent Key inside the
vehicle.

Place Intelligent Key outside
the vehicle.

JMKIA0062GB

JMKIA0063GB

BCM connector

Terminal

Instrument panel an-

tenna connector

Terminal

Continuity

M19

66

M49

Instrument

center

2

Yes

67

1

BCM connector

Terminal

Ground

Continuity

M19

Instrument panel

antenna

66

No

67

ALKIA0326ZZ
