BCM (BODY CONTROL MODULE)

DEF-23

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

Terminal Layout

INFOID:0000000004505062

WARNING LAMP

Tire pressure indicator OFF

OFF

Tire pressure indicator ON

ON

Monitor Item

Condition

Value/Status

ALMIA0127ZZ

DEF-24

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

Physical Values

INFOID:0000000004505063

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

1

(W/B)

Ground Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(R/Y)

Ground

Battery power supply
output

Output Ignition switch OFF

Battery voltage

3

(L/W)

Ground

Ignition power supply
output

Output Ignition switch ON

Battery voltage

4

(P/W)

Ground

Interior room lamp
power supply

Output

After passing the interior room lamp battery sav-
er operation time

0V

Any other time after passing the interior room
lamp battery saver operation time

Battery voltage

5

(G/Y)

Ground

Front door RH UN-
LOCK

Output Front door RH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

7

(R/W)

Ground Step lamp

Output Room lamp timer

ON

Battery voltage

OFF

0V

8

(V)

Ground All doors LOCK

Output All doors

LOCK (actuator is activat-
ed)

Battery voltage

Other than LOCK (actuator
is not activated)

0V

9

(G)

Ground

Front door LH UN-
LOCK

Output Front door LH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

10

(G/Y)

Ground

Rear door RH and
rear door LH UN-
LOCK

Output

Rear door RH
and rear door LH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

11

(Y/R)

Ground Battery power supply

Input

Ignition switch OFF

Battery voltage

13

(B)

Ground Ground

—

Ignition switch ON

0V

14

(R/Y)

Ground

Push-button ignition
switch illumination
ground

Input

Tail lamp

OFF

0V

ON

NOTE:
When the illumination brighten-
ing/dimming level is in the neutral
position

15

(Y/L)

Ground ACC indicator lamp

Output Ignition switch

OFF

Battery voltage

ACC

0V

JSNIA0010GB

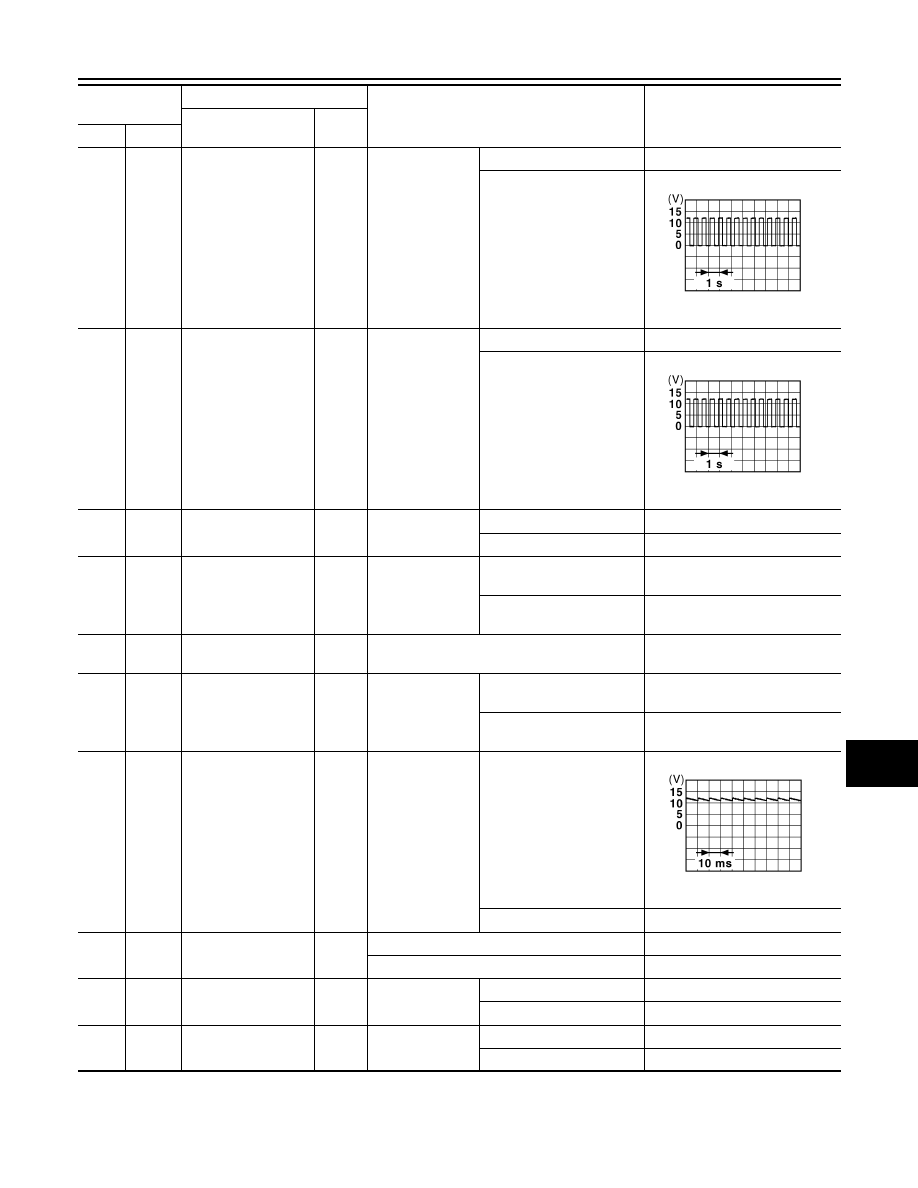

BCM (BODY CONTROL MODULE)

DEF-25

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

17

(G/B)

Ground Turn signal (RH)

Output

Ignition switch
ON

Turn signal switch OFF

0V

Turn signal switch RH

6.5V

18

(G/O)

Ground Turn signal (LH)

Output

Ignition switch
ON

Turn signal switch OFF

0V

Turn signal switch LH

6.5V

19

(Y)

Ground

Room lamp timer
control

Output

Interior room
lamp

Lamps fully OFF

Battery voltage

Lamps fully ON

0V

21

(P/B)

Ground Optical sensor signal

Input

Ignition switch
ON

When outside of the vehi-
cle is bright

Close to 5V

When outside of the vehi-
cle is dark

Close to 0V

24

(R/W)

Ground Stop lamp switch 1

Input

—

Battery voltage

26

(O/L)

Ground Stop lamp switch 2

Input

Stop lamp switch

OFF (brake pedal is not de-
pressed)

0V

ON (brake pedal is de-
pressed)

Battery voltage

27

(G/W)

Ground

Front door lock as-
sembly LH (unlock
sensor)

Input

Front door LH

LOCK status

11.8V

UNLOCK status

0V

29

(Y)

Ground Key slot switch

Input

When Intelligent Key is inserted into key slot

Battery voltage

When Intelligent Key is not inserted into key slot 0V

30

(V/Y)

Ground ACC feedback signal

Input

Ignition switch

OFF

0

ACC or ON

Battery voltage

31

(G)

Ground

Ignition relay-2 feed-
back signal

Input

Ignition switch

OFF

0V

ON

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

PKID0926E

PKID0926E

JPMIA0011GB

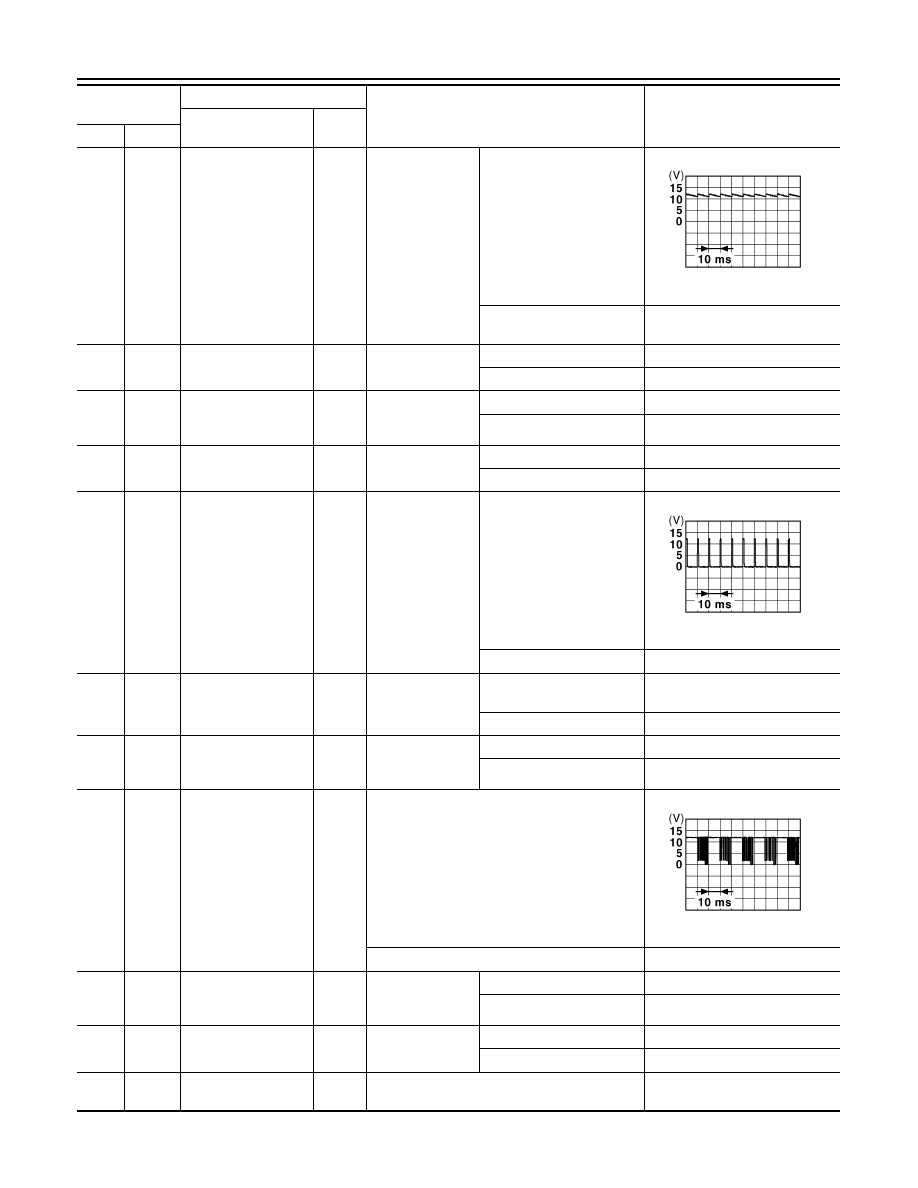

DEF-26

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

32

(R/B)

Ground Front door RH switch

Input

Front door RH
switch

OFF (when front door RH
closes)

11.8V

ON (when front door RH
opens)

0V

33

(SB)

Ground

Compressor ON sig-
nal

Input

A/C switch

OFF

Battery voltage

ON

0V

34*

(L/R)

Ground

Front door lock as-
sembly LH (key cylin-
der switch) (unlock)

Input

Front door lock
assembly LH (key
cylinder switch)

OFF (neutral)

Battery voltage

ON (unlock)

0V

36*

(GR)

Ground Lock switch signal

Input

Door lock/unlock
switch

Lock

Battery Voltage

Unlock

0V

37

(O)

Ground

Trunk lid opener can-
cel switch

Input

Trunk lid opener
cancel switch

CANCEL

1.1V

ON

0V

38

(GR/

W)

Ground

Rear window defog-
ger ON signal

Input

Rear window de-
fogger switch

OFF

Battery Voltage
V

ON

0V

39*

(GR/

R)

Ground Unlock switch signal

Input

Door lock/unlock
switch

Unlock

Battery Voltage

Lock

0V

40*

(Y/G)

Ground

Power window serial
link

Input/

Output

Ignition switch ON

10.2V

Ignition switch OFF or ACC

0V

41

(W)

Ground

Push-button ignition
switch illumination

Output

Engine switch
(push switch) illu-
mination

ON

5.5V

OFF

0V

42

(R)

Ground LOCK indicator lamp

Output

LOCK indicator
lamp

ON

0V

OFF

Battery voltage

45

(P)

Ground

Receiver & sensor
ground

Input

Ignition switch ON

0V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JPMIA0011GB

JPMIA0012GB

JPMIA0013GB
