BRAKE TUBE AND HOSE

BR-11

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, then check each part for fluid leakage.

REAR BRAKE
REAR BRAKE : Inspection

INFOID:0000000004212565

INSPECTION AFTER REMOVAL

CAUTION:

Brake tubes and hoses are important safety parts. Always disassemble the parts and retighten their fit-

tings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is

detected.
1. Check brake tubes and hoses, and all connections for fluid leaks, damage, twists, deformation, contacts

with other parts, and loose connections. Replace any damage parts.

2. While depressing brake pedal under a force of 785 N (80 kg-f, 177 lb-f) with engine running for approxi-

mately 5 seconds, then check each part for fluid leakage.

BR-12

< ON-VEHICLE MAINTENANCE >

BRAKE PEDAL

ON-VEHICLE MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment

INFOID:0000000004212566

INSPECTION

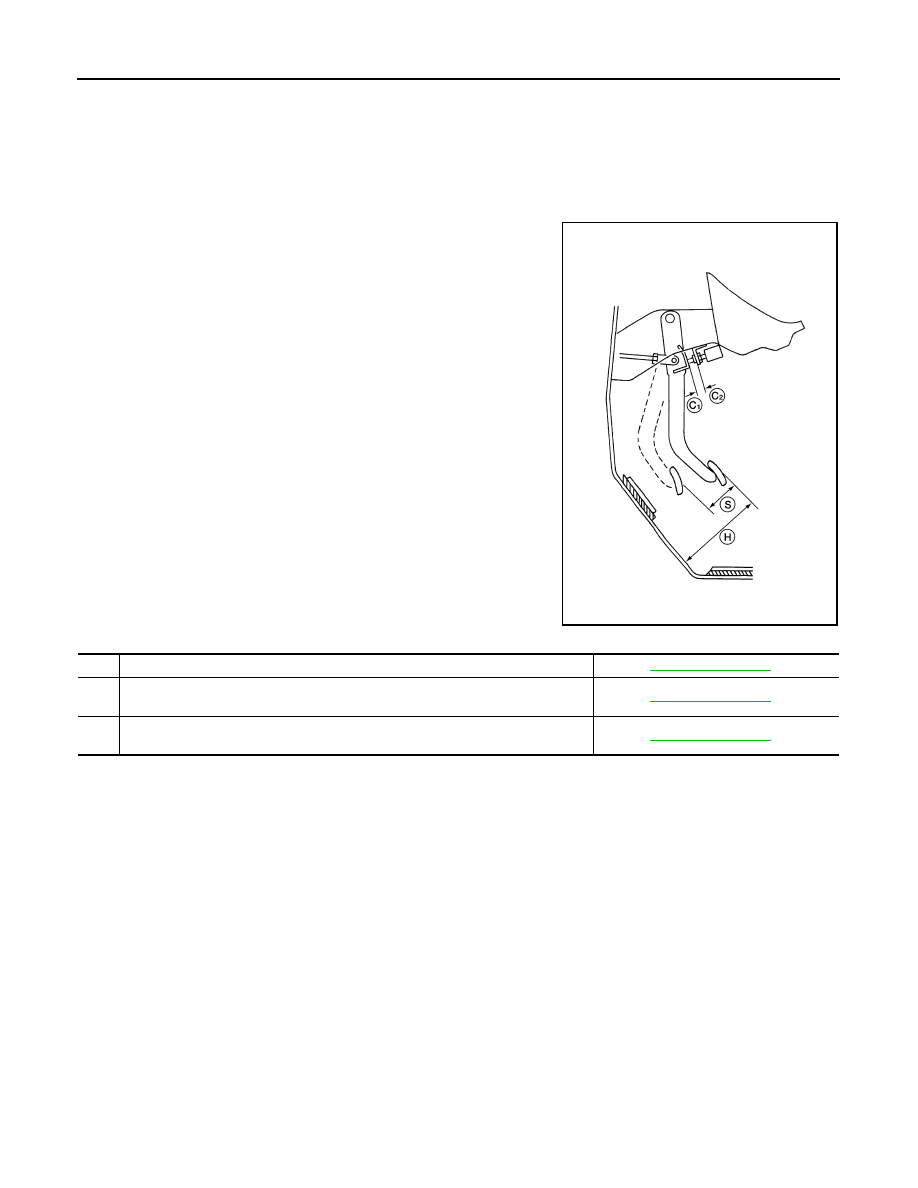

1. Inspect the brake pedal free height (H) from the floor using Tool

at a 90

° angle to the floor as shown.

2. Adjust the brake pedal height to specifications.

Brake Pedal Specifications

ADJUSTMENT

Tool number

:

—

(J-46532)

AWFIA0433ZZ

H

Brake pedal height (from dash lower panel top surface)

Refer to

BR-45, "Brake Pedal"

.

S

Brake pedal full stroke
[under a force of 490 N (50 kg-f, 110 lb-f) with engine running]

Refer to

BR-45, "Brake Pedal"

.

C

1

,

C

2

Clearance between bracket and threaded end of the stop lamp switch and ASCD
cancel switch

Refer to

BR-45, "Brake Pedal"

.

BRAKE PEDAL

BR-13

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

1. Loosen the stop lamp switch and ASCD cancel switch by turning

it counterclockwise by 45

°.

2. Loosen lock nut (A) on the input rod, then turn input rod to adjust

the brake pedal height to specification, and tighten lock nut (A).

CAUTION:

Make sure the threaded end of input rod stays inside clevis.

3. With the pedal pulled up and held by hand, press the stop lamp

switch and ASCD cancel switch until the threaded end contacts

the stopper.

4. With the threaded end of the stop lamp switch and ASCD cancel

switch contacting the bracket, rotate the switch clockwise by 45

°

to secure.

CAUTION:

Make sure that the clearance (C) between bracket and end

of stop lamp switch and brake switch is within the standard.

Refer to

BR-12, "Inspection and Adjustment"

.

5. Check the brake pedal for smooth operation.

CAUTION:

Make sure that stop lamps are off when the brake pedal is

released.

6. Start the engine to check brake pedal depressed height. Refer to

BR-12, "Inspection and Adjustment"

.

PFIA0436E

BR-14

< ON-VEHICLE MAINTENANCE >

BRAKE FLUID

BRAKE FLUID

On Board Inspection

INFOID:0000000004212567

BRAKE FLUID LEVEL

• Check that the brake fluid level in reservoir tank is within the speci-

fied range between the MAX and MIN lines as shown.

• Visually check around the reservoir tank for fluid leaks.

• If the fluid level is excessively low, check the brake system for

leaks.

• Release the parking brake and check if the brake warning lamp

goes off. If not, check brake system for fluid leaks.

BRAKE LINE

CAUTION:

If leakage occurs around joints, retighten or, if necessary, replace damaged parts.
1. Check brake lines (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged

parts.

2. Check for oil leakage by fully depressing brake pedal while the

car is ON.

Refilling

INFOID:0000000004212568

REFILLING

Make sure there is no foreign material in the reservoir tank, and refill with new brake fluid to the proper level.

CAUTION:

• Refill with new brake fluid “DOT 3”.

• Never reuse drained brake fluid.

Bleeding Brake System

INFOID:0000000004212569

CAUTION:

• If any DTC is indicated, erase the indicated DTC.

• After the procedure of air bleed, perfrom initialization of linear solenoid valve. Refer to

BRC-7, "PER-

FORM INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION : Description"

.

NOTE:

The brake warning buzzer may be activated during the air bleed procedure. The work can be continued, as it

is normal.

AIR RELEASE OF STATIC PRESSURE SYSTEM (FRONT WHEEL)

CAUTION:

• Monitor the fluid level in the reservoir tank during the air bleeding.

• Always use new brake fluid for refilling. Never reuse the drained brake fluid.
1. Turn ignition switch OFF.
2. Connect CONSULT-III.
3. Turn ignition switch (READY).

JSFIA0079GB

SBR389C
