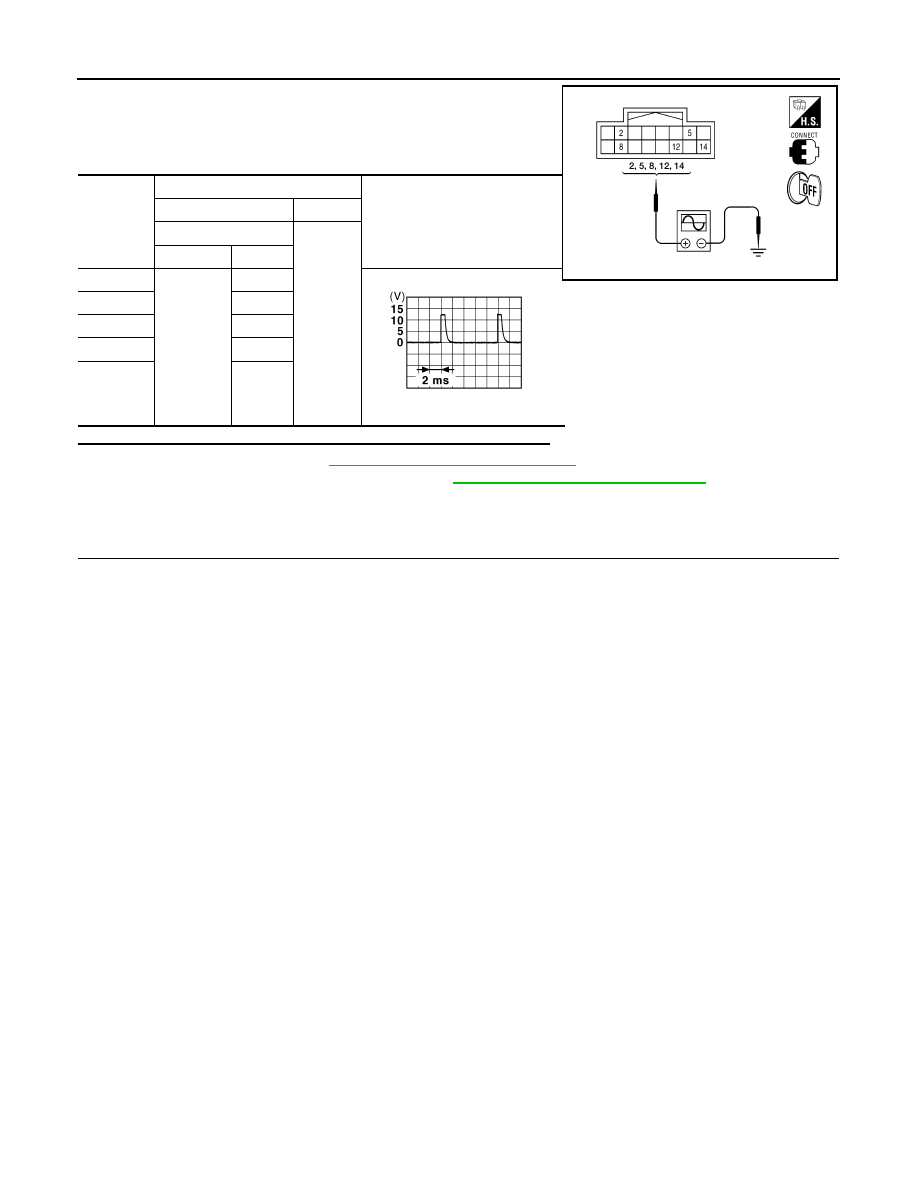

BCS-46 < COMPONENT DIAGNOSIS > [BCM] COMBINATION SWITCH OUTPUT CIRCUIT 1. Connect BCM and combination switch. 2. Turn ON any switch in the system that is malfunctioning. 3. Check voltage between combination switch harness connector and ground. Is the measurement normal when any of the switches is turned ON? YES >> Replace BCM. Refer to BCS-87, "Removal and Installation" NO >> Replace the combination switch. Refer to EXL-168, "Removal and Installation" Special Repair Requirement INFOID:0000000004218998 1. REQUIRED WORK WHEN REPLACING BCM Initialize control unit. Refer to CONSULT-III operation manual NATS-IVIS/NVIS. >> Work End. System Terminals Value (Approx.) (+) (-) Combination switch Ground Connector Terminal OUTPUT 1 M28 12 1.4V OUTPUT 2 14 OUTPUT 3 5 OUTPUT 4 2 OUTPUT 5 8 ALMIA0107ZZ JPMIA0041GB |
