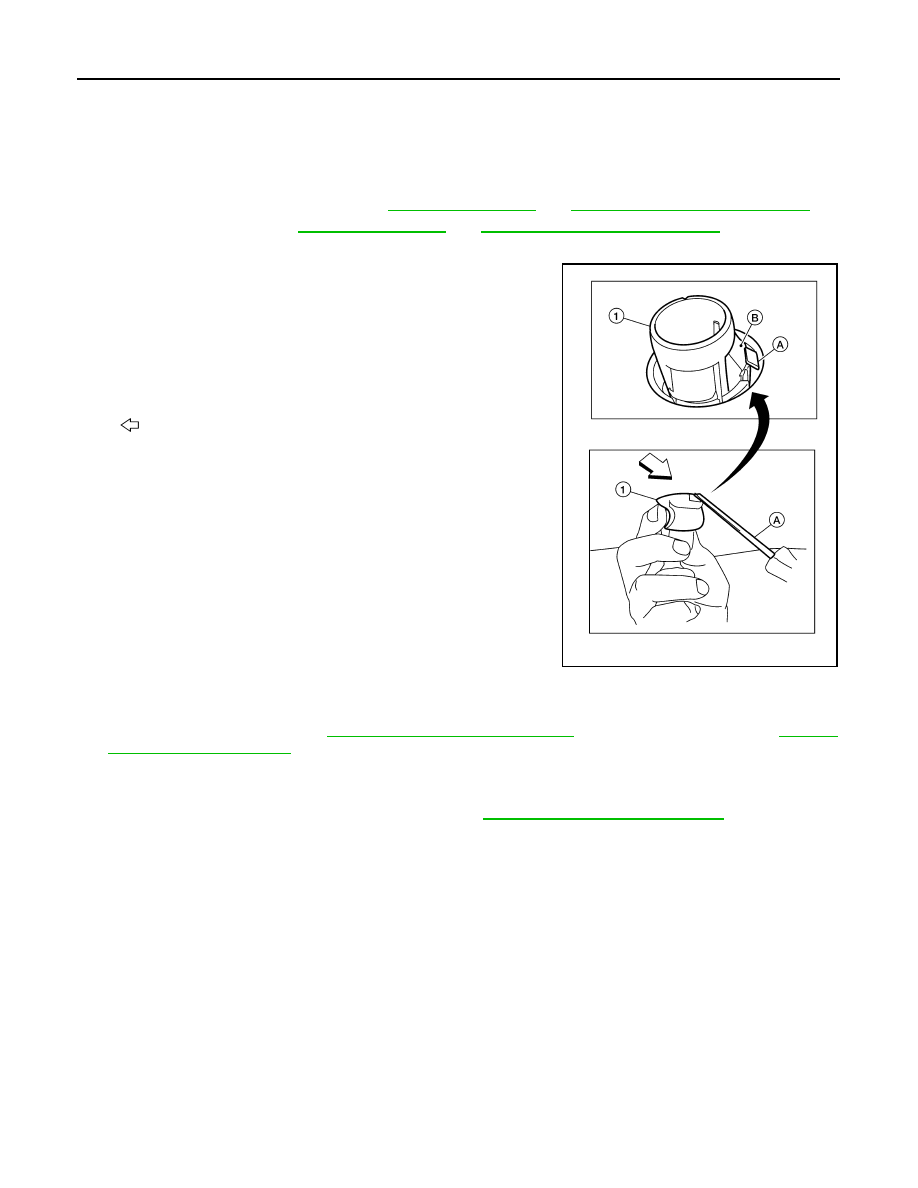

INT-26 < REMOVAL AND INSTALLATION > HEADLINING REMOVAL 1. Remove body side trim panels. Refer to INT-19, "Removal and Installation" 2. Remove rear trim. Refer to INT-19, "Removal and Installation" . 3. Remove the sun visor assemblies (RH/LH). into the sun visor holder notch on the front of the sun visor holder (1) and press in the locking tab (B) to release it. While holding in lock tab (B), turn the sun visor holder (1) 90 degrees to release it from the headliner. • If the sun visor holder (1) does not fully rotate, make sure that the suitable thin tool (A) is pressing in on the locking tab (B) and is not positioned under locking tab (B). Reinsert the suit- able thin tool (A) as necessary to release the locking tab (B). • : Front CAUTION: Do not force the sun visor holder when removing as the locking tab may be damaged if the suitable thin tool is not positioned correctly. 5. Remove roof console with front room/map lamp and sunglass bin (if equipped). • Disconnect harness. 6. Remove room lamp. Refer to INL-63, "Removal and Installation" (with power door locks) or (without power door locks). 7. Remove striker covers (King Cab only). GW-14, "Removal and Installation" . 10. Remove headlining. NOTE: Use an assistant to steady the headlining while lowering from roof. • Remove clips from center of headlining (if equipped). • Remove headlining by tilting through rear window opening on Crew Cab models. • Remove headlining through door opening on King Cab models. 11. Remove assist grip brackets from roof. INSTALLATION Installation is in the reverse order of removal. 7. Striker cover outer (RH)(King Cab) 8. Striker cover inner (RH)(King Cab) 9. Roof console with front room/map 10. Striker cover outer (LH)(King Cab) 11. Striker cover inner (LH)(King Cab) 12. Coat hook 13. Headlining (King Cab) 14. Headlining (Crew cab w/sunroof) 15. Room lamp ALJIA0537ZZ |
