HAC-58

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

INTAKE SENSOR

If NG, replace intake sensor. Refer to

VTL-10, "Removal and Installation"

.

30 (86)

24.2

35 (95)

19.7

40 (104)

16.1

45 (113)

13.2

Temperature

°C (°F)

Resistance k

Ω

POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER

HAC-59

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER

Component Description

INFOID:0000000009478303

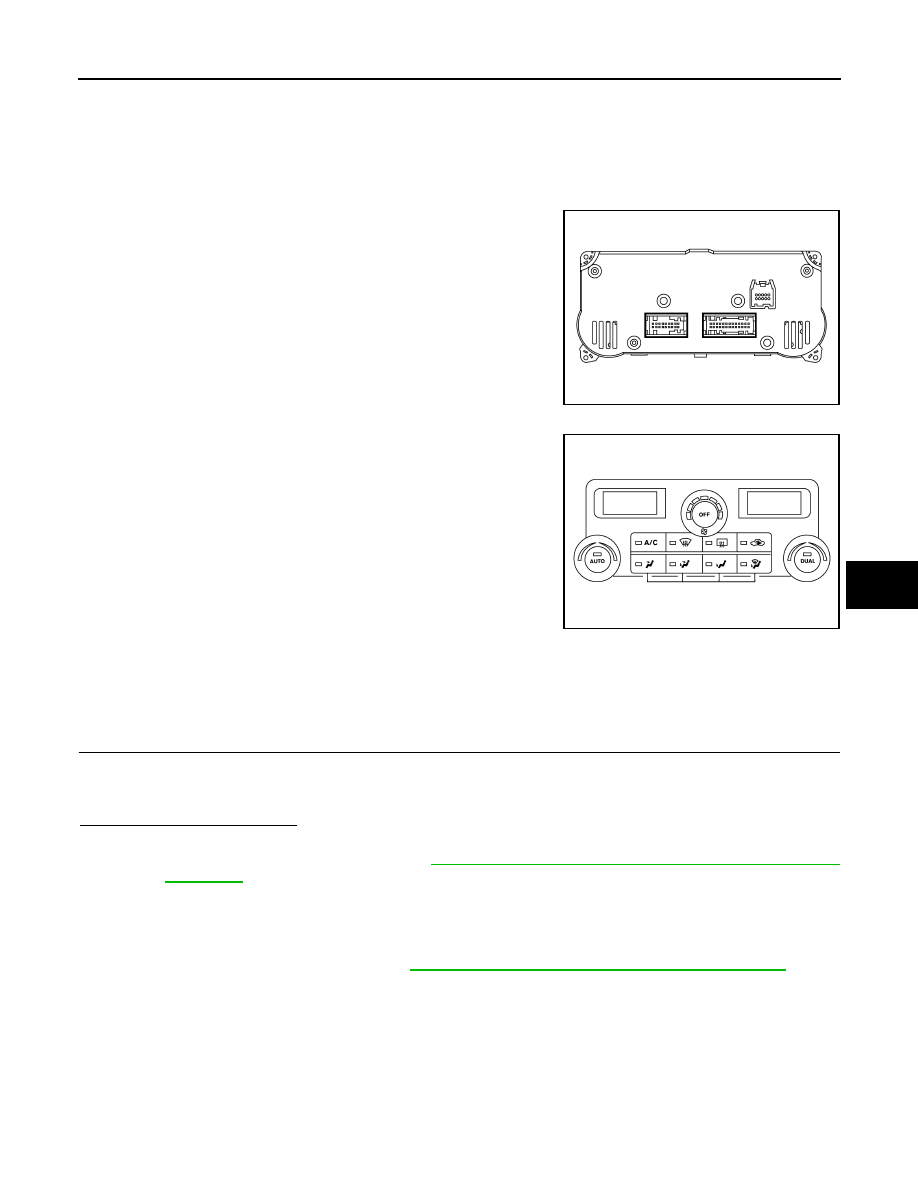

COMPONENT DESCRIPTION

Front Air Control

The front air control has a built-in microcomputer which processes

information sent from various sensors needed for air conditioner

operation. The air mix door motors, mode door motor, intake door

motor, blower motor and compressor are then controlled.

The front air control is unitized with control mechanisms. When the

various switches and temperature dials are operated, data is input to

the front air control.

Self-diagnostic functions are also built into the front air control to pro-

vide quick check of malfunctions in the auto air conditioner system.

Potentio Temperature Control (PTC)

There are two PTCs (driver and passenger) built into the front air

control. They can be set at an interval of 0.5

°C (1.0°F) in the 18°C

(60

°F) to 32°C (90°F) temperature range by rotating the temperature

dial. The set temperature is displayed.

Front Air Control Component Function Check

INFOID:0000000009478304

SYMPTOM: A/C system does not come on.

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - AUTO MODE

1. Press AUTO switch.

2. Confirm that the compressor clutch engages (sound or visual inspection). (Discharge air and blower

speed will depend on ambient, in-vehicle and set temperatures.)

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Go to diagnosis procedure. Refer to

HAC-59, "Front Air Control Power and Ground Diagnosis

Procedure"

.

Front Air Control Power and Ground Diagnosis Procedure

INFOID:0000000009478305

Regarding Wiring Diagram information, refer to

HAC-63, "Wiring Diagram - Automatic Air Conditioner"

.

DIAGNOSTIC PROCEDURE FOR A/C SYSTEM

AWIIA0551ZZ

AWIIA0938ZZ

HAC-60

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER

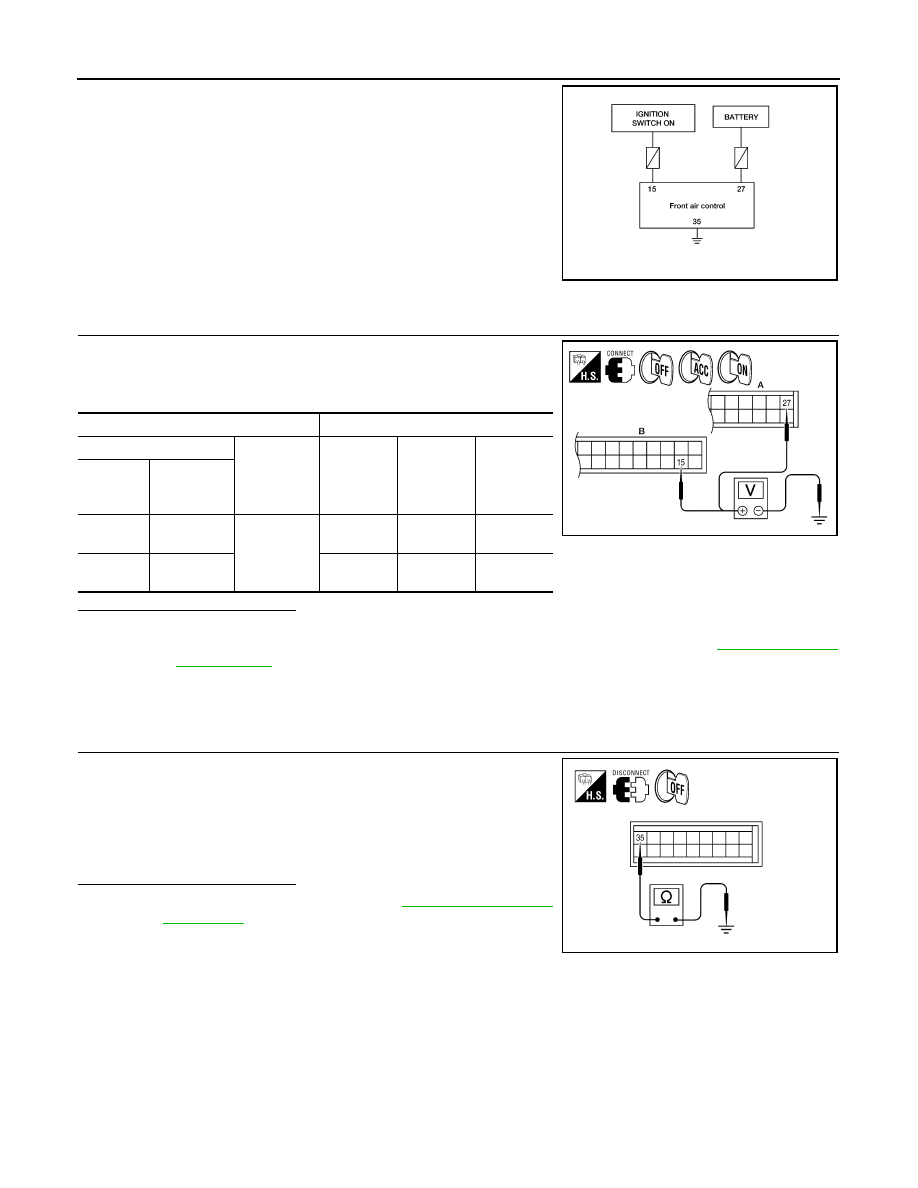

SYMPTOM: A/C system does not come on.

1.

 CHECK POWER SUPPLY CIRCUITS FOR FRONT AIR CONTROL

1. Turn ignition switch ON.

2. Check voltage between front air control harness connector M52

(B) terminal 15 and M56 (A) terminal 27, and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check 10A fuses [Nos. 8 and 19, located in the fuse block (J/B)]. Refer to

PG-79, "Terminal

Arrangement"

.

• If fuses are OK, check harness for open circuit. Repair or replace as necessary.

• If fuses are NG, replace fuse and check harness for short circuit. Repair or replace as neces-

sary.

2.

 CHECK GROUND CIRCUIT FOR FRONT AIR CONTROL

1. Turn ignition switch OFF.

2. Disconnect front air control connectors.

3. Check continuity between front air control harness connector

M56 terminal 35 and ground.

Is the inspection result normal?

OK

>> Replace front air control. Refer to

VTL-7, "Removal and

Installation"

.

NG

>> Repair harness or connector.

AWIIA0438GB

Terminals

Ignition switch position

(+)

(-)

OFF

ACC

ON

front air

control

connector

Terminal No.

M52

15

Ground

Approx. 0V

Approx. 0V

Battery
voltage

M56

27

Battery
voltage

Battery
voltage

Battery
voltage

AWIIA1073ZZ

35 - Ground

: Continuity should exist.

AWIIA0440ZZ

AIR CONDITIONER CONTROL

HAC-61

< ECU DIAGNOSIS INFORMATION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ECU DIAGNOSIS INFORMATION

AIR CONDITIONER CONTROL

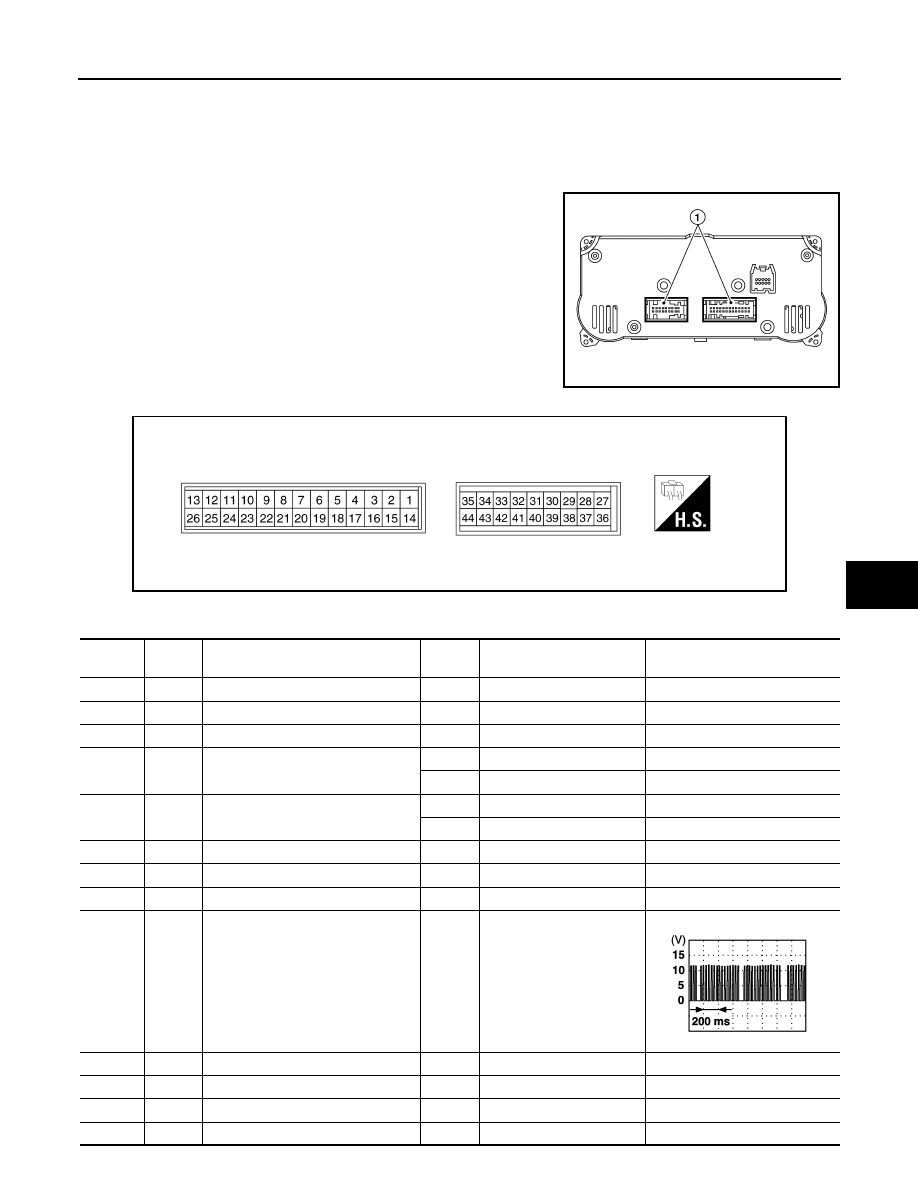

Front Air Control Terminals Reference Values

INFOID:0000000009478306

Measure voltage between each terminal and ground by following

Terminals and Reference Value for front air control (1).

FRONT AIR CONTROL HARNESS CONNECTOR TERMINAL LAYOUT

TERMINALS AND REFERENCE VALUES FOR FRONT AIR CONTROL

AWIIA0436ZZ

AWIIA0441ZZ

Terminal

No.

Wire

color

Item

Ignition

switch

Condition

Voltage (V)

(Approx.)

1

G

Optical sensor (driver)

ON

-

0 - 5V

2

L

Air mix door motor (passenger) CCW

ON

-

Battery voltage

3

P

V ref ACTR (ground)

ON

-

 0V

4

W

Compressor ON signal

ON

A/C switch OFF

5V

ON

A/C switch ON

0V

5

R

Fan ON signal

ON

Blower switch OFF

5V

ON

Blower switch ON

0V

6

SB

Air mix door motor (driver) feedback

ON

-

0 - 5V

7

V

Mode door motor feedback

ON

-

0 - 5V

8

G

Illumination +

ON

Park lamps ON

Battery voltage

9

BR

Illumination -

-

Park lamps ON

11

L

Intake sensor

ON

-

0 - 5V

13

R

Variable blower control

ON

-

0 - 5V

14

LG

Air mix door motor (passenger) CW

ON

Clockwise rotation

Battery voltage

15

W/G

Power supply for IGN

ON

-

Battery voltage
