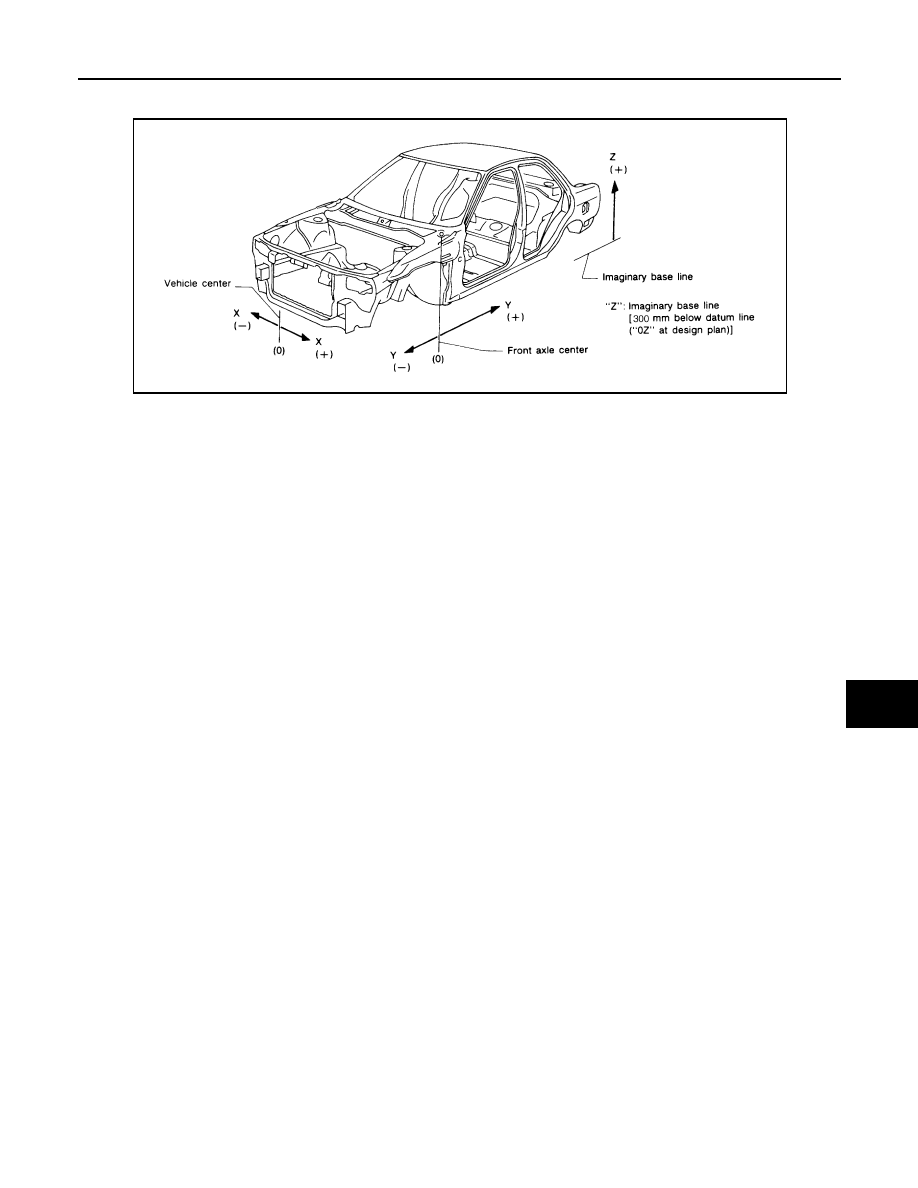

• The coordinates of the measurement points are the distances measured from the standard line of "X", "Y"

and "Z".

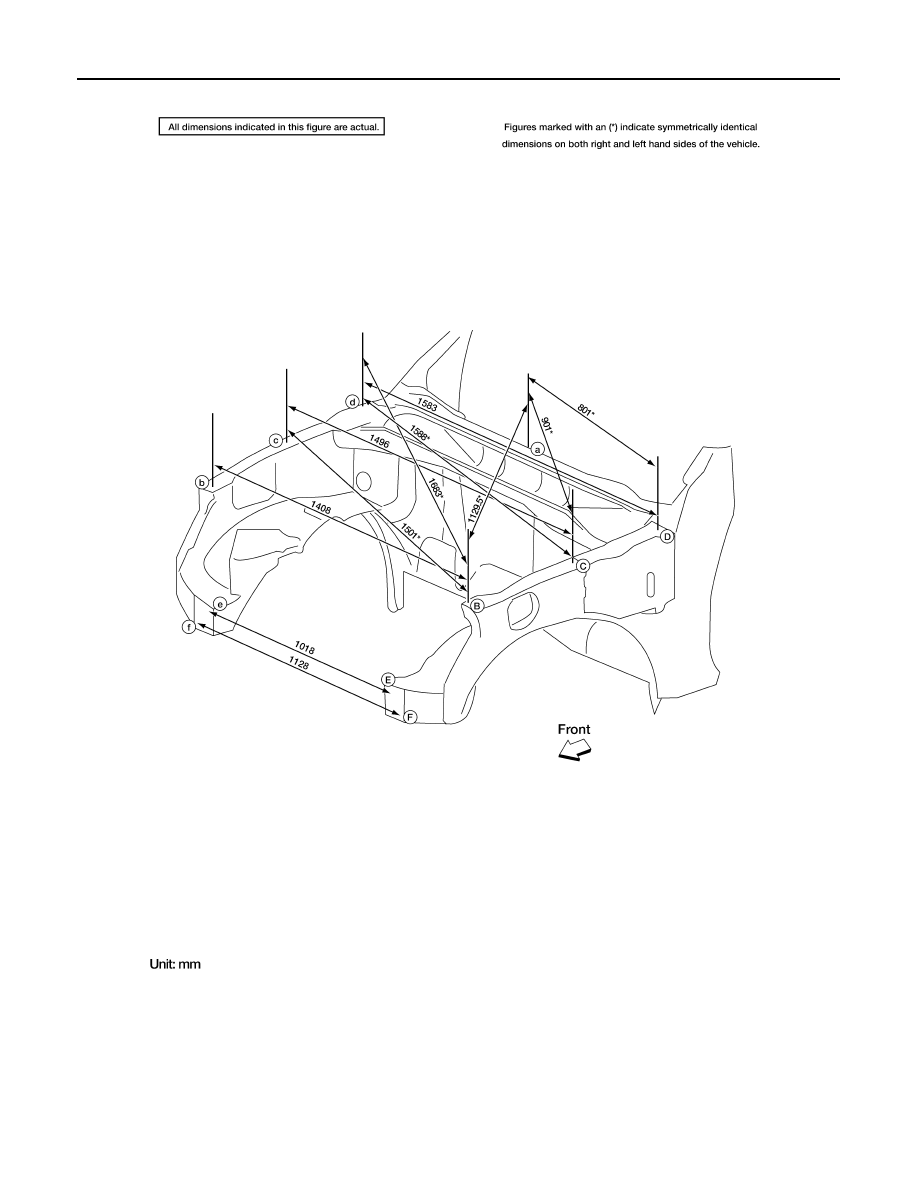

ENGINE COMPARTMENT

LIIA1506E

BRM-30

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

Measurement

AWKIA1576GB

BODY ALIGNMENT

BRM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

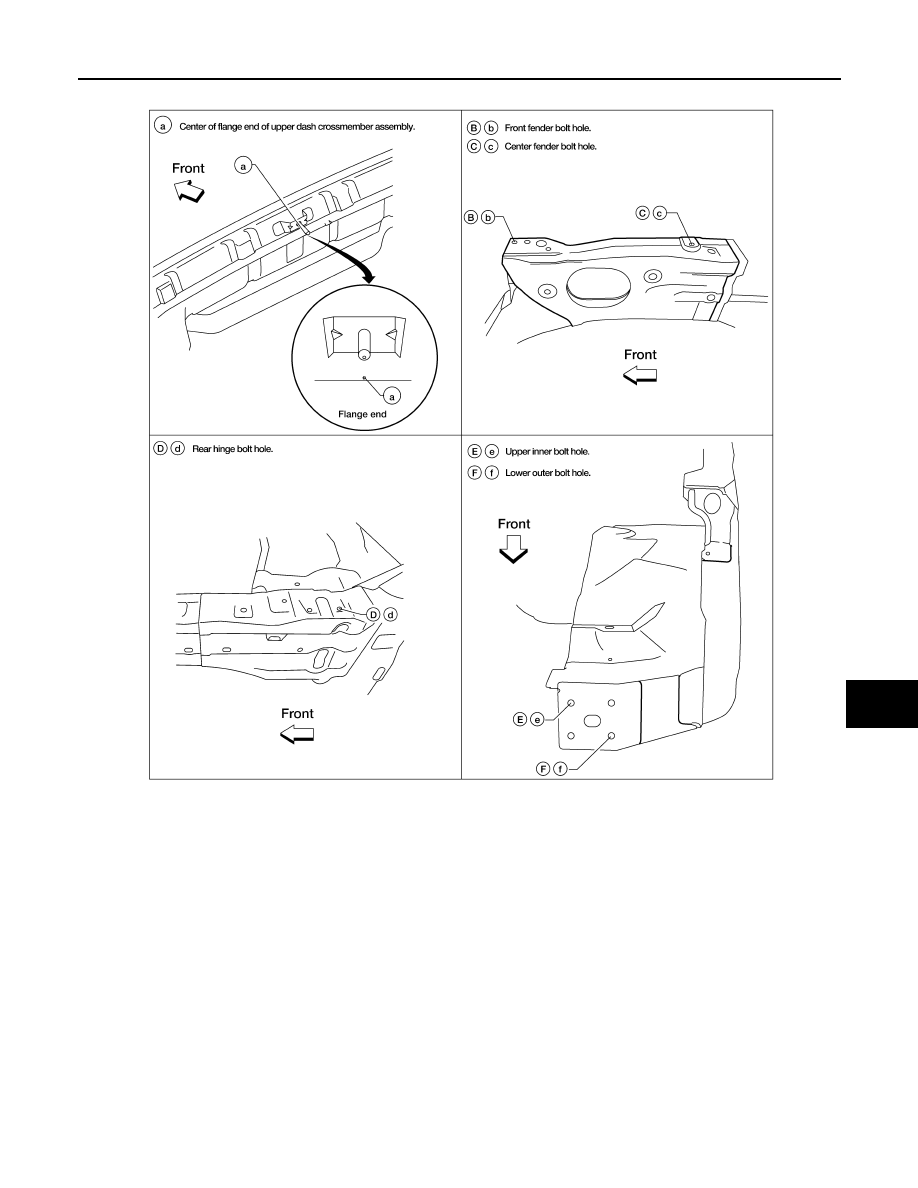

Measurement Points

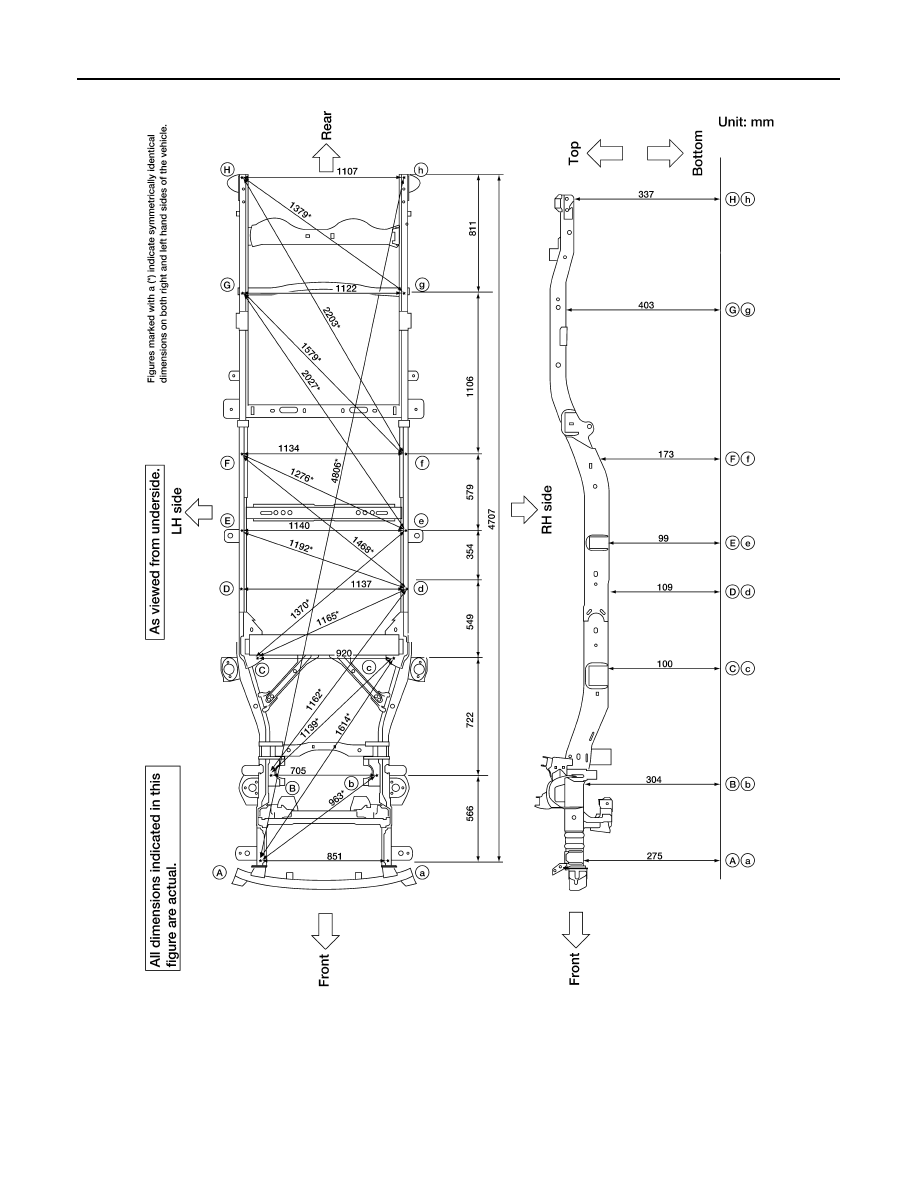

UNDERBODY

AWKIA1577GB

BRM-32

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

Measurement

LIIA2083E
