After installation, add water up to the upper level of the washer tank inlet and check for water leaks.

WW-60

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

Washer Pump

INFOID:0000000009480093

REMOVAL AND INSTALLATION

Removal

1. Remove front fender protector (RH). Refer to

EXT-27, "Removal and Installation of Front Fender Protec-

tor"

.

2. Disconnect the washer hoses.
3. Disconnect the harness connector from the washer pump.

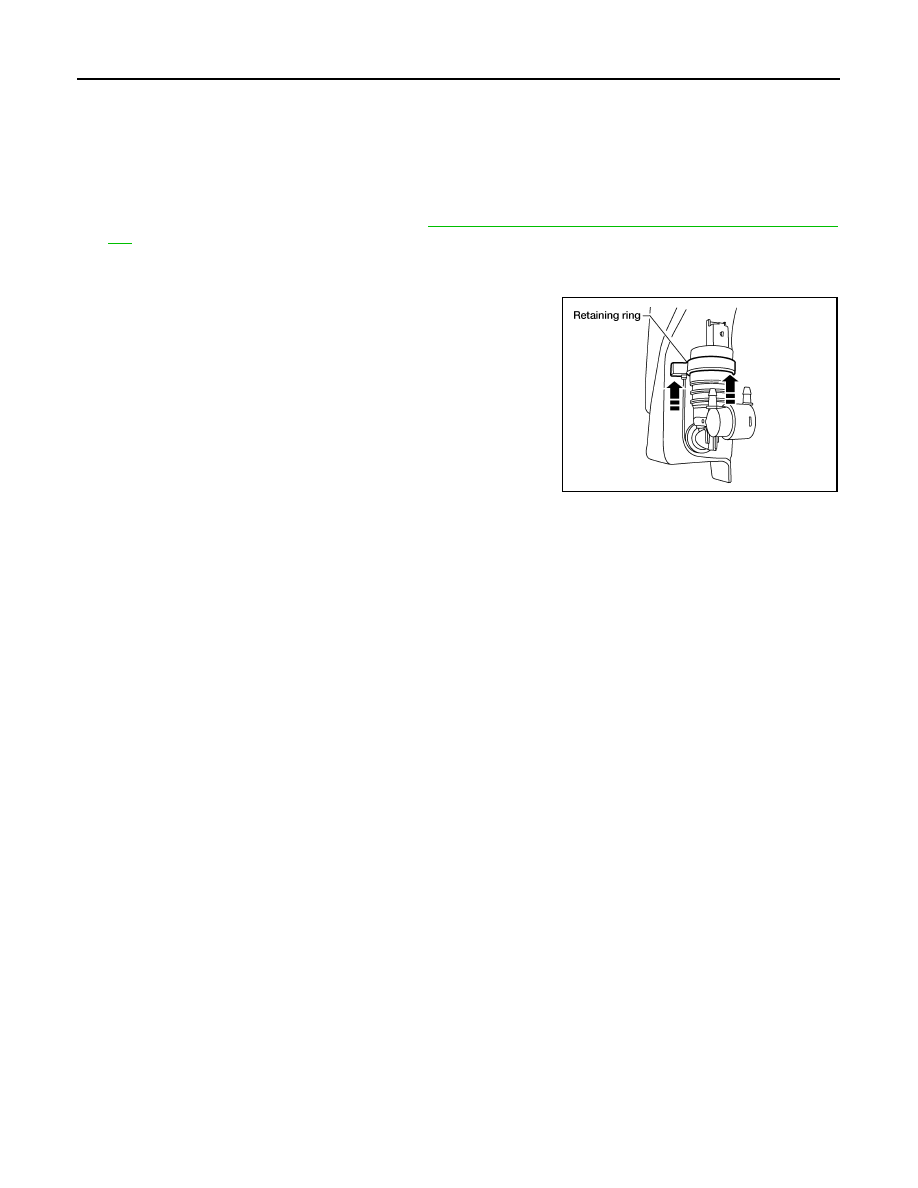

4. Slide retaining ring upward to release washer pump.

5. Remove washer pump from washer fluid reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not twist the seat when installing the washer pump.

LKIA0540E

WIPER & WASHER SWITCH

WW-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER & WASHER SWITCH

Wiper and Washer Switch

INFOID:0000000009480094

REMOVAL AND INSTALLATION

Removal

1. Remove instrument lower panel LH. Refer to

IP-14, "Exploded View"

.

2. Remove steering column lower and upper covers.
3. Disconnect wiper washer switch connector.

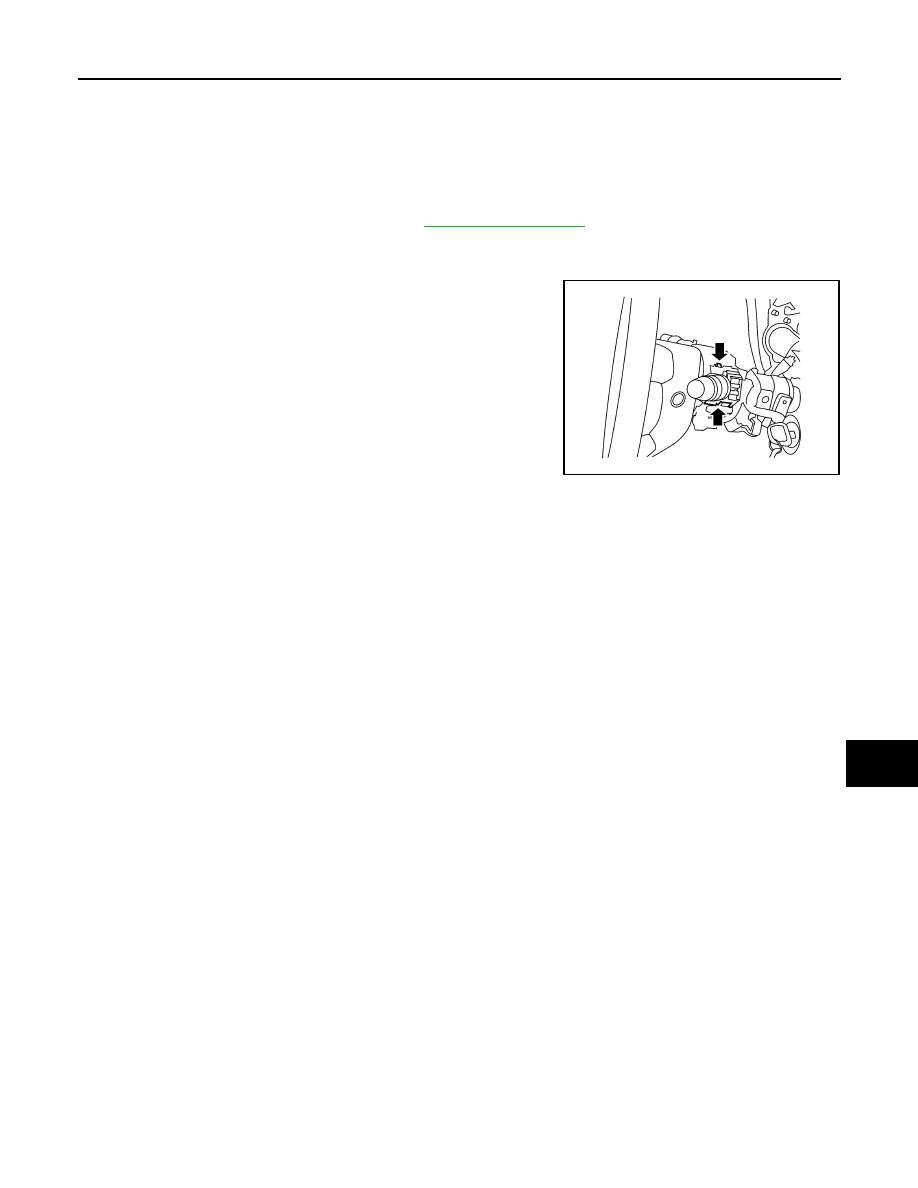

4. Pinch tabs at wiper and washer switch base and slide switch

away from steering column.

Installation

Installation is in the reverse order of removal.

WKIA0071E

WW-62

< REMOVAL AND INSTALLATION >

WASHER LEVEL SWITCH

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009480095

1. Remove washer fluid reservoir. Refer to

WW-58, "Washer Tank"

.

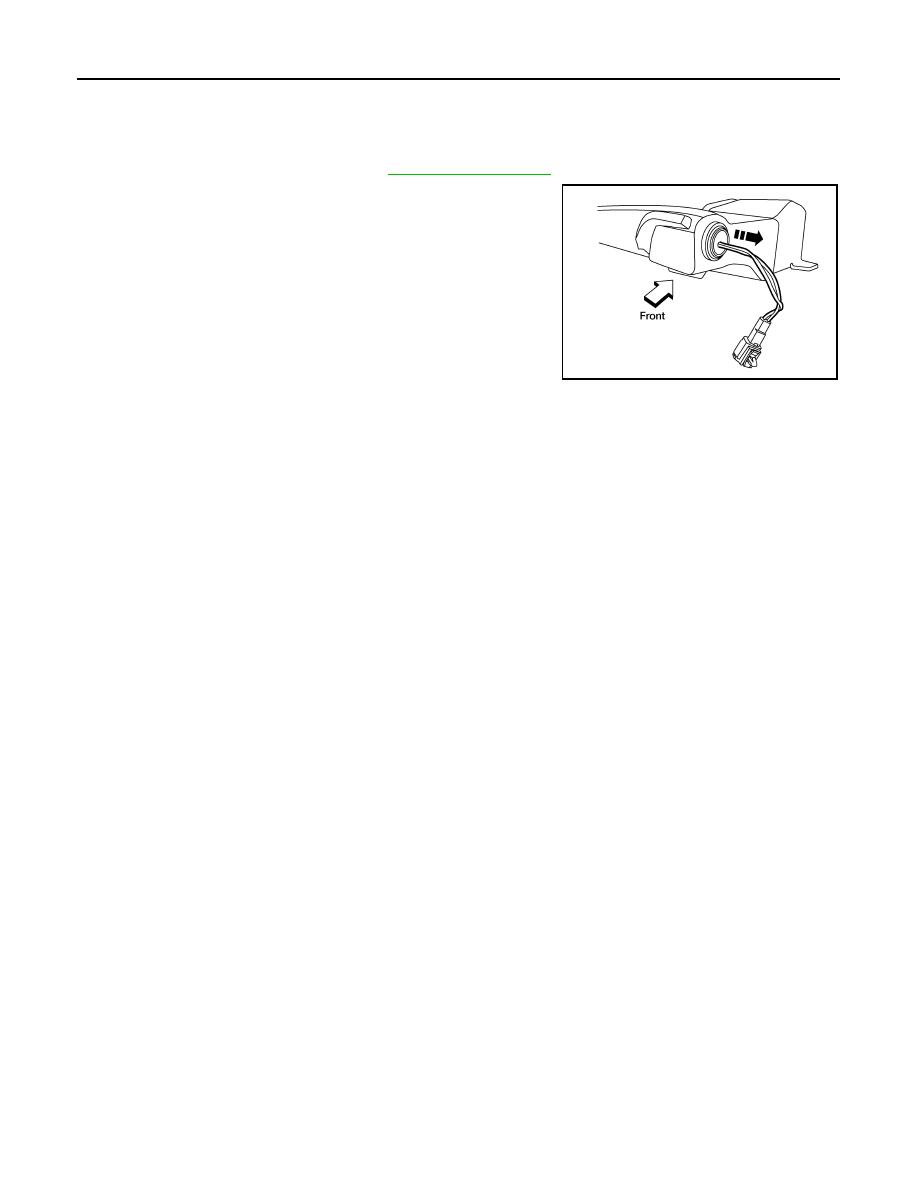

2. Lift level sensor out of washer fluid reservoir in the direction of
