OVERHAUL

TM-319

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Snap ring

27. Return spring

28. O-ring

29. Servo assembly

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. O-ring

35. Plug

36. Oil pan

37. Magnet

38. Oil pan bolt

39. Drain plug

40. Drain plug gasket

41. Oil pan gasket

42. Terminal cord assembly

43. O-ring

44. Retaining pin

45. Transmission case

A.

Tightening must be done following the assembly procedure. Refer to

TM-379, "Assembly (2)"

.

Refer to

GI-4, "Component"

 for symbols in the figure.

TM-320

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

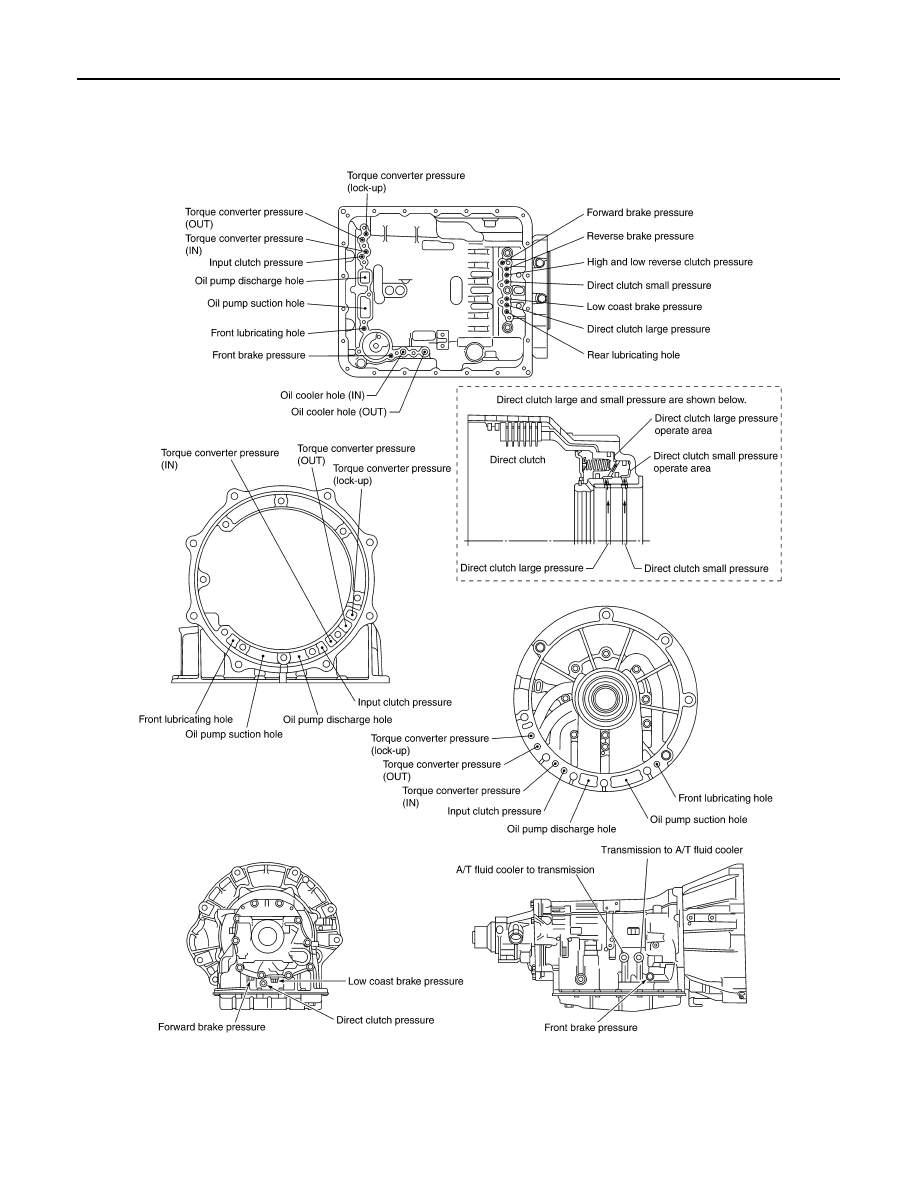

Oil Channel

INFOID:0000000009480693

2WD Models

SCIA5185E

OVERHAUL

TM-321

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

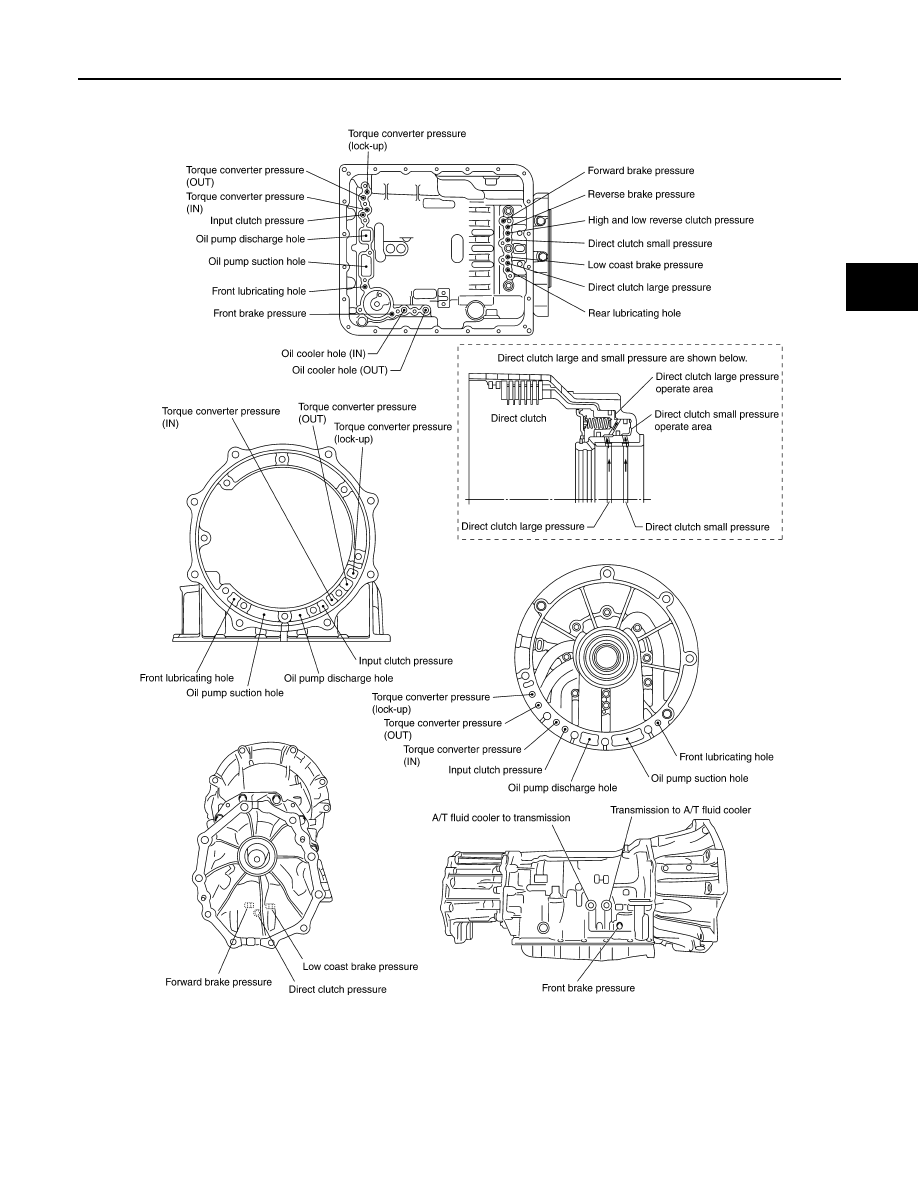

4WD Models

SCIA5189E

TM-322

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OVERHAUL

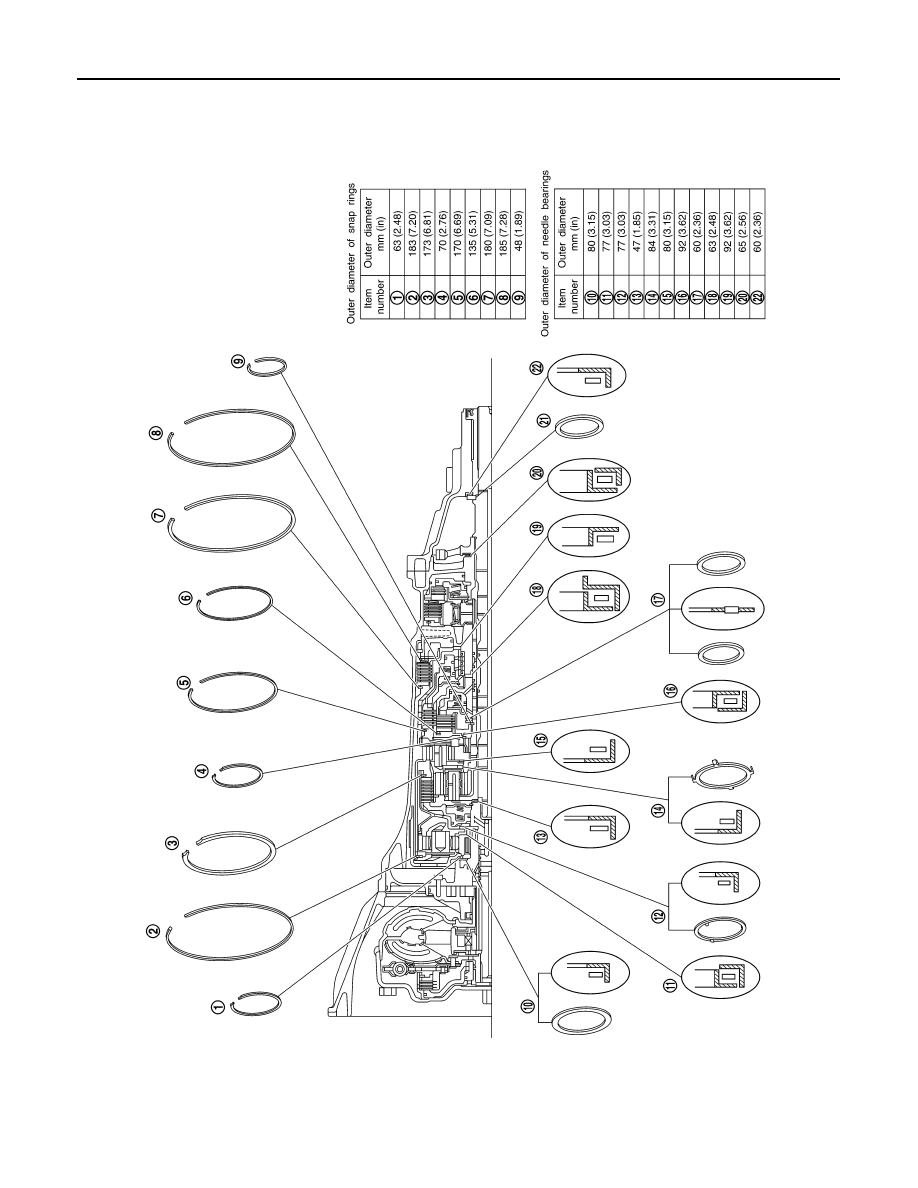

Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

INFOID:0000000009480694

2WD Models

SCIA7019E
