SERVICE DATA AND SPECIFICATIONS (SDS)
ST-31
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D
E
F
H
I
J
K
L
M
A
B
ST
N
O
P
Tie-rod
INFOID:0000000009479933
Oil Pump
INFOID:0000000009479934
Steering Fluid
INFOID:0000000009479935
Outer socket
Swinging torque
0.3
− 2.9 N·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)
Measurement on spring balance
• Measuring point: cotter pin hole of stud
4.84
− 46.7 N (0.50 − 4.7 kg-f, 4 − 34 lb-f)
Rotating torque
0.3
− 2.9 N·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)
Axial end play
0.5 mm (0.020 in) or less
Inner socket
Swinging torque
1.0
− 7.8 N·m (0.11 − 0.79 kg-m, 9 − 69 in-lb)
Measurement on spring balance
• Measuring point: L mark see above,
L=83.2 mm (3.276 in).
12.1
− 93.7 N (1.3 − 9.5 kg-f, 9 − 69 lb-f)
Axial end play
0.2 mm (0.08 in) or less
Rack sliding force
Standard
280
± 30 N (28.6 ± 3.1 kg-f, 62.9 ± 6.7 lb-f)
Minimum
210 N (21.4 kg-f, 47.2 lb-f)
Steering gear type
PR26AM
Tie-rod maximum length (L)
84 mm (3.31 in)

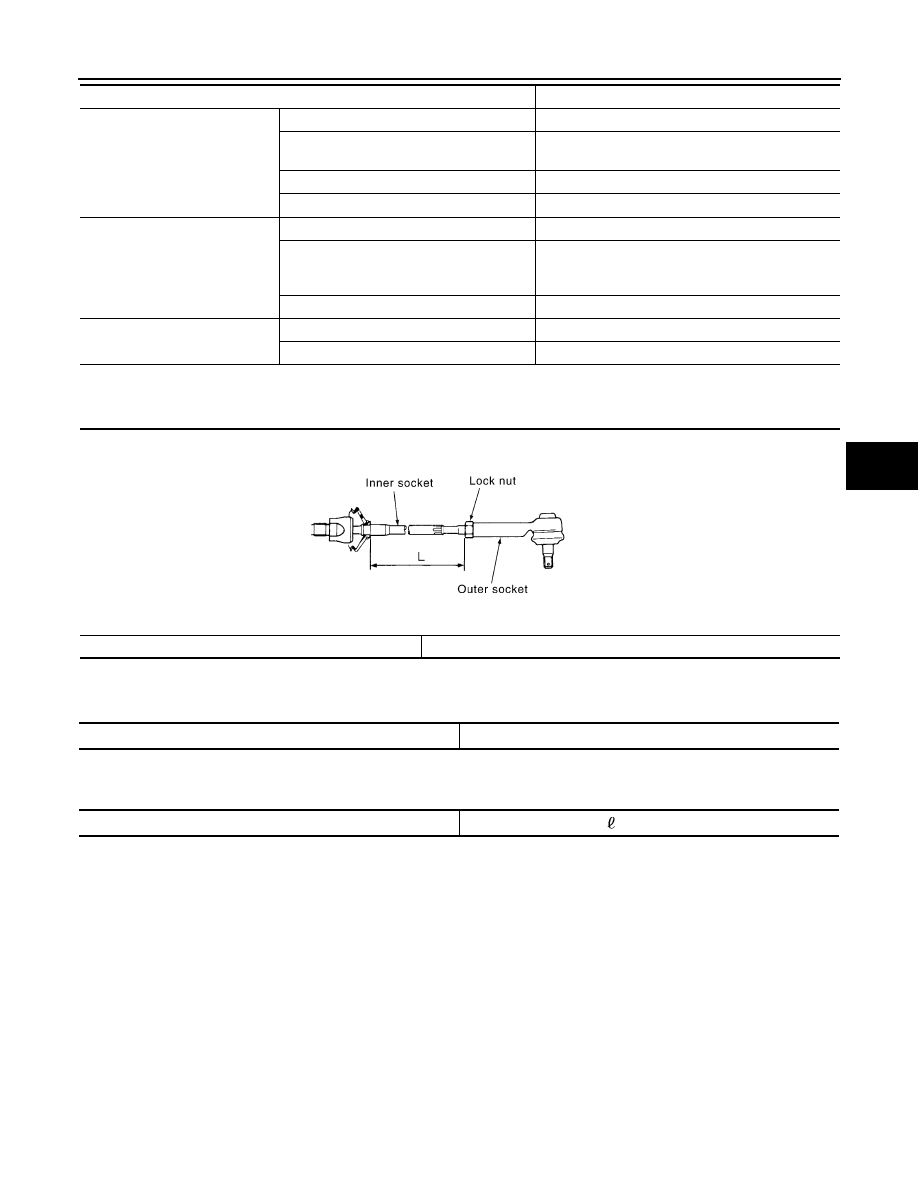

SGIA0167E
Oil pump relief hydraulic pressure - Maximum
8.8 mPa (89.76 kg/cm
2
, 1276 psi)
Fluid capacity
Approx. 1.0 (2 1/8 US pt, 1 3/4 Imp pt)
