Nissan Frontier. Manual - part 1158

SR-22

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT PRE-TENSIONER

FRONT SEAT BELT PRE-TENSIONER

Removal and Installation

INFOID:0000000009480304

For removal and installation procedures, refer to

SB-7, "Removal and Installation"

.

DIAGNOSIS SENSOR UNIT

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

DIAGNOSIS SENSOR UNIT

Removal and Installation

INFOID:0000000009480305

REMOVAL

WARNING:

• Do not remove, flip or rotate the air bag diagnosis sensor unit while powered by ignition power feed.

Doing so may cause unintended air bag deployment.

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

• Do not use old bolts; replace with new bolts.

• Check diagnosis sensor unit bracket to make sure it is free of deformities, dents, cracks or rust. If it

shows any visible signs of damage, replace with new one.

• Replace diagnosis sensor unit if it has been dropped or sustained an impact.

• Do not use air tools or electric tools for servicing.

• When replacing the air bag diagnosis sensor unit, always check with the parts department for the lat-

est parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the

air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags

and seat belt pre-tensioner in a collision resulting in serious personal injury or death.

1. Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) or part

number using CONSULT.

2. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-83,

"Removal and Installation"

.

3. Disconnect the harness connectors for the following SRS components: Refer to

SR-18, "Removal and

Installation"

 (Side curtain air bag module),

SR-22, "Removal and Installation"

 (Front seat belt pre-ten-

sioner) and

SE-41, "Seatback Assembly"

 (Side air bag module).

4. Remove center console. Refer to

IP-26, "Removal and Installation"

.

5. Disconnect diagnosis sensor unit connectors.
6. Remove bolts from the diagnosis sensor unit.

CAUTION:

• Do not use old bolts; replace with new bolts.

• Check diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it

shows any visible signs of damage, replace with new one.

• Replace diagnosis sensor unit if it has been dropped or sustained an impact.

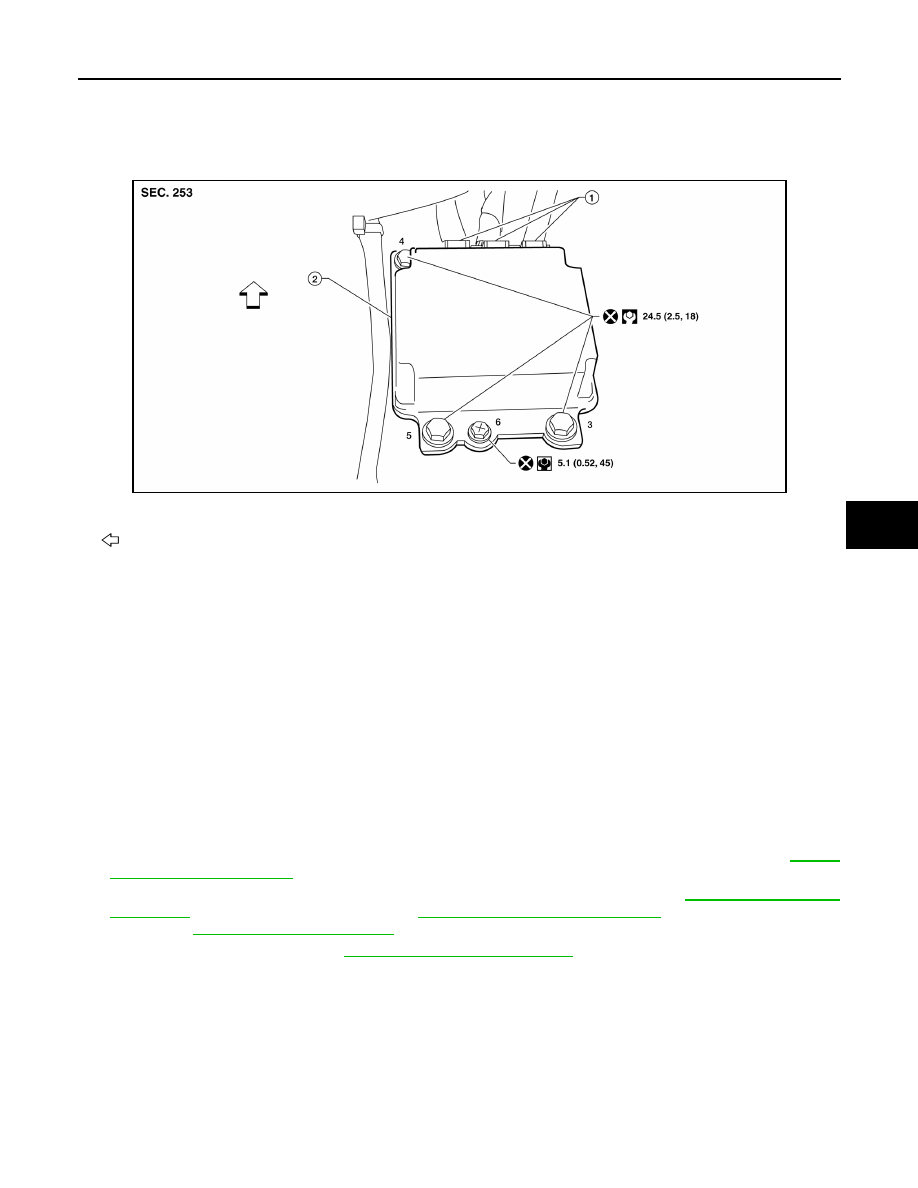

INSTALLATION

AWHIA0368GB

1.

Diagnosis sensor unit connectors

2.

Diagnosis sensor unit

Tightening sequence: 3, 4, 5, 6

Front

SR-24

< REMOVAL AND INSTALLATION >

DIAGNOSIS SENSOR UNIT

Installation is in the reverse order of removal.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

.

CAUTION:

• The diagnosis sensor unit must always be installed with the arrow mark "

⇐" pointing toward the

front of the vehicle for proper operation.

• Do not damage the harness while installing.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "Self-Diagnosis

Function (Without CONSULT)"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) or part number of the new replacement air bag diagnosis sen-

sor unit matches the ECU discriminated number (identification number) or part number of the

replaced (old) air bag diagnosis sensor unit.

NOTE:

If the ECU discriminated number or part number of the new replacement air bag diagnosis sensor unit differs

from the ECU discriminated number or part number of the replaced air bag diagnosis sensor unit, reconfirm

the parts information and verify that the correct air bag diagnosis sensor unit was installed.

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

SR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

Removal and Installation

INFOID:0000000009480306

The occupant classification control unit, occupant classification (pressure) sensor, and bladder are an integral

part of the front passenger seat cushion and are replaced as an assembly. Refer to

SE-32, "Removal and

Installation"

 to remove the seat, and

SE-43, "Seat Cushion Trim and Pad"

 to replace the seat cushion.
