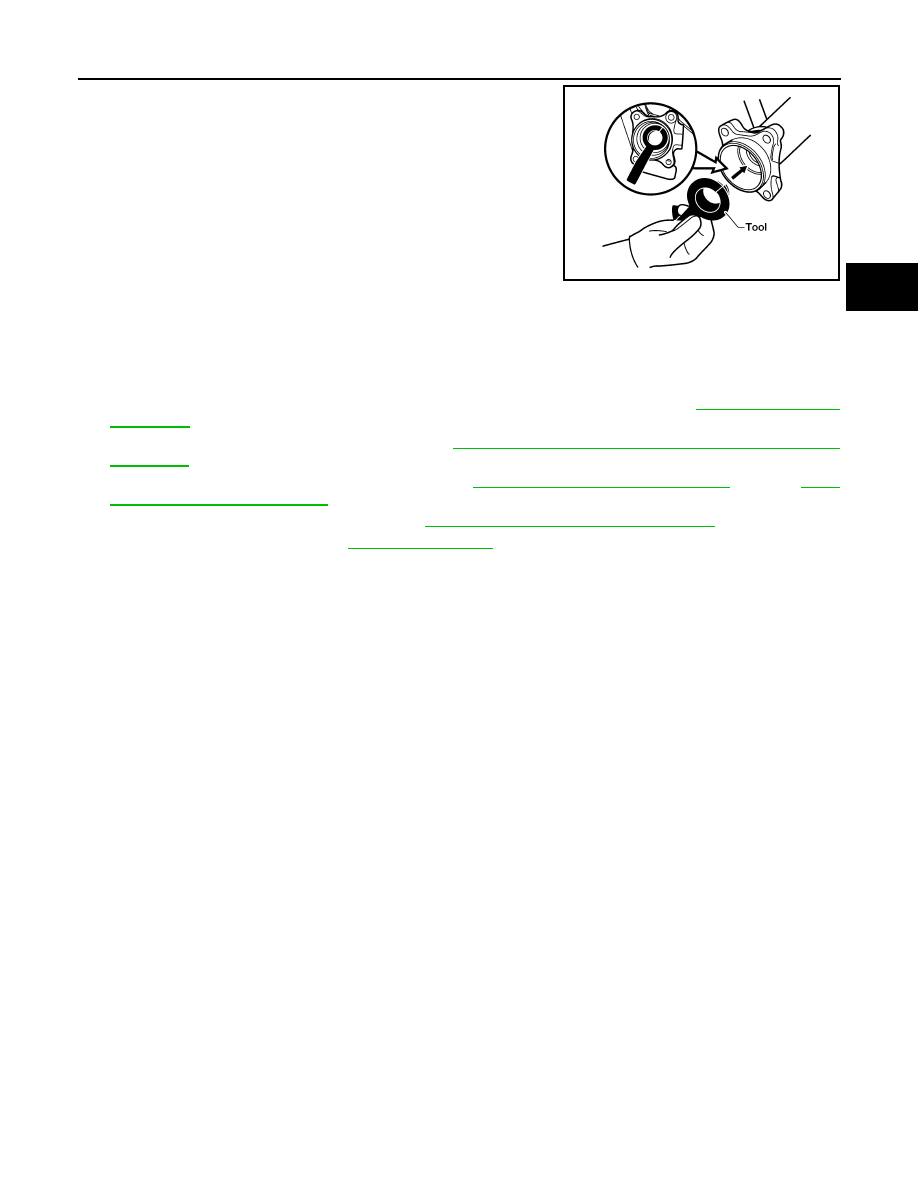

17. Insert Tool into the new axle oil seal as a guide.

CAUTION:

When inserting axle shaft, be careful not to damage oil seal.

NOTE:

The split ends of the Tool must butt up together and not overlap

as shown.

18. Insert the axle shaft assembly. Tighten the axle shaft nuts evenly in a criss-cross pattern to specification.

• Remove the Tool when the axle shaft assembly is approximately 90% inserted to protect the new axle oil

seal.

19. Install the parking brake assembly on the back plate and torque member. Refer to

PB-6, "Removal and

Installation"

.

20. Install the rear brake caliper assembly. Refer to

BR-40, "Removal and Installation of Brake Caliper and

Disc Rotor"

.

21. Install the wheel sensor into the axle case. Refer to

BRC-113, "Removal and Installation"

 (Type 1),

BRC-

234, "Removal and Installation"

 (Type 2).

22. Check rear differential gear oil level. Refer to

DLN-220, "Checking Differential Gear Oil"

.

23. Install the wheel and tire. Refer to

WT-48, "Adjustment"

.

Tool number

:  — (J-34296-1 part of J-46215)

WDIA0240E

Tool number

: — (J-34296-1 part of J-46215)

RAX-12

< SERVICE INFORMATION >

[C200]

AXLE BEARING

AXLE BEARING

Removal and Installation

INFOID:0000000009478710

The axle bearing must be replaced every time the axle shaft is removed and installed. Refer to

RAX-7,

"Removal and Installation"

.

CAUTION:

Do not reuse the axle bearing.

AXLE OIL SEAL

RAX-13

< SERVICE INFORMATION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

AXLE OIL SEAL

Removal and Installation

INFOID:0000000009478711

The axle oil seal must be replaced every time the axle shaft is removed and installed. Refer to

RAX-7,

"Removal and Installation"

.

CAUTION:

Do not reuse the axle oil seal.

RAX-14

< SERVICE INFORMATION >

[C200]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Axle Specification

INFOID:0000000009478712

Unit: mm (in)

Shim Washers

INFOID:0000000009478713

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Axial end play

0 - 0.07 (0 - 0.003)

Snap ring to shim washer clearance

0.2 (0.008) or less

Snap ring outer diameter installed

47.5 (1.87) maximum

Total end play

0.02 - 0.15 (0.0008 - 0.0059)

Available shim washers

ID Paint Dot Color

Thickness

Part Number*

Pink

2.5 (0.098)

43086-EB08C

Black

2.4 (0.094)

43086-EB07C

Purple

2.3 (0.091)

43086-EB06C

Yellow

2.2 (0.087)

43086-EB05C

Green

2.1 (0.083)

43086-EB04C

Red

2.0 (0.079)

43086-EB03C

White

1.9 (0.075)

43086-EB02C

Blue

1.8 (0.071)

43086-EB01C
