PG-64

< WIRING DIAGRAM >

HARNESS

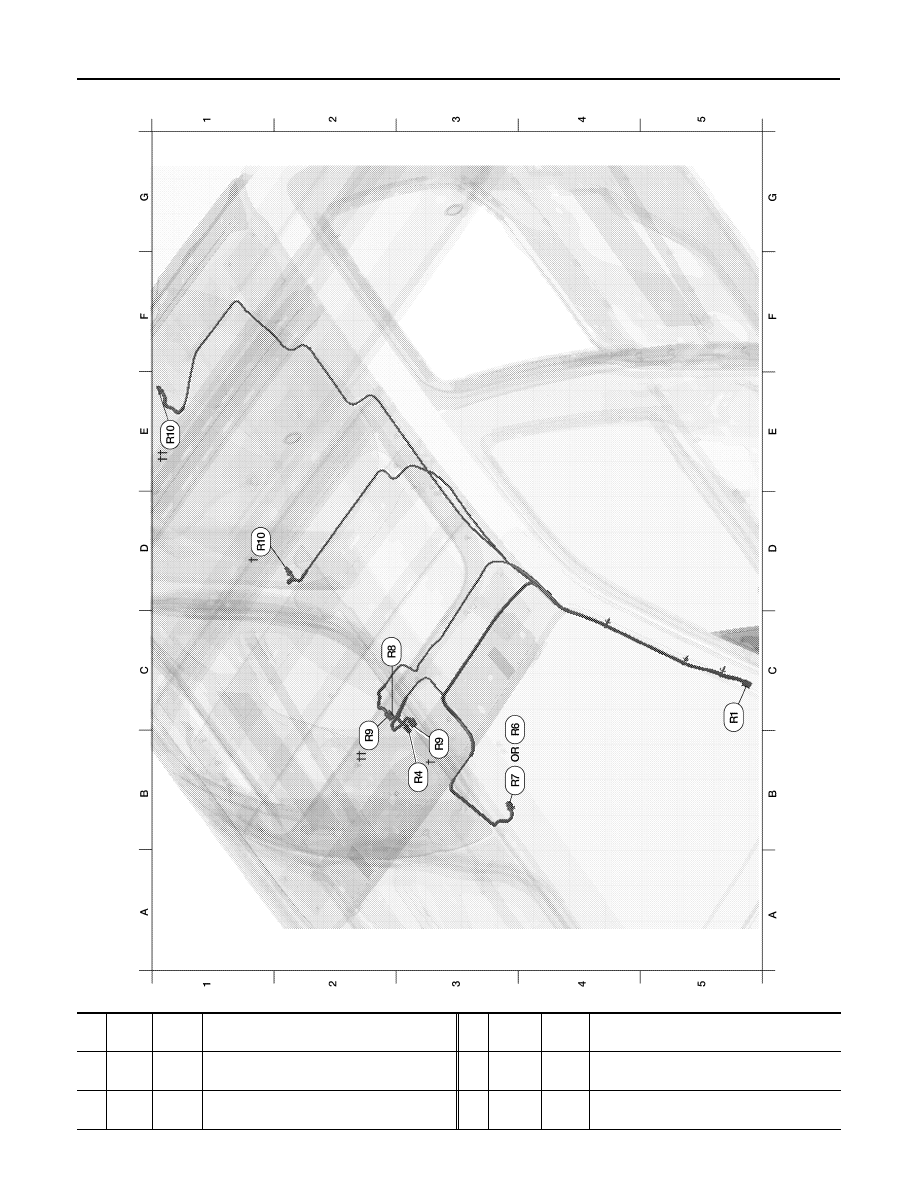

ROOM LAMP HARNESS

ABMIA2585GB

C5 R1

W/24

: To M1

B3

R9†

W/3

: Front room/map lamp assembly
  (with sunroof)

B3

R4

W/3

: Sunroof switch

B2

R9††

W/3

: Front room/map lamp assembly
  (without sunroof)

B3

R6

W/7

: Auto anti-dazzling inside mirror (without
  homelink universal transceiver)

D1 R10†

W/2

: Room lamp 2nd row (king cab)

PG

HARNESS

PG-65

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

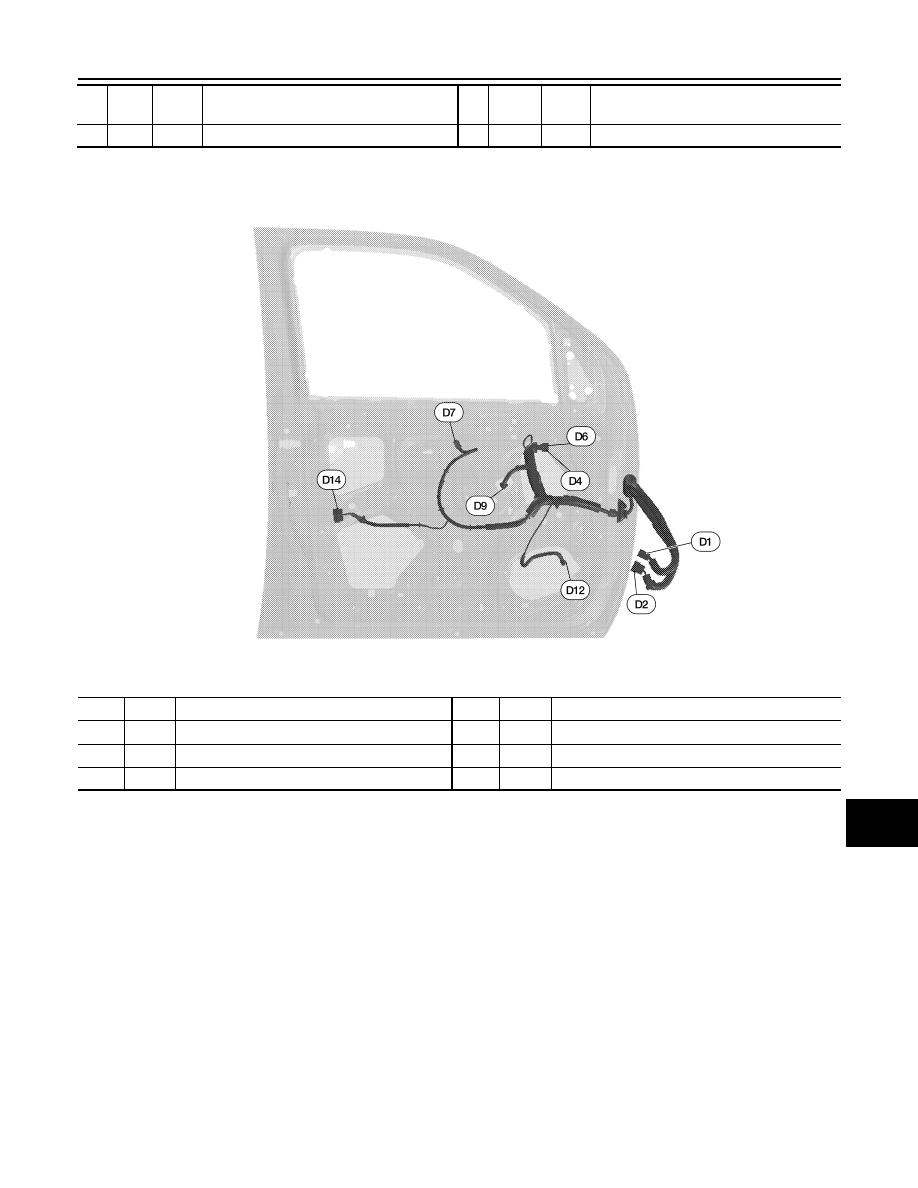

FRONT DOOR LH HARNESS

B3

R7

B/10

: Auto anti-dazzling inside mirror (with
  homelink universal transceiver)

E1

R10††

W/2

: Room lamp 2nd row (crew cab)

C3 R8

W/4

: Microphone

ABMIA2586GB

D1

W/16

: To M9

D7

W/16

: Main power window and door lock/unlock switch

D2

BR/12

: To M8

D9

BR/2

: Front power window motor LH

D4

B/10

: Door mirror LH (with heated mirror)

D12

W/2

: Front door speaker LH

D6

B/3

: Door mirror LH (without heated mirror)

D14

GR/6

: Front door lock assembly LH

PG-66

< WIRING DIAGRAM >

HARNESS

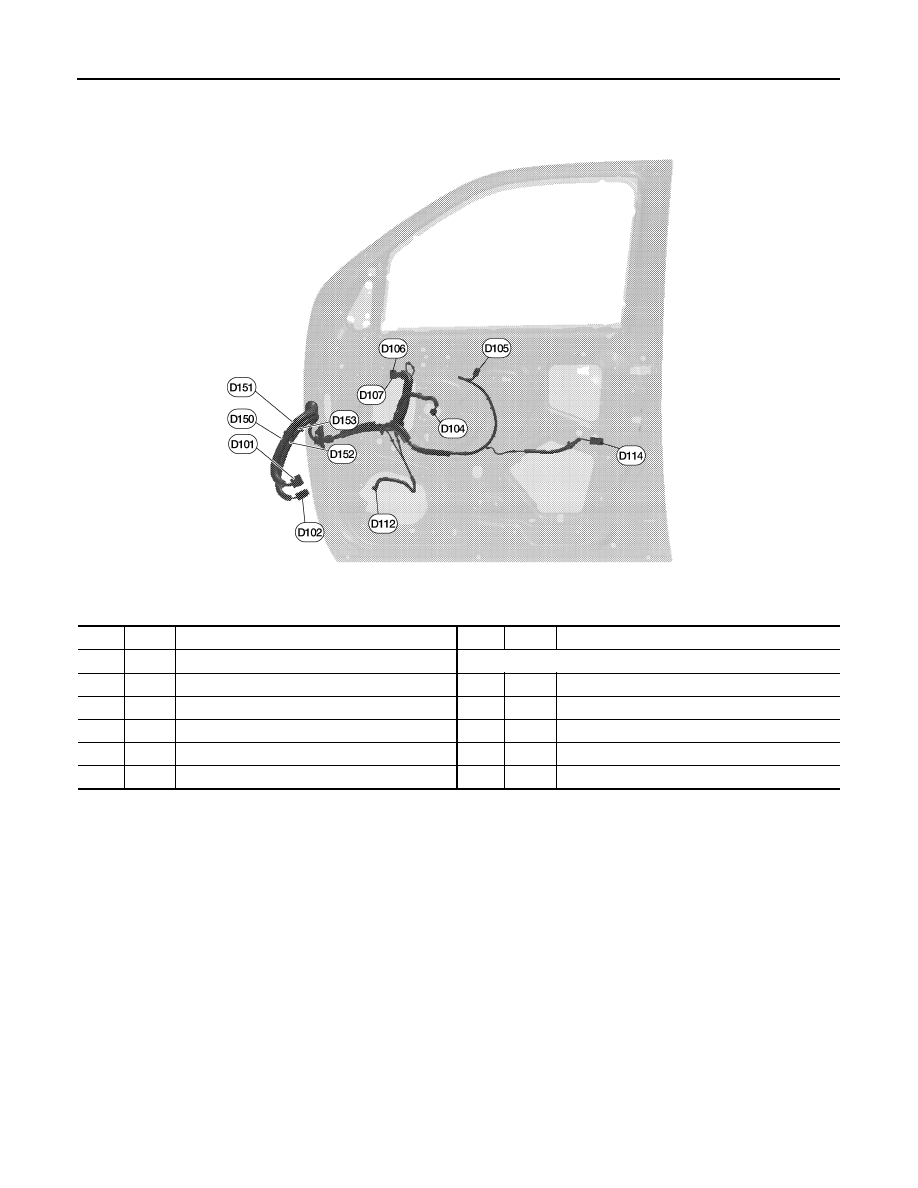

FRONT DOOR RH HARNESS

ABMIA4381ZZ

D101

W/12

: To M75

D114

BR/2

: Front door lock actuator RH

D102

W/16

: To M74

Front door RH sub-harness

D104

BR/2

: Front power window motor RH

D150

W/16

: To D102

D105

W/12

: Power window and door lock/unlock switch RH

D151

W/16

: To M74

D106

B/3

Door mirror RH (without heated mirror)

D152

W/12

: To D101

D107

B/10

Door mirror RH (with heated mirror)

D153

W/12

: To M75

D112

W/2

: Front door speaker RH

PG

HARNESS

PG-67

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

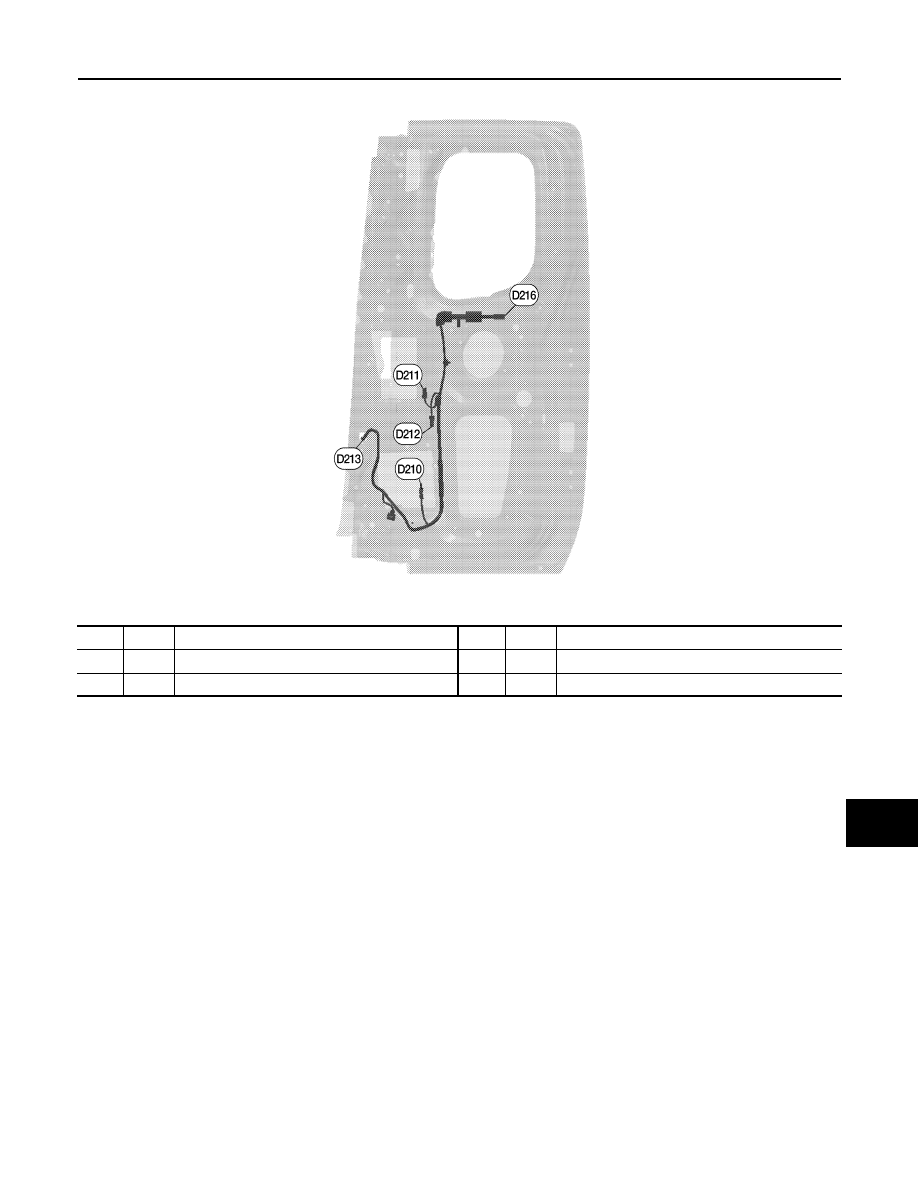

REAR DOOR LH HARNESS (KING CAB MODELS)

ABMIA0453GB

D210

Y/2

: Front LH seat belt pre-tensioner

D213

W/3

: Front door switch LH

D211

B/2

: Rear door switch upper LH

D216

W/8

: To B16

D212

B/2

: Rear door switch lower LH
