Nissan Frontier. Manual - part 1034

MWI-80

< WIRING DIAGRAM >

METER

ABNIA5544GB

MWI

METER

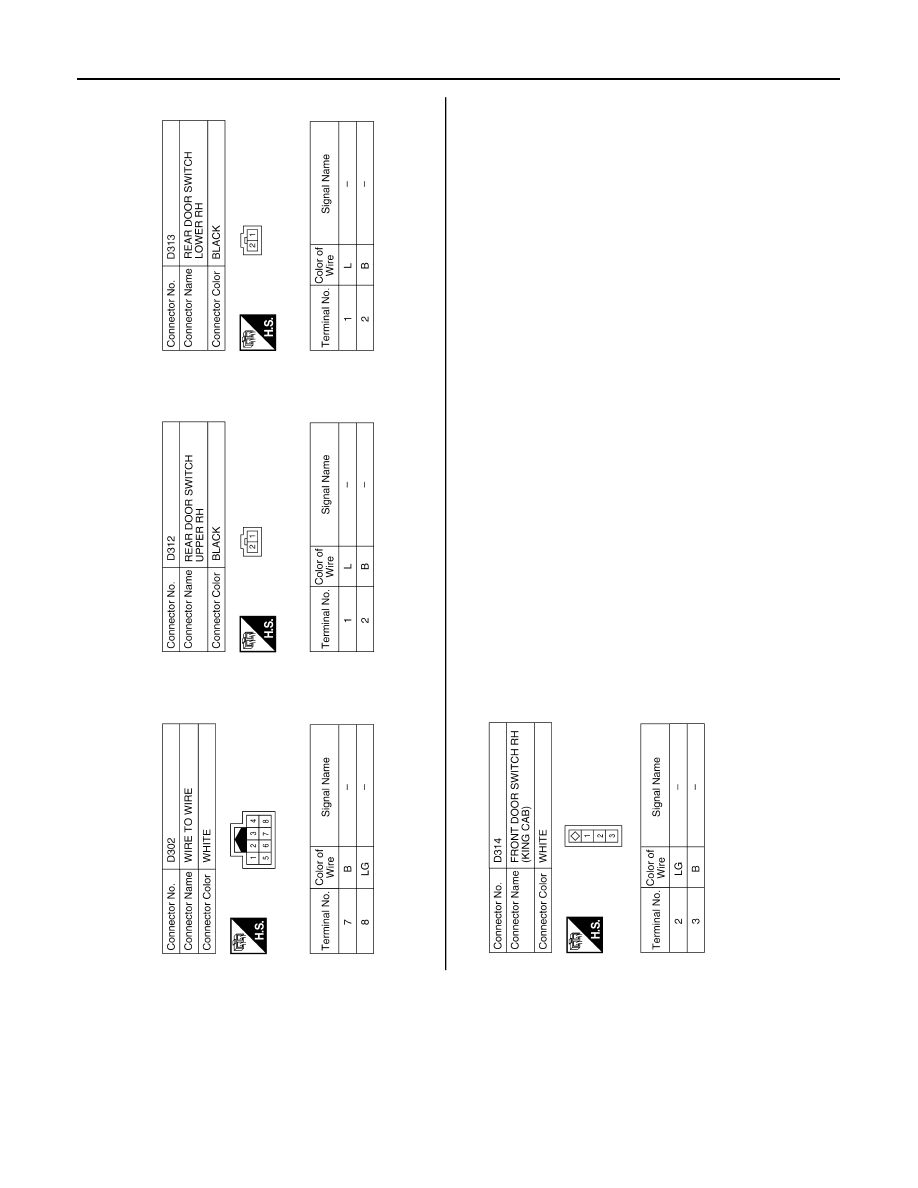

MWI-81

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA5545GB

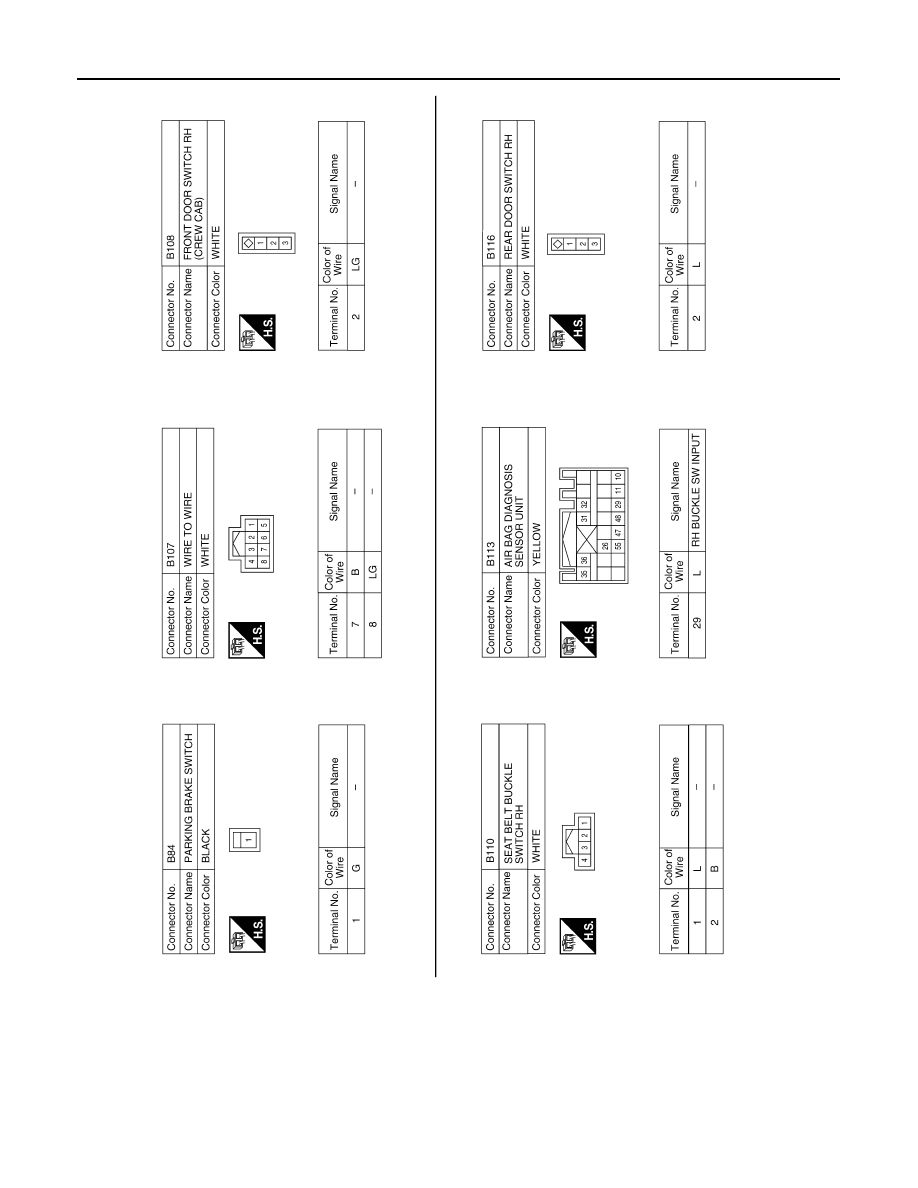

MWI-82

< WIRING DIAGRAM >

METER

ABNIA5546GB

MWI

THE FUEL GAUGE POINTER DOES NOT MOVE

MWI-83

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

THE FUEL GAUGE POINTER DOES NOT MOVE

Description

INFOID:0000000009480389

Fuel gauge needle will not move from a certain position.

Diagnosis Procedure

INFOID:0000000009480390

1.

CHECK COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT.

2. Using “FUEL METER” of “DATA MONITOR”, compare the monitor value with the fuel gauge reading on

the combination meter. Refer to

MWI-34, "Component Function Check"

.

Does monitor value match fuel gauge reading?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-90, "Removal and Installation"

.

2.

CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT

Check the fuel level sensor signal circuit. Refer to

MWI-34, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR UNIT

Perform a unit check for the fuel level sensor unit. Refer to

MWI-35, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace fuel level sensor unit. Refer to

FL-10, "Removal and Installation"

.

4.

CHECK FLOAT INTERFERENCE

Check that the float arm does not interfere or bind with any of the components in the fuel tank.
Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-90, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning parts.
