WW-52

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

Removal and Installation

INFOID:0000000009756103

The washer pump is serviced as an assembly with the washer tank. Refer to

WW-51, "Removal and Installa-

tion"

.

WASHER LEVEL SWITCH

WW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009756104

The washer level switch is serviced as an assembly with the washer tank. Refer to

WW-51, "Removal and

Installation"

.

WW-54

< REMOVAL AND INSTALLATION >

WASHER NOZZLE & TUBE

WASHER NOZZLE & TUBE

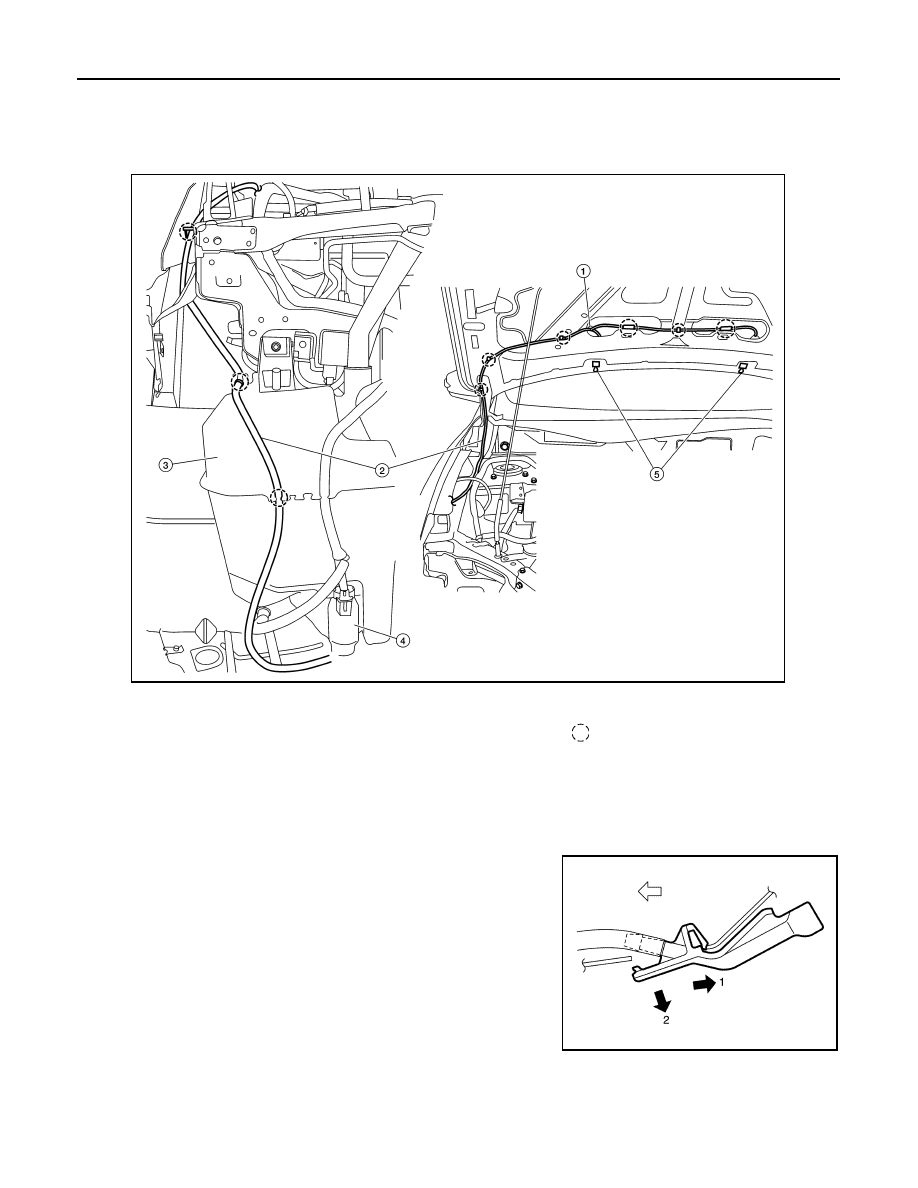

Exploded View

INFOID:0000000009756105

WASHER NOZZLE
WASHER NOZZLE : Removal and Installation

INFOID:0000000009756106

REMOVAL

1. Disconnect the washer nozzle from the hood by pushing on the

nozzle in the order and direction shown.

2. Disconnect the washer tube from the washer nozzle.
3. Remove the washer nozzle.

INSTALLATION

1.

Check valve

2.

Washer tube

3.

Washer tank

4.

Washer pump

5.

Washer nozzle

Clip

AWLIA2039ZZ

JMLIA2359ZZ

WASHER NOZZLE & TUBE

WW-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Installation is in the reverse order of removal.

CAUTION:

Adjust the nozzle spray pattern. Refer to

WW-55, "WASHER NOZZLE : Adjustment"

.

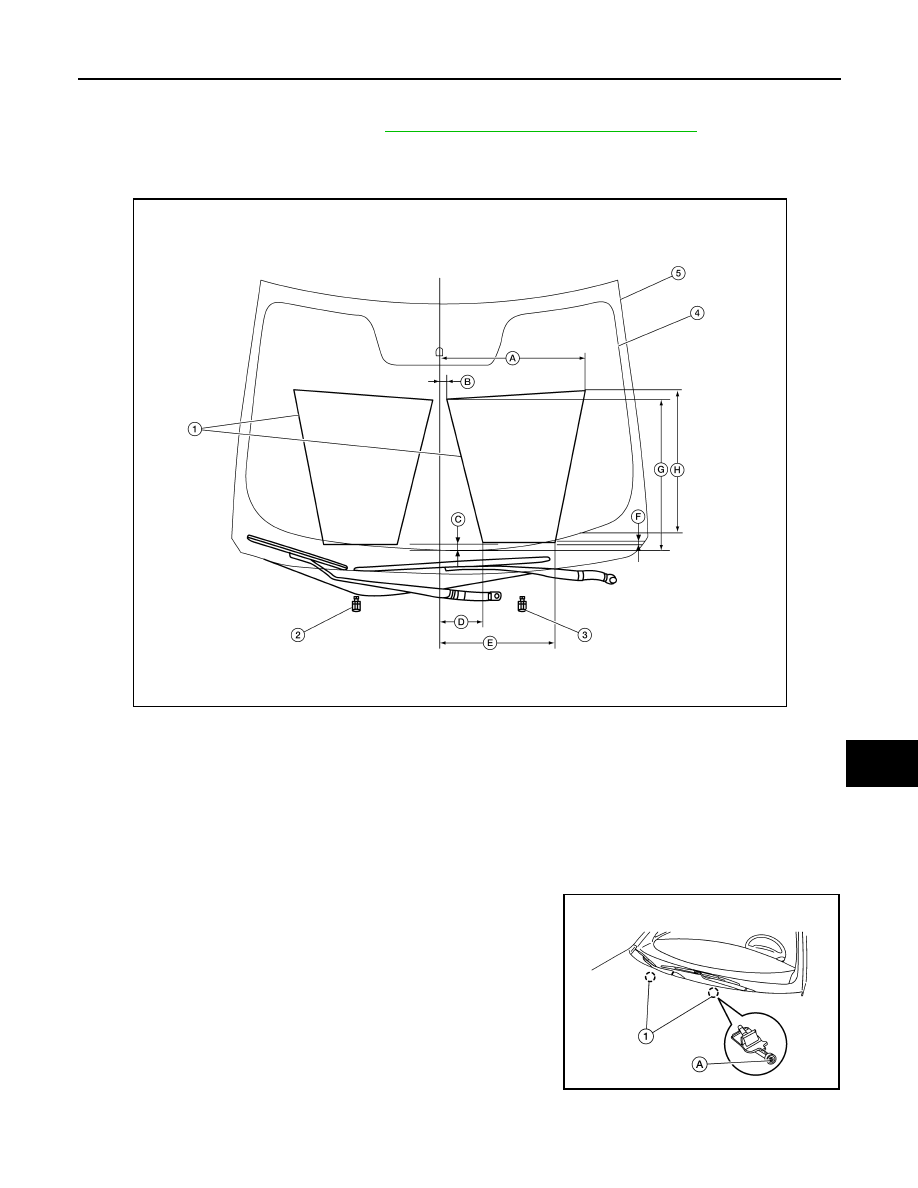

WASHER NOZZLE : Adjustment

INFOID:0000000009756107

NOTE:

Spray position for (LH) shown. (RH) is symmetrical.

Insert a suitable tool into the nozzle hole (A) and move up/down and

left/right to adjust the spray position of each nozzle (1).

WASHER TUBE

1.

Washer fluid spray pattern

2.

Washer nozzle (RH)

3.

Washer nozzle (LH)

4.

Black print

5.

Windshield glass

A. 487.0 mm (19.2 in)

B. 22.2 mm (0.9 in)

C. 15.3 mm (0.6 in)

D. 145.9 mm (5.7 in)

E. 384.9 mm (15.2 in)

F.

15.0 mm (0.6 in)

G. 499.7 mm (19.7 in)

H. 470.2 mm (18.5 in)

AWLIA2035ZZ

AWLIA2036ZZ
