< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009758139

ECU

Reference

BCM (with Intelligent Key system)

BCS-29, "Reference Value"

BCS-46, "Fail-safe"

BCS-48, "DTC Inspection Priority Chart"

BCS-49, "DTC Index"

BCM (without Intelligent Key system)

BCS-97, "Reference Value"

BCS-108, "Fail-safe"

BCS-108, "DTC Inspection Priority Chart"

BCS-109, "DTC Index"

TIRE PRESSURE MONITORING SYSTEM

WT-15

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

WIRING DIAGRAM

TIRE PRESSURE MONITORING SYSTEM

WITH INTELLIGENT KEY

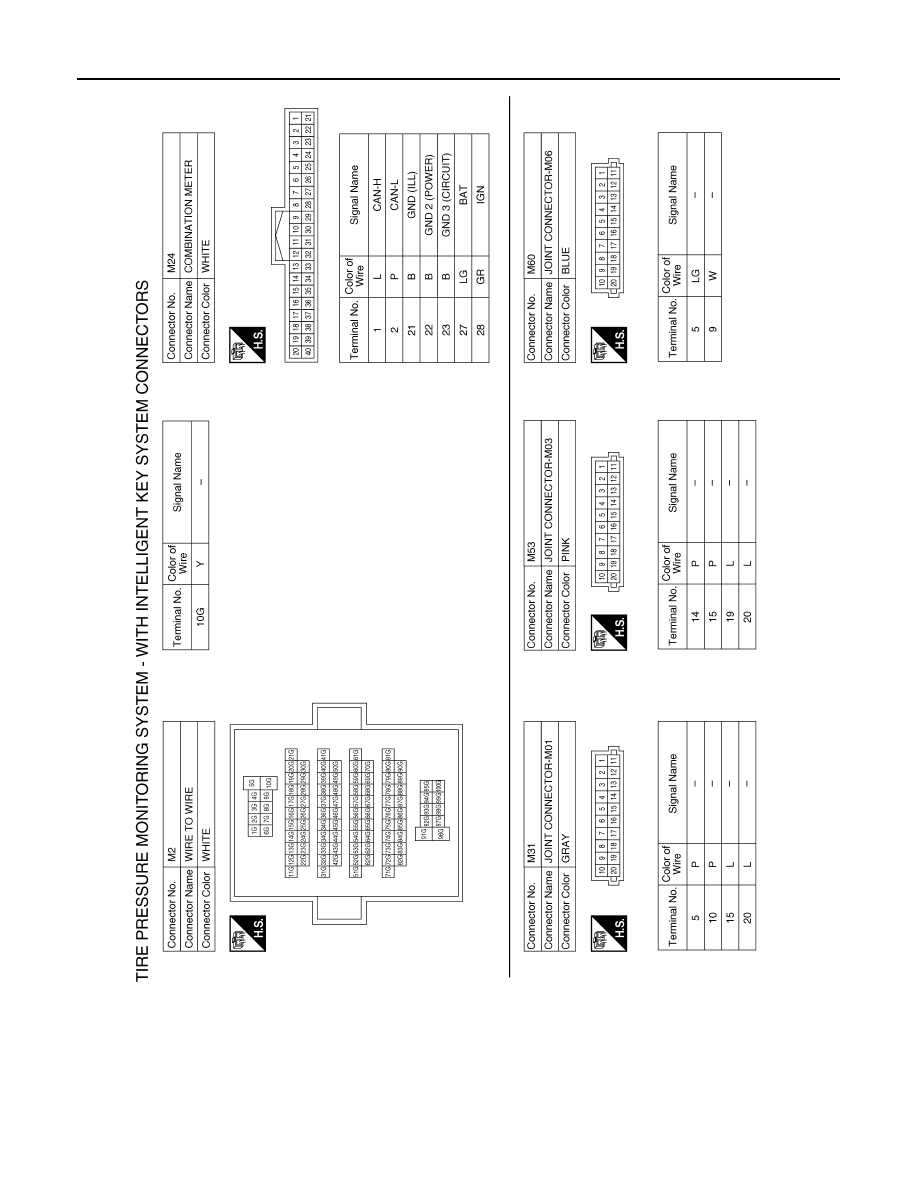

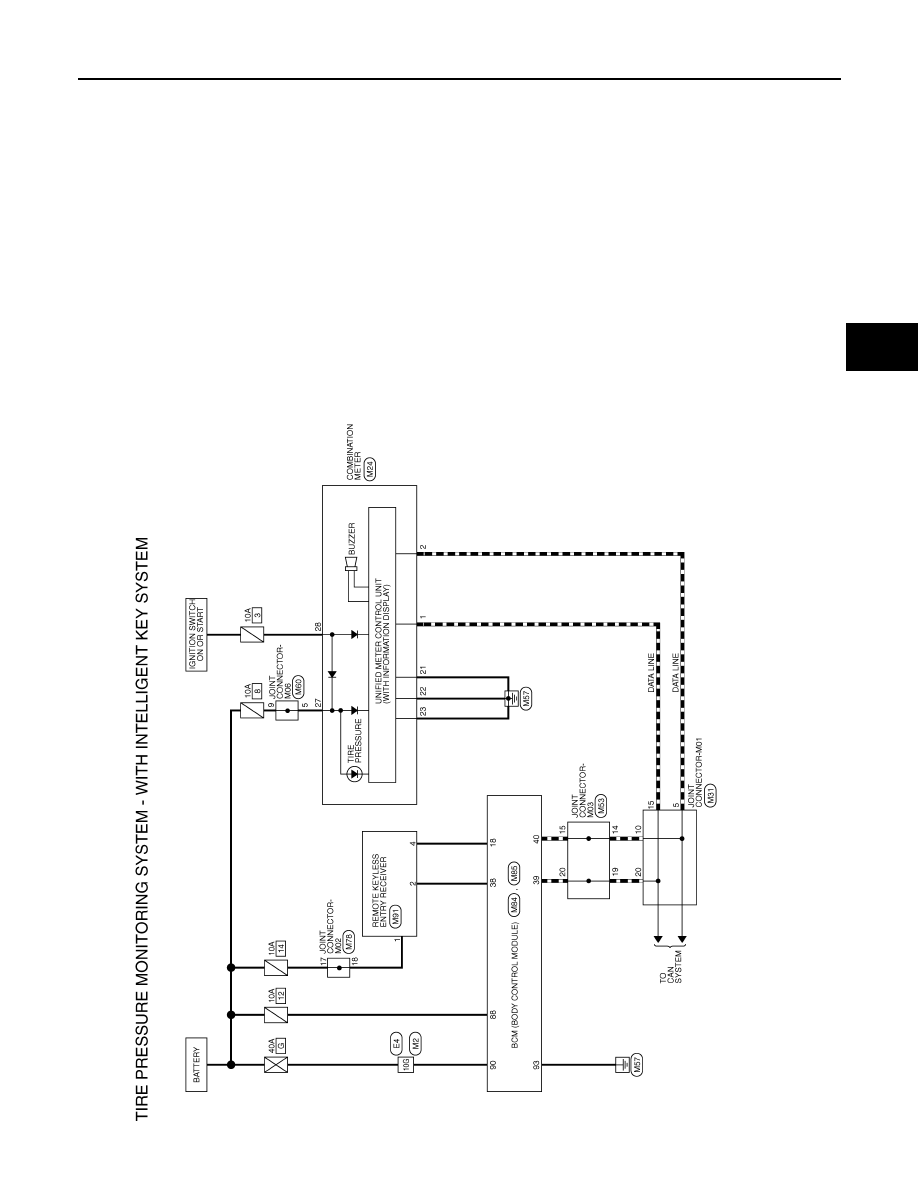

WITH INTELLIGENT KEY : Wiring Diagram

INFOID:0000000009758140

ABEWA0109GB

WT-16

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

ABEIA0250GB

TIRE PRESSURE MONITORING SYSTEM

WT-17

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

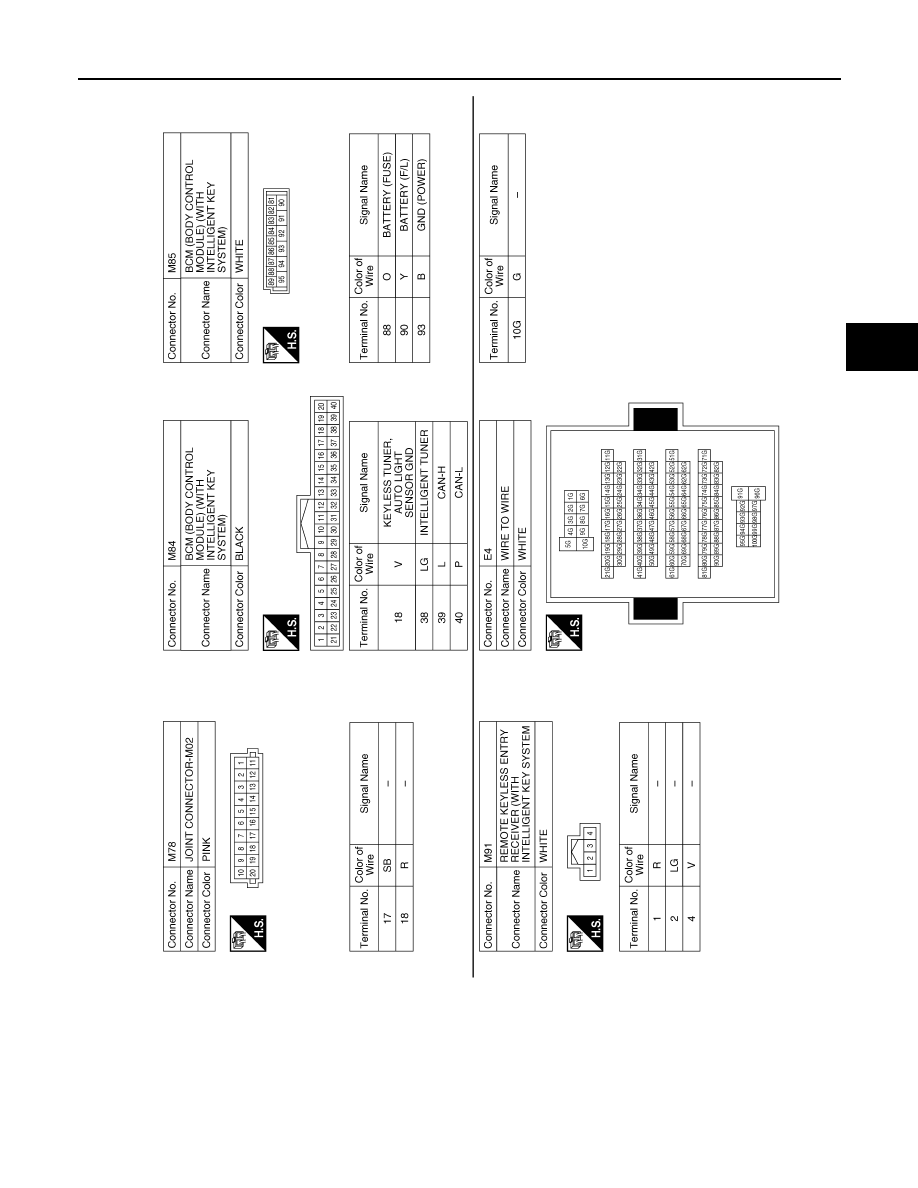

WITHOUT INTELLIGENT KEY

ABEIA0251GB
