REVERSE IDLER SHAFT AND GEAR

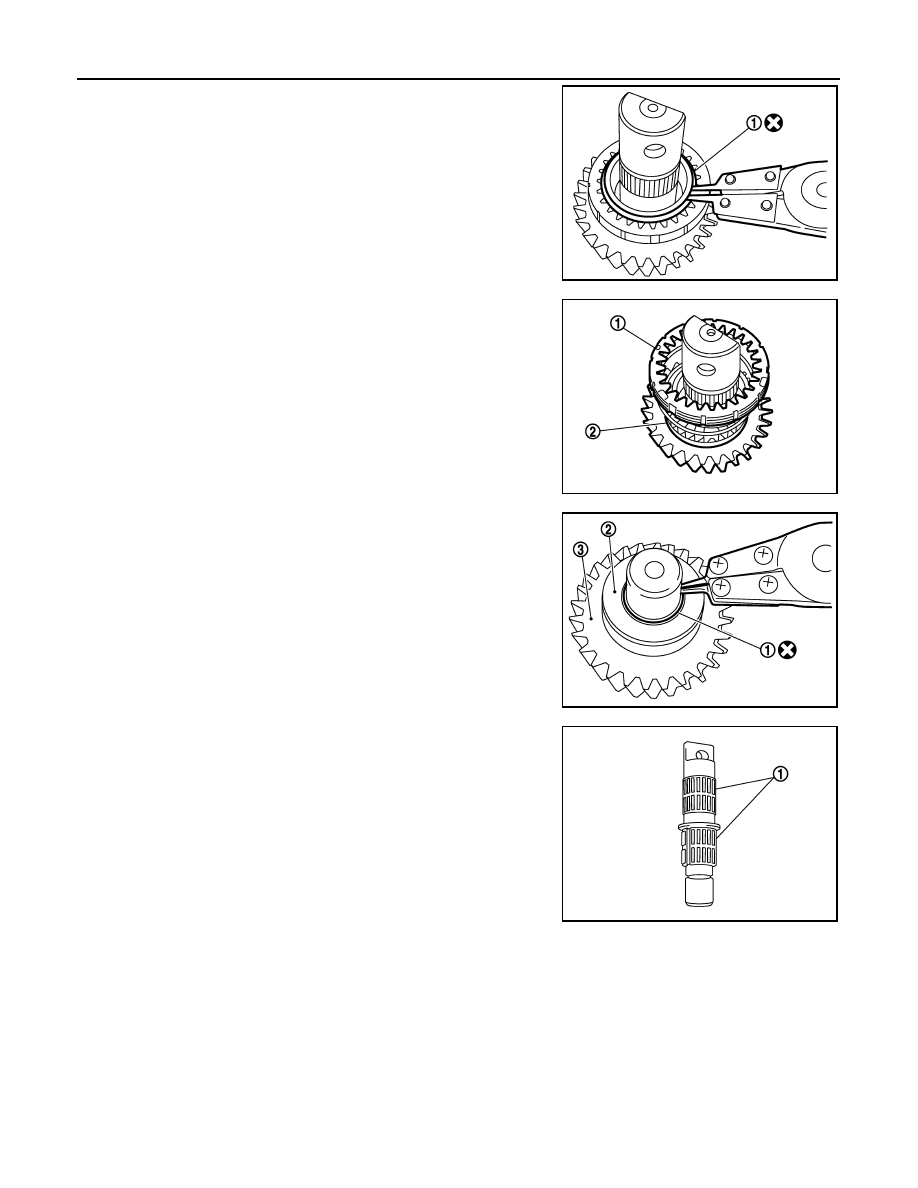

2. Remove snap ring (1).

CAUTION:

Do not reuse snap ring.

3. Remove reverse baulk ring (1) and return spring (2).

4. Remove snap ring (1), lock washer (2), and reverse input gear

(3).

CAUTION:

Do not reuse snap ring.

5. Remove needle bearings (1) and washer.

Assembly

INFOID:0000000009759301

Assembly is in the reverse order of disassembly.

CAUTION:

• Do not reuse snap ring.

• Check that snap ring is securely installed in a groove.

• Replace reverse output gear, snap ring, reverse baulk ring, return spring, needle bearing, reverse

idler shaft, spacer, reverse input gear, and lock washer as a set.

Inspection

INFOID:0000000009759302

INSPECTION AFTER DISASSEMBLY

PCIB1759E

PCIB1758E

PCIB1757E

PCIB1761E

REVERSE IDLER SHAFT AND GEAR

TM-61

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Shaft and Gear

Check the following items. Replace reverse output gear, snap ring, reverse baulk ring, return spring, needle

bearing, reverse idler shaft, spacer, reverse input gear, and lock washer as a set, if necessary.

• Damage, peeling, bend, uneven wear, and distortion of shaft

• Excessive wear, damage, and peeling of gear

Bearing

Check damage and rotation of bearing. Replace reverse output gear, snap ring, reverse baulk ring, return

spring, needle bearing, reverse idler shaft, spacer, reverse input gear, and lock washer as a set, if necessary.

TM-62

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

FINAL DRIVE

FINAL DRIVE

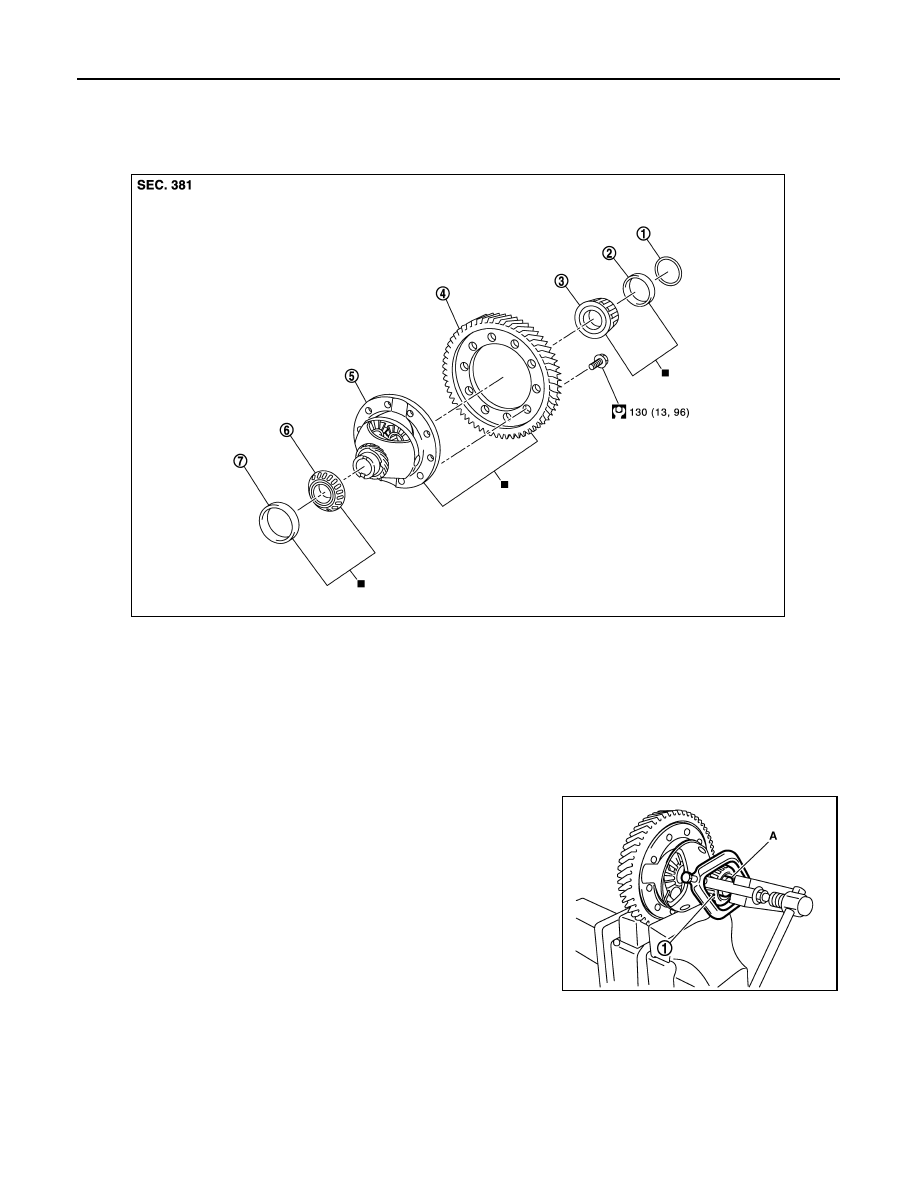

Exploded View

INFOID:0000000009759303

Disassembly

INFOID:0000000009759304

1. Remove differential side bearing inner race (clutch housing side)

(1) with the following procedure.

a. Set a suitable tool to differential side bearing inner race (clutch

housing side).

b. Remove differential side bearing inner race (clutch housing side)

using Tool (A).

1.

Shim

2.

Differential side bearing outer race
(transaxle case side)

3.

Differential side bearing inner race
(transaxle case side)

4.

Final gear

5.

Differential case

6.

Differential side bearing inner race
(clutch housing side)

7.

Differential side bearing outer race
(clutch housing side)

JPDIC0424GB

Tool number : ST33061000 (J-8107-2)

PCIB1767E

FINAL DRIVE

TM-63

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

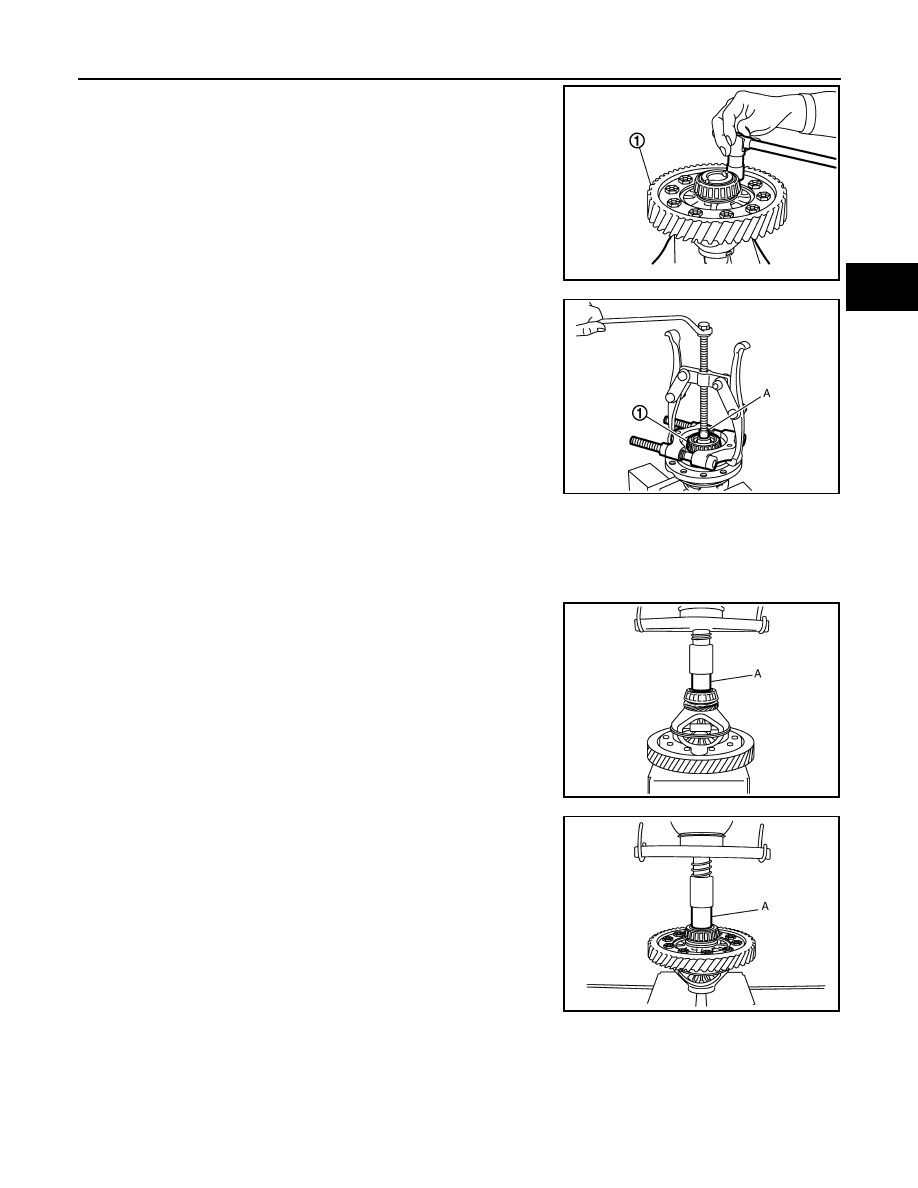

2. Remove final gear mounting bolts and remove final gear (1).

3. Remove differential side bearing inner race (transaxle case

side) (1) with the following procedure.

a. Set a suitable tool to differential side bearing inner race (tran-

saxle case side).

b. Remove differential side bearing inner race (transaxle case

side) using a suitable tool (A).

Assembly

INFOID:0000000009759305

1. Install final gear, and then tighten final gear mounting bolts to the specified torque.

CAUTION:

Replace final gear and differential case as a set.

2. Install differential side bearing inner race (clutch housing side)

using a suitable tool (A).

CAUTION:

Replace differential side bearing inner race (clutch housing

side) and differential side bearing outer race (clutch hous-

ing side) as a set.

3. Install differential side bearing inner race (transaxle case side)

using a suitable tool (A).

CAUTION:

Replace differential side bearing inner race (transaxle case

side) and differential side bearing outer race (transaxle

case side) as a set.

Inspection

INFOID:0000000009759306

INSPECTION AFTER DISASSEMBLY

Gear and Case

Check final gear and differential case. Replace if necessary.

JPDIC0446ZZ

JPDIC0114ZZ

JPDIC0115ZZ

JPDIC0116ZZ
