Nissan Sentra. Manual - part 847





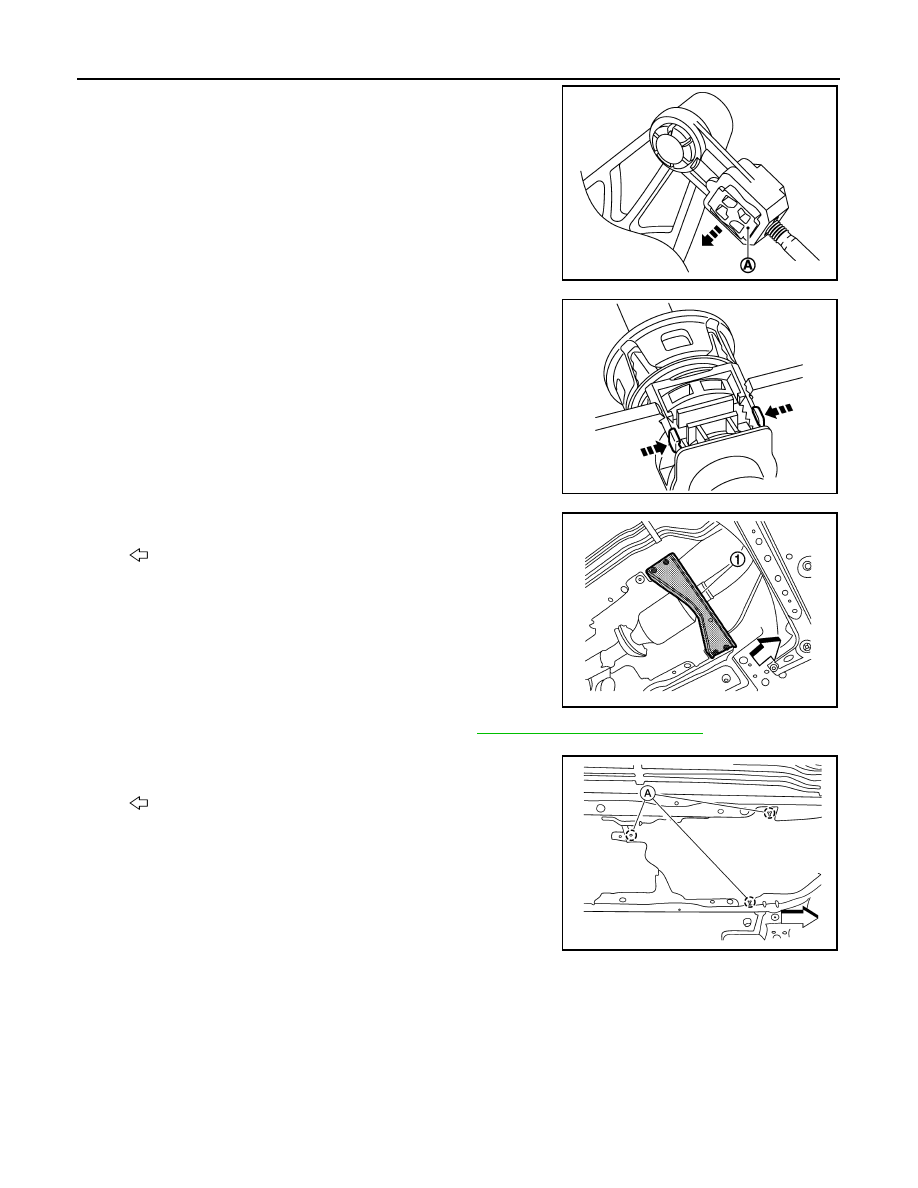

TM-24

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

CONTROL LINKAGE

11. Pull up the cable stopper (A) of the selector cable in the direction

of the arrow as shown.

12. Pull out and disconnect the selector cable from the pin of the

shift selector assembly, using a suitable tool.

13. While pressing the lock of the selector cable in the direction of

the arrow shown, remove the selector cable from the shift selec-

tor assembly.

14. While pressing the lock of the shifter cable in the direction of the

arrow shown, remove the shifter cable from the shift selector

assembly.

15. Remove the shift selector assembly.

16. Remove the tunnel stay (1).

17. Remove exhaust front tube and sub muffler. Refer to

EX-5, "Removal and Installation"

.

18. Remove the heat plate fixtures (A).

19. Remove the shift cable and selector cable from the bracket.

JPDIC0833ZZ

JPDIC0793ZZ

: Front

JSDIA3657ZZ

: Front

AWDIA1074ZZ

CONTROL LINKAGE

TM-25

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

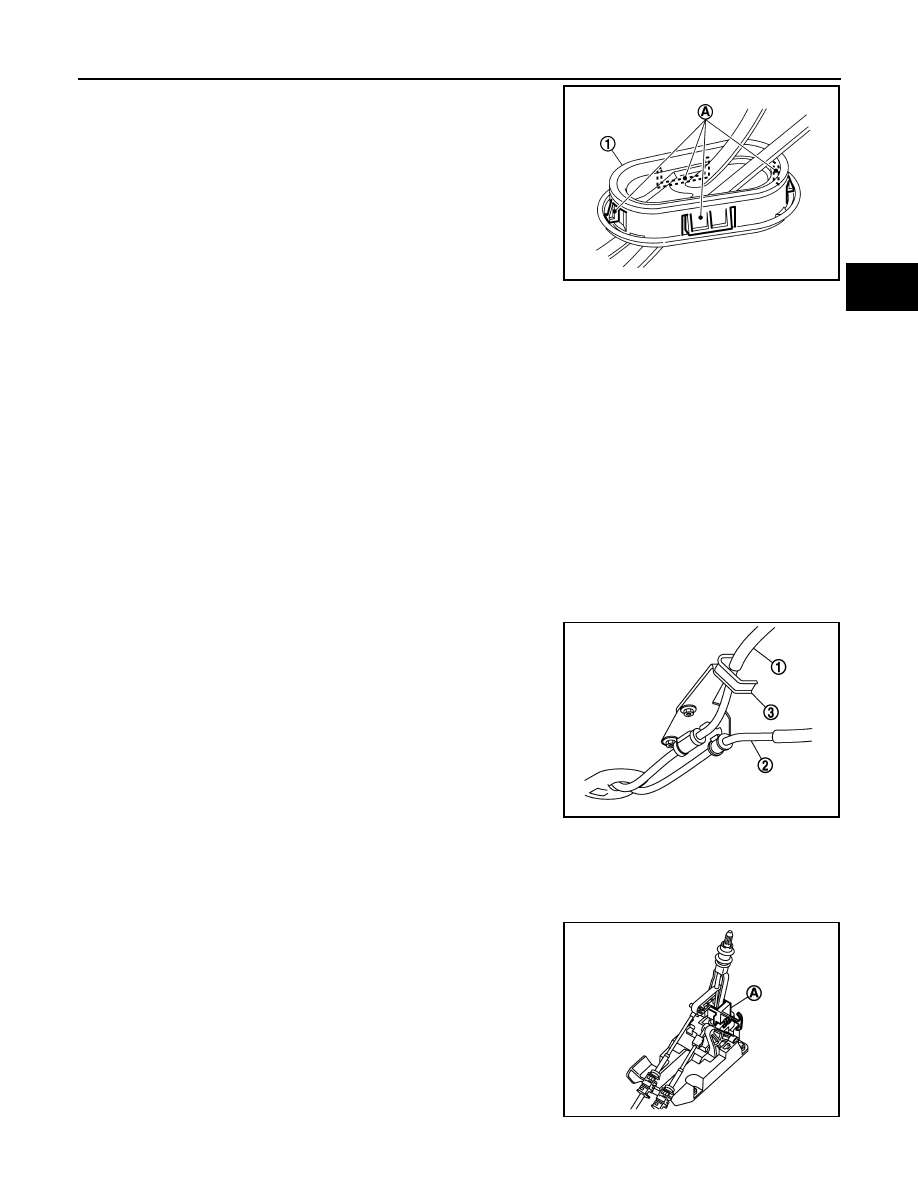

20. Disengage the pawls (A) of the grommet (1), and pull down-

wards to remove.

21. Remove the shifter cable and selector cable from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install each cable without causing interference with other parts, a 120 mm (4.72 in)-or-less bend, and

a 180-degrees-or-more twist.

• Install boot of each cable without causing interference with other parts and a 90-degrees-or-more

twist.

• Fit boot of to center console assembly the groove on shift selector knob.

• To install the shift selector knob, press it into the shift selector.

CAUTION:

• Do not reuse shift selector knob.

• Be careful with orientation of shift selector knob.

• Tapping work for tapping bolts is not applied to new transaxle case. Do not perform tapping by other than

screwing tapping bolts because tapping is formed by screwing tapping bolts into transaxle case.

CAUTION:

Do not reuse tapping bolt.

• Insert the each cable until it reaches the cable mounting bracket and shift selector assembly.

• Insert the each cable until it reaches the shifter lever A and the selector lever.

• Move the shift selector to the neutral position.

• Install the shifter cable (1) and the selector cable (2) to the bracket

(3) as shown.

Install the selector cable (the shift selector assembly side), as per the following procedure.

When shift selector is replaced:

1. Install the selector cable to the shift selector assembly.

2. Move the shift selector to the neutral position.

3. Install the shift selector stopper (A) to the shift selector assembly

as shown.

CAUTION:

Selector cable cannot be adjusted accurately without using

the shift selector stopper.

4. Check that the shift selector does not move in a back and forth

direction. If it moves, repeat the installation of the shift selector

stopper to the shift selector assembly.

JPDIC0844ZZ

JPDIC0836ZZ

JPDIC0831ZZ

TM-26

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

CONTROL LINKAGE

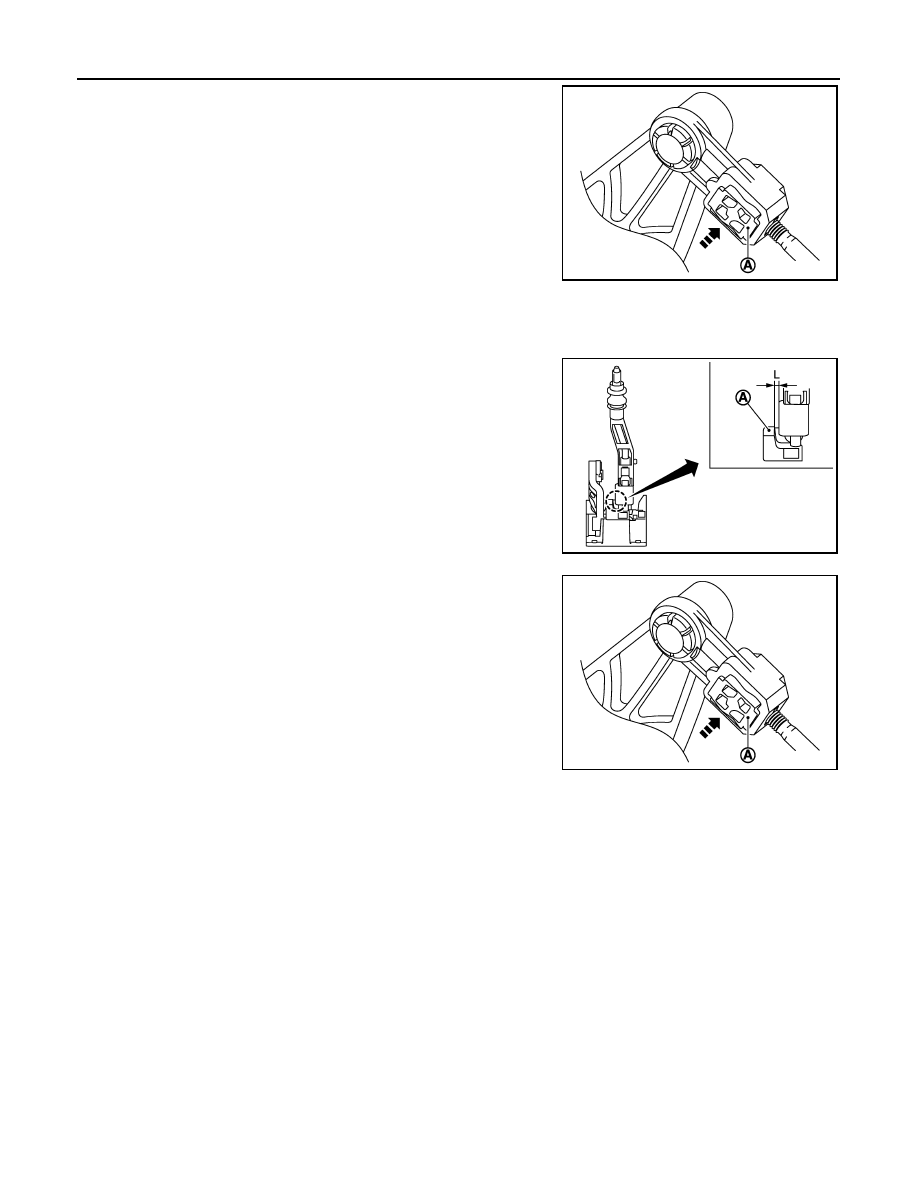

5. Insert the cable stopper (A) until it reaches the selector cable.

6. Remove the shift selector stopper from the shift selector assem-

bly.

7. Move the shift selector to each gear position to check that there

are no bindings. If any, repeat the installation of the shift selector

stopper to the shift selector assembly.

When shift selector assembly is not replaced:

1. Install the selector cable to the shift selector assembly.

2. Move the shift selector to the 4th gear position.

3. Adjust the length (L) between the cable stopper (A) and the shift

selector to the standard value.

4. Insert the stopper (A) until it reaches the selector cable.

5. Move the shift selector to each gear position to check that there

are no bindings. If any, repeat the adjustment of the length

between the cable stopper and the shift selector.

Inspection

INFOID:0000000009759281

INSPECTION AFTER INSTALLATION

Shift selector Knob

Check that the shift selector knob is installed in the right position.

Shifter Cable and Selector Cable

• Pull each cable in the removal direction to check that it dose not disconnect from the cable mounting

bracket.

• Pull each cable in the removal direction to check that it dose not disconnect from the shift selector assembly.

• Pull grommet in the removal direction to check that it dose not disconnect from the vehicle.

Shift Selector Assembly and shift selector

• Check that there is no tangle, hook, abnormal sound, looseness, and interference when the shifter selector

is moved to each position. If there is a malfunction, then repair or replace the malfunctioning part.

• Check that the shifter selector smoothly returns to the neutral position after moving the shift selector from 1st

to 2nd gear and moving hands off the shift selector. If there is a malfunction, then repair or replace the mal-

functioning part.

• Check that the shift selector smoothly returns to the neutral position after moving the lever from 5th to 6th

gear and moving hands off the shift selector. If there is a malfunction, then repair or replace the malfunction-

ing part.

JPDIC0832ZZ

Length (L) : 3.51 – 4.11 mm (0.1382 – 0.1618 in)

JPDIC0834ZZ

JPDIC0832ZZ

AIR BREATHER HOSE

TM-27

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

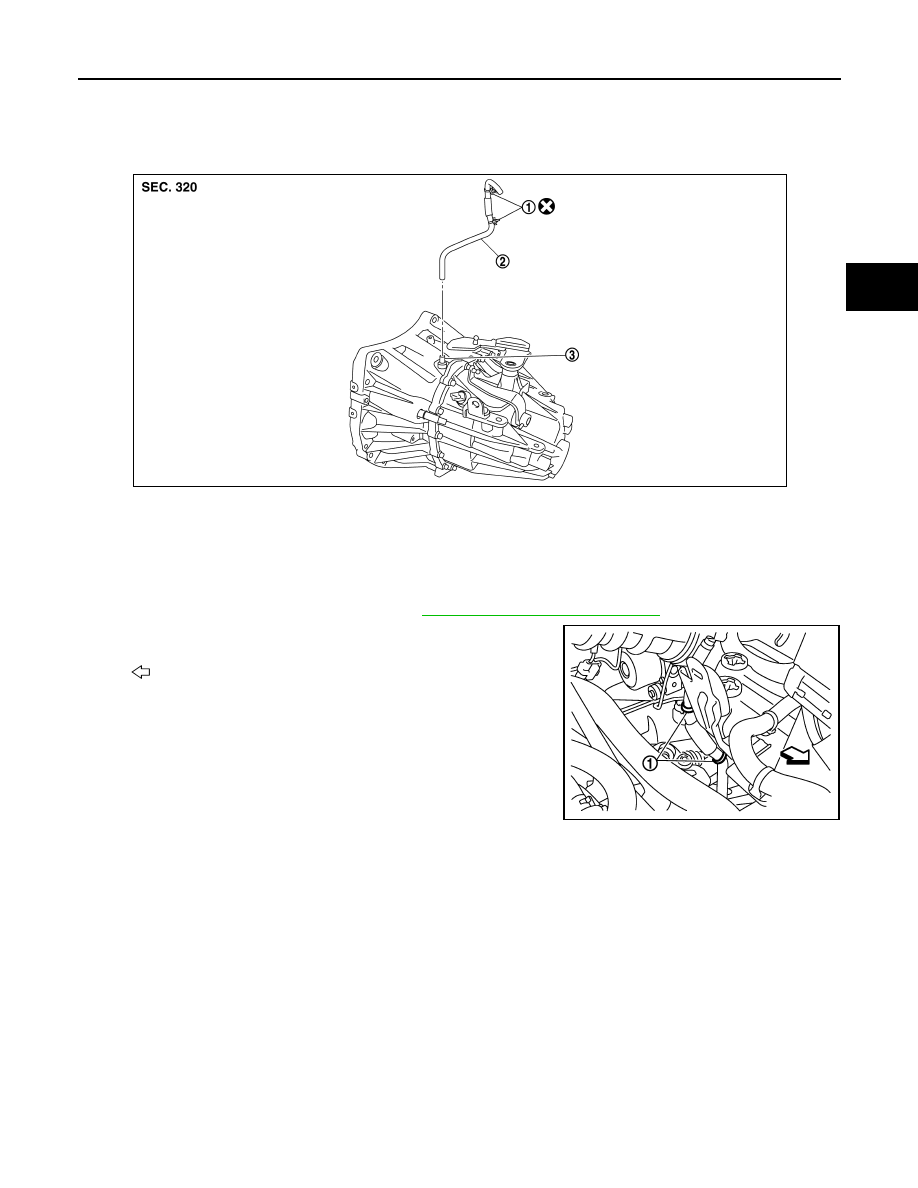

AIR BREATHER HOSE

Exploded View

INFOID:0000000009759282

Removal and Installation

INFOID:0000000009759283

REMOVAL

1. Remove air cleaner case assembly. Refer to

EM-25, "Removal and Installation"

.

2. Remove clips (1).

3. Remove air breather hose from the 2 way connector.

CAUTION:

When removing air breather hose, be sure to hold 2 way

connector securely.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose, preventing crush and clogging caused by bending.

• Insert the allowance of air breather hose to the spool of the 2 way connector.

• Install air breather hose to the 2 way connector with the paint mark faced forward of the vehicle.

• Securely engage the clips in the hole.

• Do not reuse clip.

1.

Clip

2.

Air breather hose

3.

2 way connector

JSDIA3636ZZ

: Front

JPDIC0839ZZ
