Nissan Sentra. Manual - part 755

SEC-48

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

VEHICLE SECURITY SYSTEM

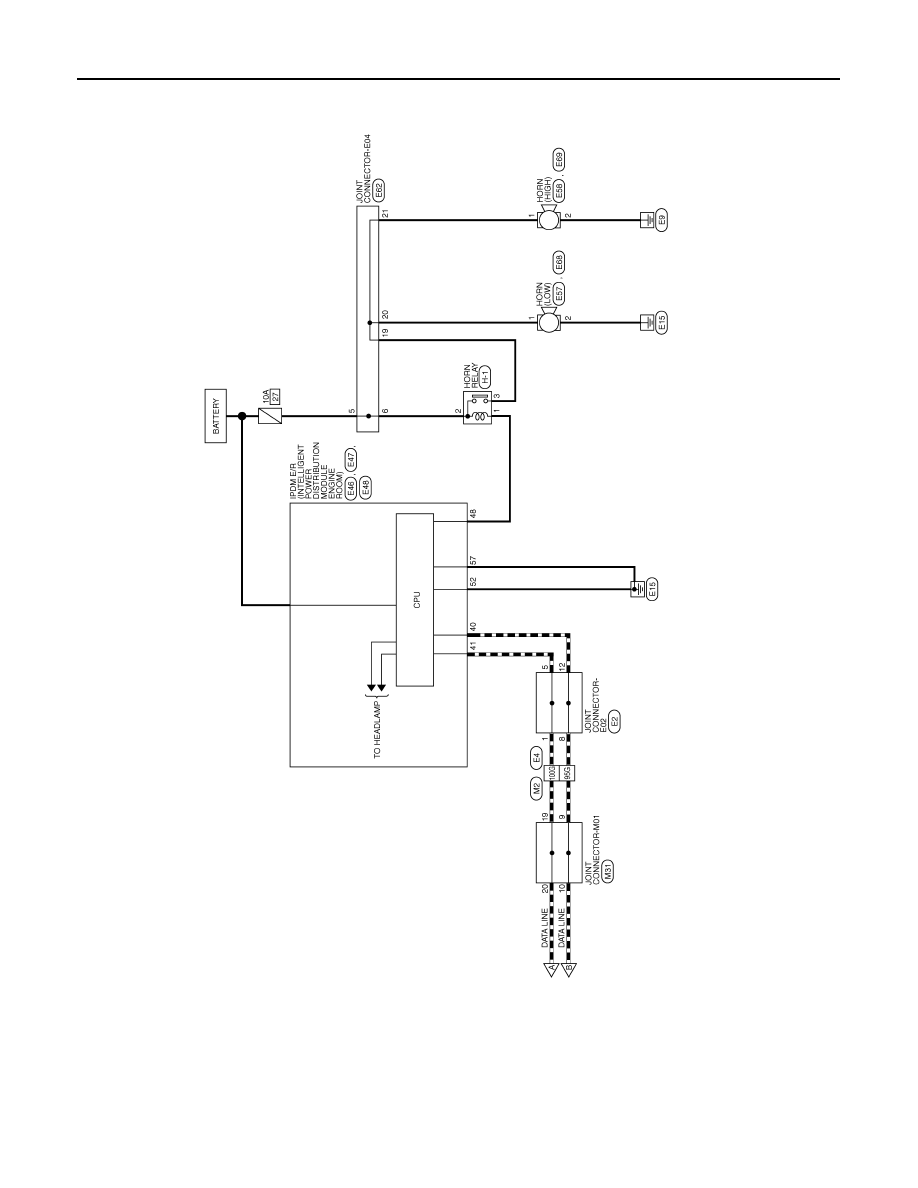

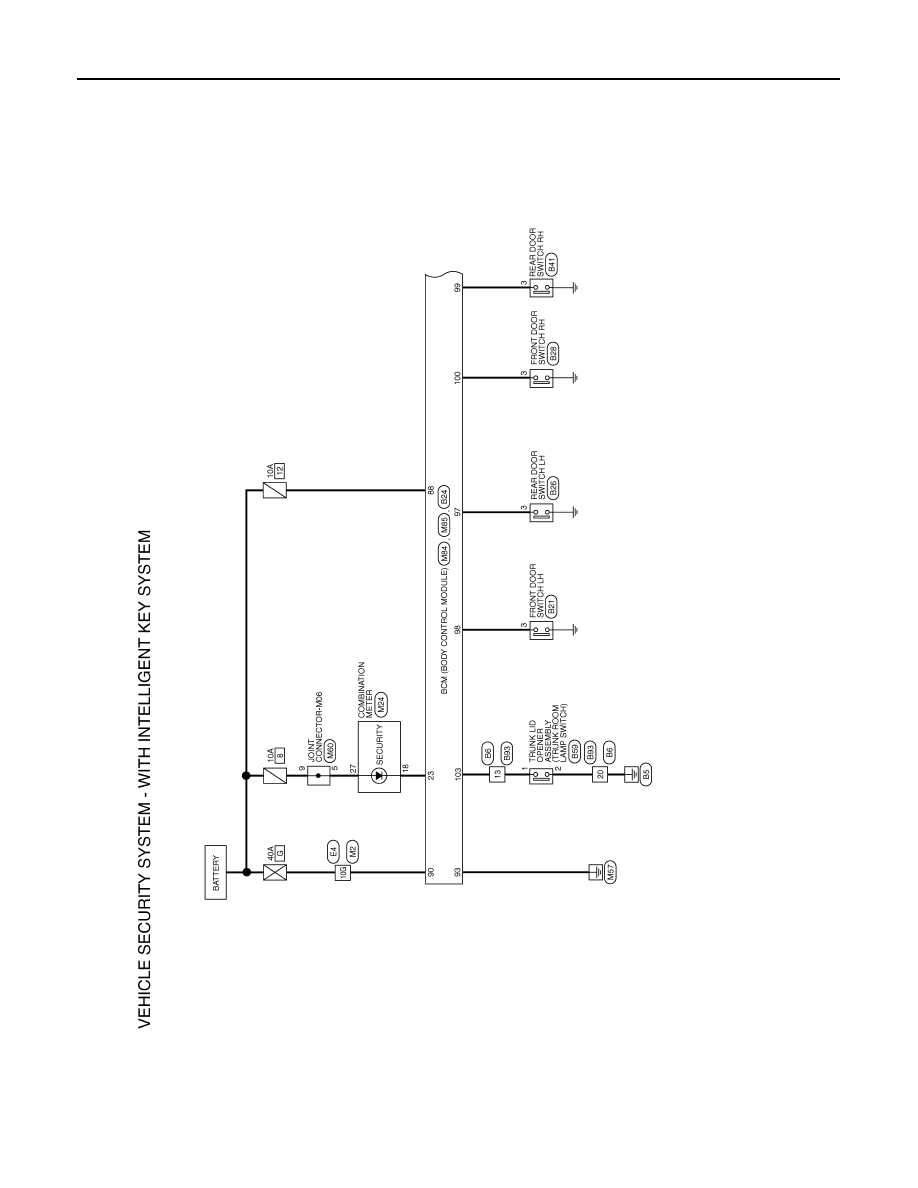

Wiring Diagram

INFOID:0000000009756693

ABKWA2396GB

VEHICLE SECURITY SYSTEM

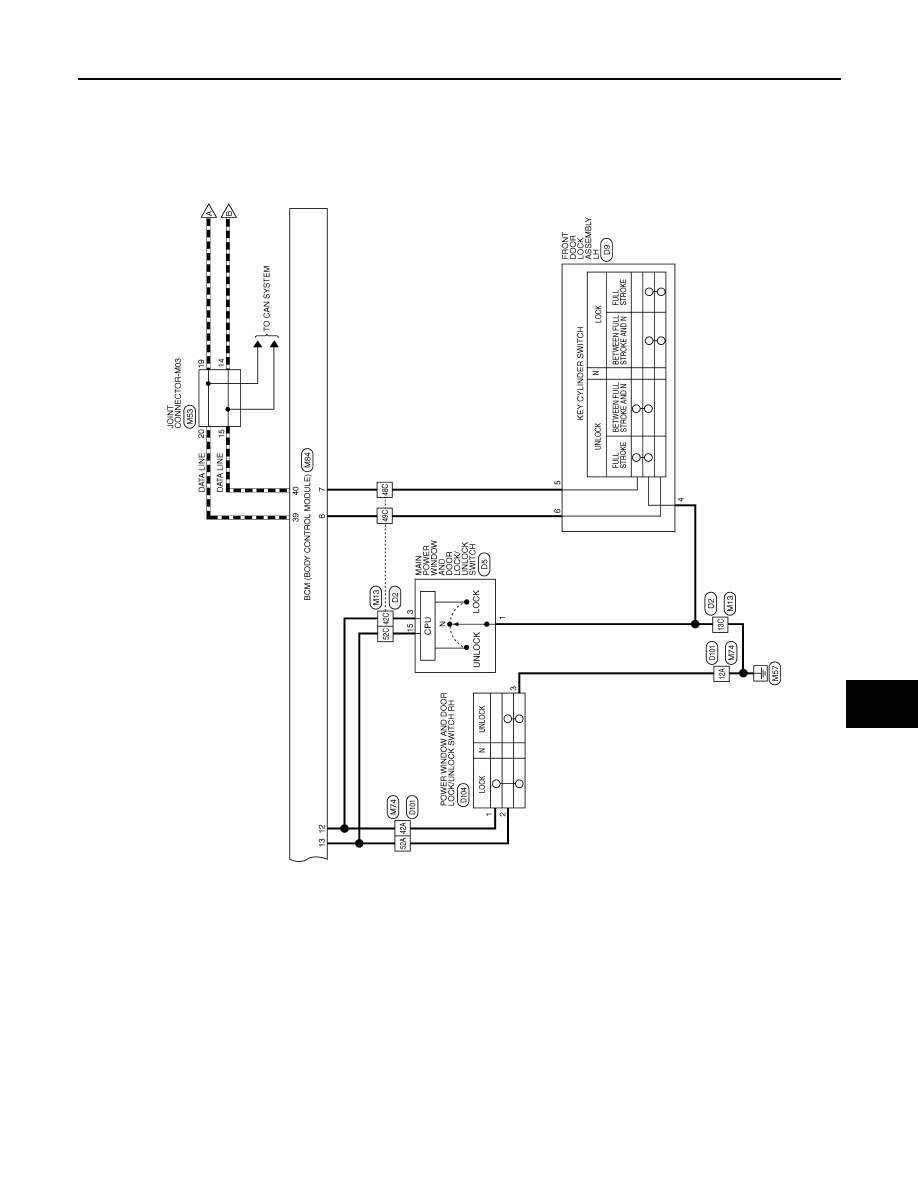

SEC-49

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ABKWA2397GB

SEC-50

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

ABKWA2398GB

VEHICLE SECURITY SYSTEM

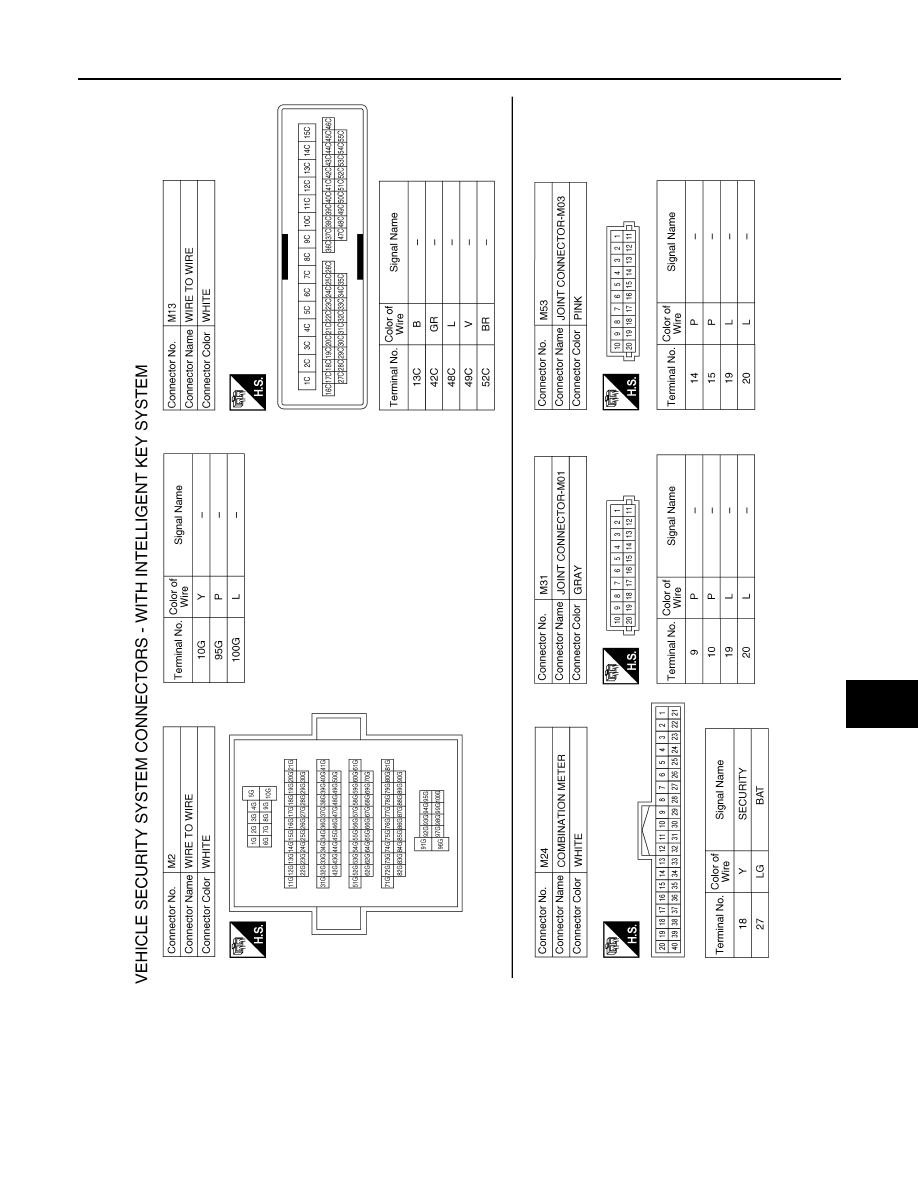

SEC-51

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ABKIA5430GB
