FRONT SEAT BELT

SEAT BELT HEIGHT ADJUSTER

Removal

1. Remove the center pillar upper finisher. Refer to

INT-28, "CENTER PILLAR UPPER FINISHER : Removal

and Installation"

.

2. Remove the D-ring anchor bolt.
3. Remove the seat belt height adjuster bolts and the seat belt height adjuster.

Installation

Installation is in the reverse order of removal.

• Make sure that the seat belt height adjuster is locked in the lowest position during installation.

• Make sure both the D-ring anchor and seat belt height adjuster operate freely.

• Tighten the D-ring anchor bolt and seat belt height adjuster bolts to specification. Refer to

SB-8, "Exploded

View"

.

SEAT BELT BUCKLE

Removal

1. Remove the front seat assembly. Refer to

SE-18, "DRIVER SIDE : Removal and Installation - Seat

Assembly"

 (front seat driver side) or

SE-20, "PASSENGER SIDE : Removal and Installation - Seat

Assembly"

 (front seat passenger side).

2. Disconnect the harness connector from the seat belt buckle.
3. Remove the seat belt buckle anchor bolt and the seat belt buckle.

Installation

Installation is in the reverse order of removal.

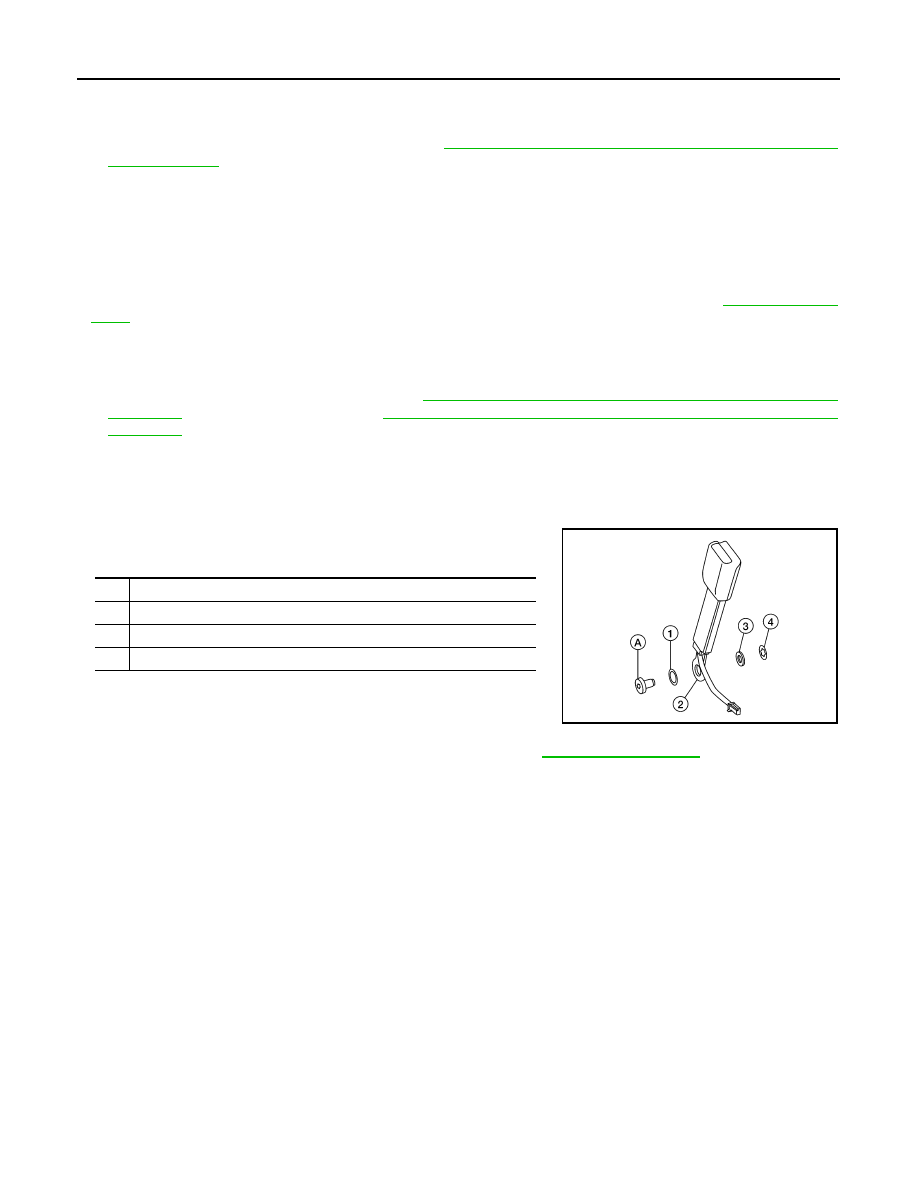

• During installation, make sure the seat belt buckle anchor bolt (A)

is inserted through the components in the following order:

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-8, "Exploded View"

.

1.

Wave washer

2.

Seat belt buckle

3.

Spacer

4.

Star washer

ALHIA0234GB

REAR SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REAR SEAT BELT

Exploded View - Seat Belt Retractor

INFOID:0000000009756330

SEAT BELT RETRACTOR

Removal and Installation - Seat Belt Retractor

INFOID:0000000009756331

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-33, "Removal and Installation"

.

2. Remove the seat belt retractor anchor bolt and the seat belt retractor.

INSTALLATION

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-5, "Inspection"

.

• Tighten the seat belt retractor bolts to specification. Refer to

SB-11, "Exploded View - Seat Belt Retractor"

.

ALHIA0294ZZ

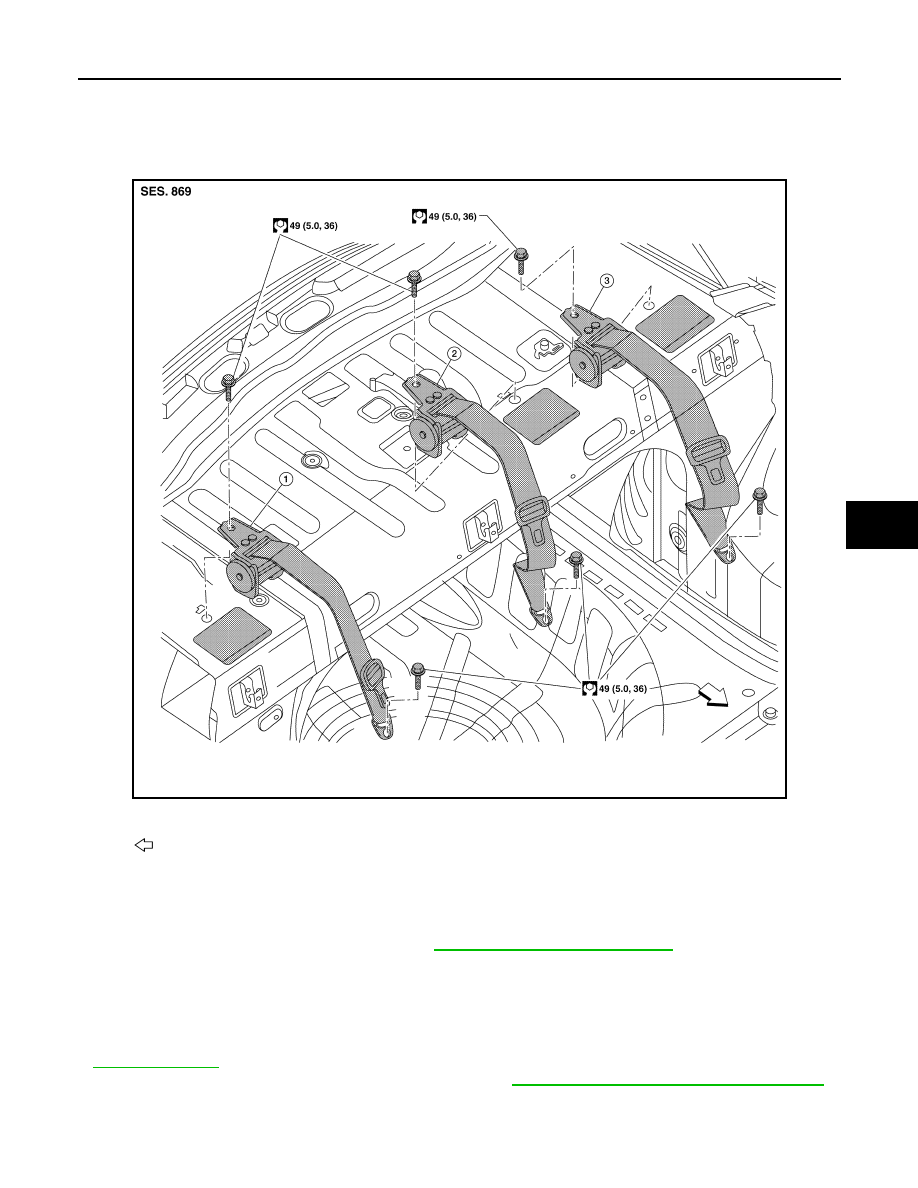

1.

Seat belt retractor (RH)

2.

Seat belt retractor (center)

3.

Seat belt retractor (LH)

Front

SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

Exploded View - Seat Belt Buckle

INFOID:0000000009756332

SEAT BELT BUCKLE

Removal and Installation - Seat Belt Buckle

INFOID:0000000009756333

REMOVAL

1. Remove rear seat cushion assembly. Refer to

SE-23, "Removal and Installation - Seat Cushion Assem-

bly"

.

2. Remove seat belt buckle anchor bolt and the seat belt buckle.

INSTALLATION

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-5, "Inspection"

.

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-11, "Exploded View - Seat Belt Retrac-

tor"

.

ALHIA0295ZZ

1.

Seat belt buckle (RH)

2.

Seat belt buckle (center)

3.

Seat belt buckle (LH)

Front

LATCH SYSTEM FOR CHILDREN

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH SYSTEM FOR CHILDREN

Exploded View

INFOID:0000000009756334

Removal and Installation

INFOID:0000000009756335

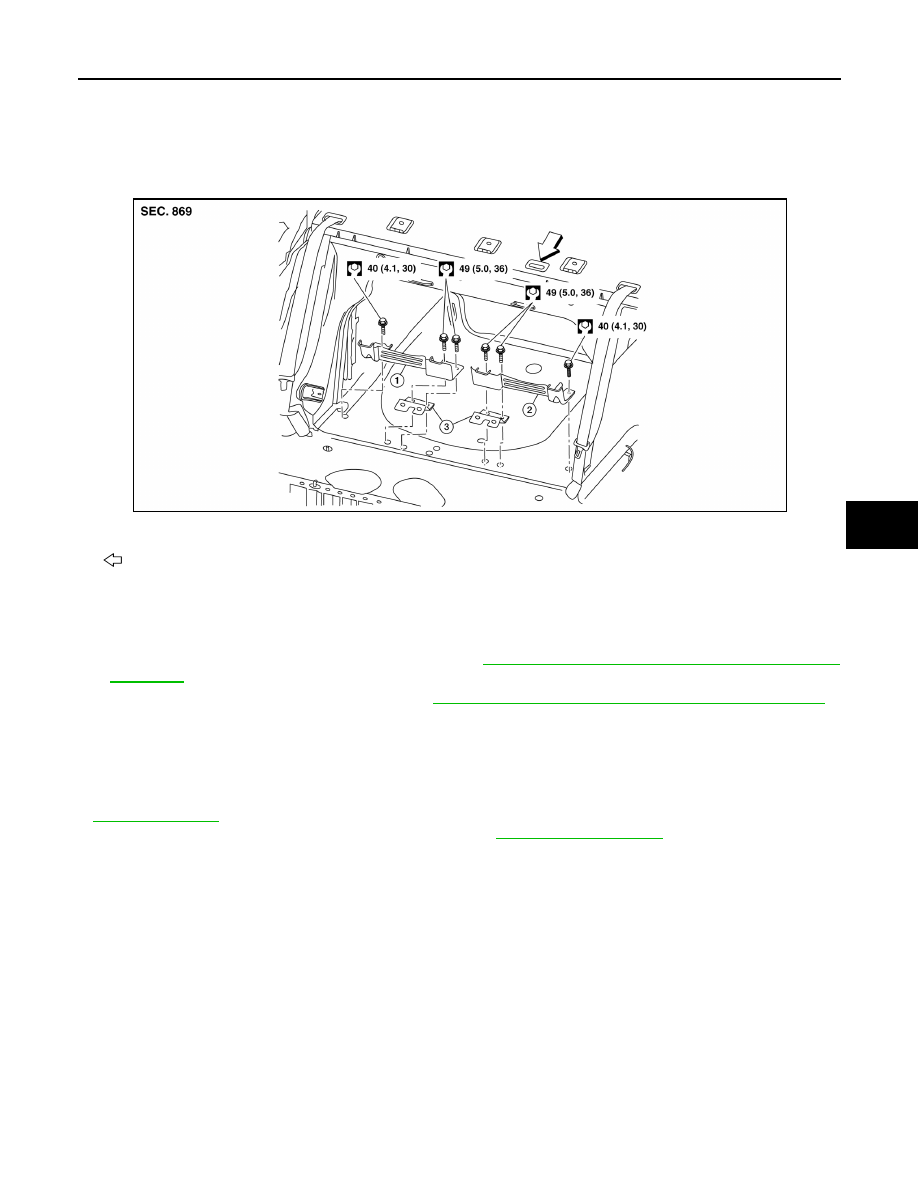

REMOVAL

1. Remove the rear seat cushion assembly. Refer to

SE-23, "Removal and Installation - Seat Cushion

Assembly"

2. Remove the rear seatback assembly. Refer to

SE-23, "Removal and Installation - 60:40 Split Seatback"

.

3. Remove the LATCH bracket bolts and the LATCH bracket.

INSTALLATION

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-5, "Inspection"

.

• Tighten the LATCH bracket bolts to specification. Refer to

SB-13, "Exploded View"

.

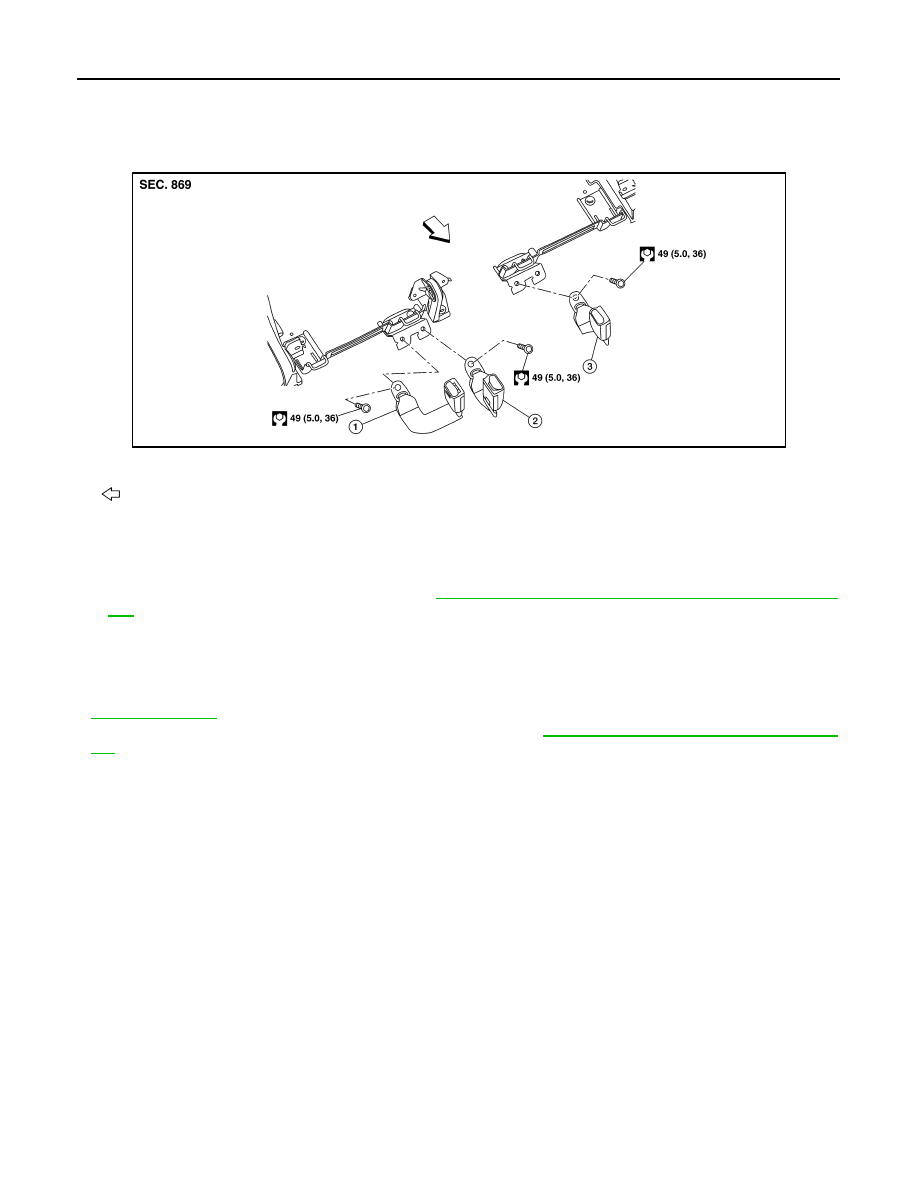

1.

LATCH bracket (RH)

2.

LATCH bracket (LH)

3.

Seat belt buckle anchor bracket

Front

ALHIA0286ZZ
