MOONROOF SWITCH

MOONROOF SWITCH

Removal and Installation

INFOID:0000000009756165

REMOVAL

1. Remove the map lamp. Refer to

INL-52, "Removal and Installation"

.

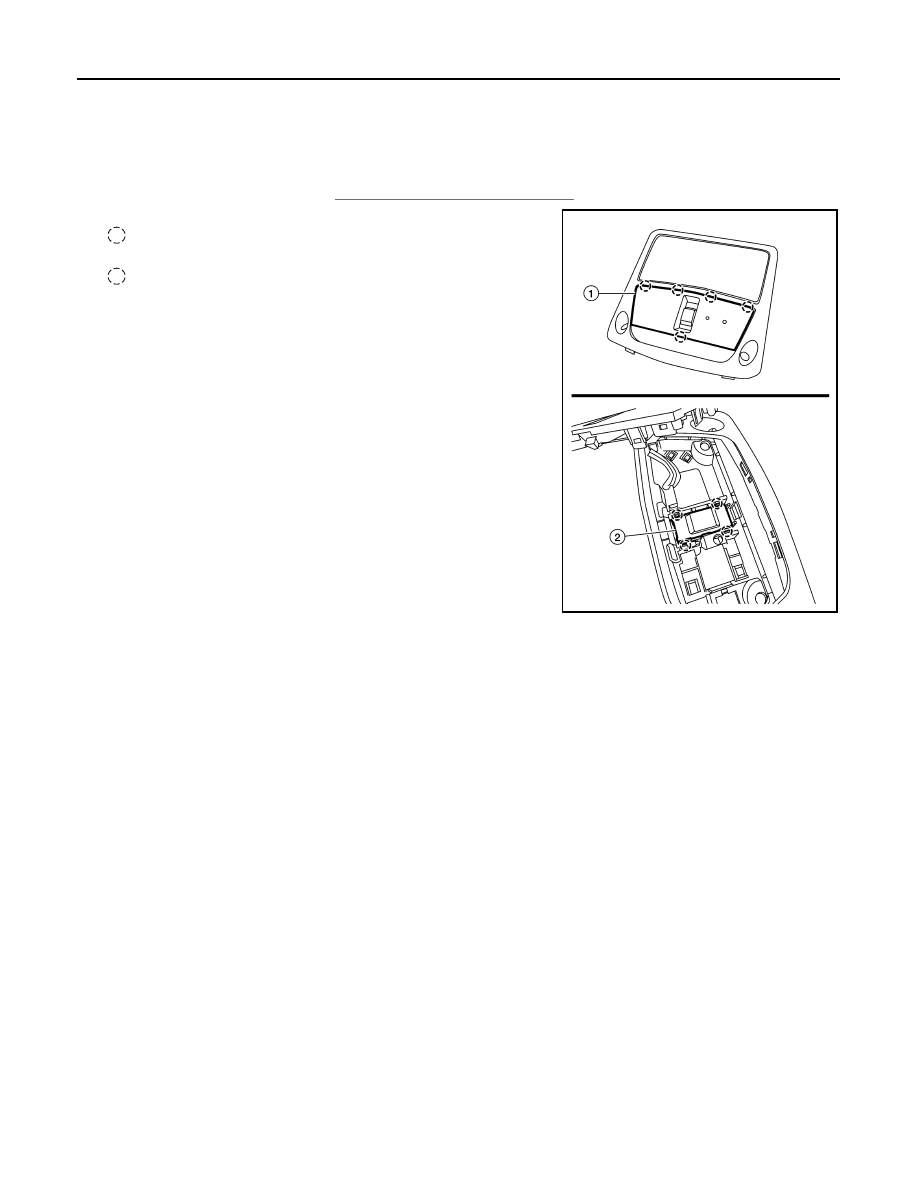

2. Release the pawls and remove the moonroof switch finisher (1).

: Pawl

3. Release the pawls and remove the moonroof switch (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2754ZZ

MOONROOF UNIT ASSEMBLY

RF-51

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

MOONROOF UNIT ASSEMBLY

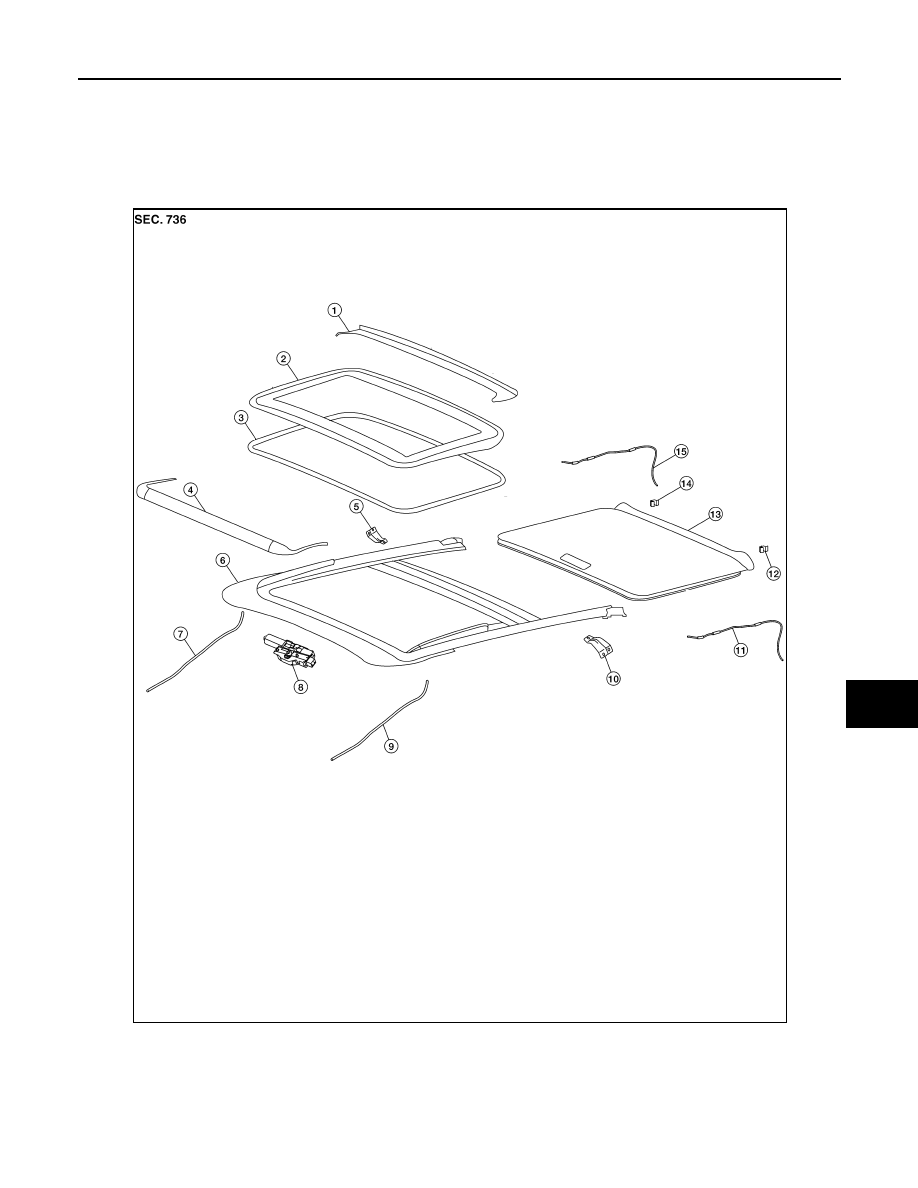

Exploded View

INFOID:0000000009756166

1.

Drain assembly

2.

Glass lid

3.

Weatherstrip

4.

Wind deflector

5.

Side bracket (RH)

6.

Moonroof rail assembly

7.

Drain hose front (RH)

8.

Moonroof motor assembly

9.

Drain hose front (LH)

10.

Side bracket (LH)

11.

Drain hose rear (LH)

12. Sunshade stopper (LH)

13.

Sunshade

14.

Sunshade stopper (RH)

15. Drain hose rear (RH)

ALKIA2981ZZ

RF-52

< UNIT DISASSEMBLY AND ASSEMBLY >

MOONROOF UNIT ASSEMBLY

Disassembly and Assembly

INFOID:0000000009756167

DISASSEMBLY

1. Remove the moonroof unit assembly. Refer to

RF-45, "Removal and Installation"

.

2. Remove the sunshade. Refer to

RF-47, "Removal and Installation"

.

3. Remove the glass lid. Refer to

RF-39, "Removal and Installation"

.

4. Remove the wind deflector. Refer to

RF-49, "Removal and Installation"

.

5. Remove the moonroof motor assembly. Refer to

RF-41, "Removal and Installation"

.

ASSEMBLY

Assembly is in the reverse order of disassembly.
