REAR WHEEL HUB
RAX-7
< REMOVAL AND INSTALLATION >
C
E
F
G
H
I
J
K
L
M
A
B
RAX
N
O
P

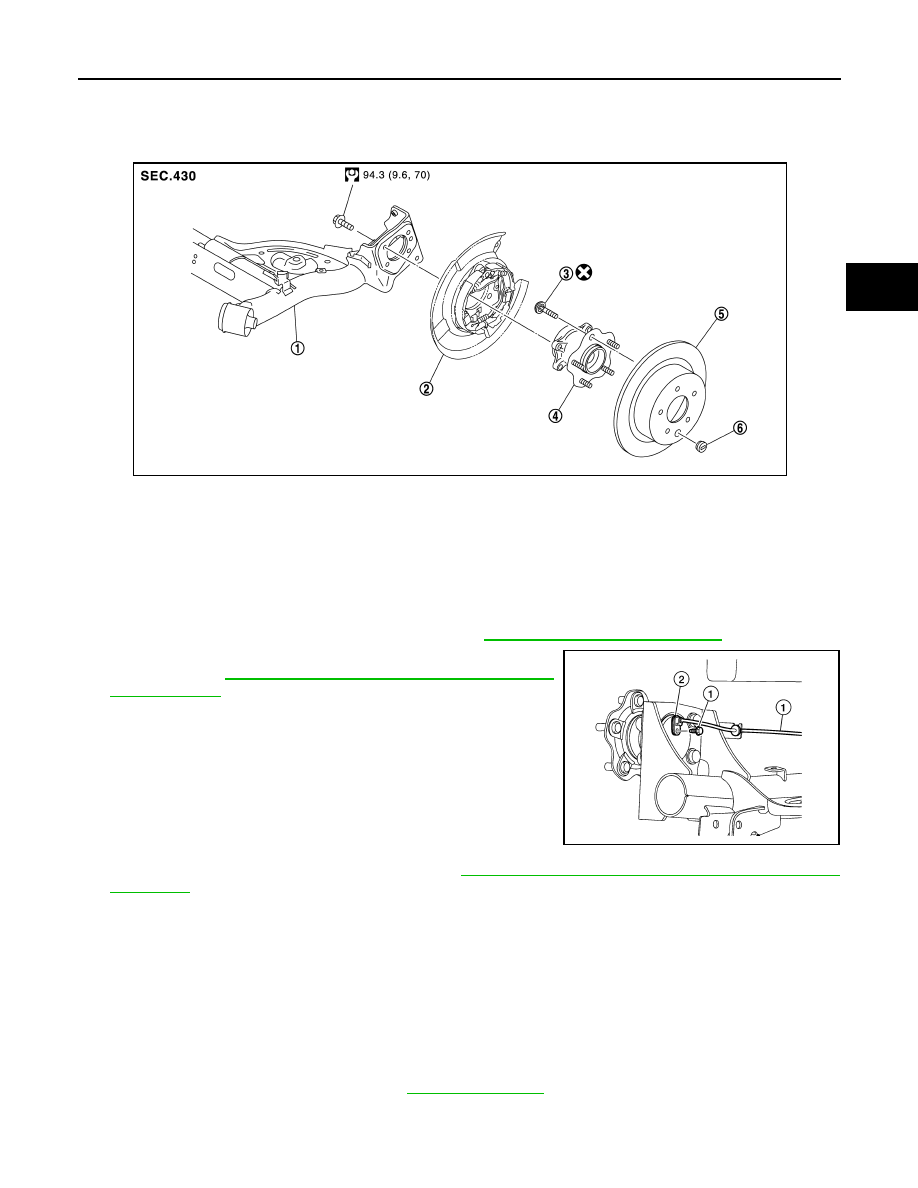

Exploded View - Disc brake
INFOID:0000000009756245
DISK BRAKE
Removal and Installation - Disc brake
INFOID:0000000009756246
REMOVAL
1. Remove the wheel and tire using power tool. Refer to
WT-47, "Removal and Installation"
.
2. Remove the rear wheel sensor bolt (1) and the rear wheel sen-
sor (2). Refer to
BRC-107, "REAR WHEEL SENSOR : Removal
3. Remove the rear brake caliper assembly. Refer to
BR-47, "BRAKE CALIPER ASSEMBLY : Removal and
.
CAUTION:
Do not depress brake pedal while rear brake assembly is removed.
4. Remove the hub bolts and wheel hub assembly.
CAUTION:
Do not remove parking brake assembly. Protect it from falling.
INSTALLATION
Installation is in the reverse order of removal.
• Align the matching marks that have been made during removal when reusing the disc rotor.
• Check that the wheel hub assembly operates smoothly
• Perform inspection after installation. Refer to
.
1.
Rear suspension beam
2.
Parking brake assembly
3.
Wheel stud
4.
Wheel hub assembly (Bearing-inte-
grated type)
5.
Disc rotor
6.
Plug
JSDIA2810GB
ALDIA0407ZZ
