DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

PWC-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010291369

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

ECU identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU id

en

tif

ica

tion

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a

 M

on

ito

r

Acti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

ig

ur

at

io

n

CAN DIAG SUP

P

OR

T MNTR

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

PWC-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

RETAINED PWR
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

INFOID:0000000010291370

DATA MONITOR

WORK SUPPORT

*: Initial setting

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

Support Item

Setting

Description

RETAINED PWR SET

MODE3

2 min

Sets the retained accessory power operating time.

MODE2

OFF

MODE1*

45 sec

BCM (BODY CONTROL MODULE)

PWC-15

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009757219

WITH INTELLIGENT KEY SYSTEM

WITHOUT INTELLIGENT KEY SYSTEM

ECU

Reference

BCM

BCS-29, "Reference Value"

BCS-46, "Fail-safe"

BCS-48, "DTC Inspection Priority Chart"

BCS-49, "DTC Index"

ECU

Reference

BCM

BCS-97, "Reference Value"

BCS-108, "Fail-safe"

BCS-108, "DTC Inspection Priority Chart"

BCS-109, "DTC Index"

PWC-16

< ECU DIAGNOSIS INFORMATION >

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000009757220

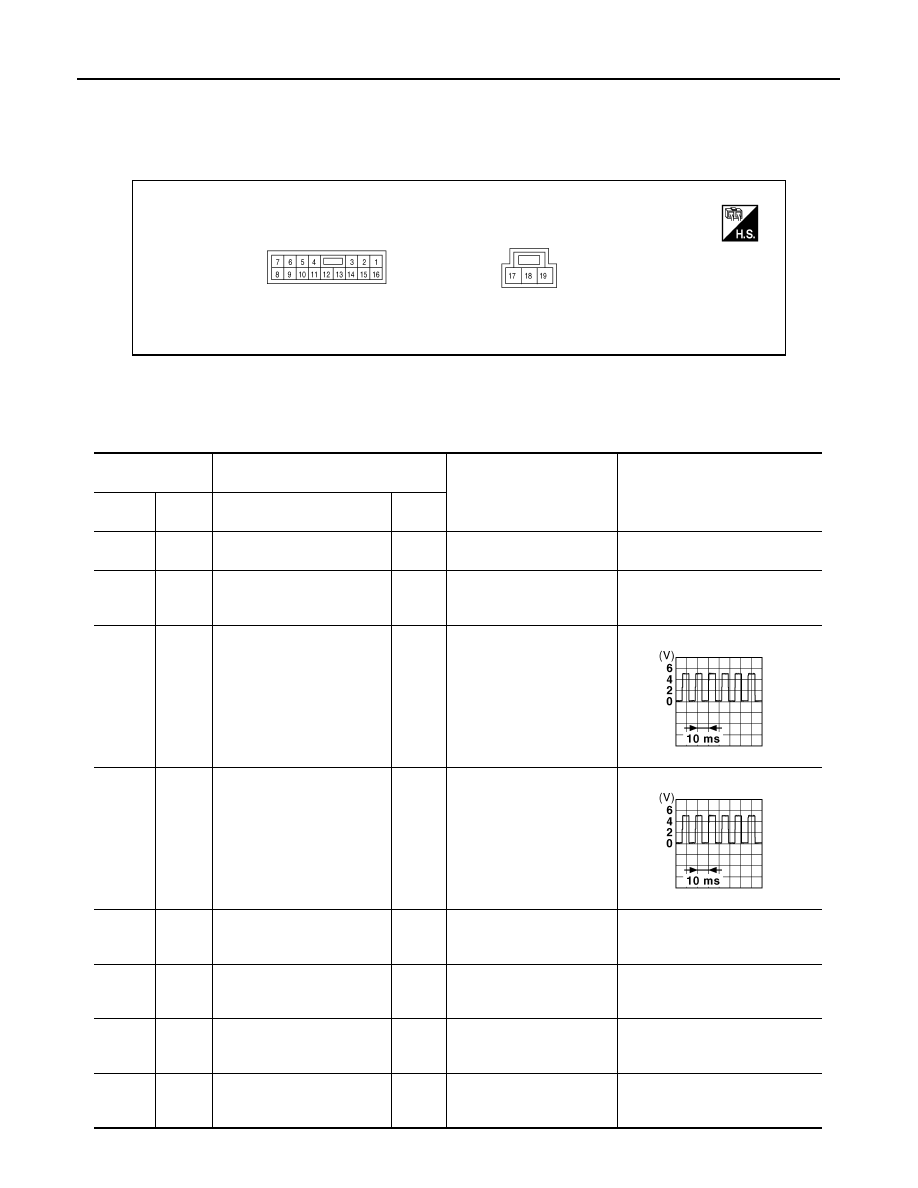

TERMINAL LAYOUT

PHYSICAL VALUES

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

AWKIA2892ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

+

-

Signal name

Input/

Output

1

(B)

Ground Ground

0 – 1

2

(GR)

Ground

Front power window motor
(passenger side) DOWN
signal

Output

When front RH switch in
power window main switch
is DOWN at operated.

 Battery voltage

4

(P)

Ground Encoder pulse signal 2

Input

When front power window
motor (driver side) operates.

5

(W)

Ground Encoder pulse signal 1

Input

When front power window
motor (driver side) operates.

6

(P)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is DOWN at operated.

 Battery voltage

7

(LG)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is UP at operated.

 Battery voltage

8

(Y)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in
power window main switch
is DOWN at operated.

 Battery voltage

9

(G)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in
power window main switch
is UP at operated.

 Battery voltage

JMKIA0070GB

JMKIA0070GB
