Removal and Installation (Battery Bracket)

INFOID:0000000009757201

REMOVAL

1. Remove air cleaner and air duct. Refer to

EM-25, "Removal and Installation"

.

2. Remove battery. Refer to

PG-50, "Removal and Installation (Battery)"

.

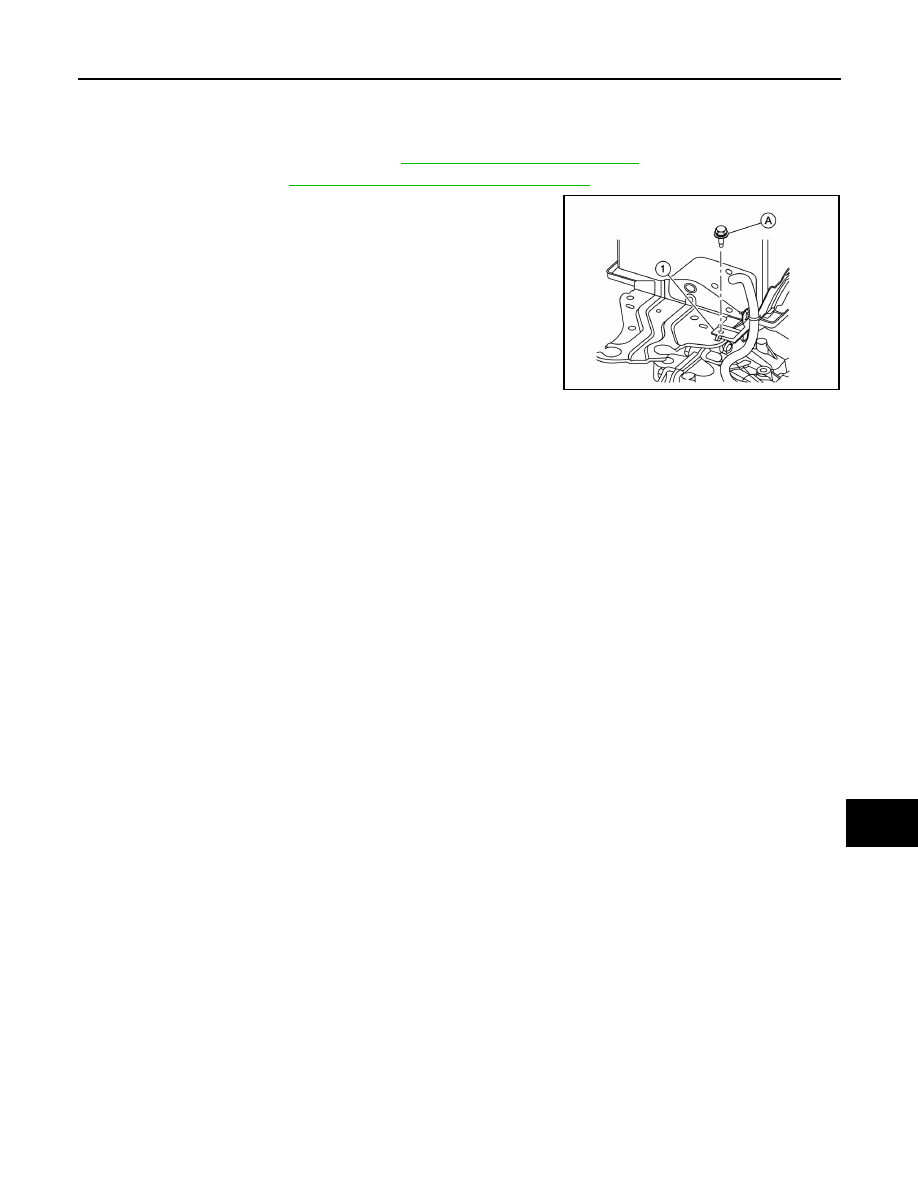

3. Remove CVT breather hose bracket bolt (A) and CVT breather

hose bracket (1) (if equipped).

4. Remove battery bracket bolts and battery bracket.
5. Remove harness clip from battery bracket.

INSTALLATION

Installation is in the reverse order of removal.

ALMIA0594ZZ

PG-52

< REMOVAL AND INSTALLATION >

BATTERY TERMINAL WITH FUSIBLE LINK

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000009757202

Removal and Installation

INFOID:0000000009757203

REMOVAL

1. Loosen the battery terminal nuts and disconnect both battery negative and positive terminals. Refer to

PG-50, "Exploded View"

.

CAUTION:

To prevent damage to the parts, disconnect the battery negative terminal first.

2. Remove harness nut and battery terminal with fusible link nut.
3. Disconnect harness connectors and remove battery terminal with fusible link.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To prevent damage to the parts, connect the battery positive terminal first.

Reset electronic systems as necessary. Refer to

PG-7, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

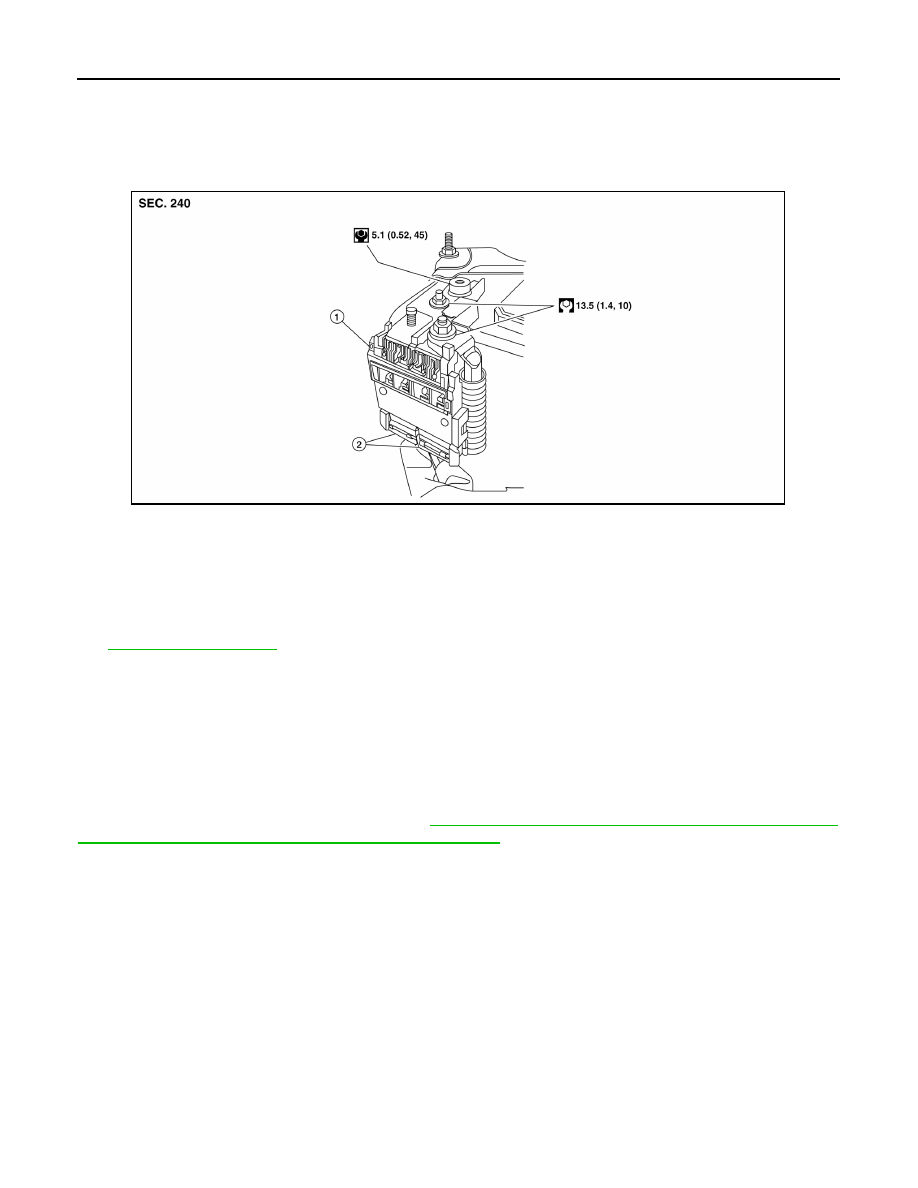

1.

Battery terminal with fusible link

2.

Harness connector

ALMIA0952ZZ

PG

BATTERY CURRENT SENSOR

PG-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY CURRENT SENSOR

Exploded View

INFOID:0000000009757204

Removal and Installation

INFOID:0000000009757205

REMOVAL

1. Loosen the battery terminal nut and disconnect battery negative terminal. Refer to

PG-50, "Exploded

View"

.

2. Disconnect the harness connector from current sensor.
3. Remove the battery current sensor from the negative terminal.

INSTALLATION

Installation is in the reverse order of removal.

Reset electronic systems as necessary. Refer to

PG-7, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

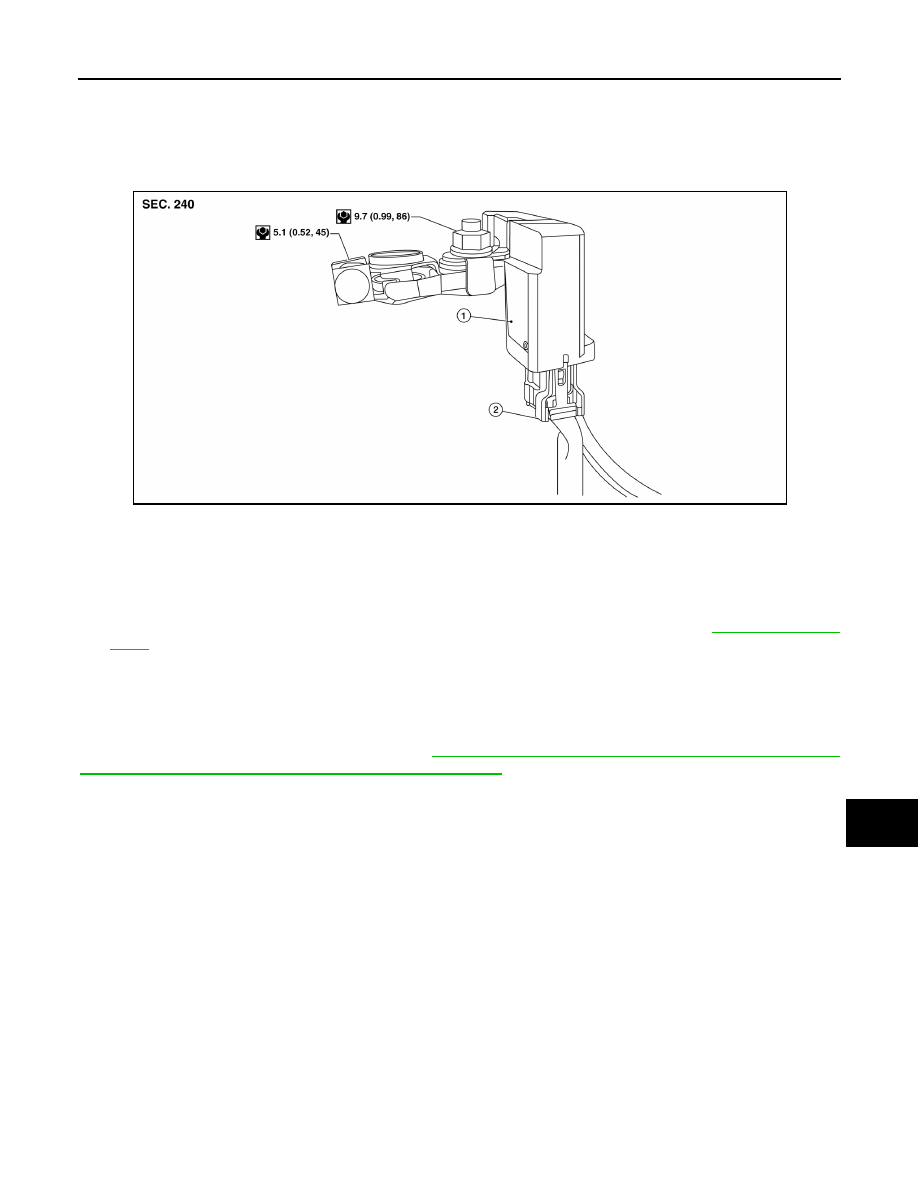

1. Battery current sensor

2. Current sensor harness connector

ALMIA0953ZZ

PG-54

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000009757206

Type

GR21

20 hour rate capacity

[V – Ah]

12 – 49

Cold cranking current (For reference value)

[A]

470
