ELECTRICAL UNITS LOCATION

PG-39

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

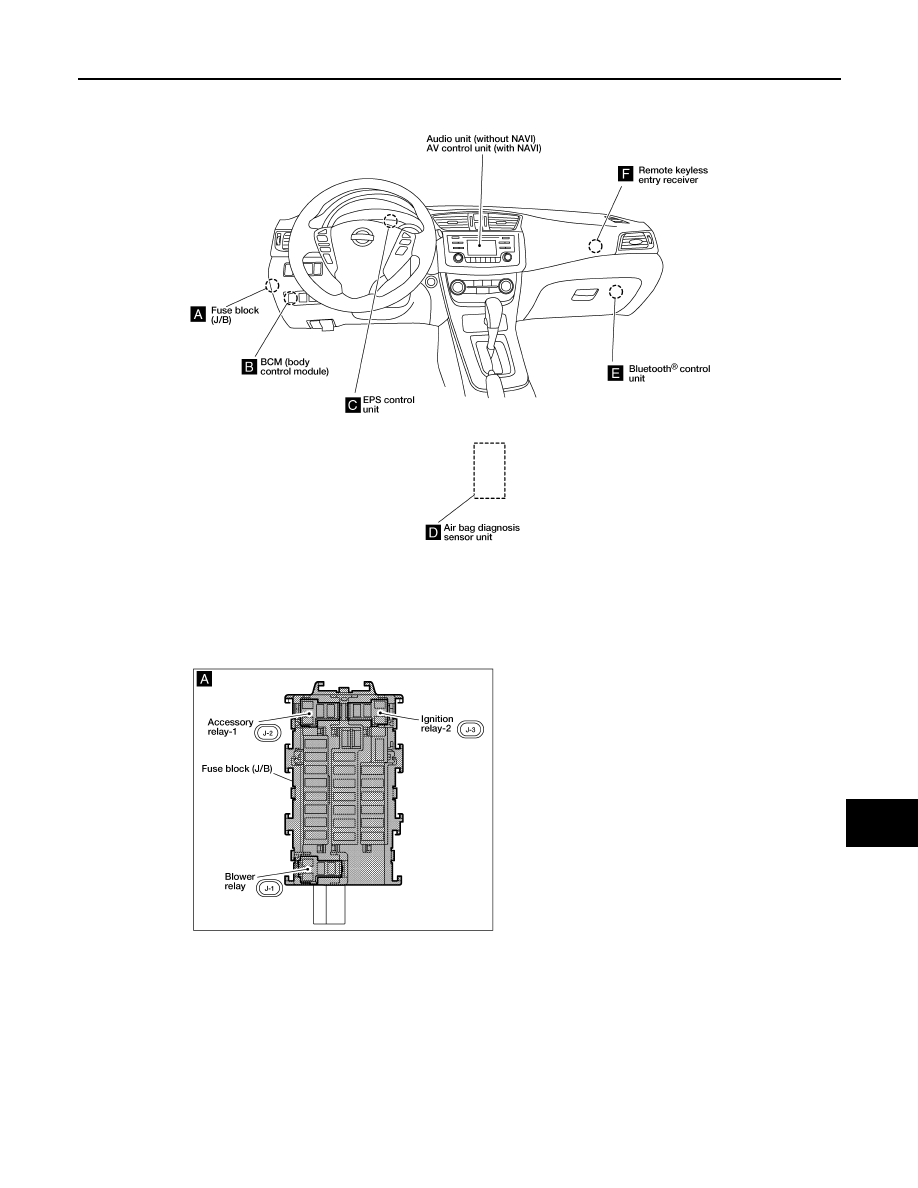

PASSENGER COMPARTMENT

ABMIA5648GB

PG-40

< DTC/CIRCUIT DIAGNOSIS >

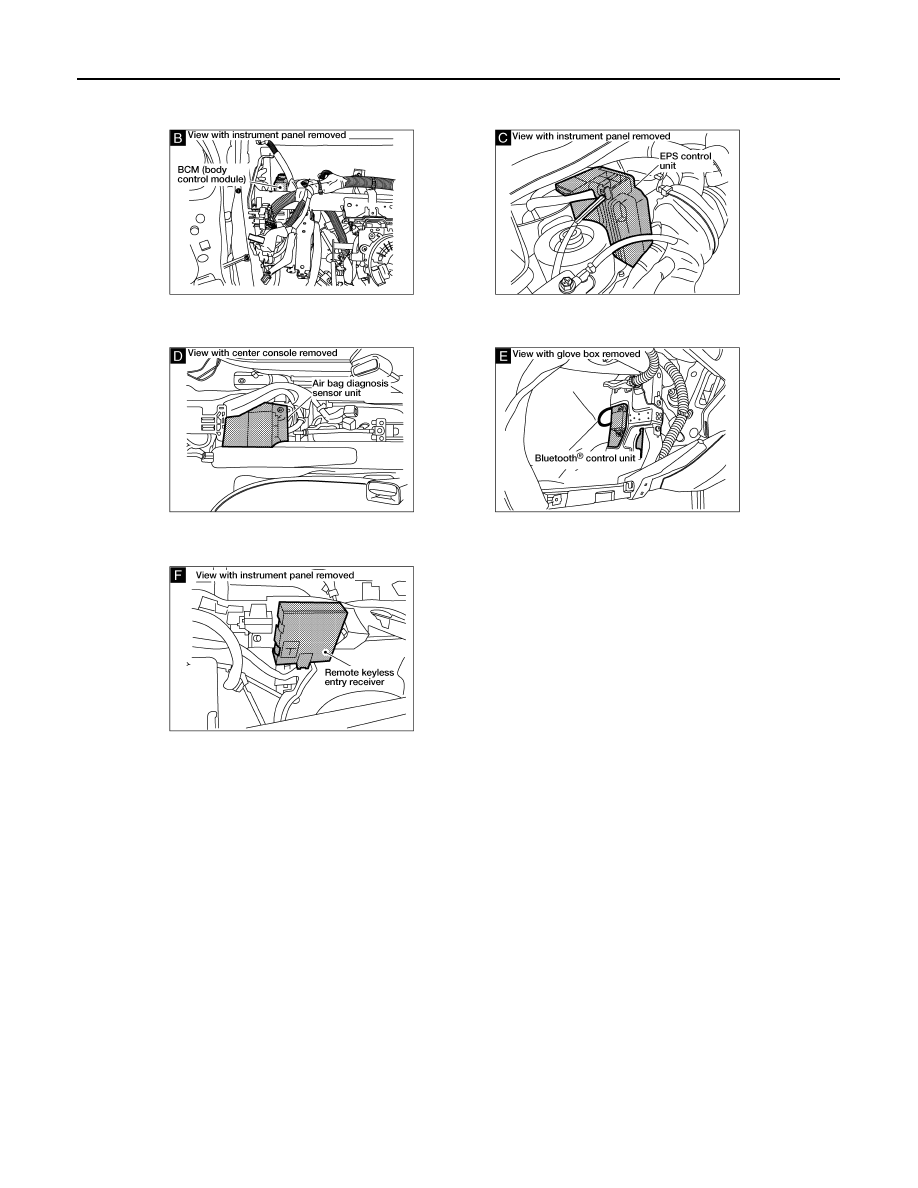

ELECTRICAL UNITS LOCATION

ABMIA5649GB

PG

ELECTRICAL UNITS LOCATION

PG-41

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

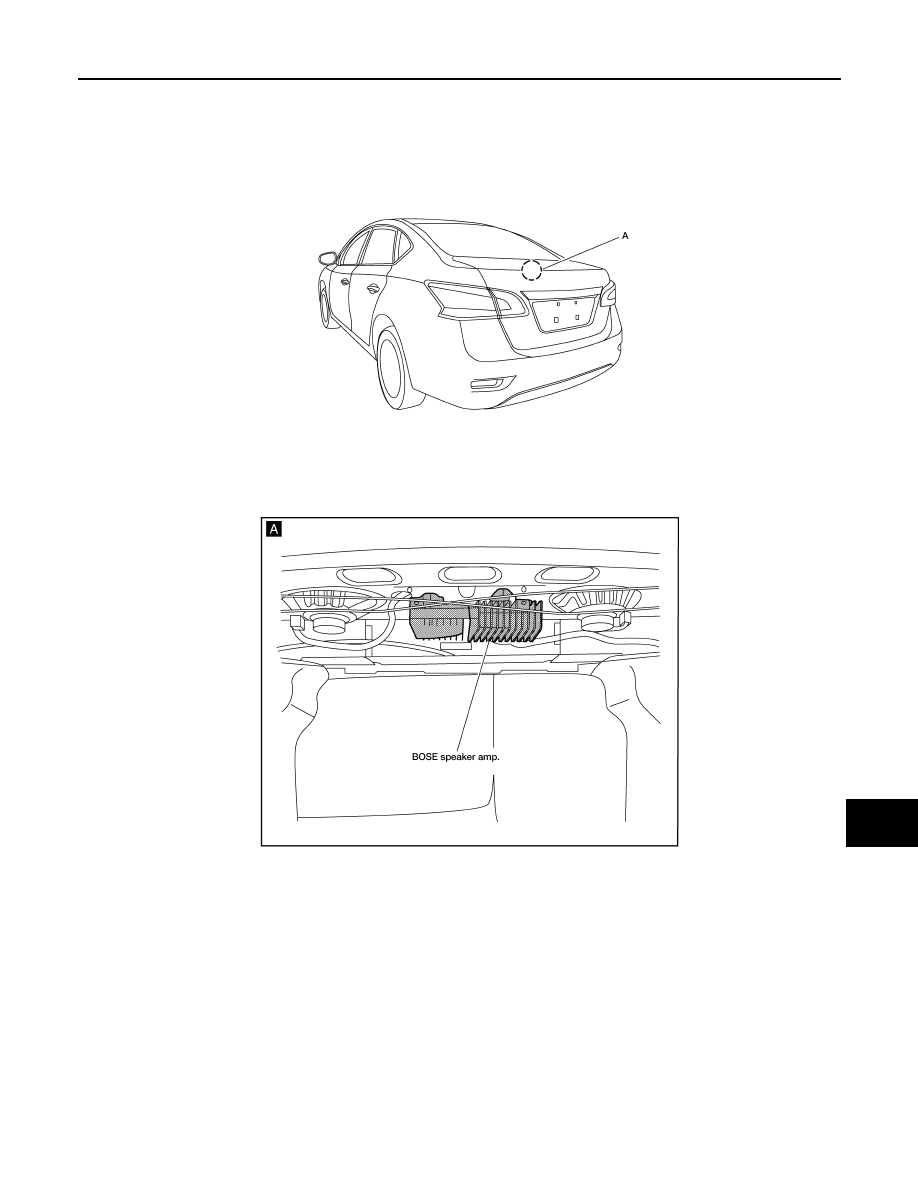

LUGGAGE COMPARTMENT

ABMIA5650GB

PG-42

< DTC/CIRCUIT DIAGNOSIS >

HARNESS CONNECTOR

HARNESS CONNECTOR

Description

INFOID:0000000009757194

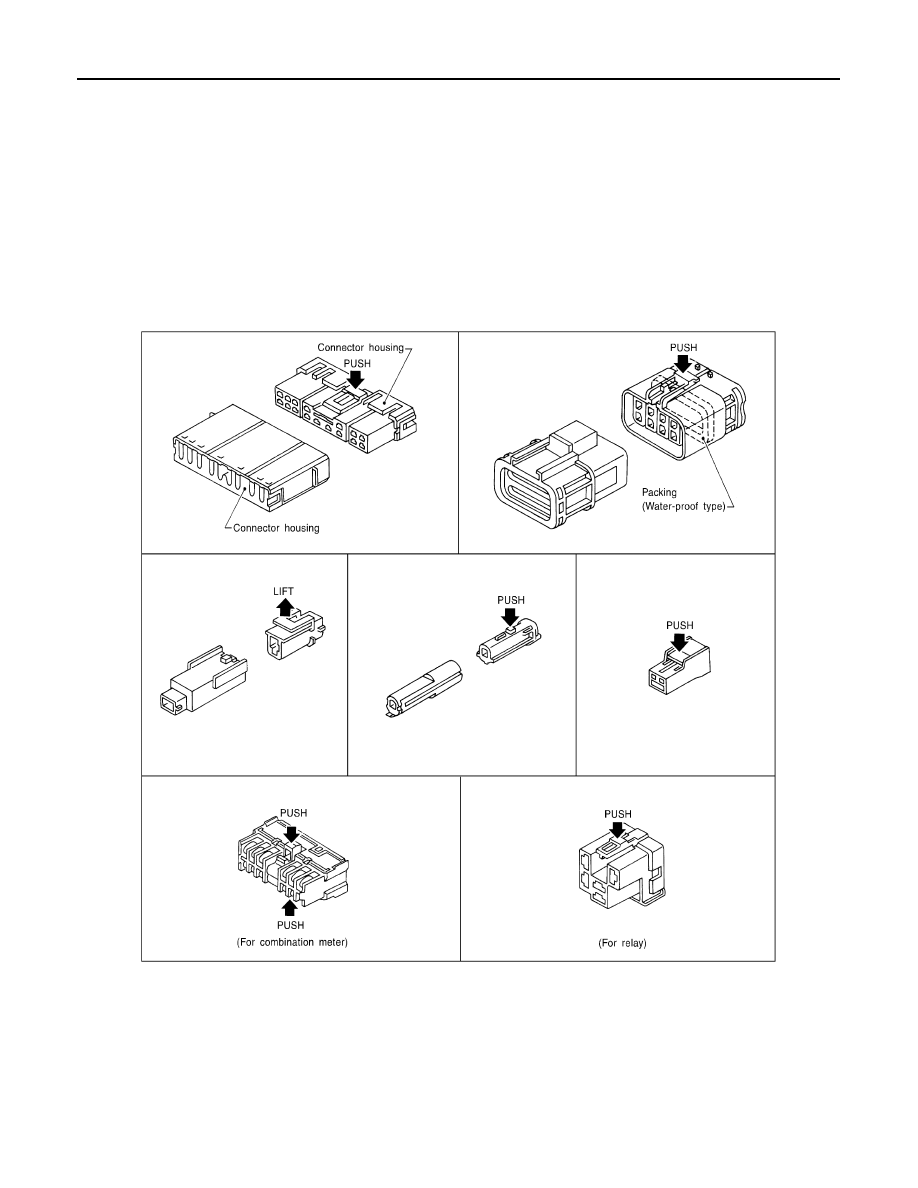

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.

• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure

below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.

[Example]

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

SEL769DA
