Nissan Sentra. Manual - part 649

MWI-42

< WIRING DIAGRAM >

METER SYSTEM

ABNIA5822GB

MWI

COMPASS

MWI-43

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPASS

Wiring Diagram

INFOID:0000000009758259

ABNWA2116GB

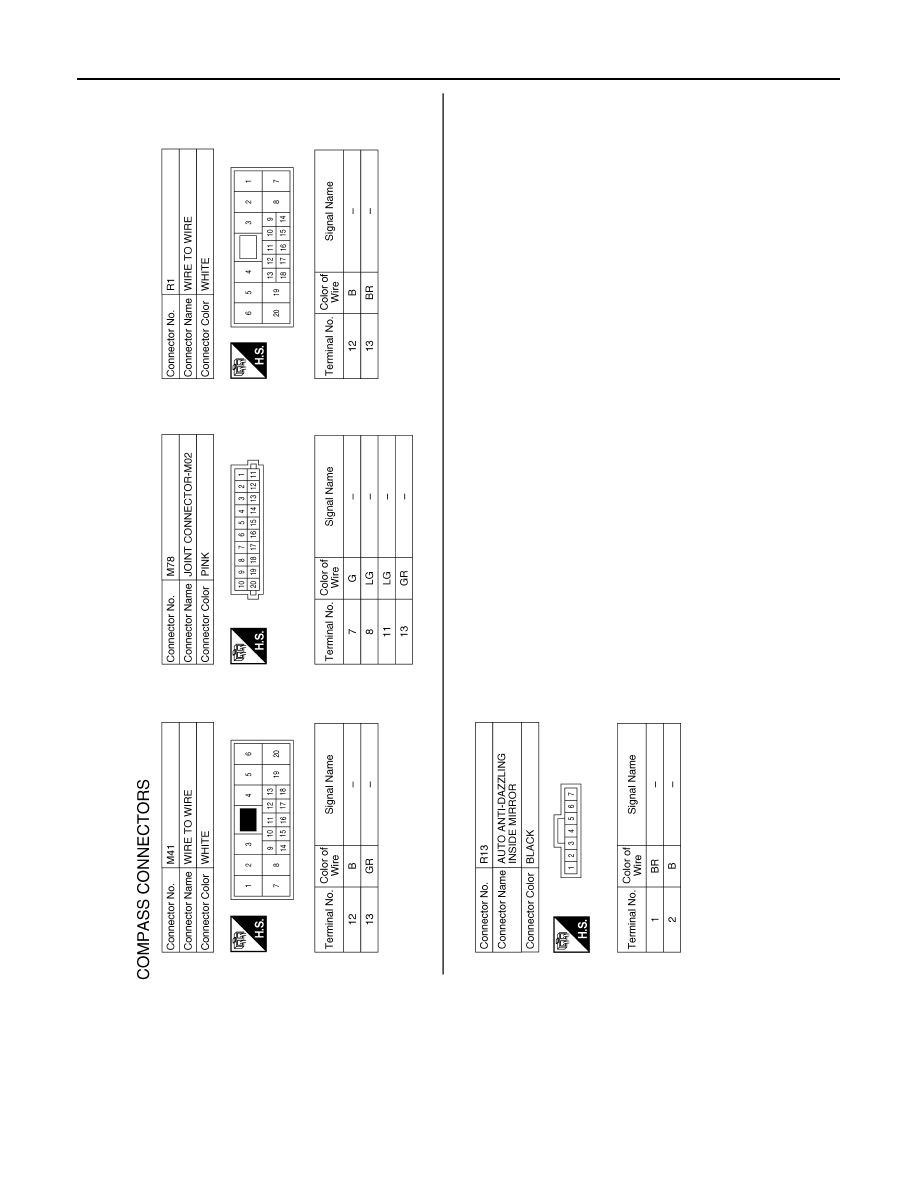

MWI-44

< WIRING DIAGRAM >

COMPASS

ABNIA5772GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW

MWI-45

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work flow

INFOID:0000000010295996

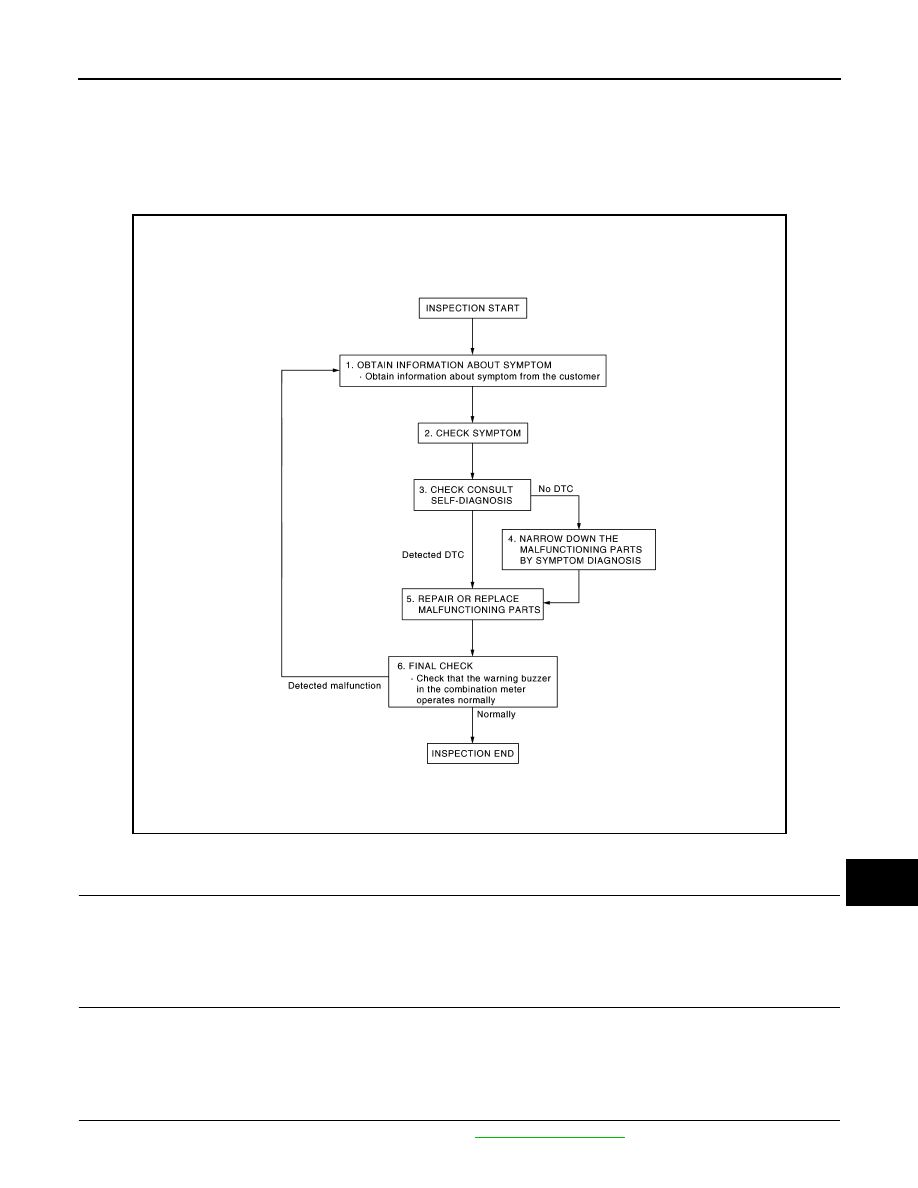

OVERALL SEQUENCE

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

Connect CONSULT and perform self-diagnosis. Refer to

MWI-26, "DTC Index"

.

AWNIA2375GB
