Nissan Sentra. Manual - part 607

FRONT DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

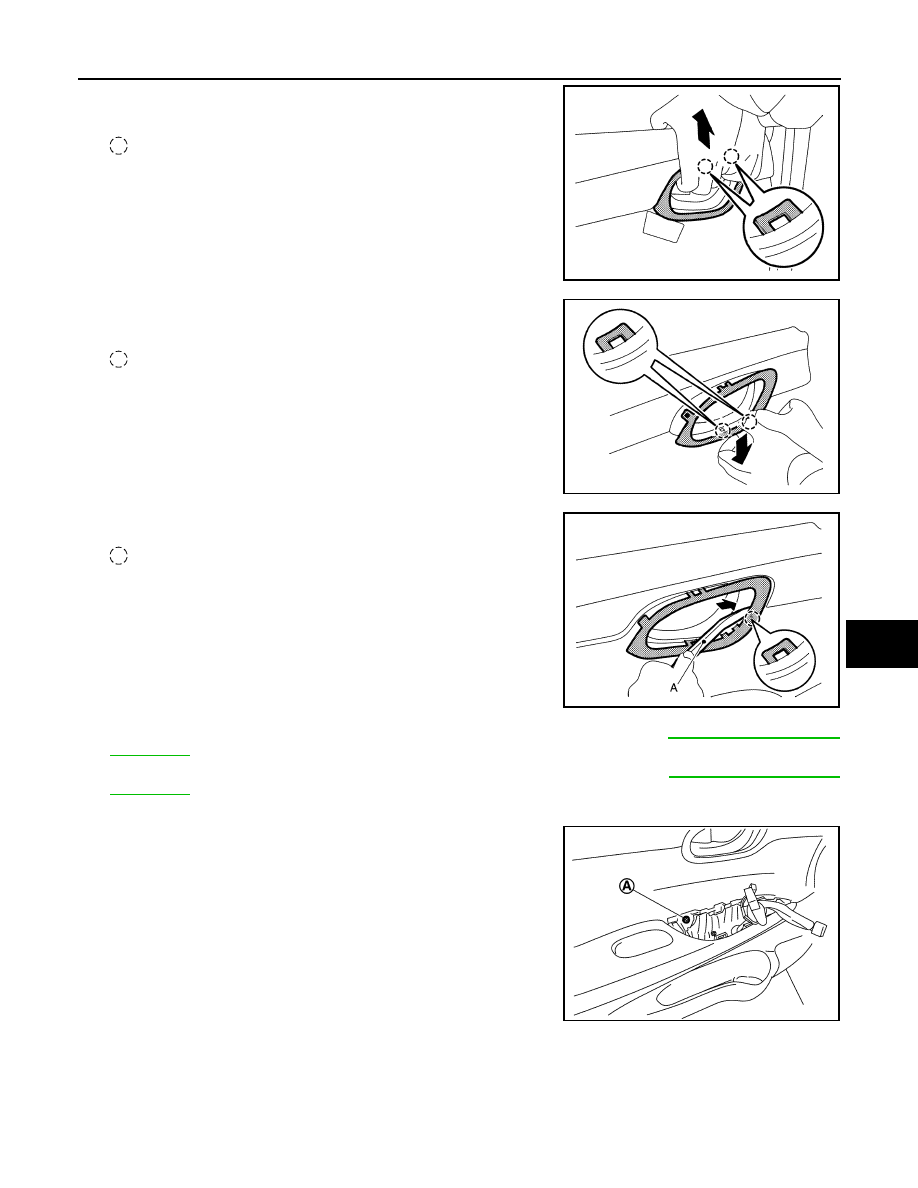

d. Pull upward on the inside door handle escutcheon as shown to

release the pawls on the upper portion of inside door handle

escutcheon.

: Pawl

e. Press down on the inside door handle escutcheon as shown to

release the pawls on the lower portion of inside door handle

escutcheon.

: Pawl

f.

Insert a suitable tool (A) as shown to release the remaining pawl

and remove.

: Pawl

3. Remove the main power window and door lock/unlock switch (LH). Refer to

PWC-70, "Removal and

Installation"

.

4. Remove the main power window and door lock/unlock switch (RH). Refer to

PWC-71, "Removal and

Installation"

.

5. Remove front door finisher.
a. Remove front door finisher screw (A).

AWJIA0968ZZ

AWJIA0969ZZ

AWJIA0970ZZ

JMJIA6473ZZ

INT-18

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

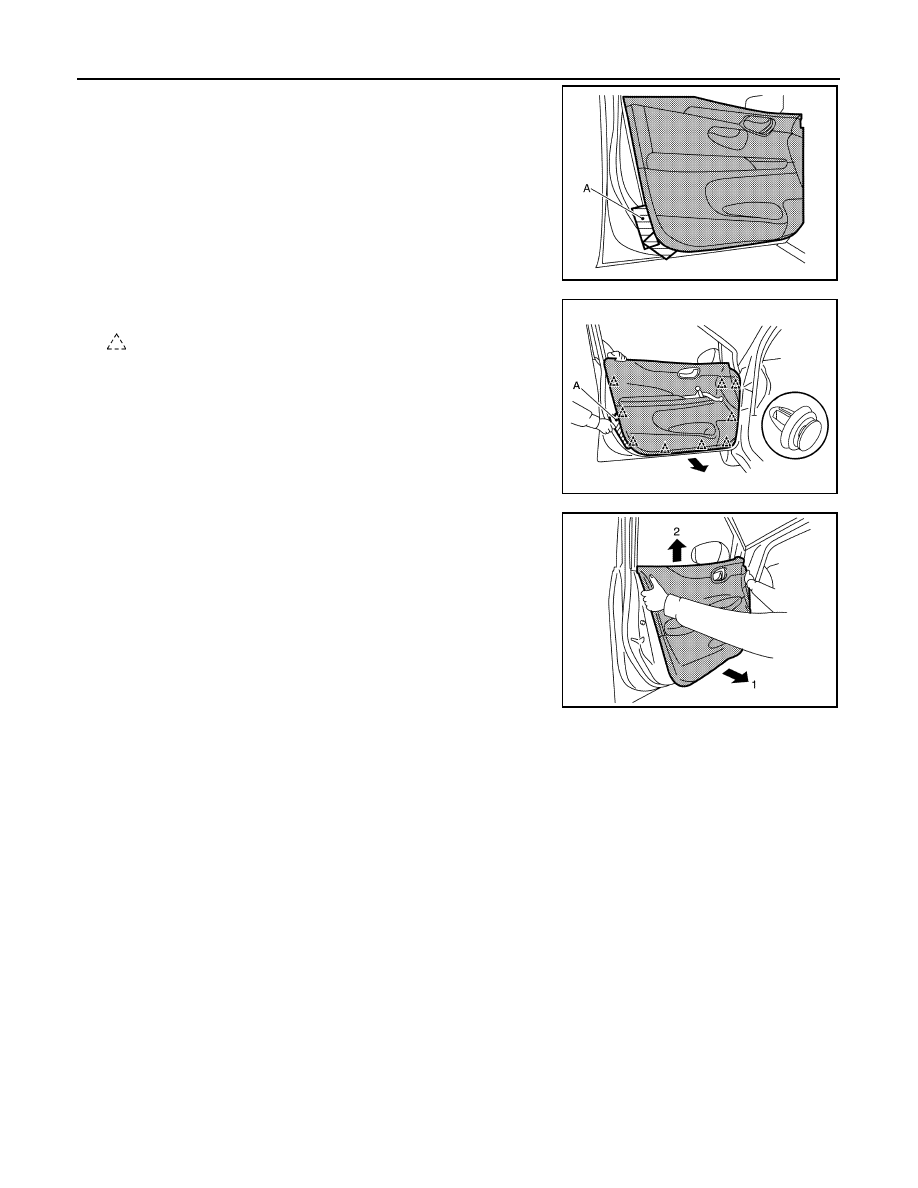

b. Apply protective tape (A) to protect the component from damage

as shown.

c.

Release front door finisher clips using a suitable tool (A) as

shown.

: Clip

d. Remove front door finisher as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that clips are accurately aligned with the holes on the door panel, then press in.

JMJIA7779ZZ

AWJIA0972ZZ

JMJIA6475ZZ

REAR DOOR FINISHER

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR DOOR FINISHER

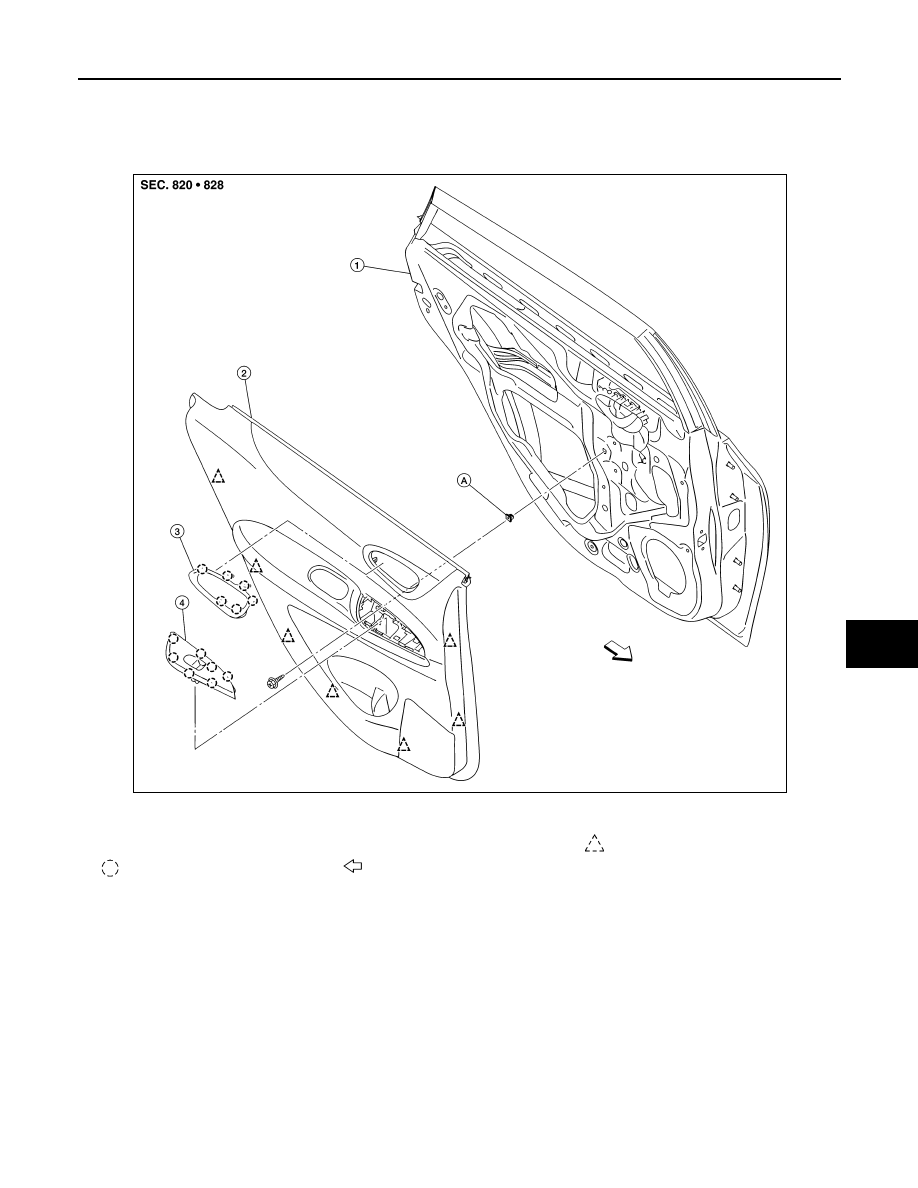

Exploded View

INFOID:0000000009756905

Removal and Installation

INFOID:0000000009756906

CAUTION:

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

• Do not damage the door panel.

REMOVAL

1. Remove inside door handle escutcheon.

1.

Rear door panel

2.

Rear door finisher

3.

Inside door handle escutcheon

4.

Rear power window switch finisher

A.

Grommet

Clip

Pawl

Front

AWJIA0973ZZ

INT-20

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

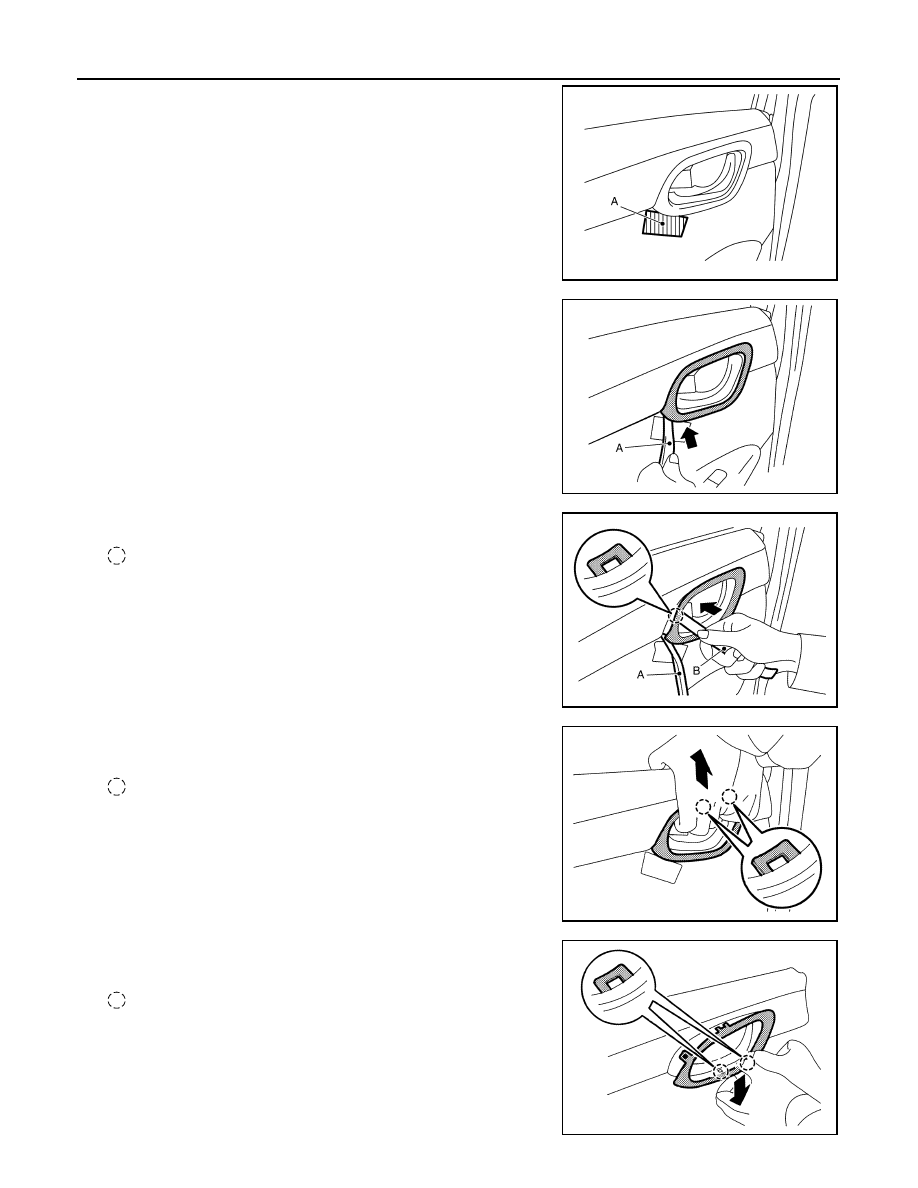

a. Apply protective tape (A) to protect the component from damage

as shown.

b. Insert a suitable tool (A) as shown between inside door handle

escutcheon and inside door handle.

c.

With suitable tool (A) in position, insert a second suitable tool (B)

as shown, then release pawl as shown.

: Pawl

d. Pull upward on the inside door handle escutcheon as shown to

release the pawls on the upper portion of inside door handle

escutcheon.

: Pawl

e. Press down on the inside door handle escutcheon as shown to

release the pawls on the lower portion of inside door handle

escutcheon.

: Pawl

JMJIA7809ZZ

JMJIA7810ZZ

AWJIA0976ZZ

AWJIA0968ZZ

AWJIA0969ZZ
