SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009757597

CAUTION:

Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagno-

sis if any DTC is detected.

Symptom

Possible cause

Inspection item

• Interior room lamp does not turn ON even

though the door is open.
(It turns ON when turning the interior room
lamp ON.)

• Interior room lamp does not turn OFF even

though the door is closed.

• Harness between BCM and each

door switch

• Harness between BCM and each

interior room lamp

• BCM

Door switch circuit
Refer to

DLK-102

 (with Intelligent

Key),

DLK-253

 (without Intelligent

Key).

Interior room lamp control circuit
Refer to

INL-45

.

Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.)

—

Check the interior room lamp setting.
Refer to

BCS-17

 (with Intelligent

Key),

BCS-88

 (without Intelligent

Key).

Push-button ignition switch illumination does not
illuminate.

• Harness between BCM and push-

button ignition switch

• Harness between push-button igni-

tion switch and ground

• Push-button ignition switch
• BCM

Push-button ignition switch illumina-
tion circuit
Refer to

INL-49

.

Interior room lamp battery saver does not acti-
vate.

—

Check the interior room lamp battery
saver setting.
Refer to

BCS-25

 (with Intelligent

Key),

BCS-94

 (without Intelligent

Key).

Trunk room lamp does not turn ON even though
the trunk lid is open.

• Harness between BCM and trunk

room lamp

• Harness between BCM and trunk

lid opener assembly (trunk room
lamp switch).

• BCM

Trunk lid opener assembly (trunk
room lamp switch) circuit
Refer to

DLK-111

 (with Intelligent

Key),

DLK-275

 (without Intelligent

Key).

Trunk room lamp circuit
Refer to

INL-47

.

INL-52

< REMOVAL AND INSTALLATION >

MAP LAMP

REMOVAL AND INSTALLATION

MAP LAMP

Removal and Installation

INFOID:0000000009757598

REMOVAL

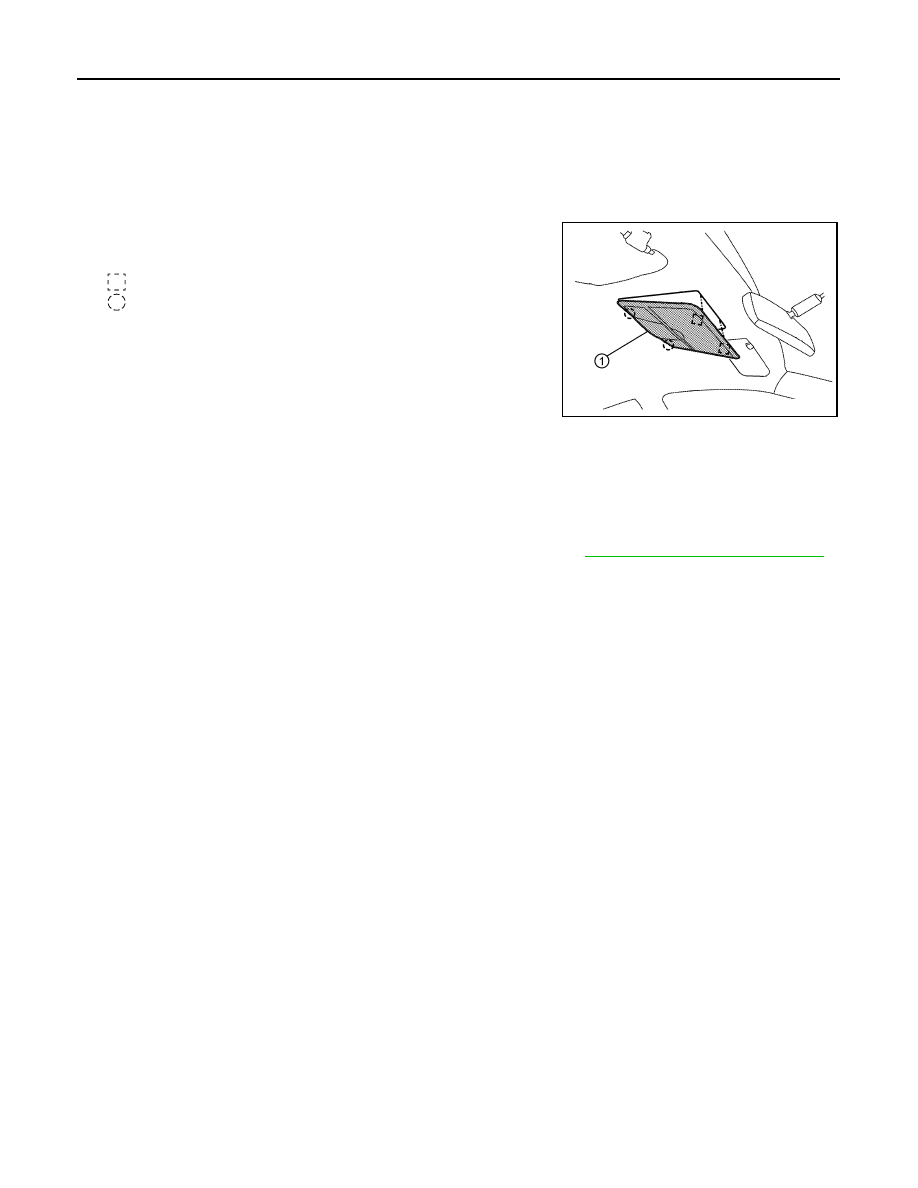

1. Lower front edge of map lamp (1) down from the headlining by

releasing the metal clips, then slide forward to clear pawls at

rear.

: Metal clip
: Pawl

2. Disconnect the harness connectors from the map lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000009757599

The map lamp LED bulbs are replaced as part of the map lamp. Refer to

INL-52, "Removal and Installation"

.

ALLIA1150ZZ

VANITY MIRROR LAMP

INL-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

VANITY MIRROR LAMP

Removal and Installation

INFOID:0000000009757600

CAUTION:

Do not attempt to separate the vanity mirror lamp from the sun visor or damage to the components

may occur.

NOTE:

The vanity mirror lamp is replaced as part of the sun visor. Refer to

INT-40, "Removal and Installation"

.

Bulb or Lens Replacement

INFOID:0000000009757601

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not attempt to separate the vanity mirror lamp from the sun visor or damage to the components

may occur.

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

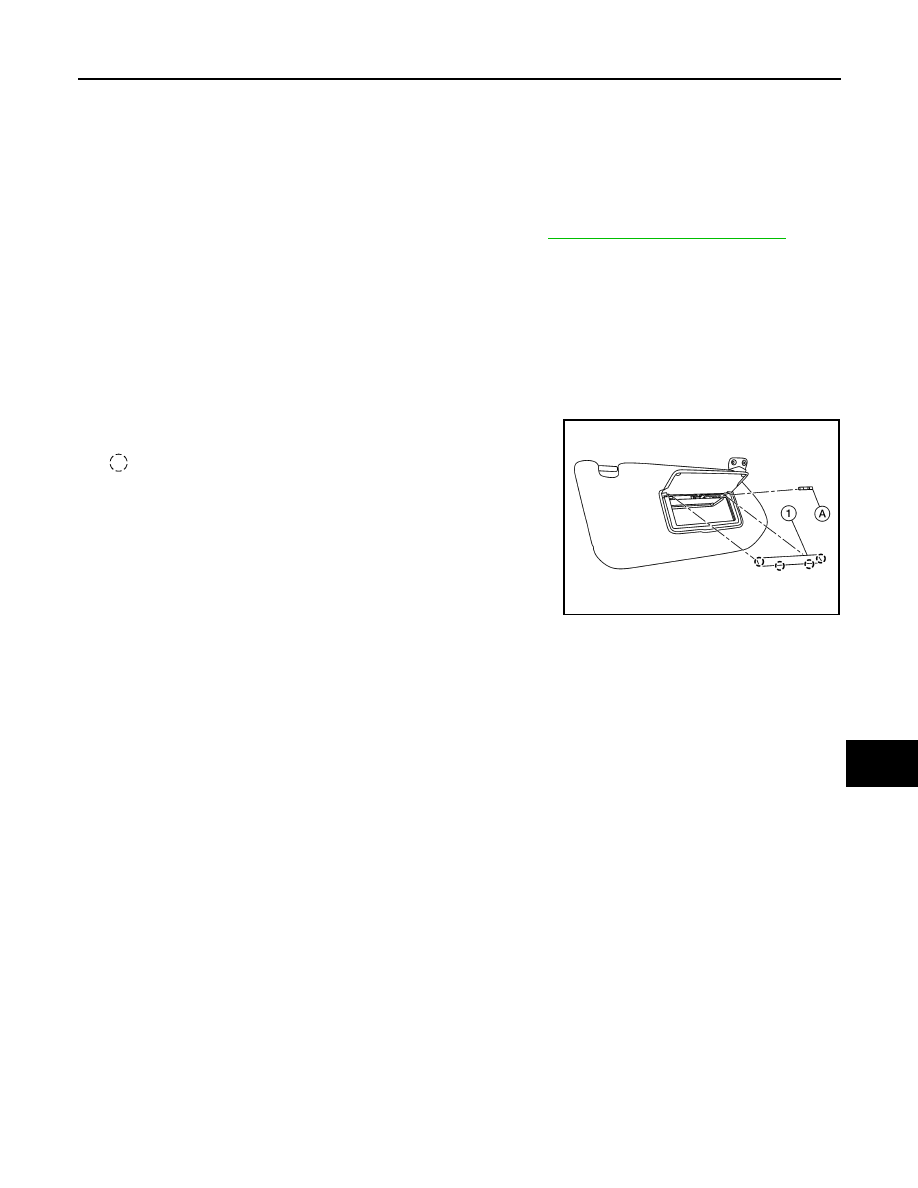

1. Release the pawls on the vanity mirror lamp lens (1) using a

suitable tool.

: Pawl

2. Remove the bulb (A) using a suitable tool.

3. Install bulb to vanity mirror lamp.
4. Install the vanity mirror lamp lens.

ALLIA1151ZZ

INL-54

< REMOVAL AND INSTALLATION >

GLOVE BOX LAMP

GLOVE BOX LAMP

Removal and Installation

INFOID:0000000010305127

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.

CAUTION:

Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

REMOVAL

1. Remove the glove box assembly. Refer to

IP-22, "Removal and Installation"

.

2. Rotate the glove box lamp socket assembly counterclockwise and remove.
3. Remove the glove box lamp housing.

INSTALLATION

1. Install the glove box lamp housing.
2. Insert bulb socket into glove box lamp housing and rotate clockwise to lock in position.
3. Install glove box assembly. Refer to

IP-22, "Removal and Installation"

.

Bulb Replacement

INFOID:0000000010305128

The glove box lamp bulb is serviced as part of the glove box lamp socket. Refer to

INL-54, "Removal and

Installation"

.
