HAC-144

< ECU DIAGNOSIS INFORMATION >

[MANUAL AIR CONDITIONER]

ECM, IPDM E/R, BCM

ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000009757742

ECU

Reference

ECM

EC-77, "Reference Value"

EC-90, "Fail Safe"

EC-93, "DTC Inspection Priority Chart"

EC-94, "DTC Index"

IPDM E/R (with Intelligent Key system)

PCS-13, "Reference Value"

PCS-19, "Fail-safe"

PCS-20, "DTC Index"

IPDM E/R (without Intelligent Key system)

PCS-41, "Reference Value"

PCS-47, "Fail-Safe"

PCS-48, "DTC Index"

BCM (with Intelligent Key system)

BCS-29, "Reference Value"

BCS-46, "Fail-safe"

BCS-48, "DTC Inspection Priority Chart"

BCS-49, "DTC Index"

BCM (without Intelligent Key system)

BCS-97, "Reference Value"

BCS-108, "Fail-safe"

BCS-108, "DTC Inspection Priority Chart"

BCS-109, "DTC Index"

MANUAL AIR CONDITIONING SYSTEM

HAC-145

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

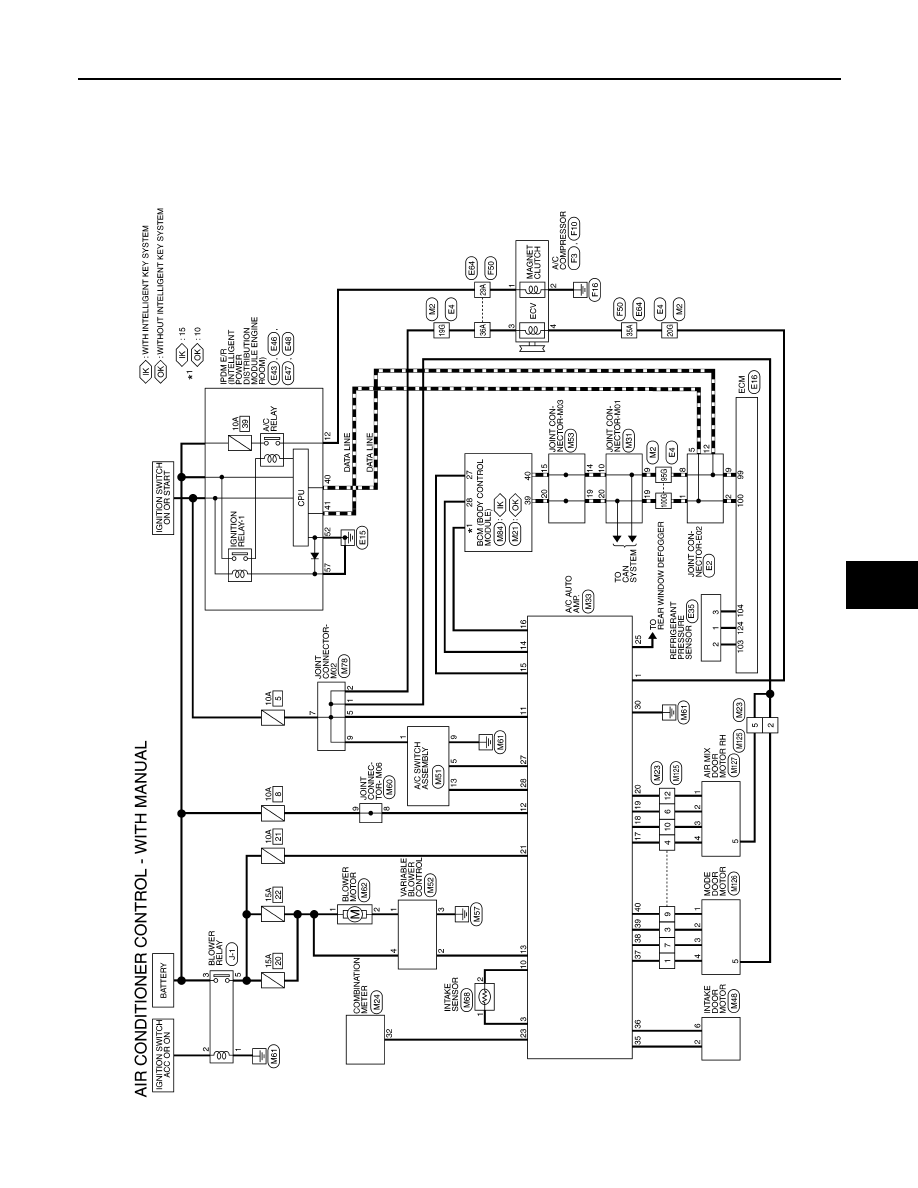

WIRING DIAGRAM

MANUAL AIR CONDITIONING SYSTEM

Wiring Diagram

INFOID:0000000009757743

ABIWA0377GB

HAC-146

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONER]

MANUAL AIR CONDITIONING SYSTEM

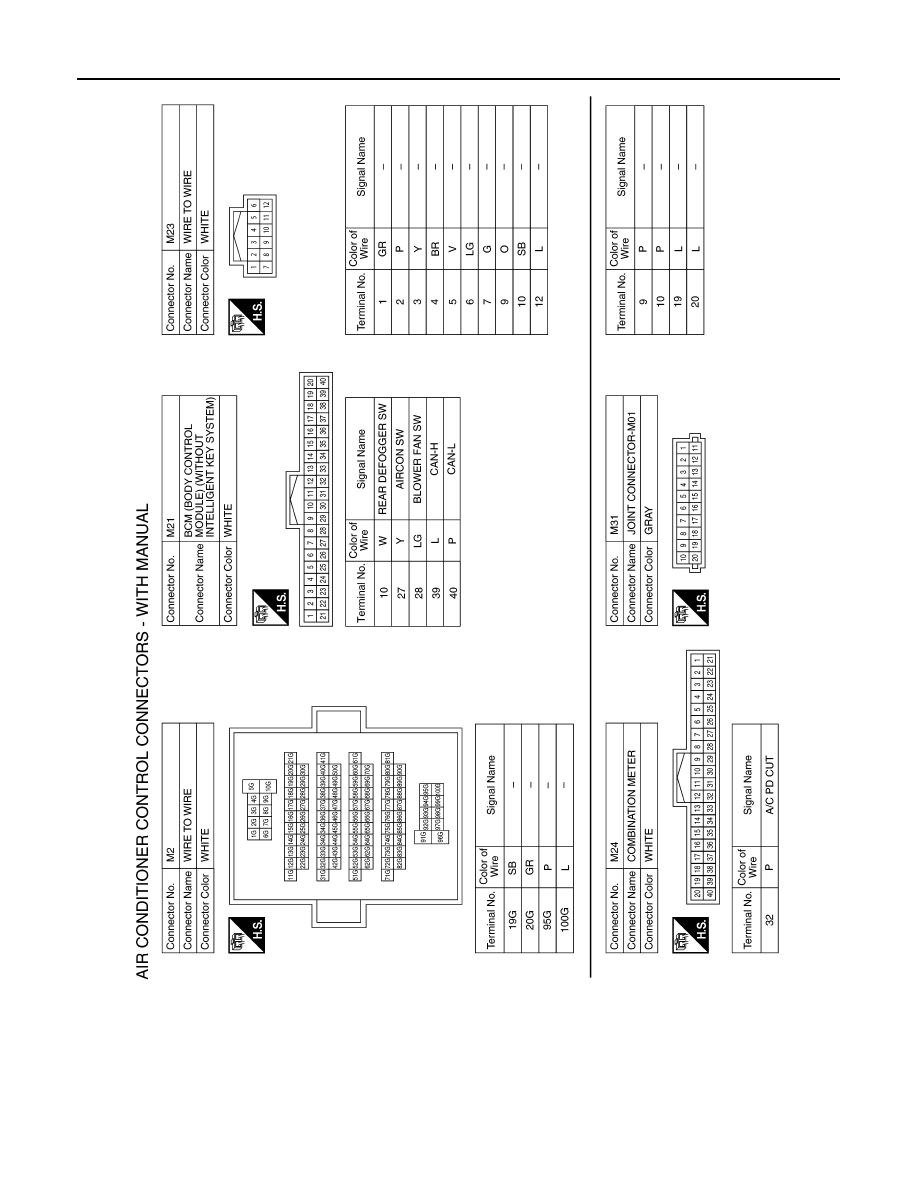

ABIIA1306GB

MANUAL AIR CONDITIONING SYSTEM

HAC-147

< WIRING DIAGRAM >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

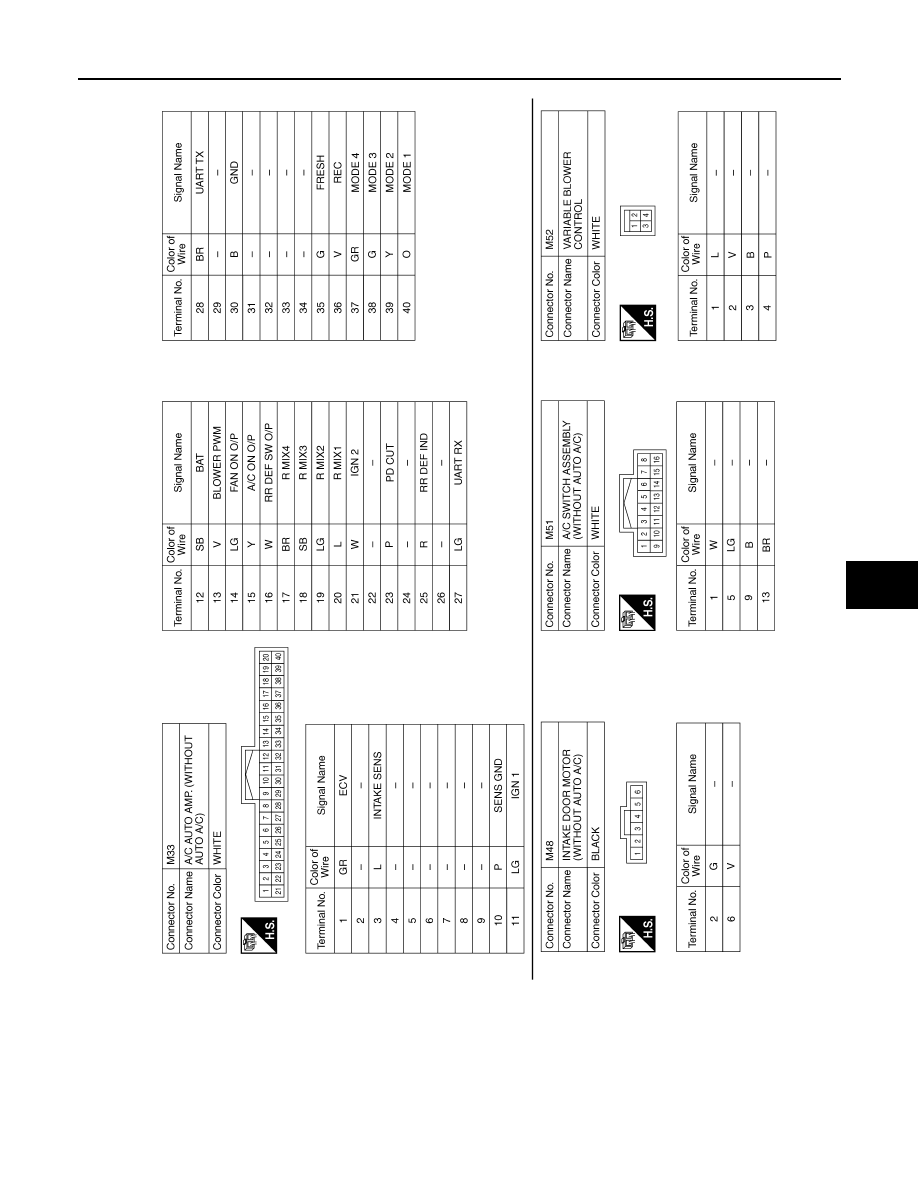

ABIIA1307GB
