HAC-40

< ECU DIAGNOSIS INFORMATION >

[AUTOMATIC AIR CONDITIONER]

ECM, IPDM E/R, BCM

ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000009757638

ECU

Reference

ECM

EC-77, "Reference Value"

EC-90, "Fail Safe"

EC-93, "DTC Inspection Priority Chart"

EC-94, "DTC Index"

IPDM E/R

PCS-13, "Reference Value"

PCS-19, "Fail-safe"

PCS-20, "DTC Index"

BCM

BCS-29, "Reference Value"

BCS-46, "Fail-safe"

BCS-48, "DTC Inspection Priority Chart"

BCS-49, "DTC Index"

AUTOMATIC AIR CONDITIONING SYSTEM

HAC-41

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

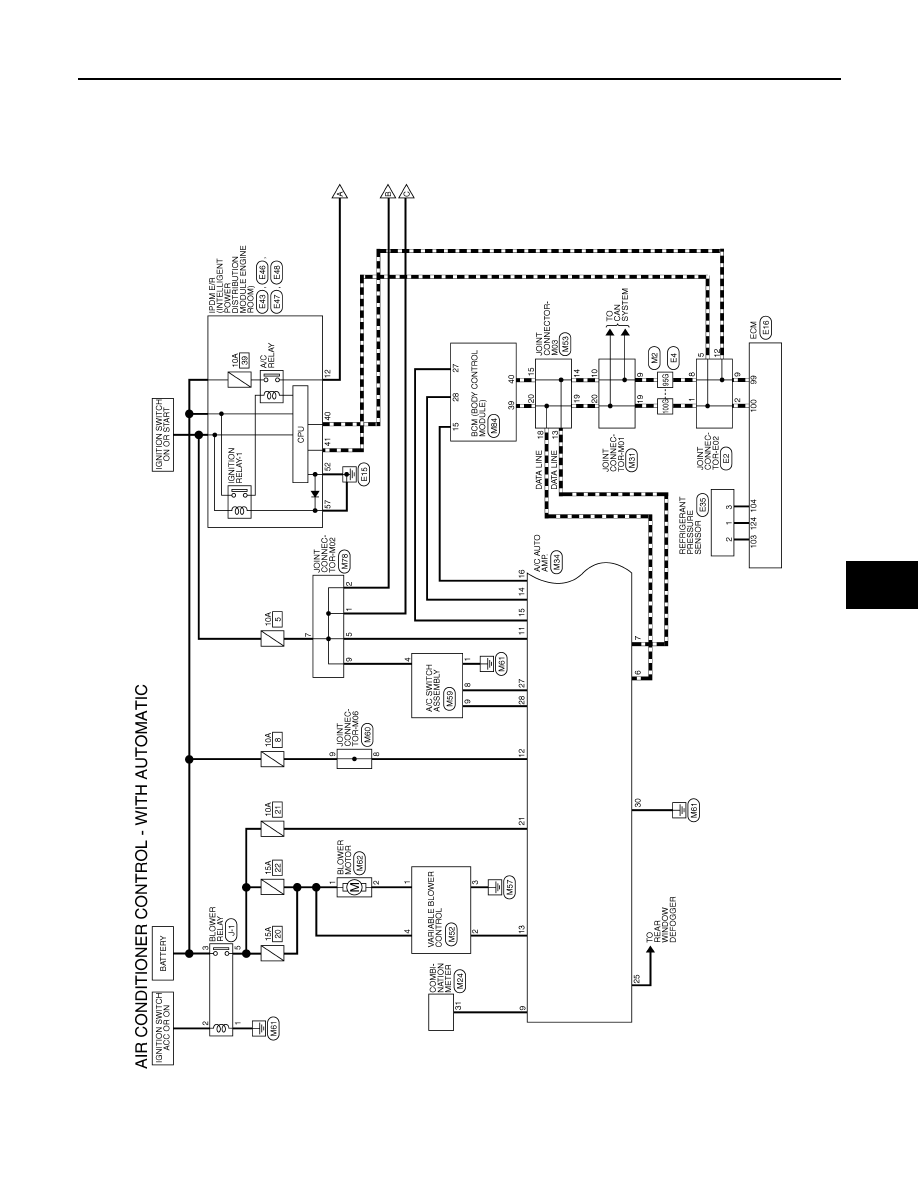

WIRING DIAGRAM

AUTOMATIC AIR CONDITIONING SYSTEM

Wiring Diagram

INFOID:0000000009757639

ABIWA0375GB

HAC-42

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

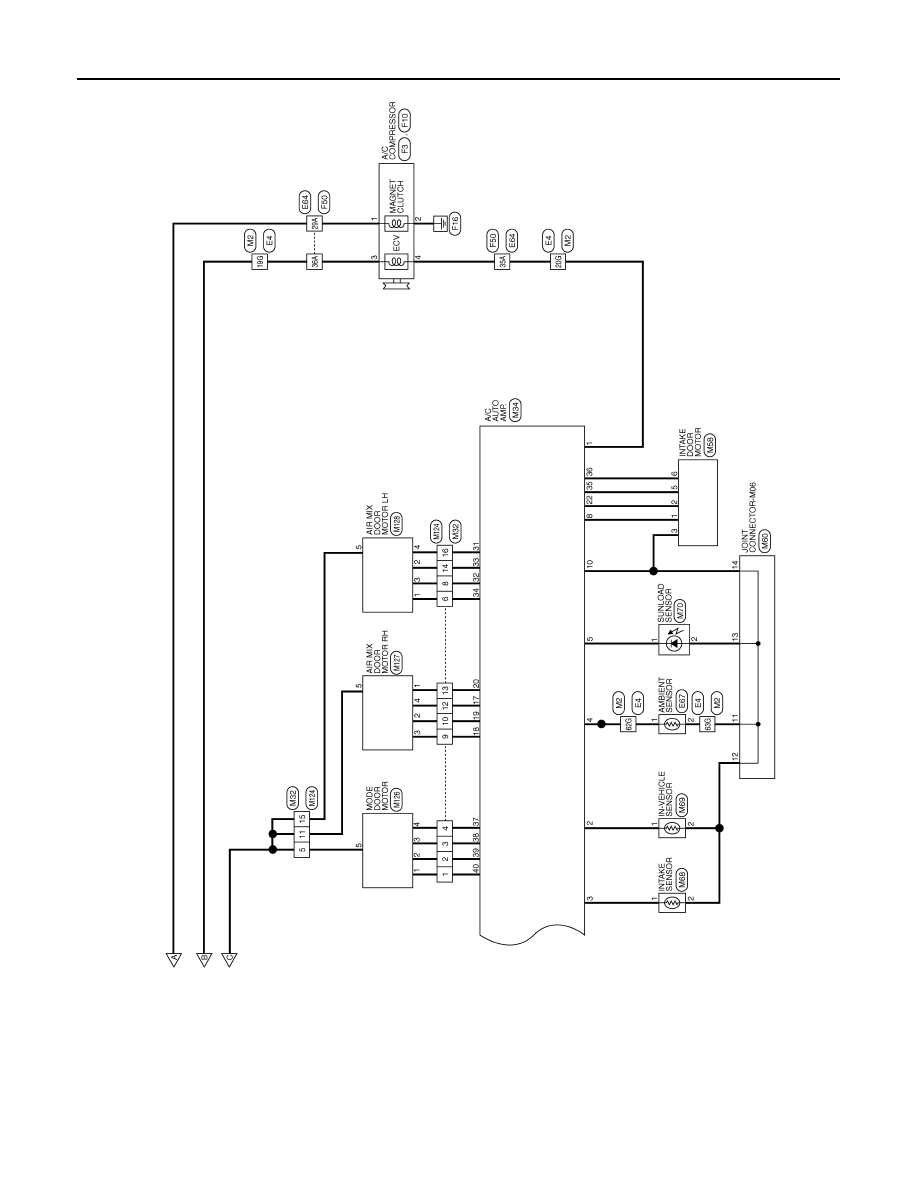

AUTOMATIC AIR CONDITIONING SYSTEM

ABIWA0376GB

AUTOMATIC AIR CONDITIONING SYSTEM

HAC-43

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

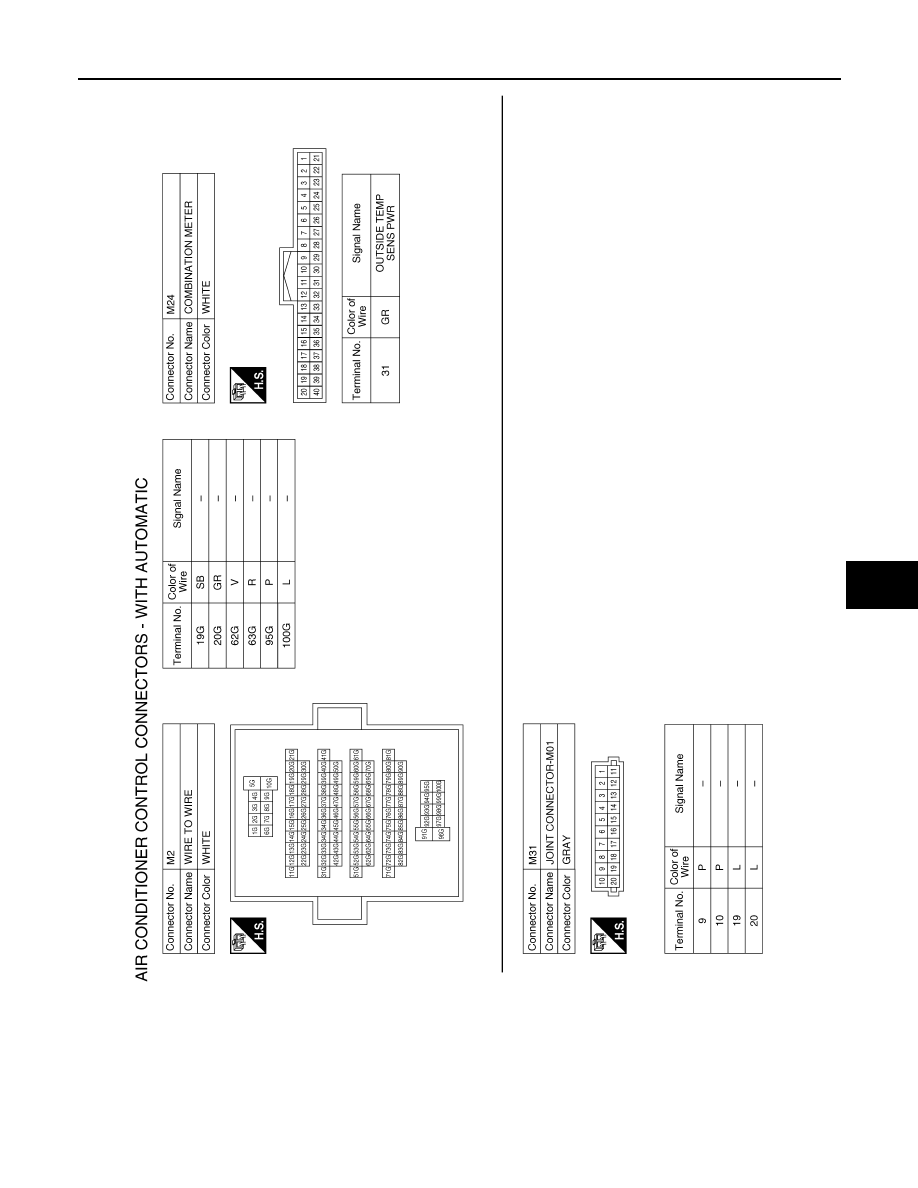

ABIIA1298GB
