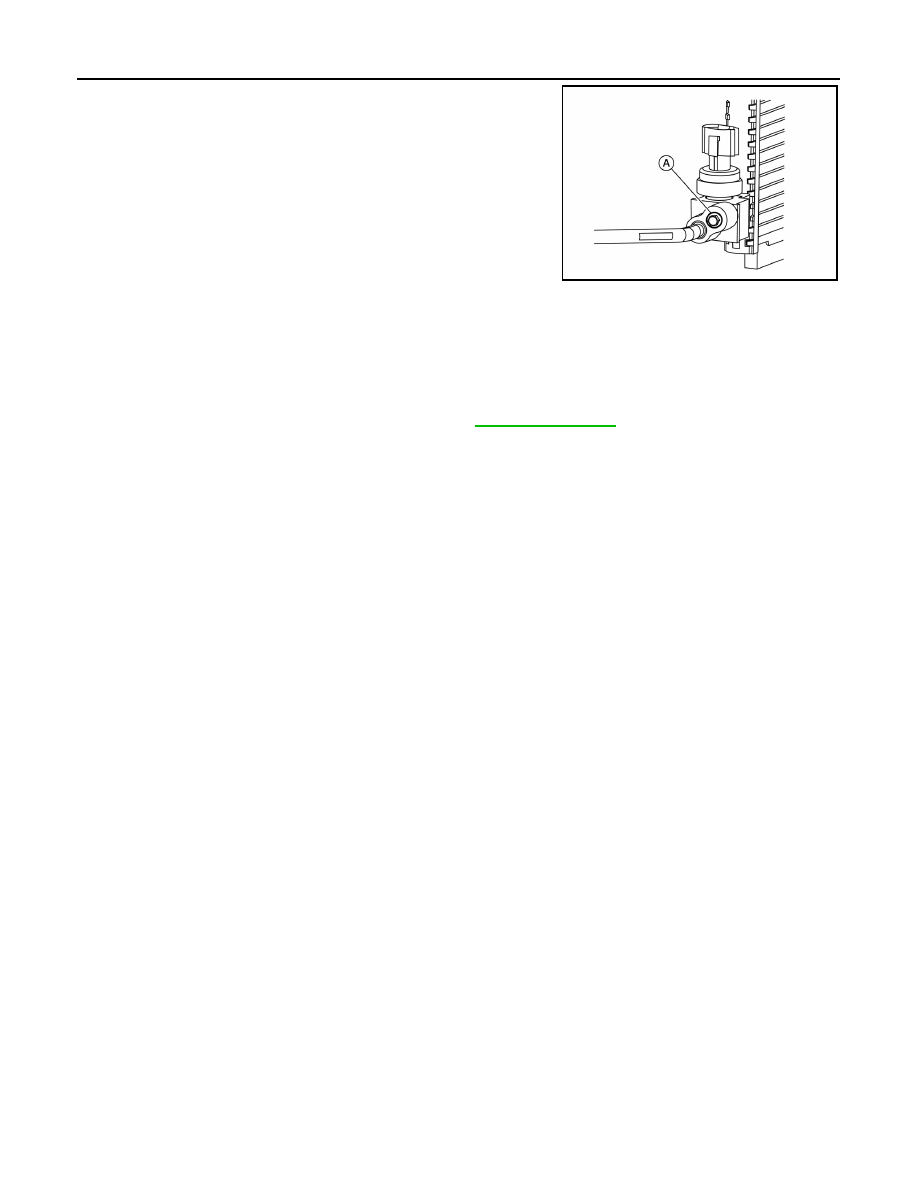

HA-38

< REMOVAL AND INSTALLATION >

COOLER PIPE AND HOSE

4. Remove the bolt (A) that retains the high-pressure pipe to the

condenser, then disconnect the high-pressure pipe from the

condenser and liquid tank assembly.

CAUTION:

Cap or wrap the joint of the pipe with a suitable material

such as vinyl tap to avoid the entry of air.

5. Remove the high-pressure pipe.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Apply A/C oil to new O-rings.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

ALIIA0655ZZ

CONDENSER

HA-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

CONDENSER

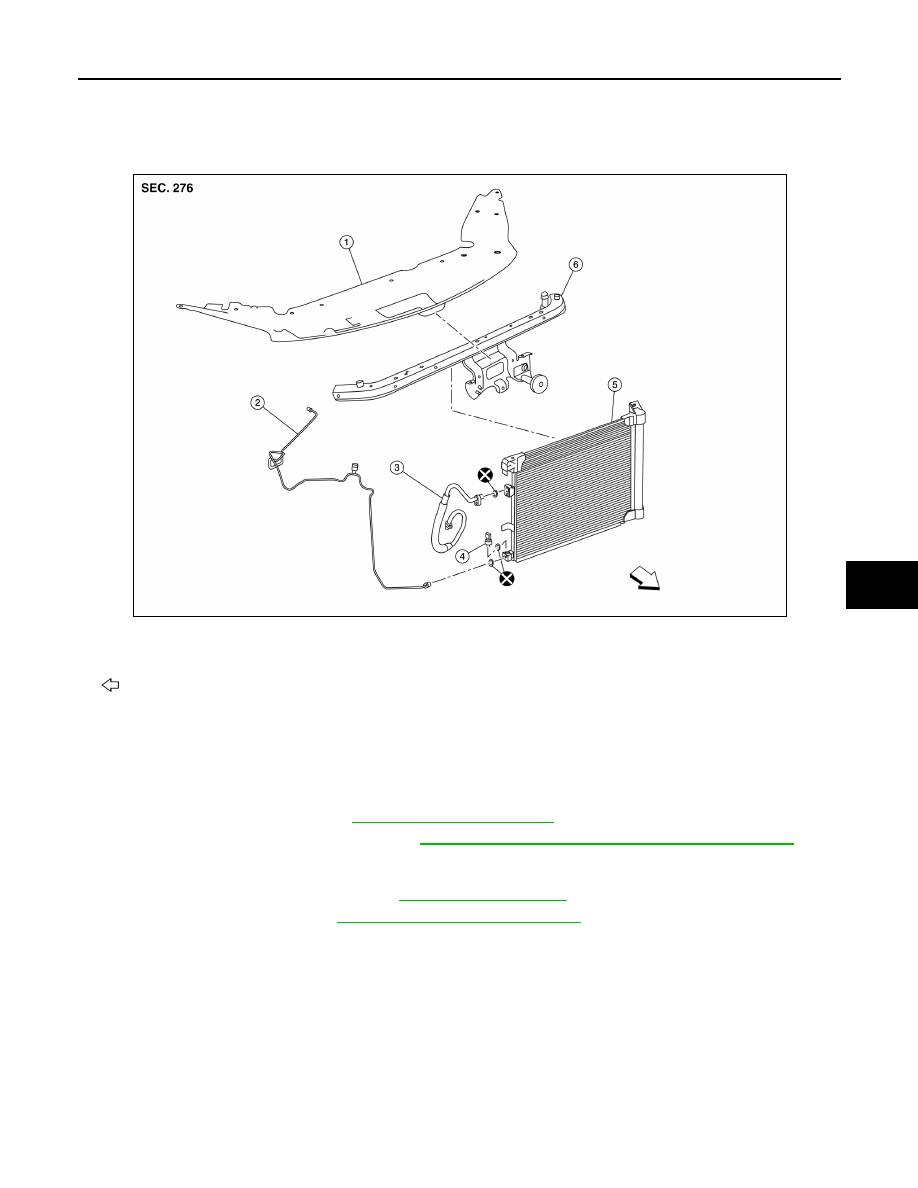

Exploded View

INFOID:0000000009756314

CONDENSER
CONDENSER : Removal and Installation

INFOID:0000000009756315

REMOVAL

1. Discharge the refrigerant. Refer to

HA-23, "Recycle Refrigerant"

.

2. Reposition the hood lock assembly. Refer to

DLK-154, "HOOD LOCK CONTROL : Exploded View"

.

NOTE:

Disconnection of the hood release cable is not necessary.

3. Remove the core support upper. Refer to

HA-39, "Exploded View"

.

4. Remove the front grille. Refer to

EXT-23, "Removal and Installation"

.

5. Disconnect the harness connector from the refrigerant pressure sensor.

1.

Core support upper cover

2.

High-pressure pipe

3.

High-pressure flexible hose

4.

Refrigerant pressure sensor

5.

Condenser and liquid tank assembly 6.

Core support upper

Front

ALIIA0653ZZ

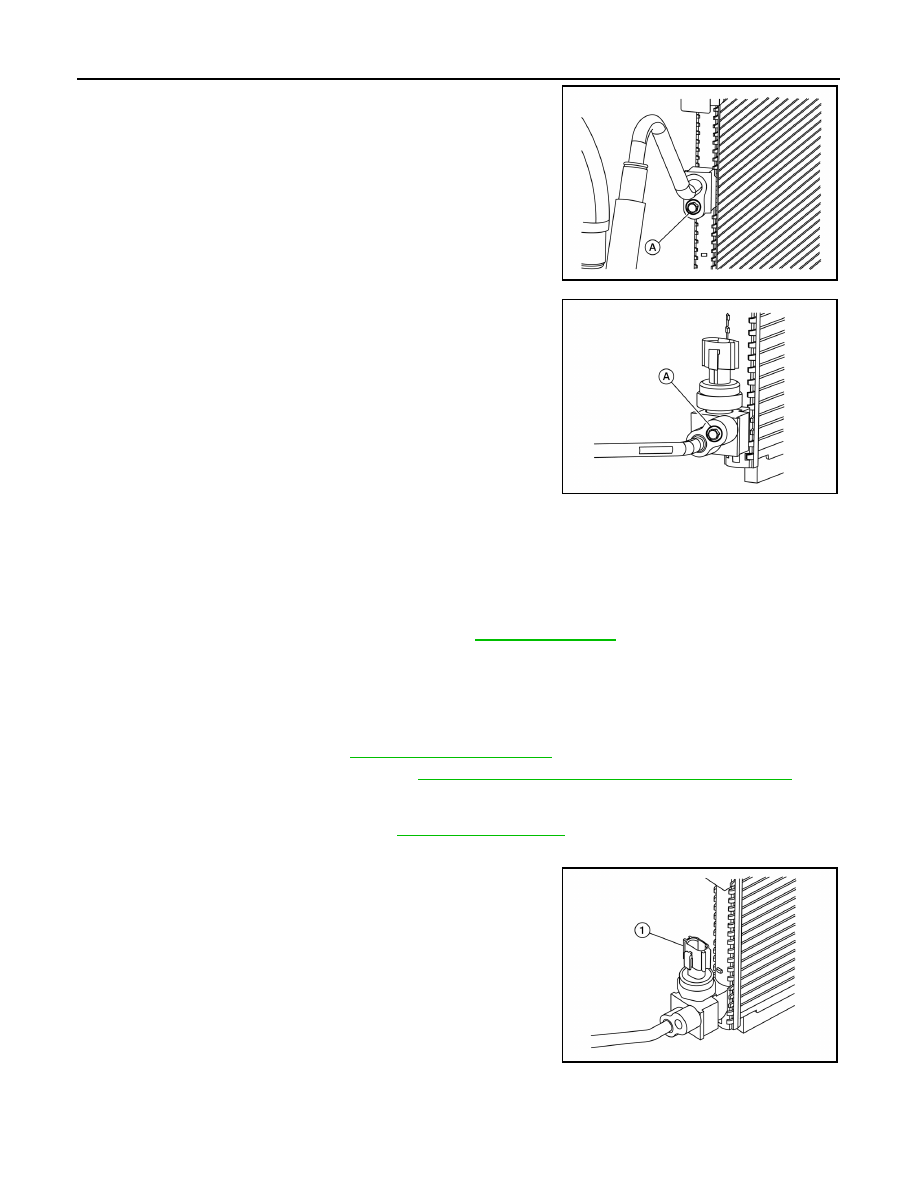

HA-40

< REMOVAL AND INSTALLATION >

CONDENSER

6. Remove the bolt (A) that retains the high-pressure flexible hose

to the condenser, then disconnect the high-pressure flexible

hose from the condenser and liquid tank assembly.

CAUTION:

Cap or wrap the joint of the hose with suitable material such

as vinyl tape to avoid the entry of air.

7. Remove the bolt (A) that retains the high-pressure pipe to the

condenser, then disconnect the high-pressure pipe from the

condenser and liquid tank assembly.

8. Remove the condenser and liquid tank assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Apply A/C oil to the O-rings of the condenser for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.

REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR : Removal and Installation

INFOID:0000000009756316

REMOVAL

1. Discharge the refrigerant. Refer to

HA-23, "Recycle Refrigerant"

.

2. Reposition the hood lock assembly. Refer to

DLK-154, "HOOD LOCK CONTROL : Exploded View"

.

NOTE:

Disconnection of the hood release cable is not necessary.

3. Remove the core support upper. Refer to

HA-39, "Exploded View"

.

4. Disconnect the harness connector from the refrigerant pressure sensor.
5. Remove the refrigerant pressure sensor (1) from the liquid tank

on the condenser.

CAUTION:

Do not damage the condenser fins.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

ALIIA0652ZZ

ALIIA0655ZZ

ALIIA0656ZZ

CONDENSER

HA-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

• Do not reuse the O-ring.

• Apply A/C compressor oil to the new O-ring for installation.

• After charging refrigerant, check for leaks. Refer to

HA-21, "Leak Test"

.
