FRONT REGULATOR

- Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

- Removal and installation of the regulator assembly.

- Removal and installation of the motor from the regulator assembly.

- Removal and installation of the harness connector of the power window switch.

- Operation of the regulator assembly as a unit.

- Removal and installation of the door glass.

- Removal and installation of the door glass run.

- Window is partly opened and or closed multiple times with out being fully closed.

• To perform system initialization, refer to

PWC-29, "Work Procedure"

.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM.

To inspect the anti-pinch system, refer to

PWC-29, "Work Procedure"

.

FRONT POWER WINDOW MOTOR

GW-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT POWER WINDOW MOTOR

Removal and Installation

INFOID:0000000009758191

REMOVAL

1. Remove the front door glass regulator (2). Refer to

GW-16,

"Removal and Installation"

.

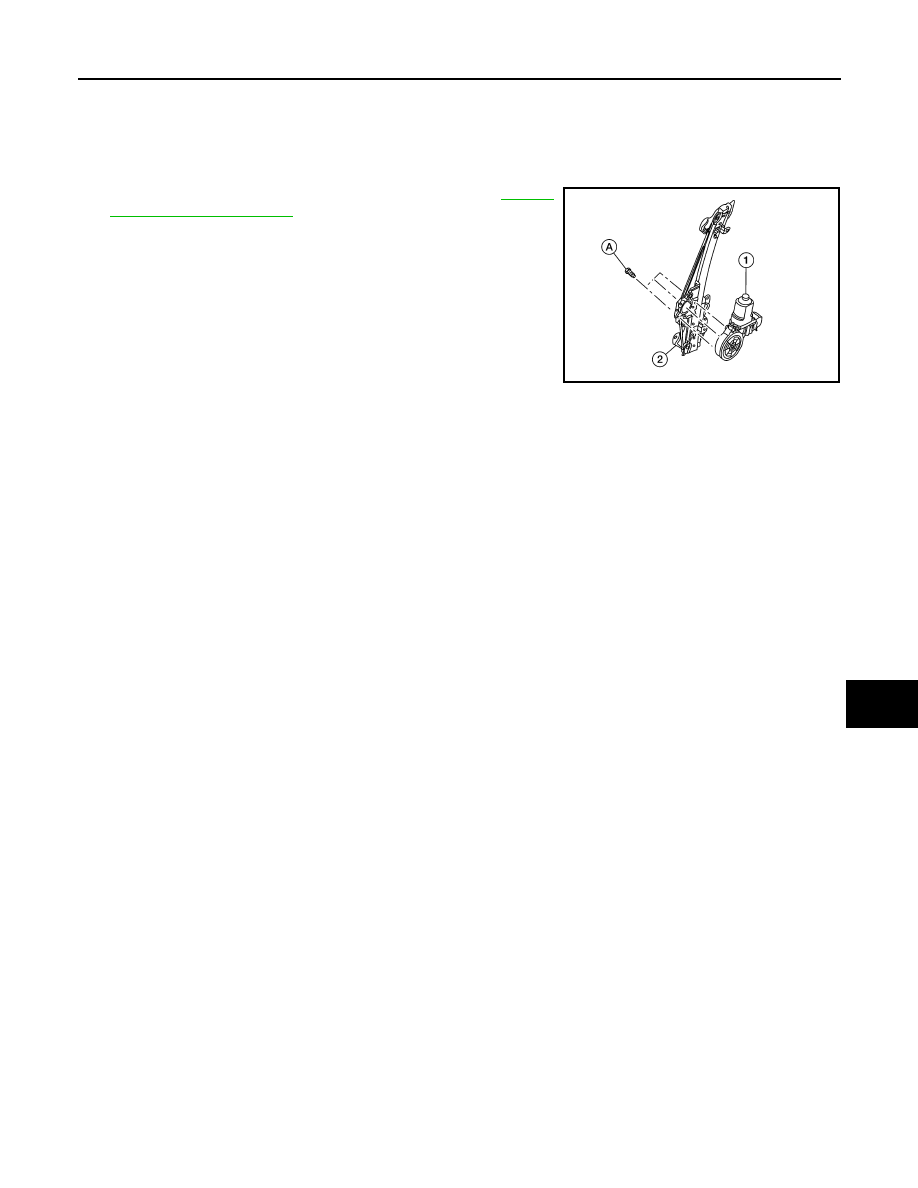

2. Remove the bolts (A) and the front power window motor (1).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2638ZZ

GW-20

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS

REAR DOOR GLASS

Removal and Installation

INFOID:0000000009758192

REMOVAL

NOTE:

LH rear door panel shown; RH similar.
1. Remove the rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the vapor barrier.

CAUTION:

Use care to not damage or tear vapor barrier during removal.

3. Remove the rear door window run rubber.

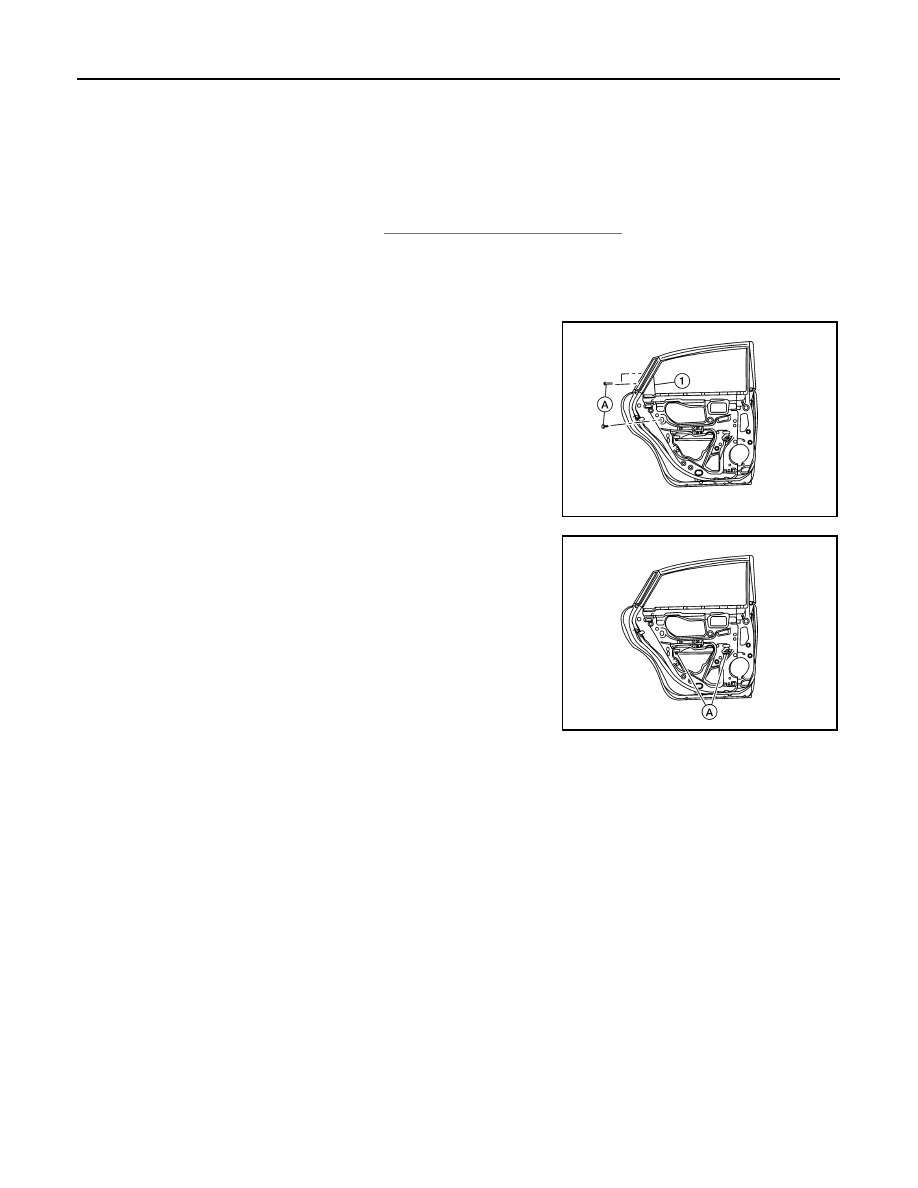

4. Remove bolts (A) and rear door glass rear run channel (1).

5. Temporarily reconnect the rear power window switch to raise/

lower the rear door glass until the rear door regulator to glass

bolts (A) can be seen through the access holes.

6. Remove the rear door glass to regulator bolts (A).

7. Remove the rear door glass.

INSTALLATION

Installation is in the reverse order of removal.

• After installation inspect and adjust as necessary.

REAR DOOR GLASS INSPECTION AFTER INSTALLATION

• Check that the door glass is securely set into the glass run groove.

• Lower the glass slightly [approx. 10 to 20 mm (0.4 to 0.8 in)], and make sure the clearance to the sash is par-

allel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts, guide

rail mounting bolts, and glass and carrier plate mounting bolts to correct the glass position.

ALKIA2636ZZ

ALKIA2635ZZ

REAR REGULATOR

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR REGULATOR

Exploded View

INFOID:0000000009758193

Removal and Installation

INFOID:0000000009758194

NOTE:

RH rear door panel shown; LH side similar

REMOVAL

1. Remove the rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the vapor barrier.

CAUTION:

Use care to not damage or tear vapor barrier during removal.

3. Partially remove the rear door window run rubber.

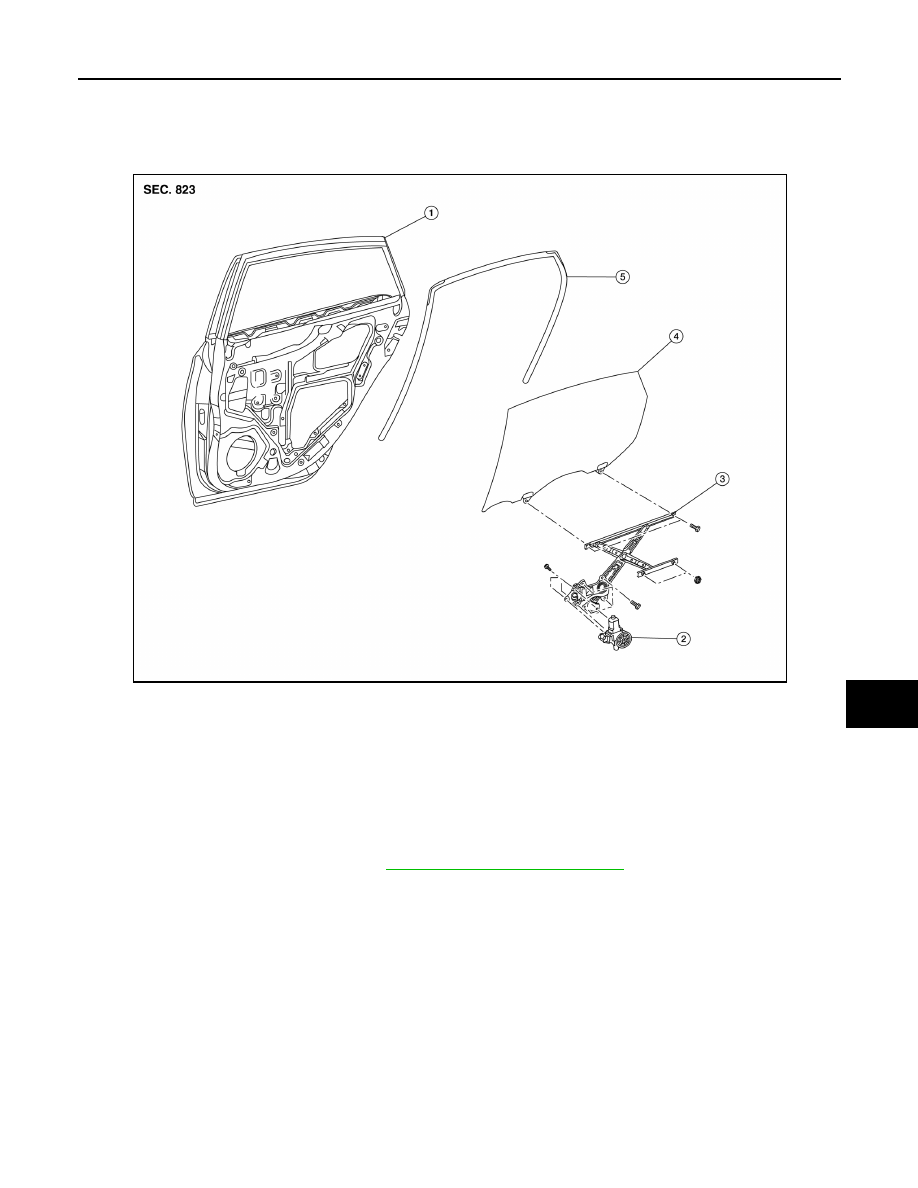

1.

Rear door panel

2.

Rear door glass regulator motor 3.

Rear door glass regulator

4.

Rear door glass

5.

Rear door glass rubber run

ALKIA2813ZZ
