EXT-28

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR : Removal and Installation - Front Fender Protector

INFOID:0000000009758041

REMOVAL

1. Remove front wheel and tire. Refer to

WT-47, "Adjustment"

.

2. Remove front fender protector screws and clips.
3. Remove front fender protector from wheel house.

INSTALLATION

Installation is in the reverse order of removal.

FENDER PROTECTOR : Exploded View

INFOID:0000000009758042

1.

Front fender protector

2.

Front wind deflector

A. U nut

B. Rivet

C. Grommet

Front

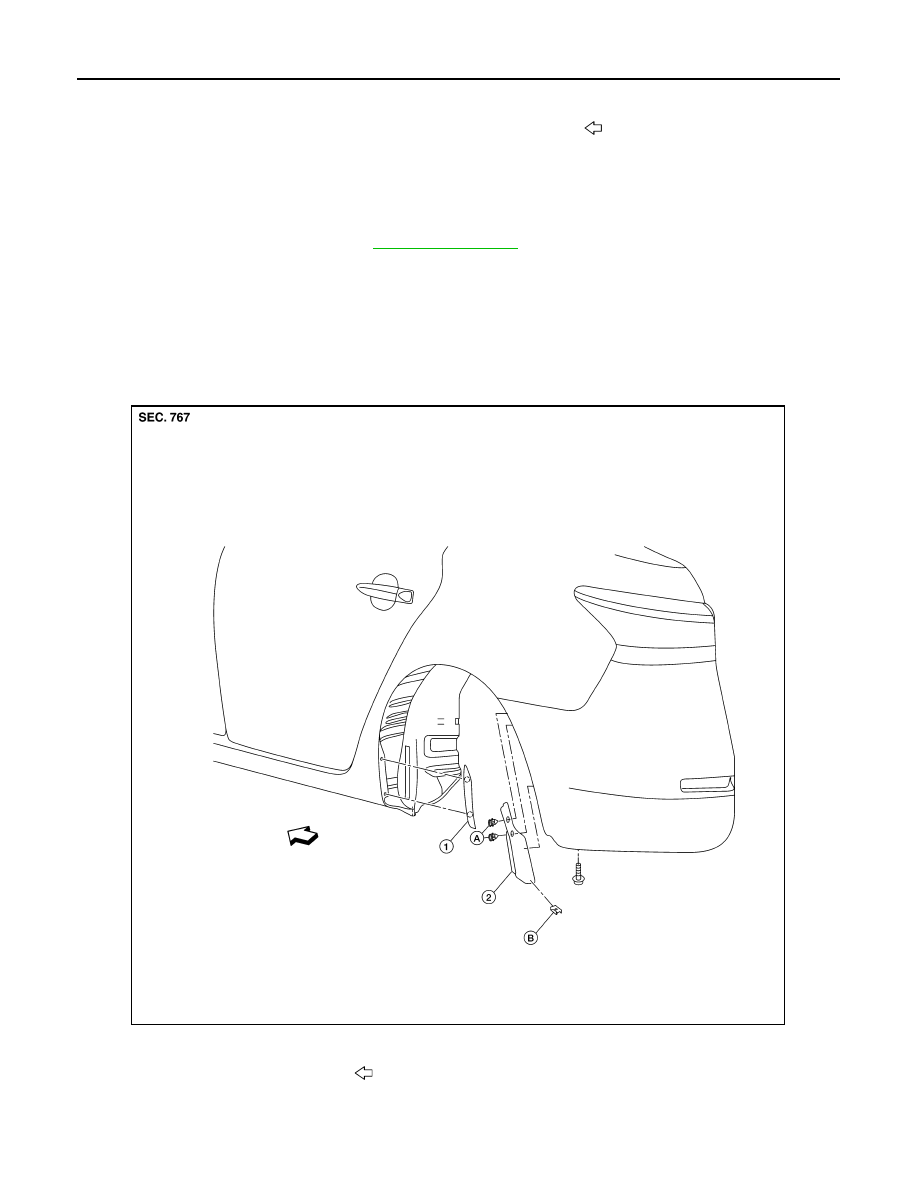

1.

Rear wheel opening molding

2. Rear fender protector

A. Clip

B. U-clip

Front

AWKIA2119ZZ

FENDER PROTECTOR

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR : Removal and Installation - Rear Fender Protector

INFOID:0000000009758043

REMOVAL

1. Release the rear wheel opening molding pawls and remove rear wheel opening molding.
2. Remove the rear fender protector clips, bolt and the rear fender protector.

INSTALLATION

Installation is in the reverse order of removal.

REAR WIND DEFLECTOR
REAR WIND DEFLECTOR : Exploded View

INFOID:0000000009758044

REAR WIND DEFLECTOR : Removal and Installation

INFOID:0000000009758045

REMOVAL

1. Remove the rear wind deflector screws and the rear wind deflector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear wind deflector

Front

AWKIA2117ZZ

EXT-30

< REMOVAL AND INSTALLATION >

UNDER COVER

UNDER COVER

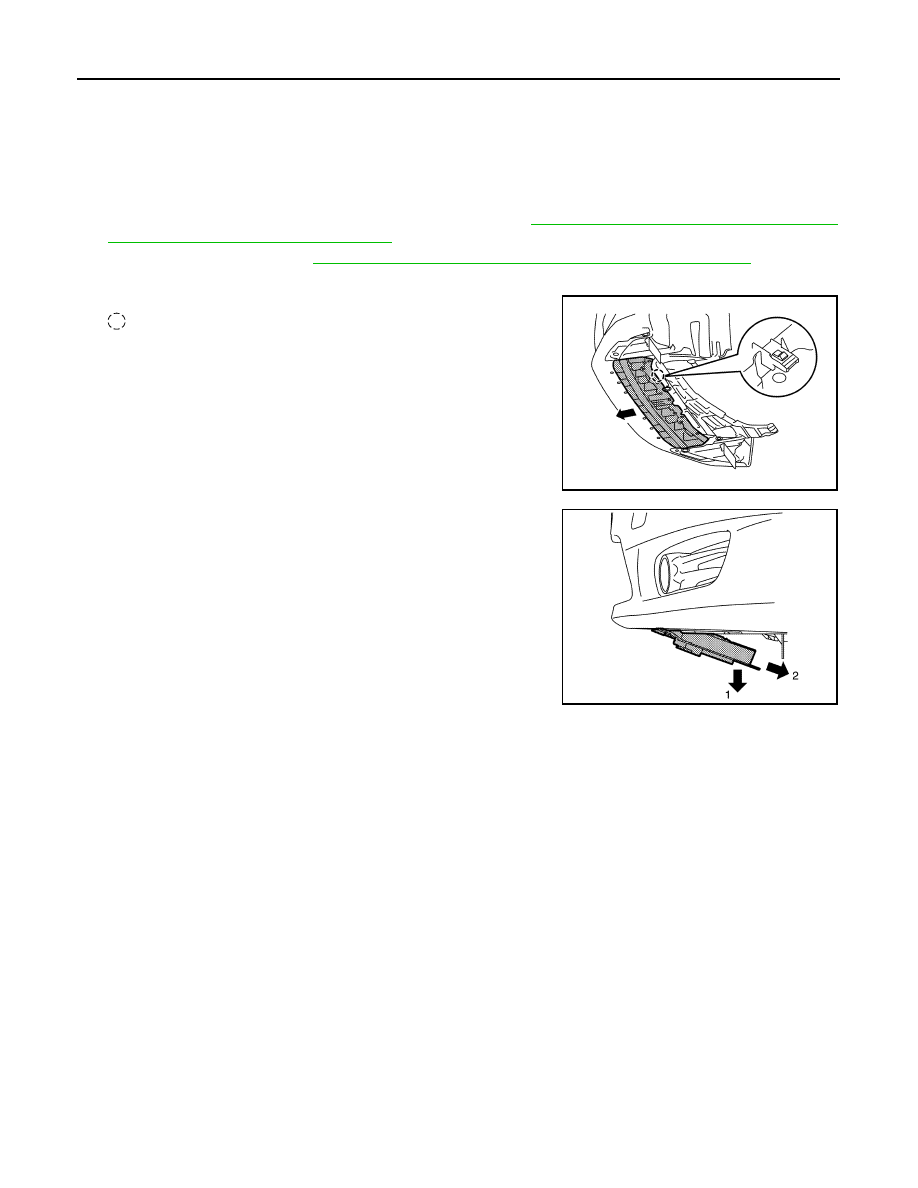

FRONT UNDER COVER
FRONT UNDER COVER : Removal and Installation

INFOID:0000000009758046

REMOVAL

1. Remove front side of front fender protector (LH/RH). Refer to

EXT-28, "FENDER PROTECTOR : Removal

and Installation - Front Fender Protector"

.

2. Remove engine under cover.

EXT-31, "ENGINE UNDER COVER : Removal and Installation"

3. Remove front under cover bolts and clips.
4. Slide front under cover toward vehicle front to release pawl.

: Pawl

5. Pull toward the direction of the arrows as shown to remove front

under cover.

INSTALLATION

Installation is in the reverse order of removal.

ENGINE UNDER COVER

AWKIA2109ZZ

JMKIA8625ZZ

UNDER COVER

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

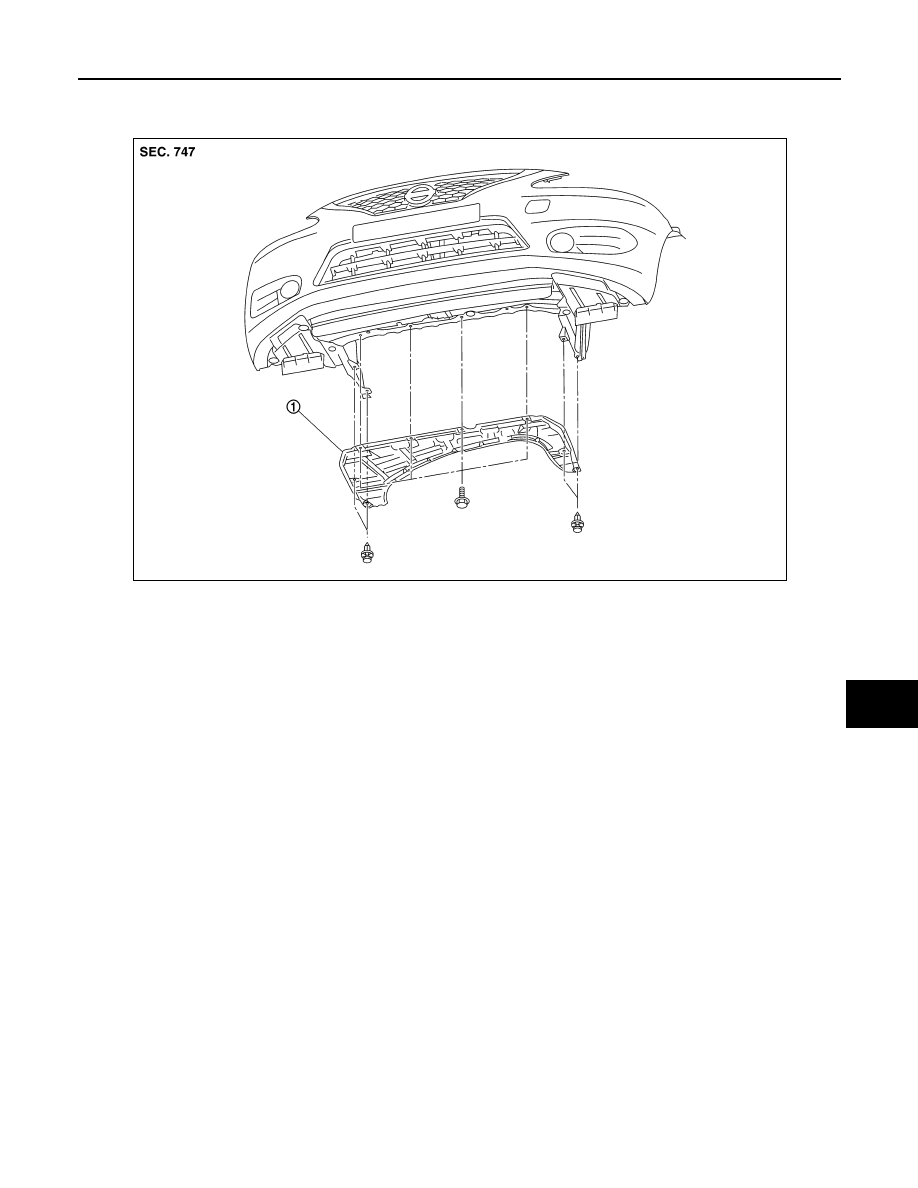

ENGINE UNDER COVER : Exploded View

INFOID:0000000009758047

ENGINE UNDER COVER : Removal and Installation

INFOID:0000000009758048

REMOVAL

Remove engine under cover bolts, clips and engine under cover.

INSTALLATION

Installation is in the reverse order of removal.

1. Engine under cover

AWKIA2116ZZ
