Description ............................................................

114

Diagnosis Procedure .............................................

114

PERIODIC MAINTENANCE .......................

115

HEADLAMP ......................................................

115

Aiming Adjustment  ................................................

115

FRONT FOG LAMP ..........................................

117

Aiming Adjustment  ................................................

117

REMOVAL AND INSTALLATION .............

119

FRONT COMBINATION LAMP ........................

119

Exploded View  ......................................................

119

Removal and Installation .......................................

119

Bulb Replacement .................................................

120

FRONT FOG LAMP ..........................................

122

Removal and Installation .......................................

122

DOOR MIRROR TURN SIGNAL LAMP ...........

123

Removal and Installation .......................................

123

HIGH-MOUNTED STOP LAMP ........................

124

Removal and Installation .......................................

124

Bulb Replacement .................................................

124

LICENSE PLATE LAMP  ..................................

125

Removal and Installation .......................................

125

Bulb Replacement .................................................

125

REAR COMBINATION LAMP .........................

126

Exploded View .......................................................

126

Removal and Installation  .......................................

126

Bulb Replacement  .................................................

127

COMBINATION SWITCH ................................

128

Exploded View .......................................................

128

Removal and Installation  .......................................

128

HAZARD SWITCH  ..........................................

129

Removal and Installation  .......................................

129

OPTICAL SENSOR .........................................

130

Removal and Installation  .......................................

130

UNIT DISASSEMBLY AND ASSEMBLY  ..

131

FRONT COMBINATION LAMP  ......................

131

Exploded View .......................................................

131

Disassembly and Assembly ...................................

131

REAR COMBINATION LAMP .........................

133

Exploded View .......................................................

133

Disassembly and Assembly ...................................

133

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

135

SERVICE DATA AND SPECIFICATIONS
(SDS) ...............................................................

135

Bulb Specifications  ................................................

135

EXL-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009757466

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009757467

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

PREPARATION

EXL-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009757468

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

( J-46534 )
Trim Tool Set

Removing trim components

AWJIA0483ZZ

EXL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

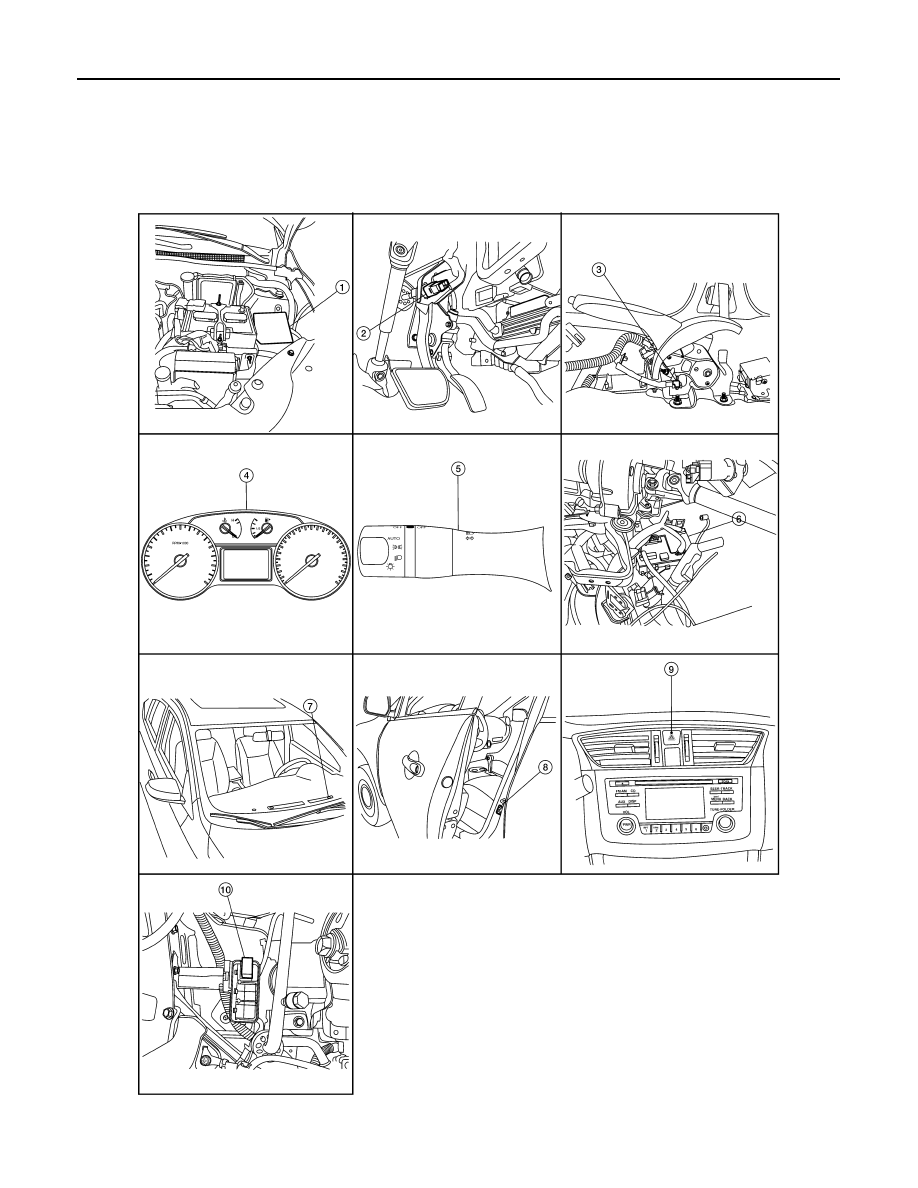

Component Parts Location

INFOID:0000000009757469

AWLIA2057ZZ
