DMS-20

< DTC/CIRCUIT DIAGNOSIS >

[ECO MODE (M/T)]

ECO MODE

ECO MODE

Component Function Check

INFOID:0000000009755904

1.

 CHECK ECO MODE OPERATION

1. Turn ignition switch ON.

2. Check ECO mode indicator lamp turns ON/OFF on combination meter when turn ECO mode switch ON/

OFF.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Proceed to

DMS-20, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009755905

1.

CHECK DTC IN ECM

With CONSULT

Check “Self Diagnostic Results” in “ENGINE”.
Are any DTC detected?

YES

>> Check DTC detected item. Refer to

EC-94, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DTC IN COMBINATION METER

With CONSULT

Check “Self Diagnostic Results” in “METER/M&A”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

MWI-26, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK COMBINATION METER

With CONSULT

1. Select “Data Monitor” in “METER/M&A”.

2. Check that “ECO MODE IND” turns ON/OFF when ECO mode switch is operated. Refer to

MWI-20, "Ref-

erence Value"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-77, "Removal and Installation"

.

NO

>> GO TO 4.

4.

CHECK ECO MODE SWITCH SYSTEM

Check ECO mode switch system. Refer to

DMS-16, "Component Function Check"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair or replace error-detected parts.

DMS

ECO MODE SWITCH

DMS-21

< REMOVAL AND INSTALLATION >

[ECO MODE (M/T)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REMOVAL AND INSTALLATION

ECO MODE SWITCH

Removal and Installation

INFOID:0000000009755906

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-21, "Removal and Installation"

.

2. Remove ECO mode switch.

INSTALLATION

Installation is in the reverse order of removal.

DMS-22

< PRECAUTION >

[ECO MODE (CVT)]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010291074

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

DMS

COMPONENT PARTS

DMS-23

< SYSTEM DESCRIPTION >

[ECO MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM DESCRIPTION

COMPONENT PARTS

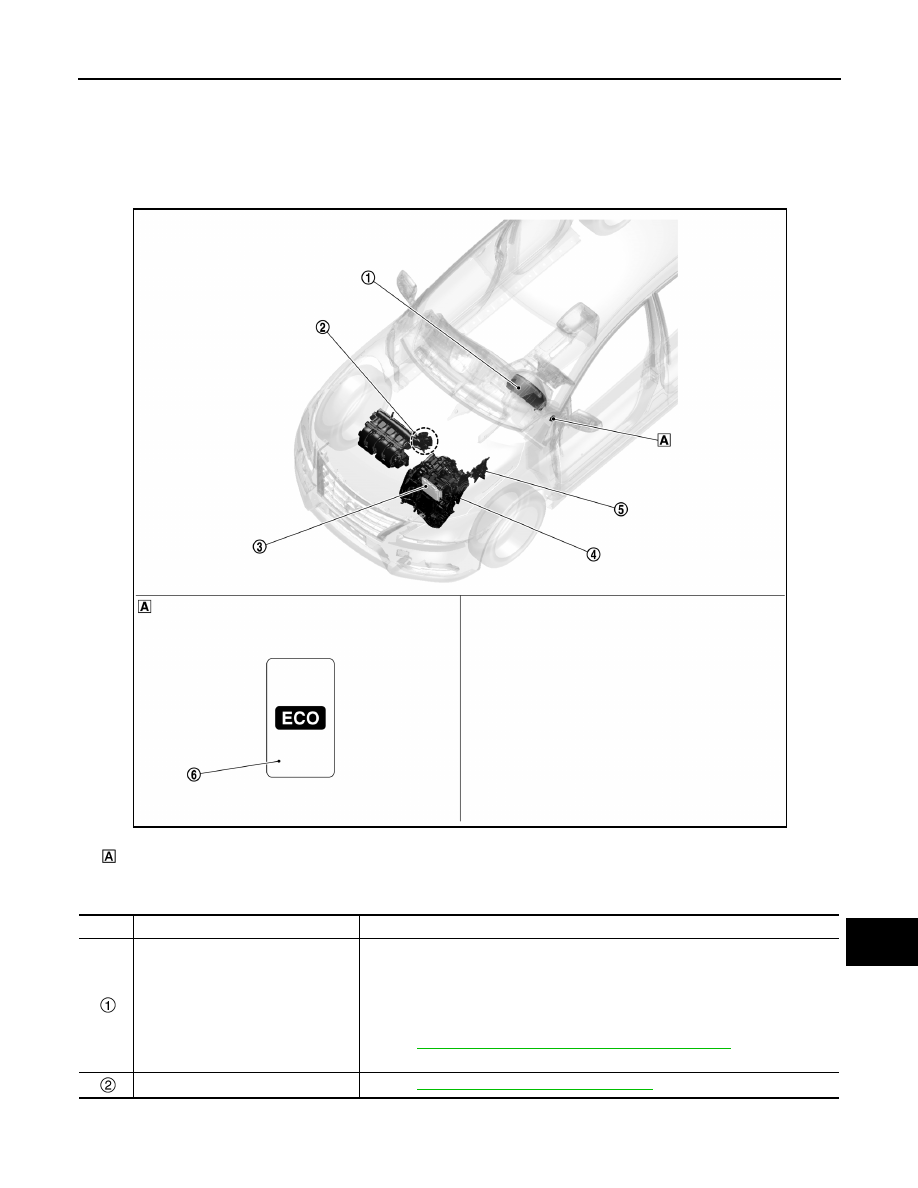

Component Parts Location

INFOID:0000000009755908

COMPONENT DESCRIPTION

Instrument lower finisher

JSOIA0678ZZ

No.

Component

Function

Combination meter

• The combination meter transmittes the following signal via CAN communications

to the TCM.

- ECO mode switch signal
• The combination meter receives the following signal via CAN communications

from the ECM.

- ECO mode indicator signal
Refer to

MWI-5, "METER SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

Electric throttle control actuator

Refer to

EC-22, "Electric Throttle Control Actuator"

.
