DLK-204

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009756524

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rattle Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry Tester

Used to test key fobs

—

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter

IDs

• Display tire pressure reported by the

TPMS transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs
• Check Intelligent Key relative signal

strength

• Confirm vehicle Intelligent Key anten-

na signal strength

• Compatible with future sensors
• Equipped with a display

SIIA0993E

ALJIA1232ZZ

LEL946A

ALEIA0131ZZ

PREPARATION

DLK-205

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Commercial Service Tools

INFOID:0000000009756525

KV48105501
(J-45295-A)
Transmitter activation tool

• Activate TPMS transmitter IDs
• Compatible with future sensors
• Equipped with a display (KV48105501

only)

—

(J-46534)
Trim Tool Set

Removing trim components

Tool number
(TechMate No.)
Tool name

Description

ALEIA0183ZZ

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

SIIA0995E

DLK-206

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

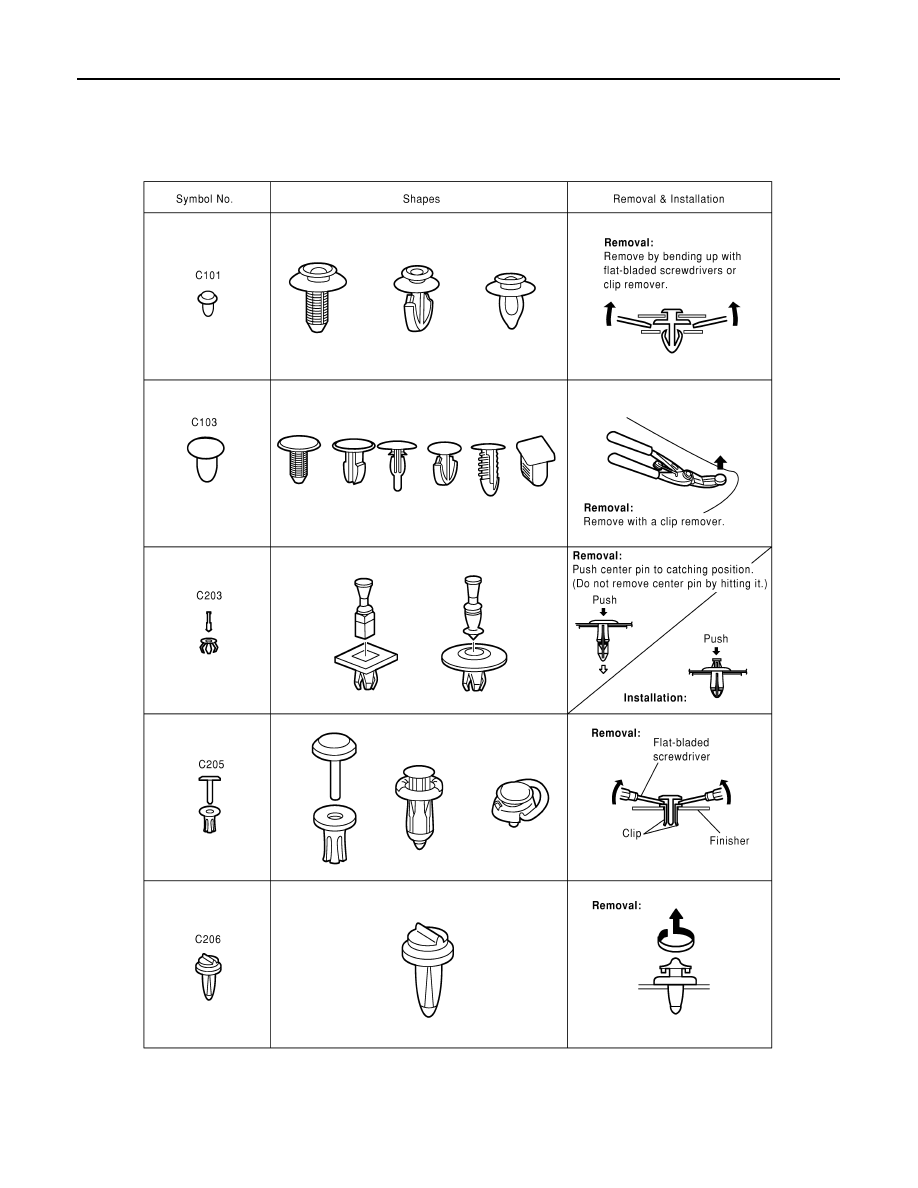

CLIP LIST

CLIP LIST

Descriptions for Clips

INFOID:0000000009756526

Replace any clips which are damaged during removal or installation.

SIIA0315E

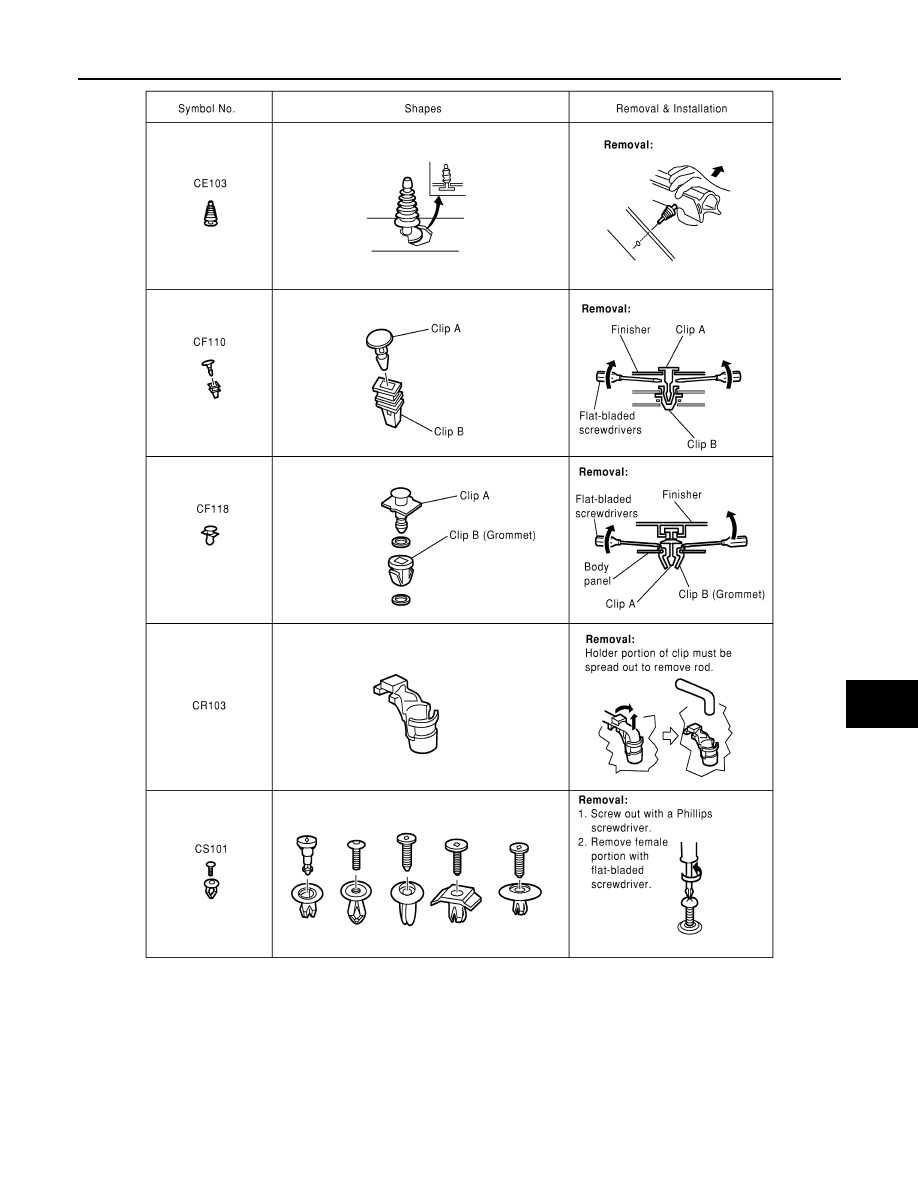

CLIP LIST

DLK-207

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SIIA0316E
